New 150cc 4 stroke go kart with 2 seats, automatic with reverse GY6 Engine
New 150cc 4 stroke go kart with 2 seats, automatic with reverse GY6 Engine
Item NO.: GC1504
Category: Off-Road Go Kart
Update:
6/28/2015 10:11:51 PM
Inquire
Print

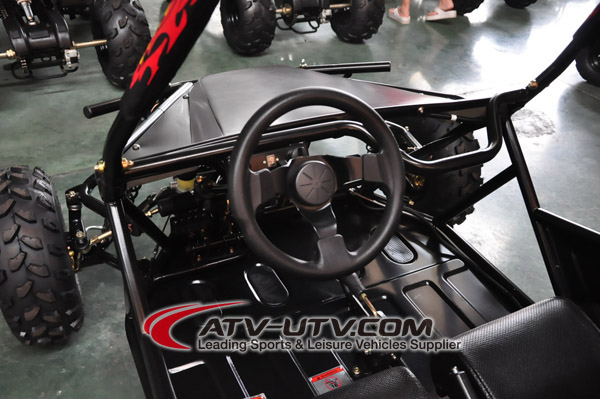

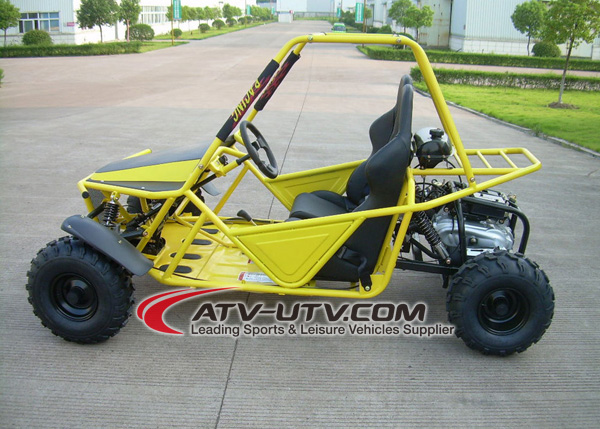

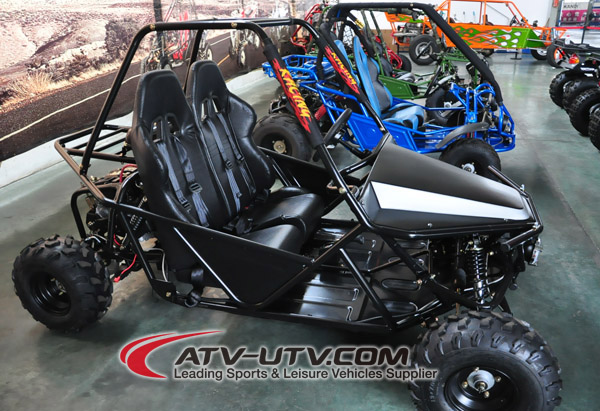

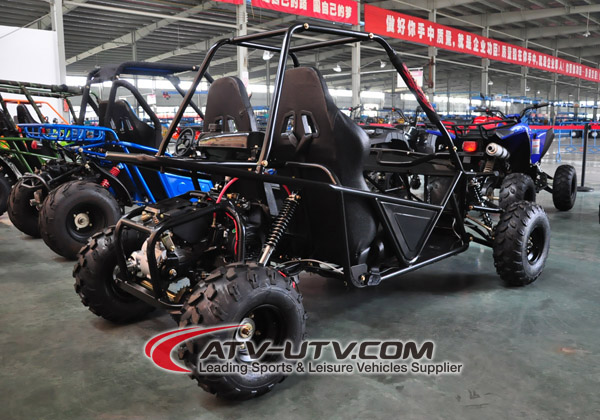

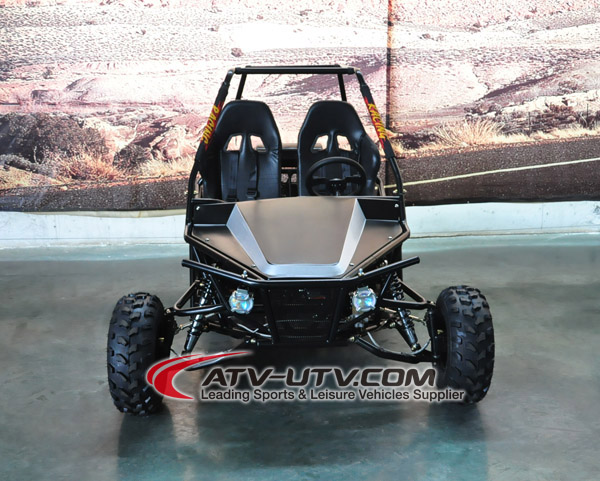

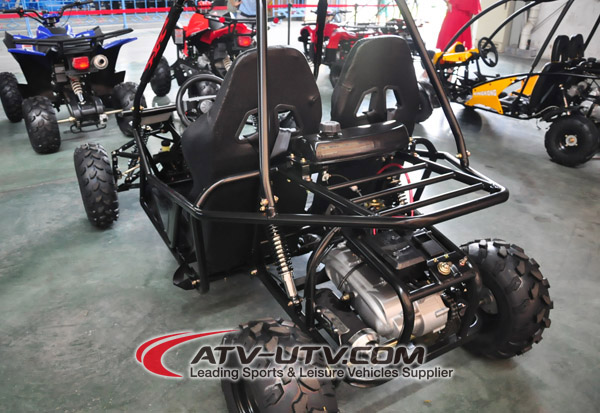

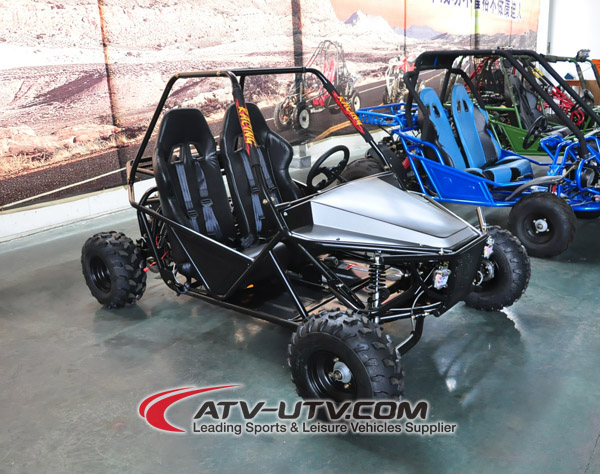

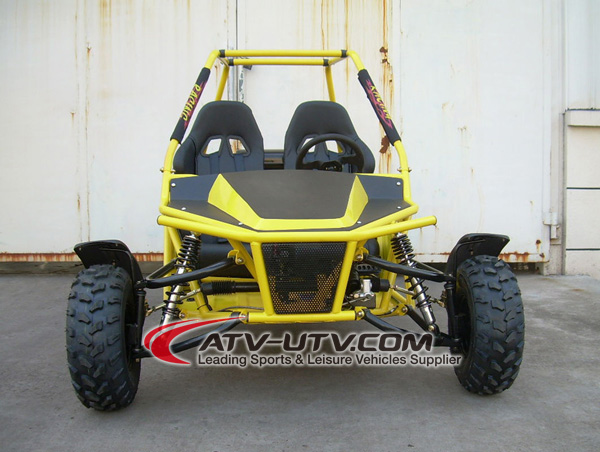

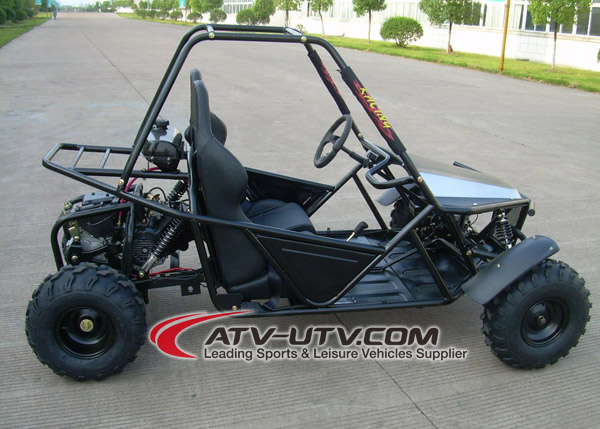

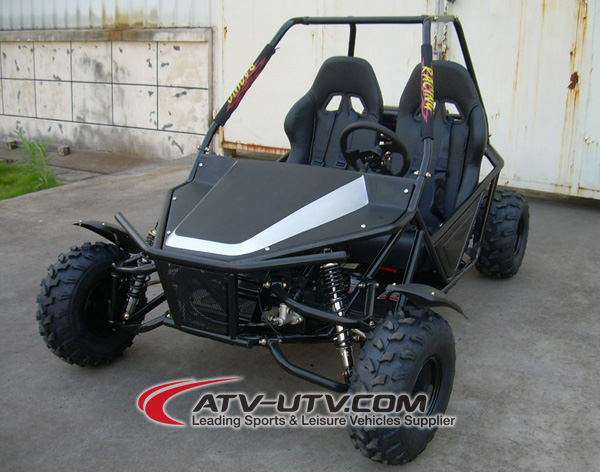

More Pictures:

New 150cc 4 stroke go kart with 2 seats, automatic with reverse GY6 Engine



Product Discription:


Go Kart
New 150cc 4 stroke go kart with 2 seats, automatic with reverse
GC1504
Key Specifications:
1.Overall size: 2330*1510*1320mm
2.Engine type: 150cc, single cylinder, 4-stroke,air cooling, Automatic with reverse
3.Rating Power: 6.5kw/7500rpm
4.Max torque: 10.5N.m/4500rpm
5.Transmission mode: Chain drive
6.Gas tank capacity: 6L
7.Fuel:Unleaded gasoline above No.90
8.Start way: Electric start
9.Battery: 12v.9Ah
10.Max. speed: 65km/h
11.Front/Rear wheel: 1330/950mm
12.Front/Rear Tyre: 19x7-8/18x9.5-8
13.Rear Brake: Hydraulic brake
14.Wheelbase: 1865mm
15.Max. load capacity: 160kg
Package: Iron cage with carton outside
1. N.W./G.W.: 230/280Kg
2. Carton size: 2320*1170*635mm
3. Conveyance: 12pcs/20’FCL 36pcs/40’HQ

http://youtu.be/7dse57Q7z34
