300CC Utility Vehicle UTV with 4 Seaters with Door UT3001
300CC Utility Vehicle UTV with 4 Seaters with Door UT3001
Item NO.: UT3001
Category: UTV
Update:
1/18/2019 2:13:48 AM
Inquire
Print

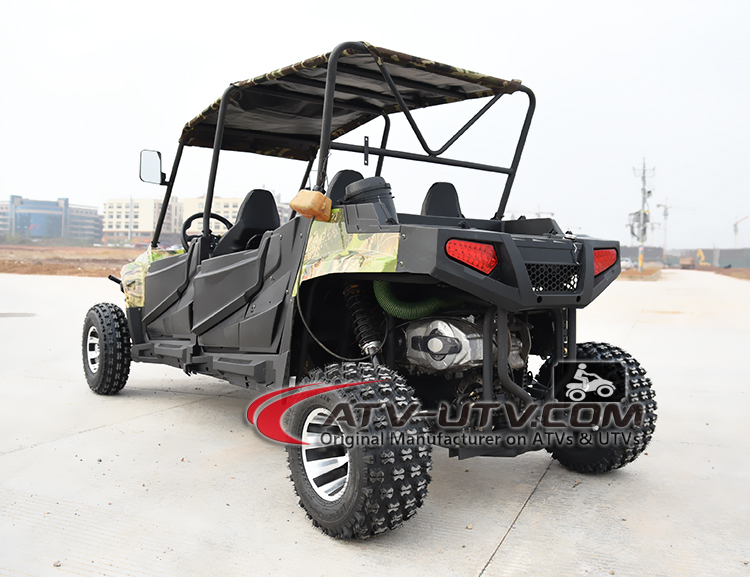

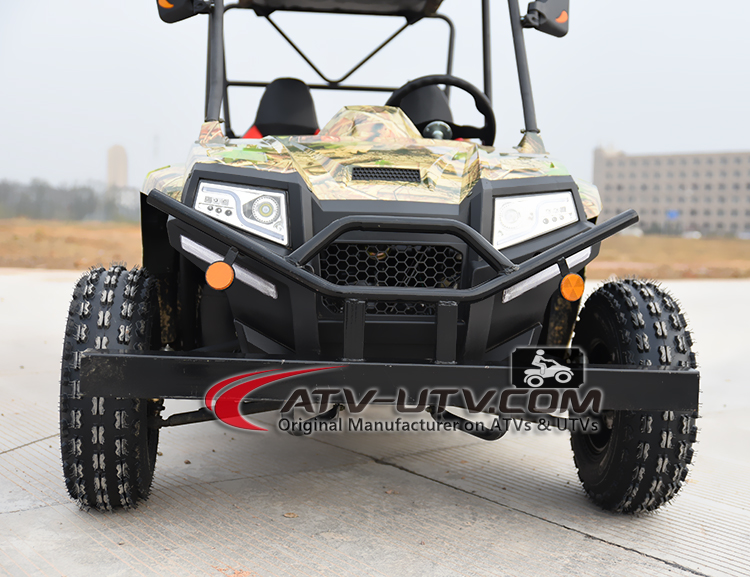

More Pictures:

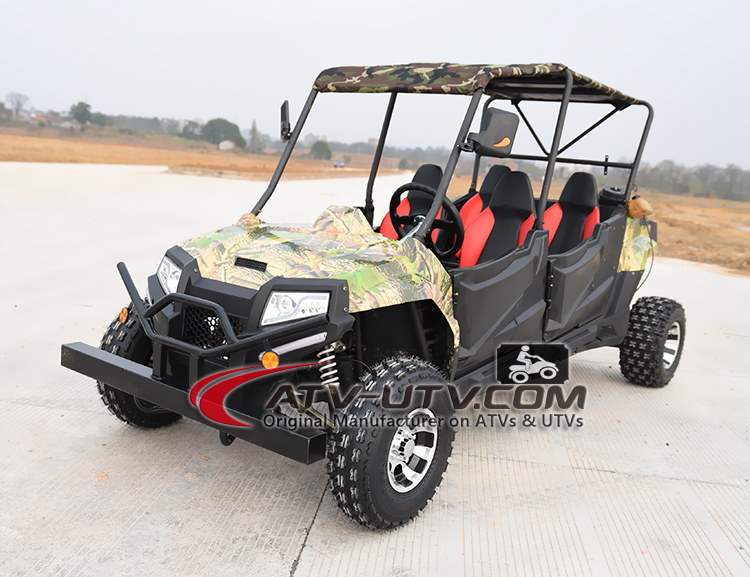

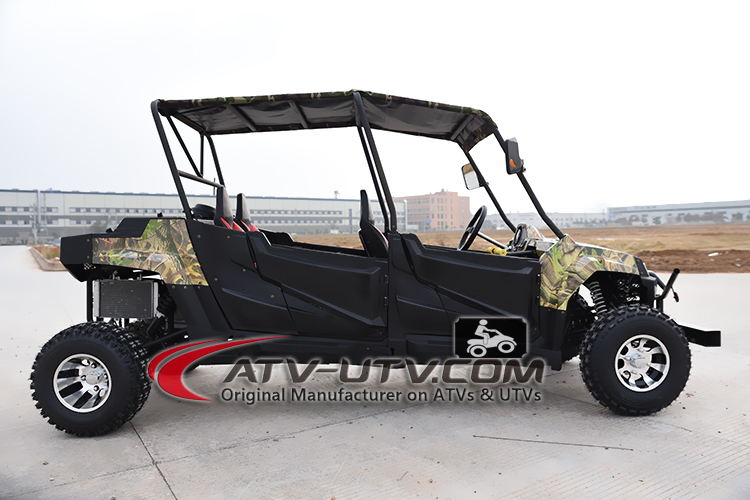

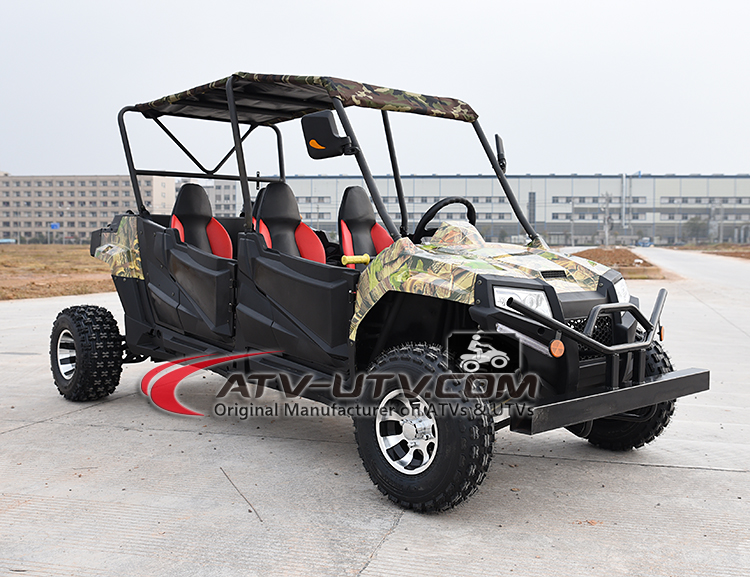

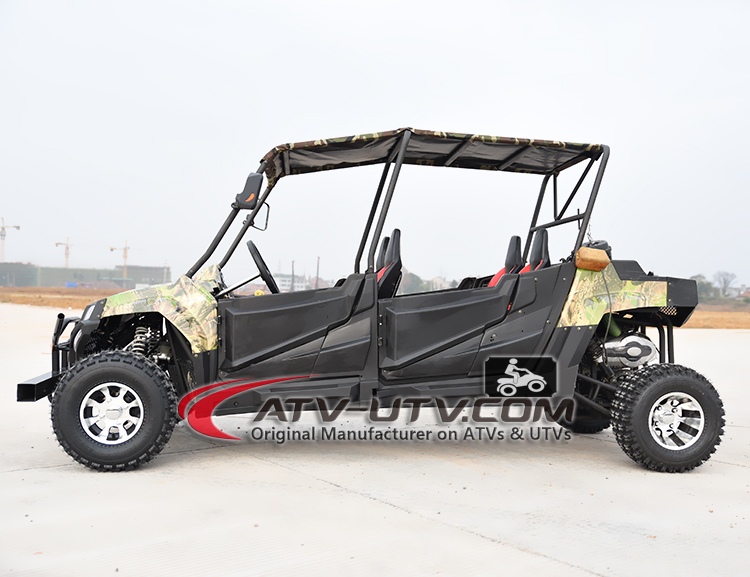

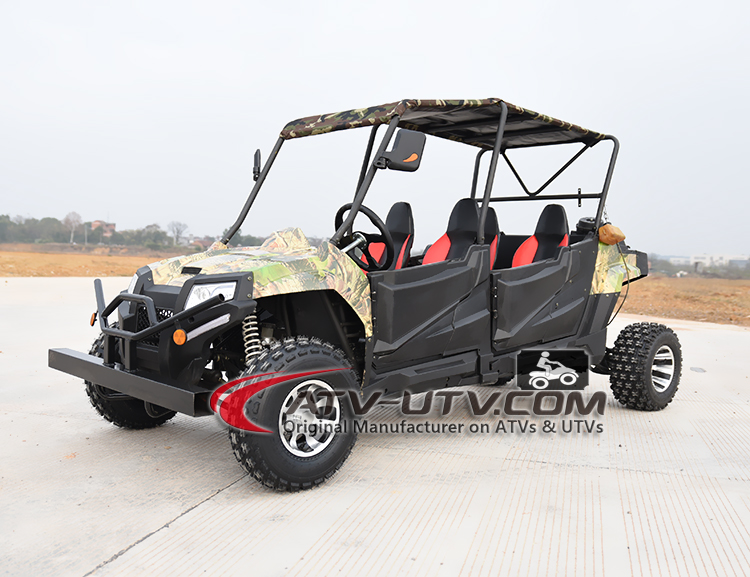

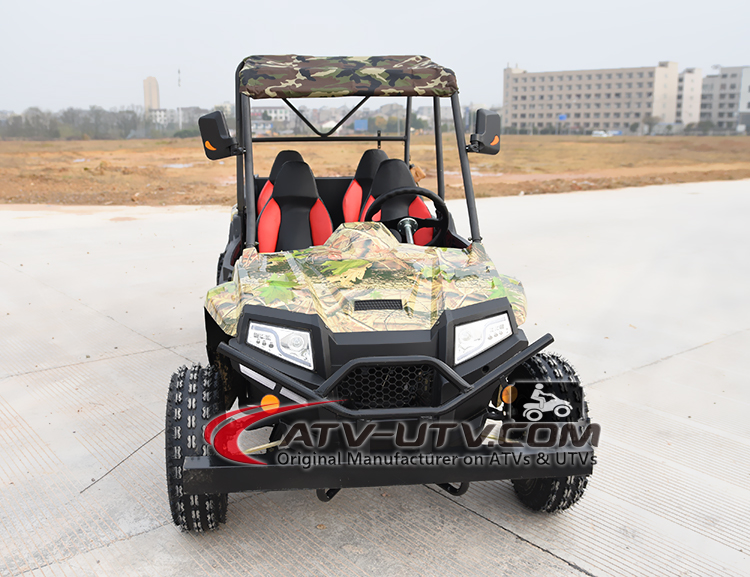

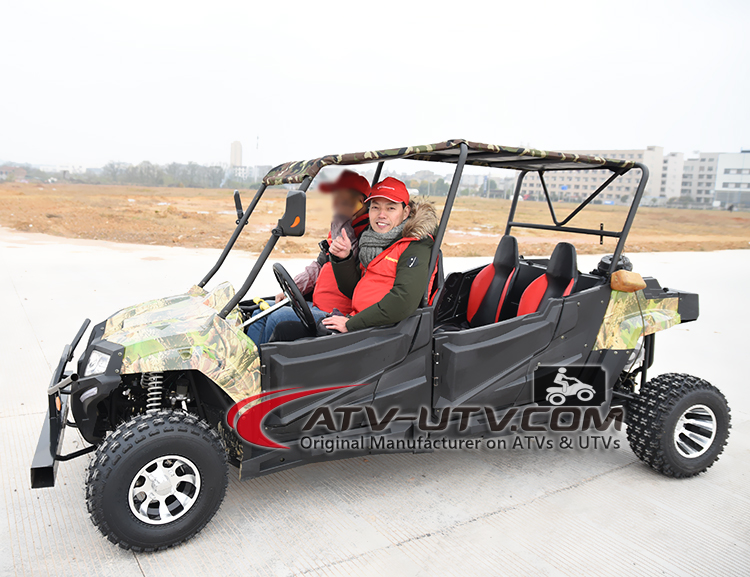

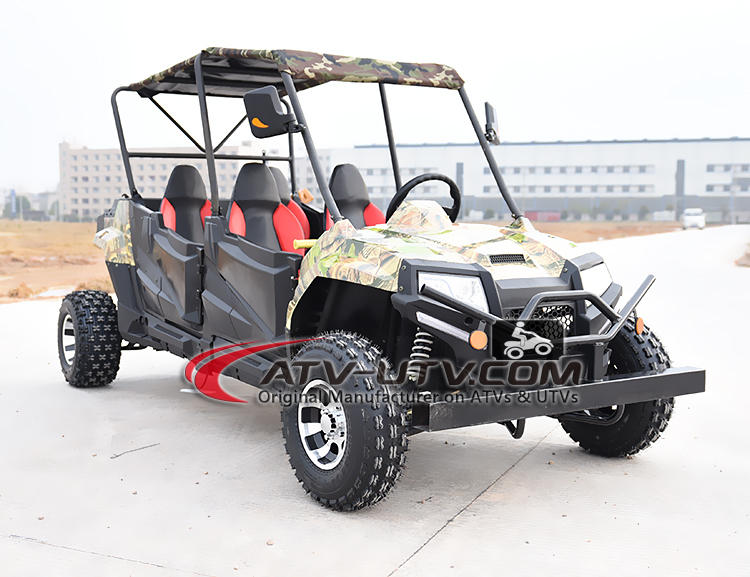

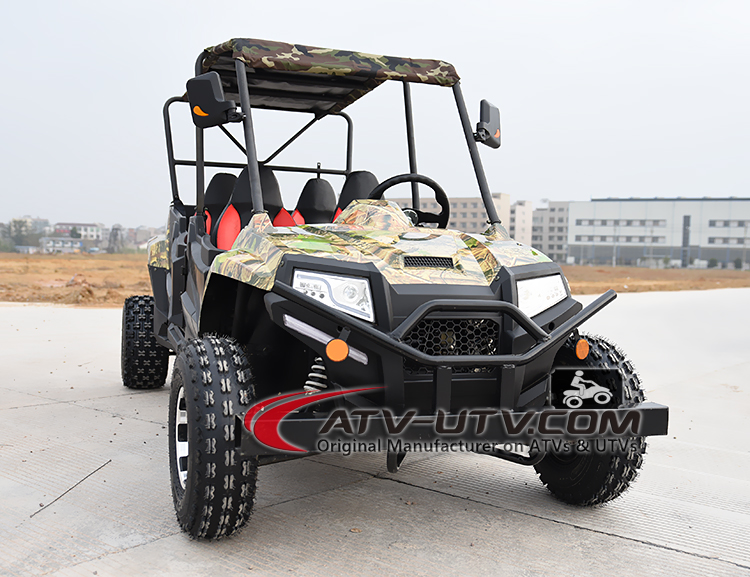

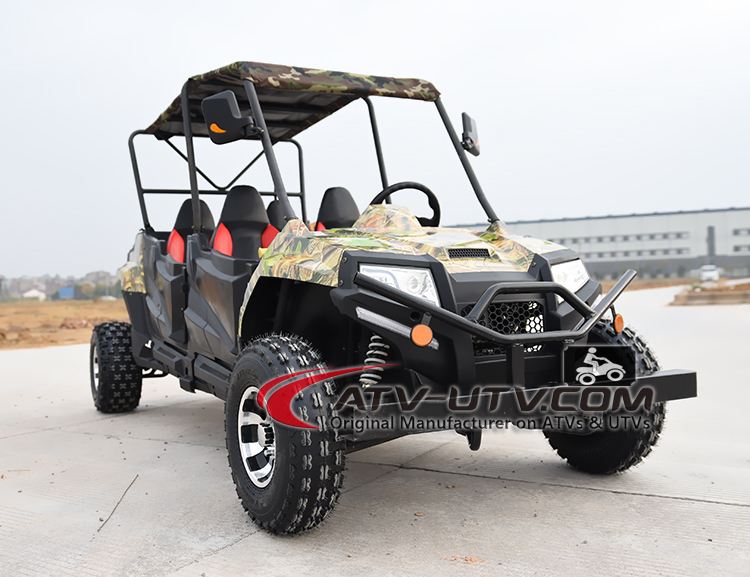

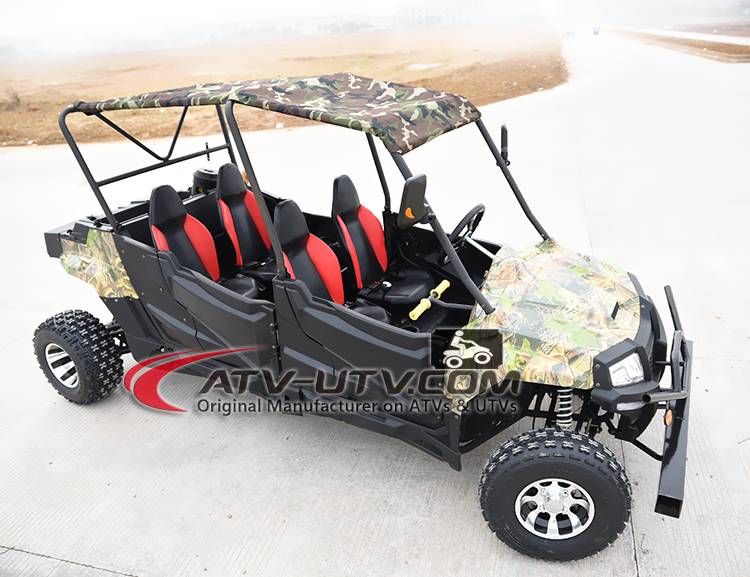

300CC Utility Vehicle UTV with 4 Seaters with Door UT3001



Product Discription:


Special Features:

* 300cc Water cooled CVT engine

* Safty belt include

* Rearview Mirror: Include

* Fabric roof: Include

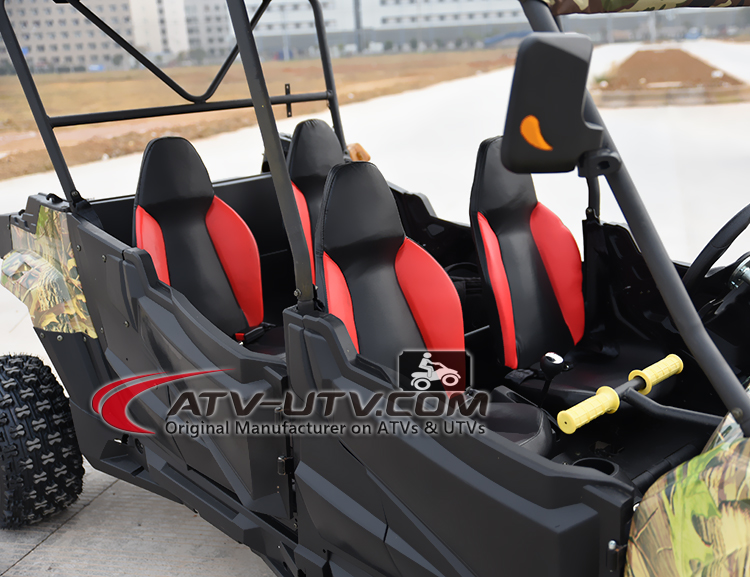

* With Four soft seat

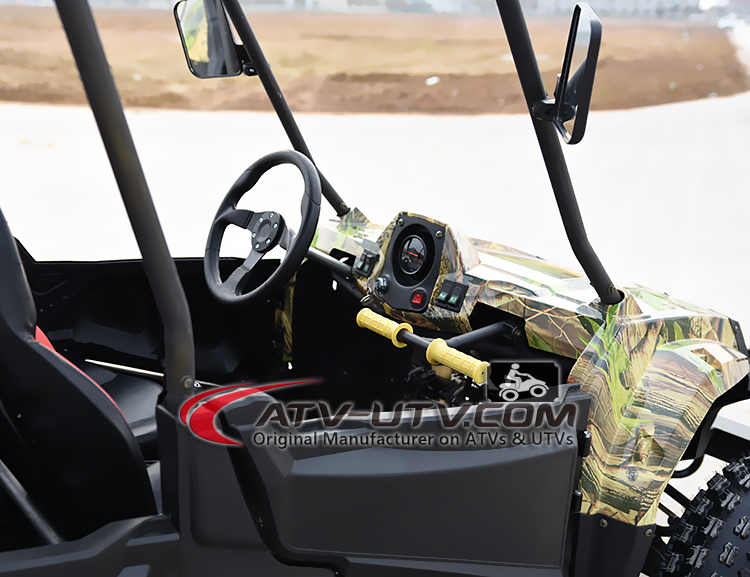

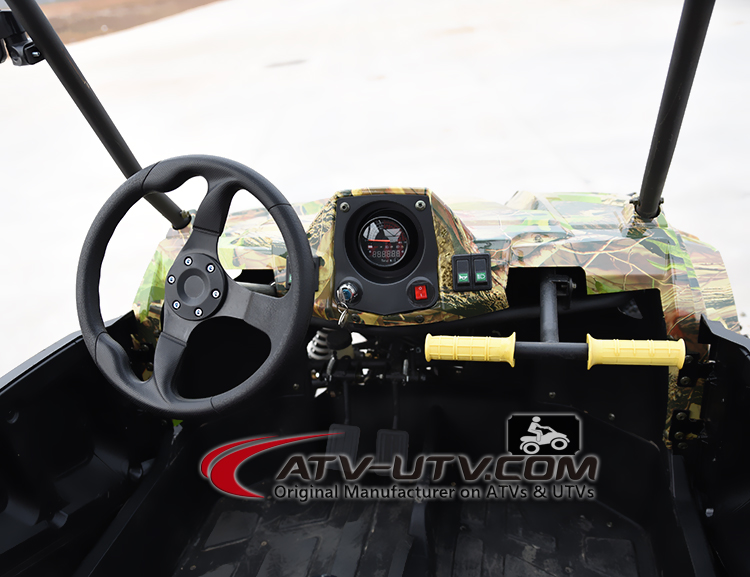

* Special safty handle bar for passanger seat

* With Handbrake for park

* With Left and right turning light

* With Distance light

* With Rearview Mirror

* Alloy wheel size: Front: 21X7-10; Rear: 20X11-10   * Windshield: Include

* With safety door





Key Specifications for basic price:

Engine type: 4-stroke, Single-Cylinder,Water cooled

Displacement: 300CC, CVT

Max power output:13Kw/6500r/pm

Max torque: 20.5NM/5000r/min

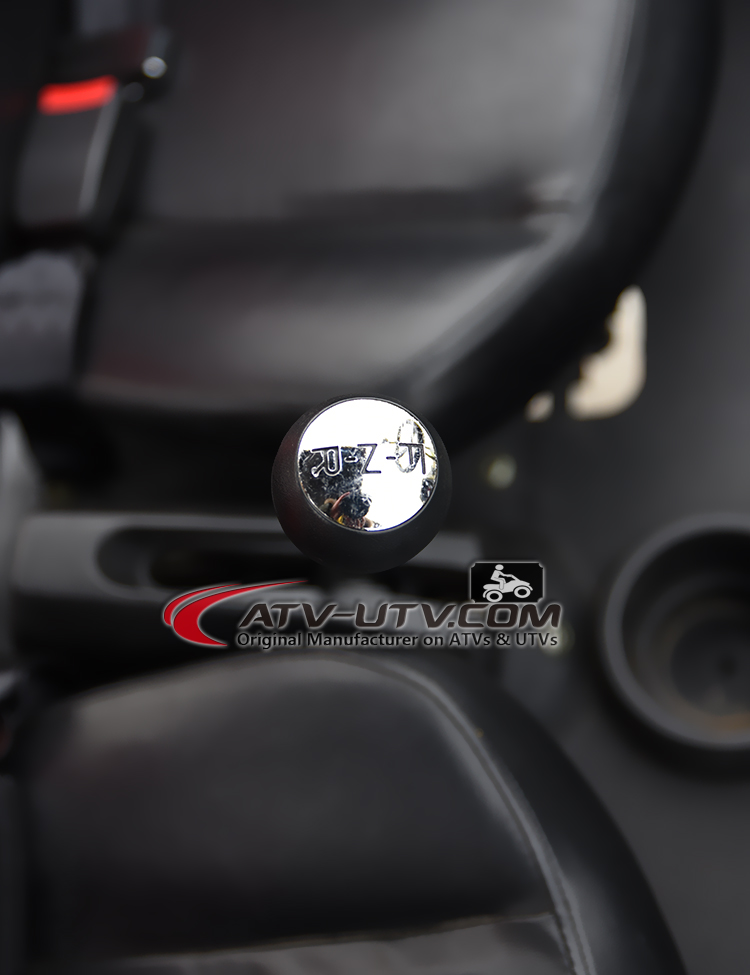

Gear: Automatic with reverse,CVT, F-N-R

Brake: Front & Rear Disc Brake, with handle brake

Starting system: Electric start

Final Drive: Chain drive

Start battery: 12V 9Ah

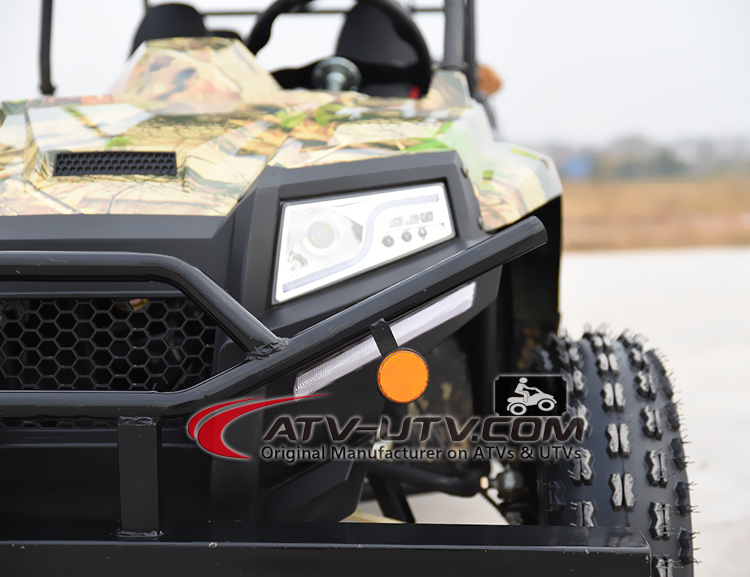

Front light: Crystal car headlights

Rear light: With E mark standard LED rear light

Wheel size: Front: 21X7-10; Rear: 20X11-10

Wheelrim: Alloy Aluminium

Ground clearance: 18cm

Overall dimensions:3.35mx1.4mx1.65m

Front wheel space: 1180mm

Rear wheel space: 1170mm

Max speed: 65km/h

Seat height: 550mm

Loading capacity: 400kgs



Package: Iron cage with carton outside

Net Weight: 550kgs

Container: 1pc/20GP,6pcs/40HQ


300CC Utility Vehicle UTV with 4 Seaters UT3001

The new Utility Vehicle UTV, has equipped a 4 stoke single cylinder water cooled 300cc gasoline engine. The UTV has 4 adult seats with safety belt. Two rear wheels shaft driving. Comfortable 4 independant shock suspensions.

The UTV sample in the video is a prototype. And now the model is ready for mass order  production. More details, please feel free to contact us.
