 Homepage >> Product Detail
CE/EEC Approved 14 Inch aluminium wheels 300CC ATV
CE/EEC Approved 14 Inch aluminium wheels 300CC ATV
Item NO.: AT3001
Category: Gas ATV
Update:
6/26/2015 2:08:56 AM
Inquire
Print

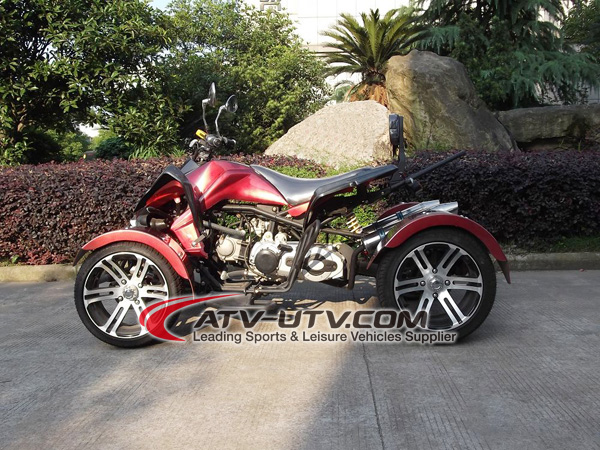

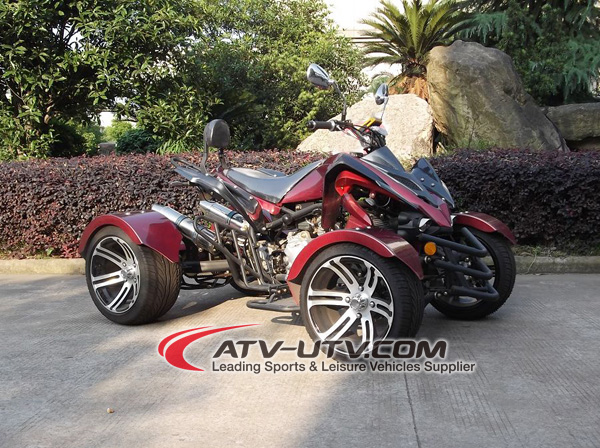

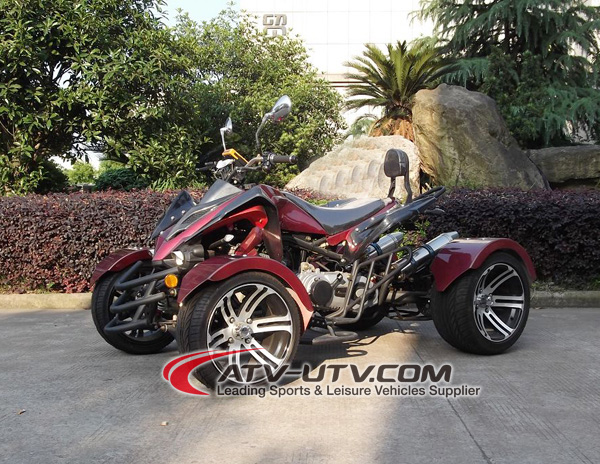

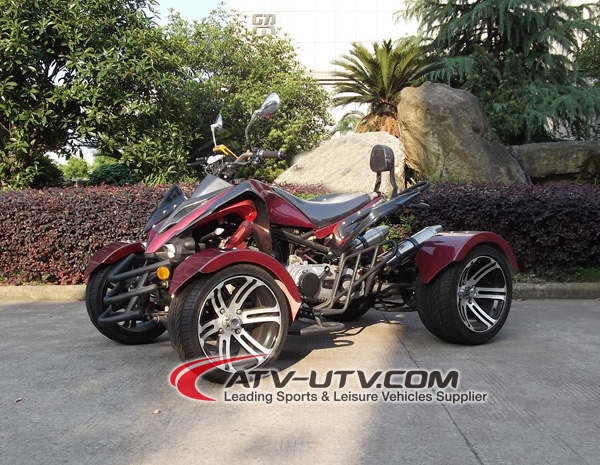

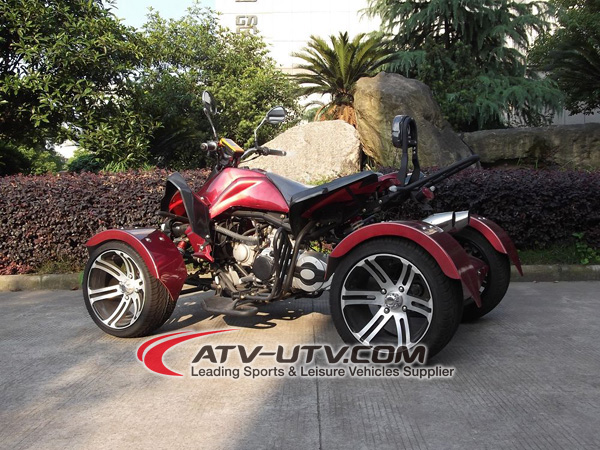

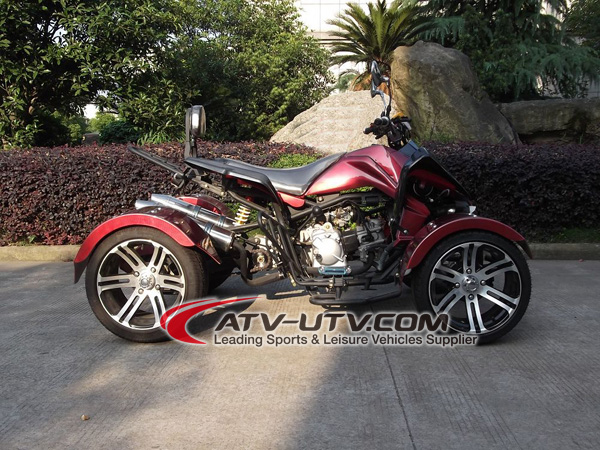

More Pictures:

CE/EEC Approved 14 Inch aluminium wheels 300CC ATV



Product Discription:
 ATV
CE/EEC Approved 14 Inch aluminium wheels 300CC ATV

AT3001
Key Specifications:
1. Wheel number: 4
2. Piston displacement: 300cc CVT
3. Engine type: single cylinder, water-cooled
4. Starting system: electric
5. Fuel tank capacity:8L
6. Drive train: chain
7. Ignition method: CDI
8. Max.power 13.0kw/6,500rpm
9. Max.Torque: 20.5N.m/5,000rpm
10. Brakes: (Front/Rear)Disc/Disc
11. Transmission: Automatic CVT,R-N-F,reverse gear,chain
12. Battery spec:12V,9AH
13. Front suspension detail:double A x swing arm,:air chamber shock absorbers
14. Rear suspension detail:divided ballonet absorber
15. Wheel side: front: 235x30-14, rear: 270x30-14
16. Vehicle dimension:198x129x100cm
17. Wheel base:142cm
18. Seat height from ground:74cm
19. Min. ground clearance: 80mm
20. Loading capacity:370kgs
Package: Iron cage with carton outside
21. Net weight: 229kgs
22. Gross weight: 252kgs
23. Carton size: 180x112x74cm/1pc
24. Container: 18pcs/20’, 39pcs/40’HQ
