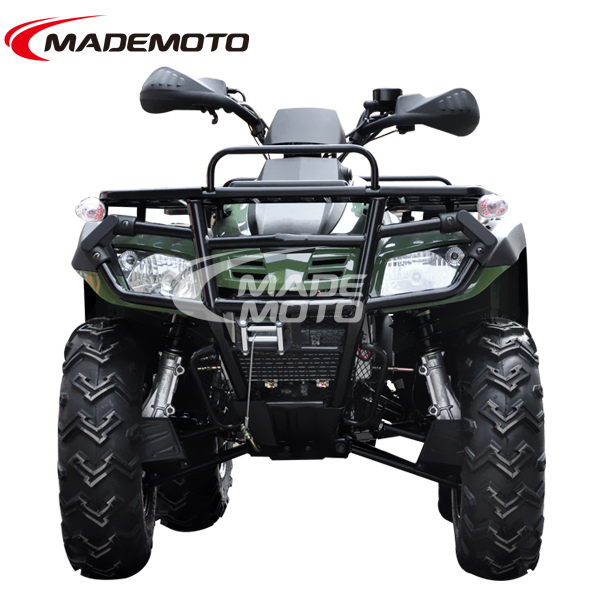

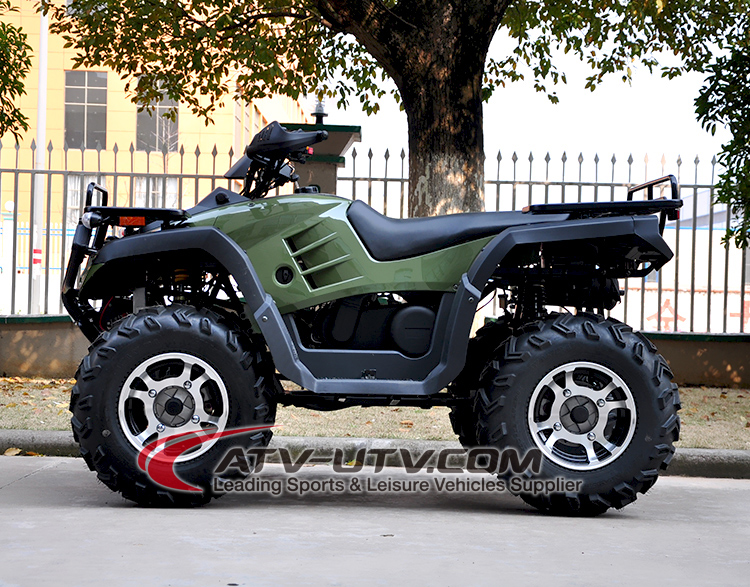

4 wheel drive Quad bike 300CC Gas ATV With Shaft drive AT3004 4X4
4 wheel drive Quad bike 300CC Gas ATV With Shaft drive AT3004 4X4
Item NO.: AT3004 4X4
Category: Gas ATV
Update:
5/20/2016 10:54:55 PM
Inquire
Print
More Pictures:

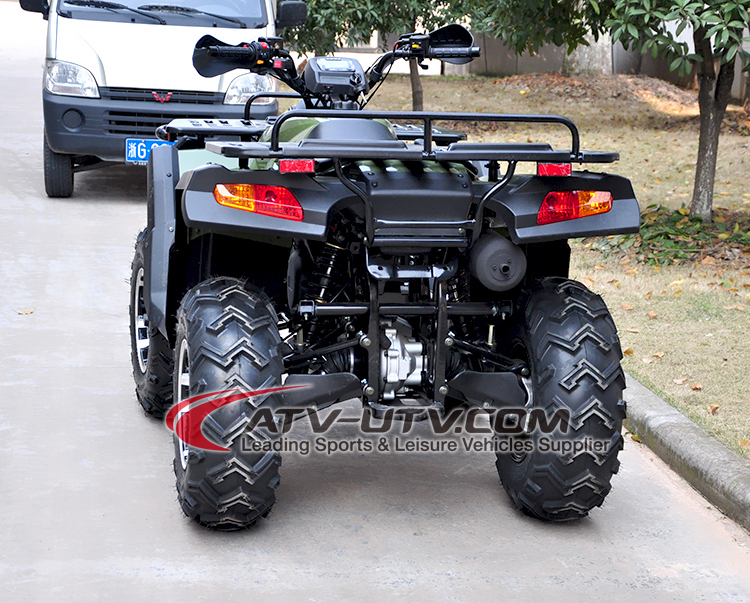

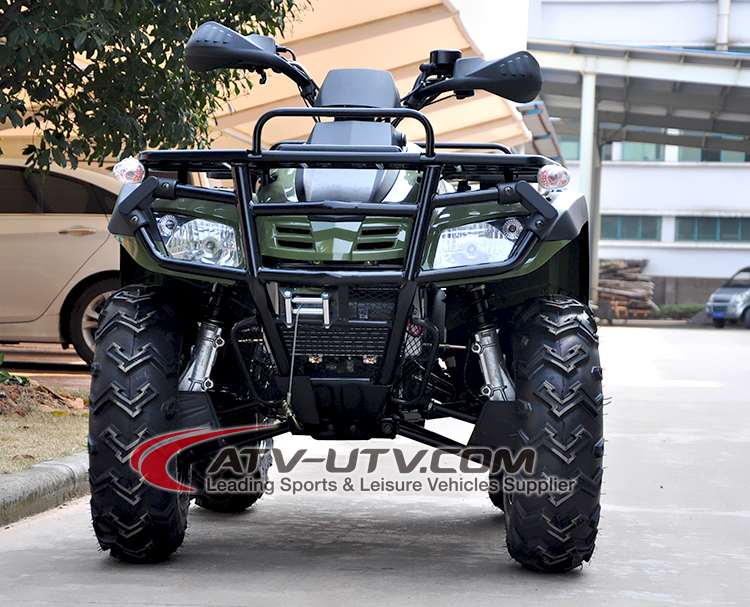

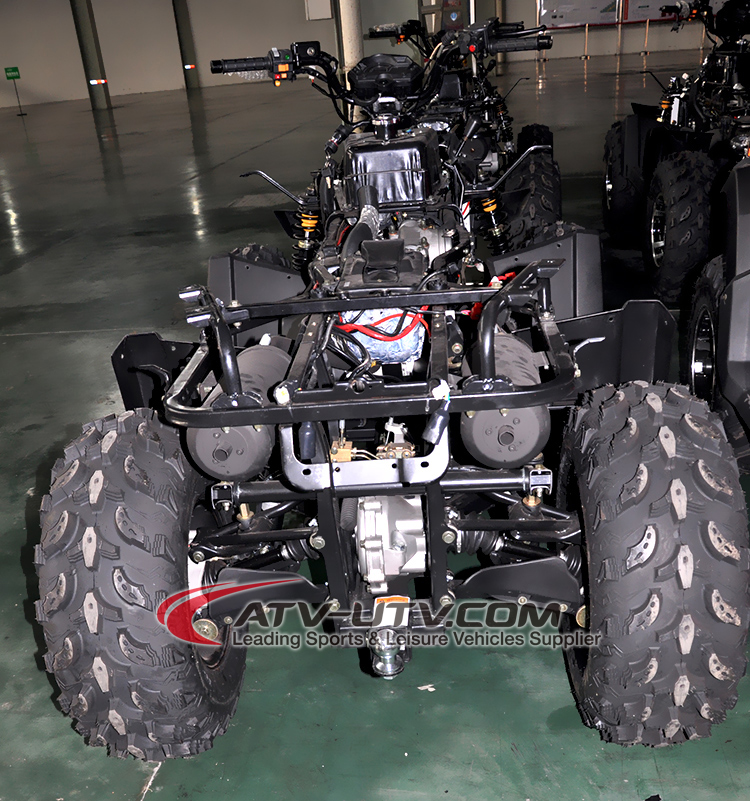

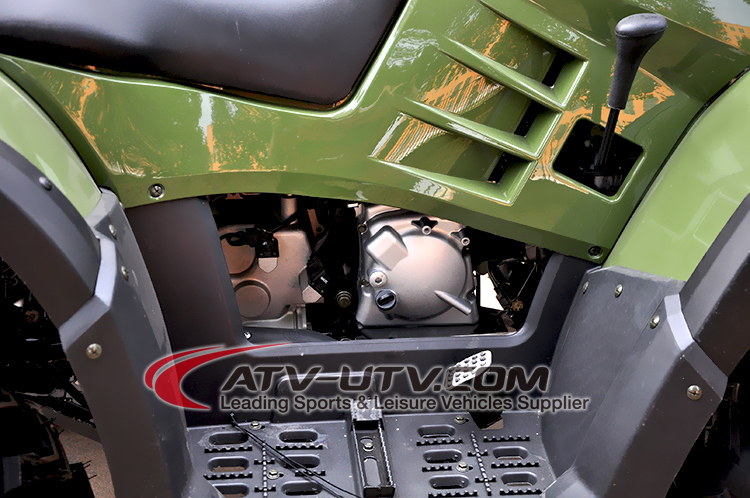

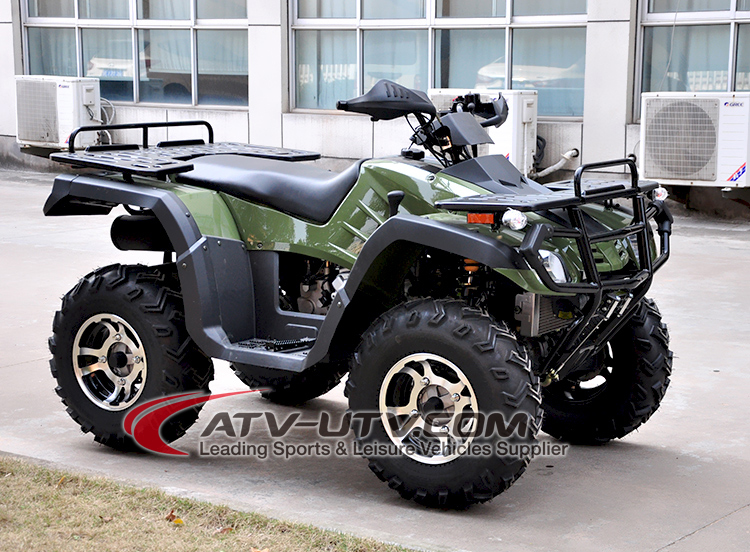

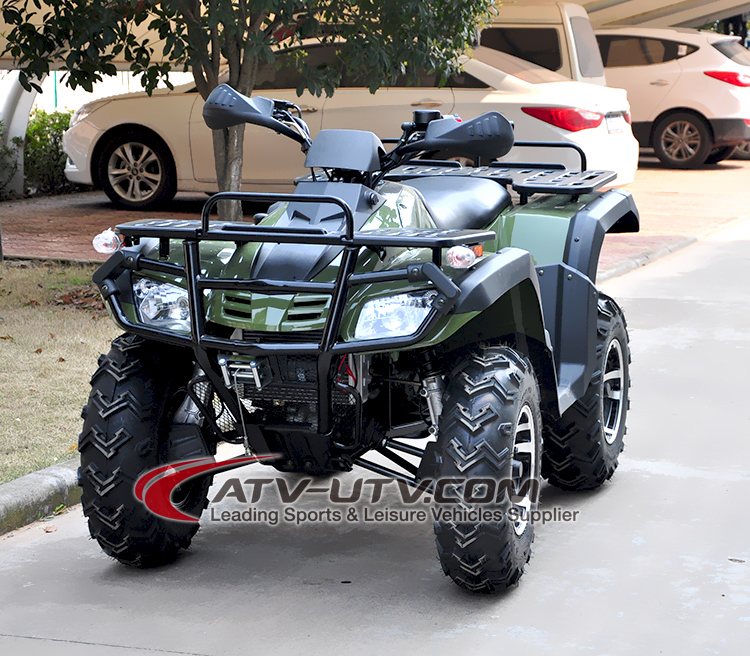

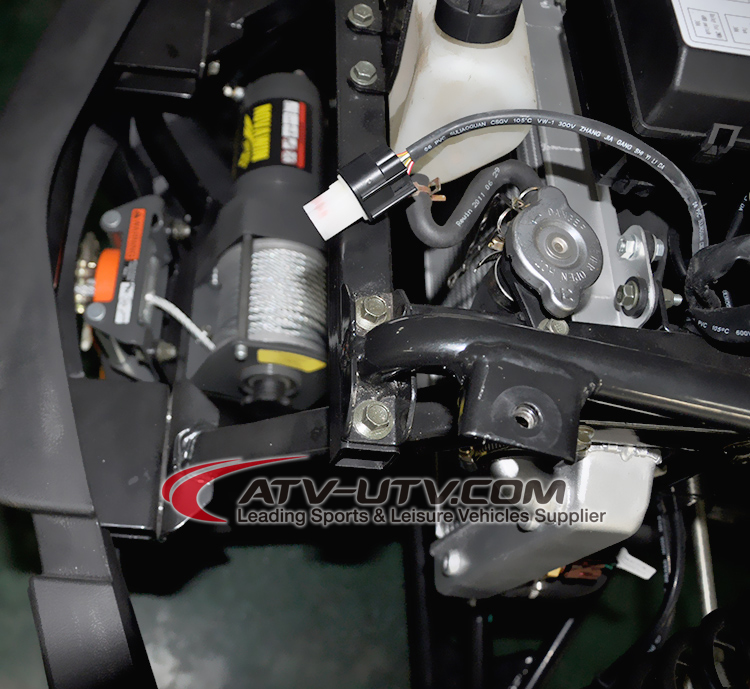

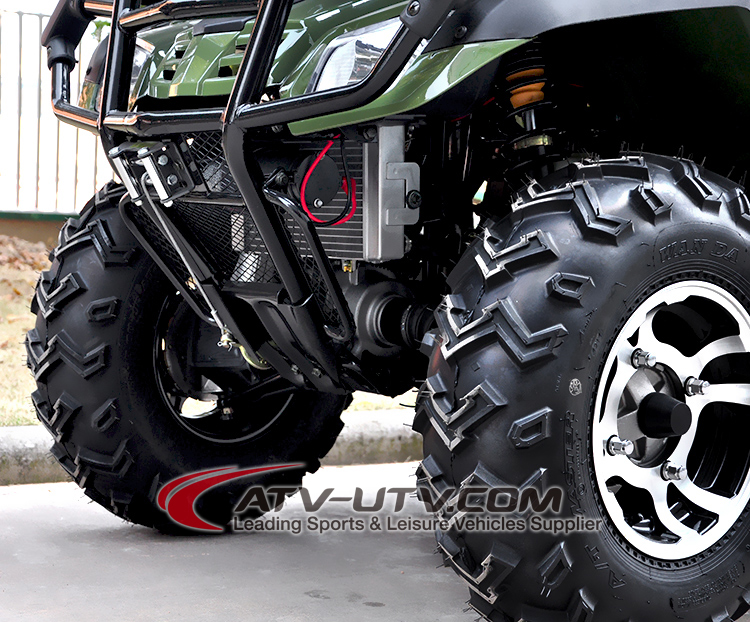

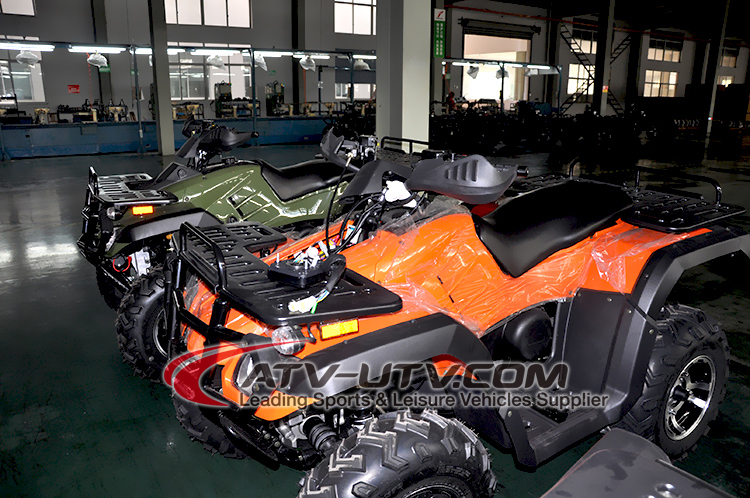

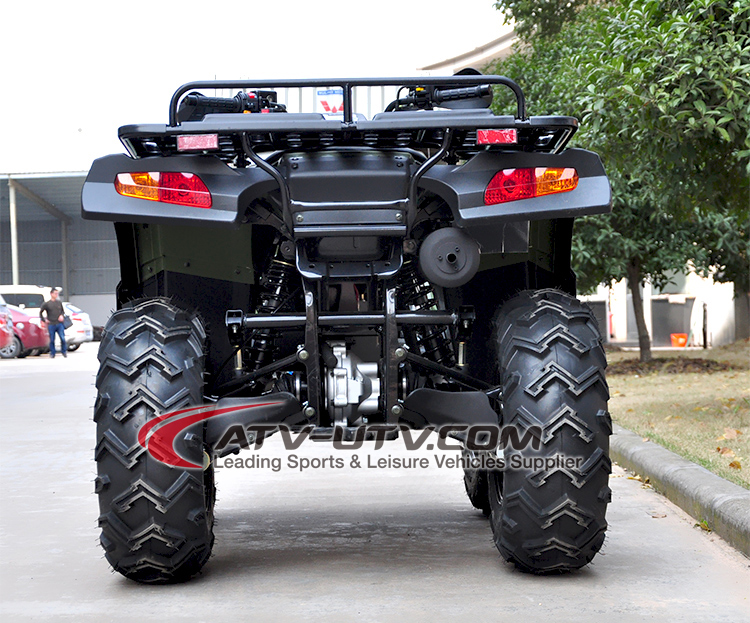

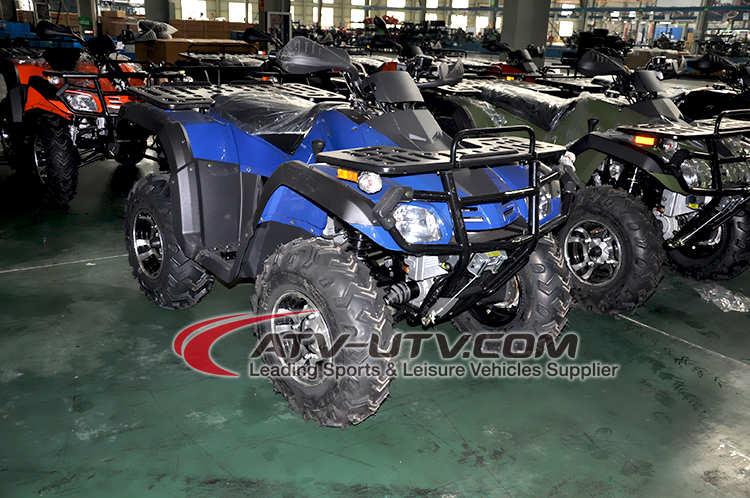

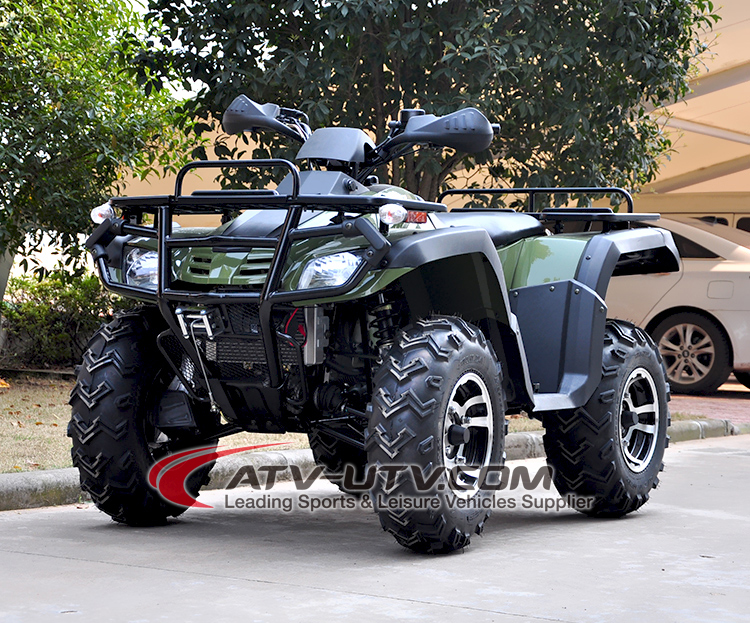

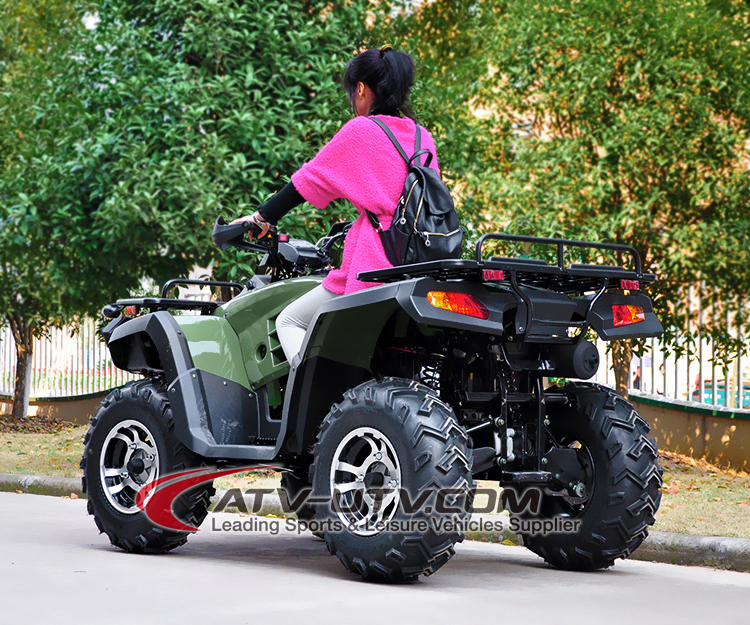

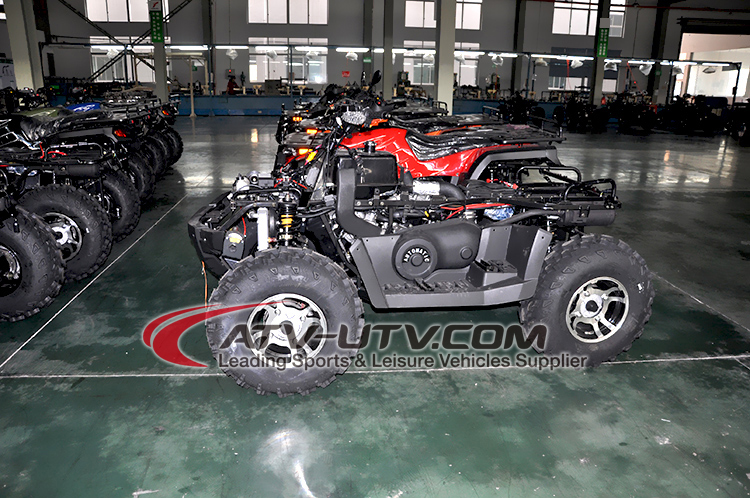

4 wheel drive Quad bike 300CC Gas ATV With Shaft drive AT3004 4X4



Product Discription:


4x4 ATV, 4 drive ATV, 4X4 Quad bike, 4 wheel drive Quad bike,300cc Quad bike, 300cc ATV

Wheel number: 4
Piston displacement: 300cc
Engine type: 4 stroke, Water Cooled,Single Cylinder
Max.Power(KW/rmp): 14KW/7000rpm
Max.Torque(NM/rpm): 20N.M/5500rpm
Max Speed: 65km/h
Bore Stroke: 72.5mmx66.8mm
Compression Ratio: 10.3:1
Carburetor: CVK052
Lubricate: Combined force-feed and splash lubrication
Air Filter type: Dry Air Filter Net
Spark Plug: DR8EA
Start: Electric Start
Ignition: CDI
Starting procedure: Start Electric Lock, Hold brake ,Press Start Switch
Gearshift: Manual

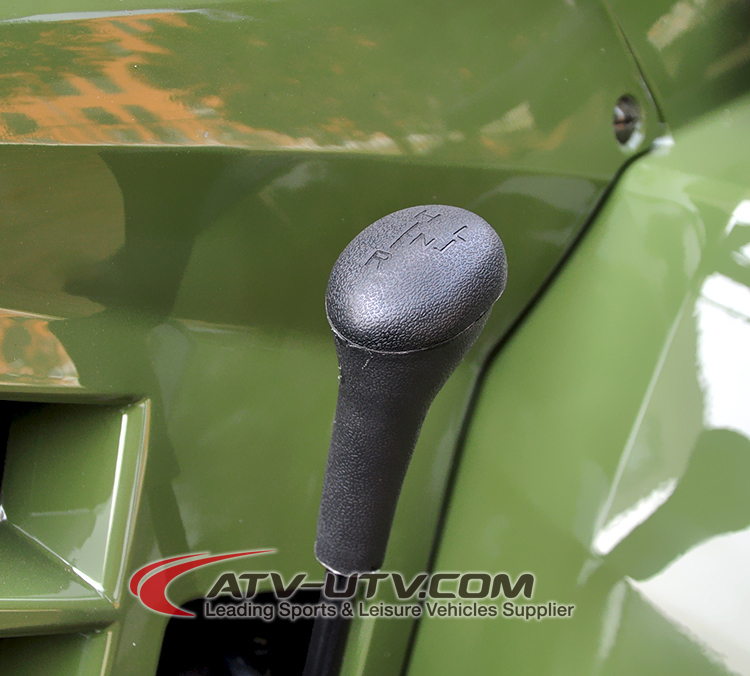

Transmission: Automatic CVT with H/L/N/R

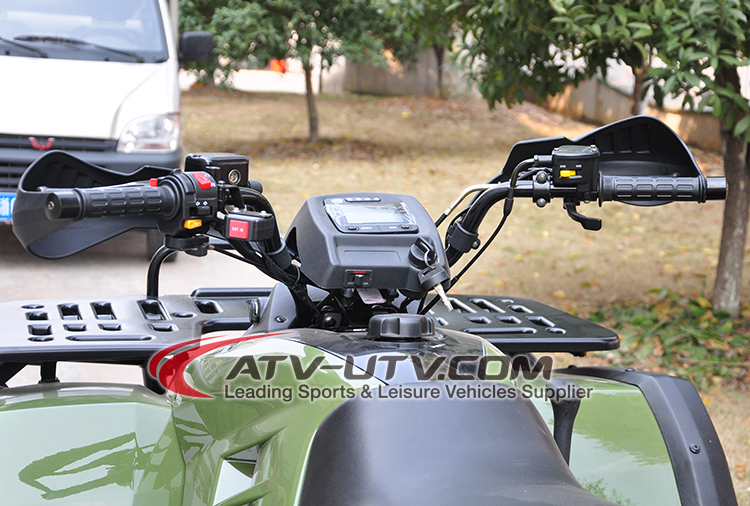

Shift Switch: 2W/4W shift button (yellow)
Final Drive System: 4W/Shaft
Brake: Front/Rear: Hydraulic disc brake
Parking Device: Mechanical brake lock on rear disc
Brake Distance: 7m/30km/h

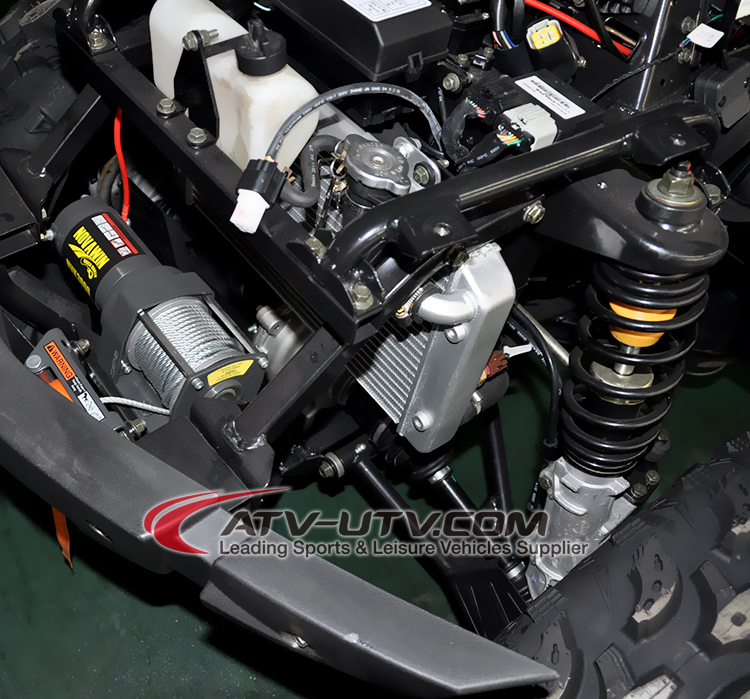

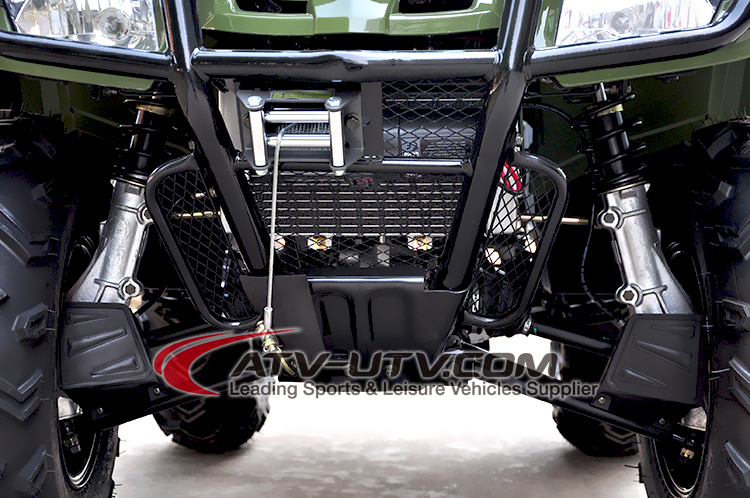

Front Suspension: Mcpherson front suspension

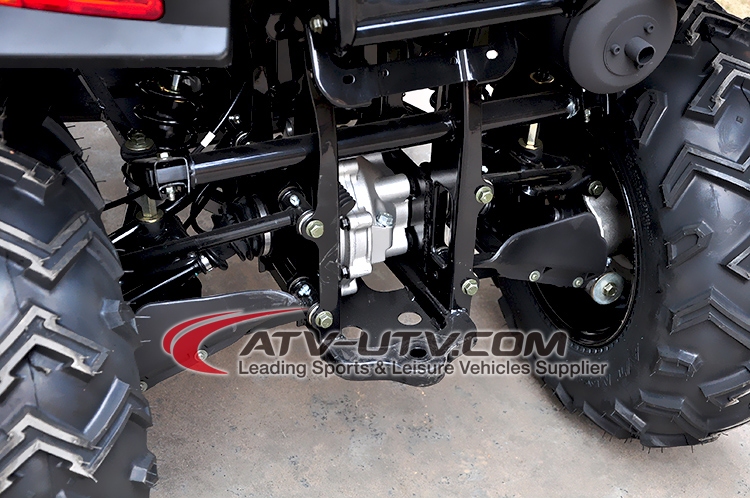

Rear Suspension: Independent rear suspension

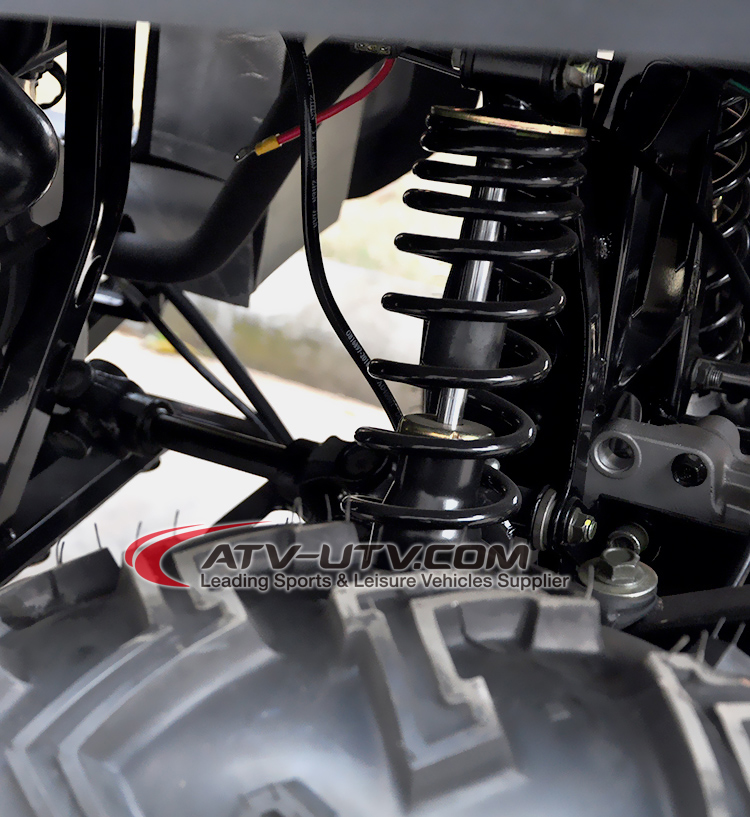

Shock Absorber(F/R): Double
Battery: 12V/14Ah
Engine Oil: 1.5L
Transmission Oil: 0.8L
Rear Oil: 0.3L
Fuel: 90# unleaded gasoline
Fuel tank capacity: 12.5L
Turing Radius: 3280mm
Max. Load: 156kgs
Front tire: 25x8-12
Rear tire: 25x8-12

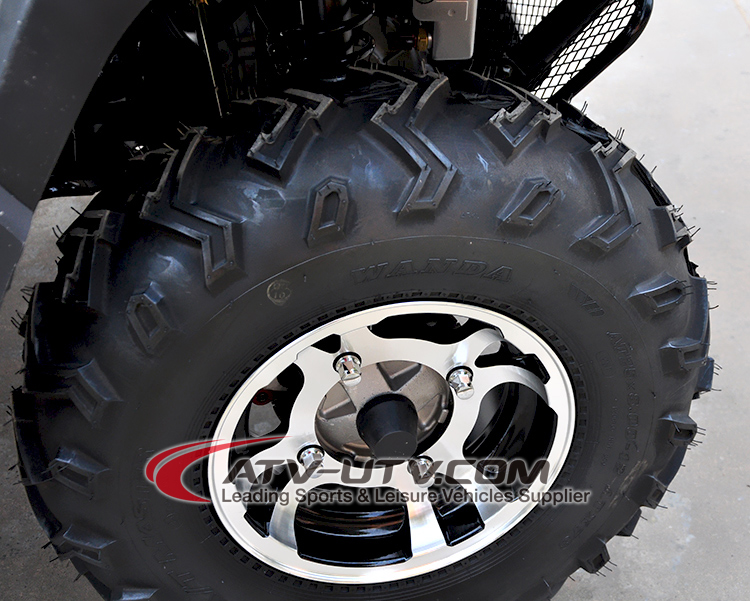

Wheel: Alloy Wheel
Wheelbase: 1271mm
Seat height: 895mm
Ground Clearance: 183MM
Product Size: 2016x1180x1237mm
Package: Iron cage with carton outside
Net Weight: 280kgs
Gross Weight: 342kgs
Carton Size: 2280x1290x870mm/pc
Container: 8PCS/20ft,18pcs/40ft,27pcs/40HQ
