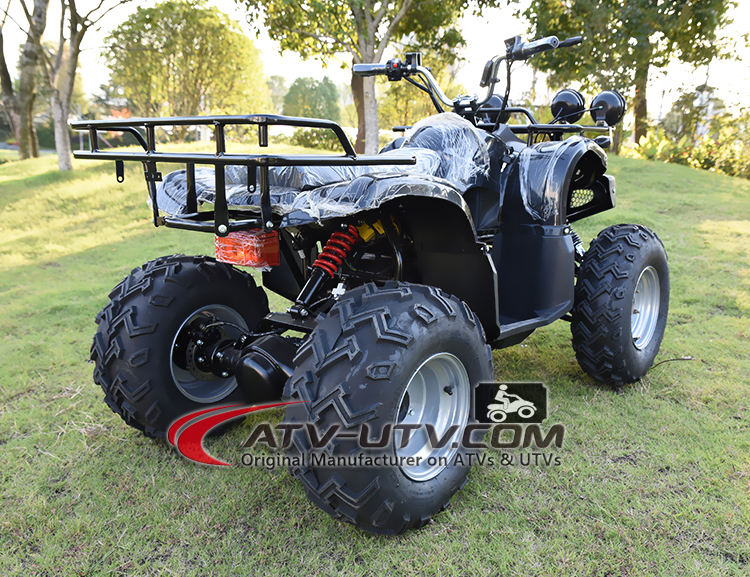

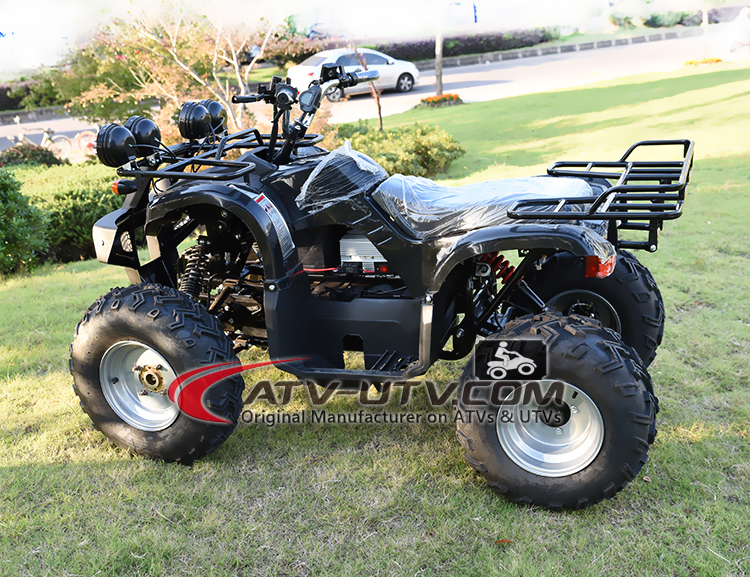

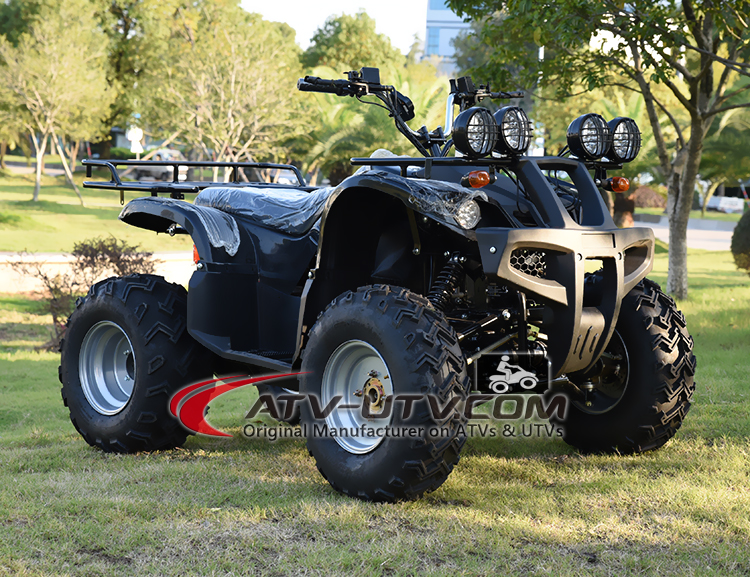

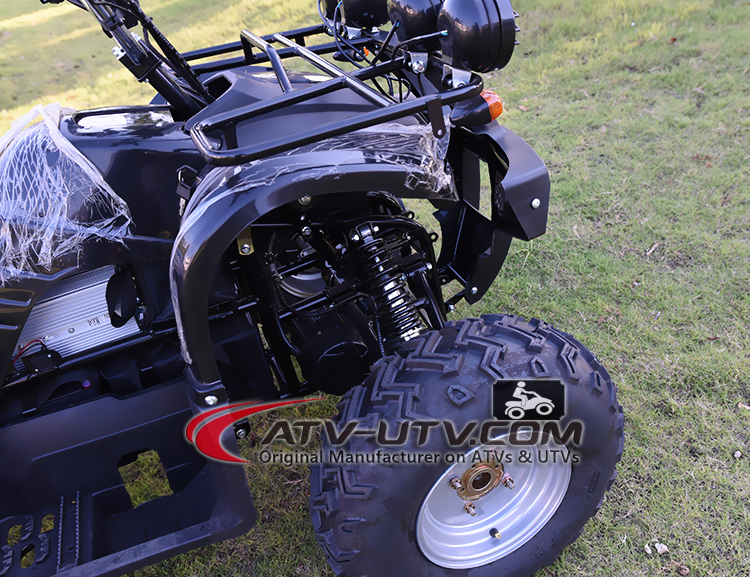

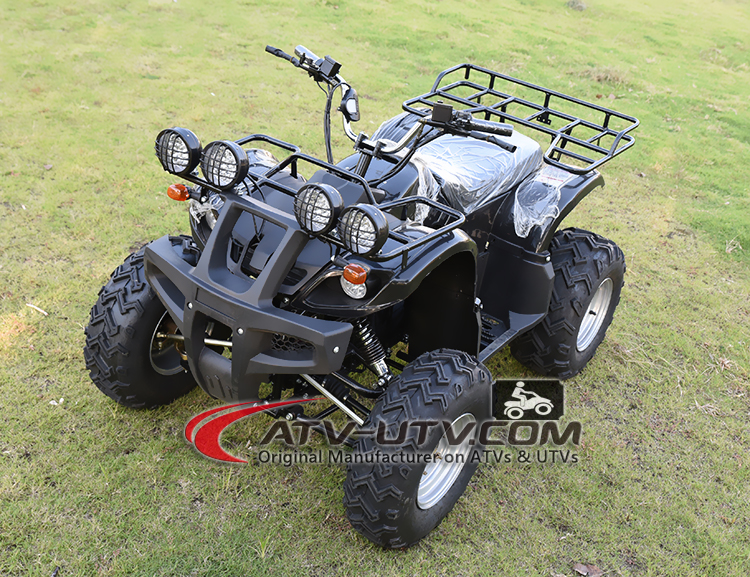

4000W AC motor 4 wheel drive 4X4 Electric Quad bike ATV
4000W AC motor 4 wheel drive 4X4 Electric Quad bike ATV
Item NO.: EA0806 4X4
Category: Electric ATV
Update:
3/22/2019 11:59:44 PM
Inquire
Print
More Pictures:

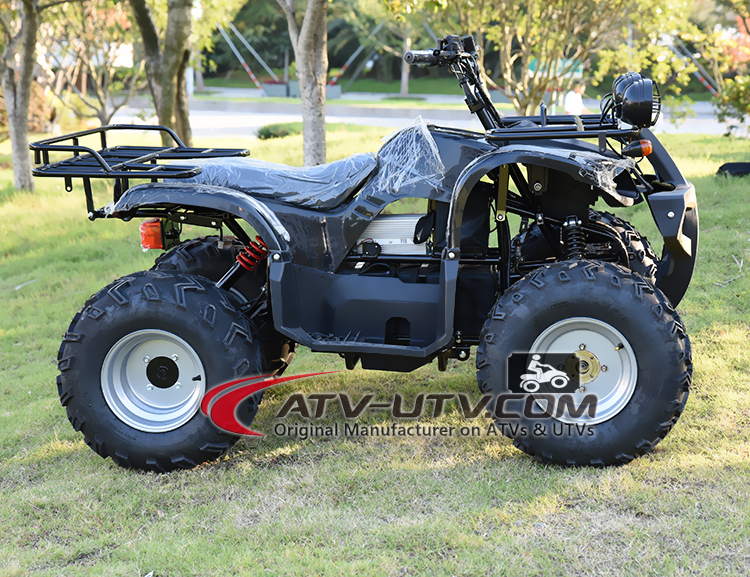

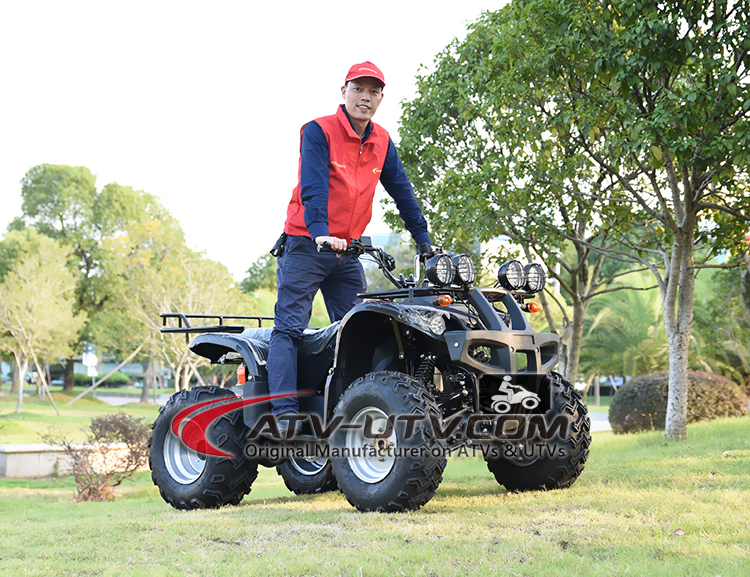

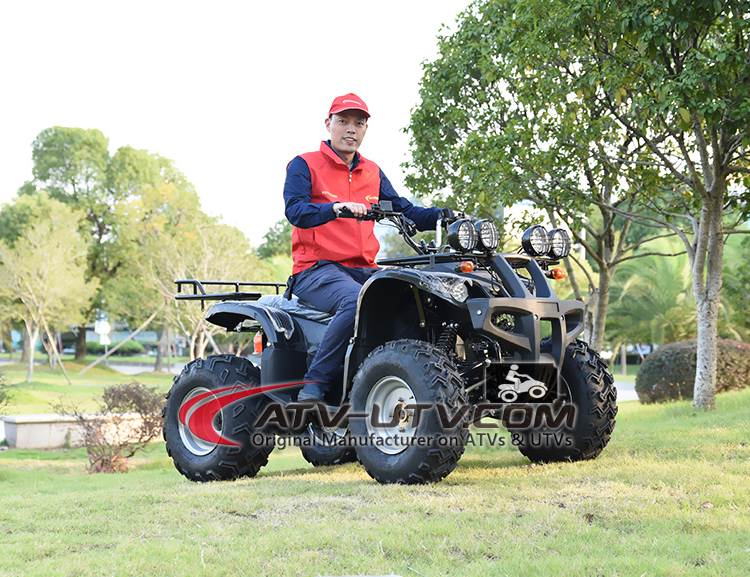

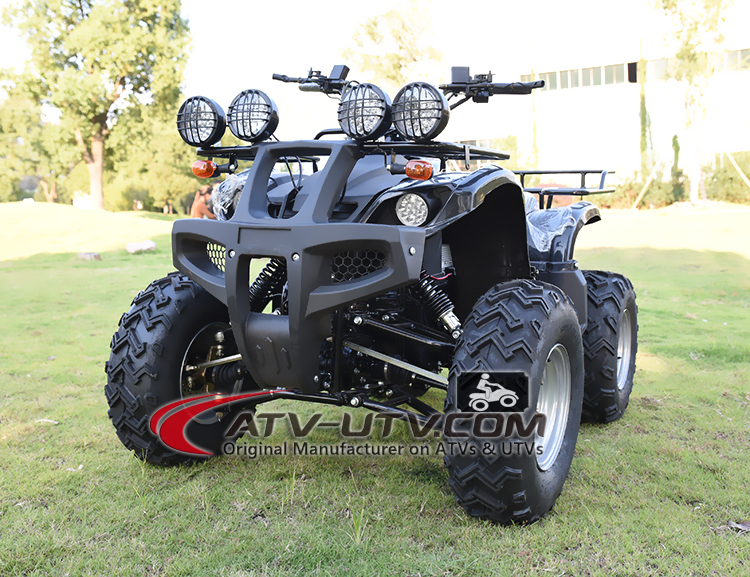

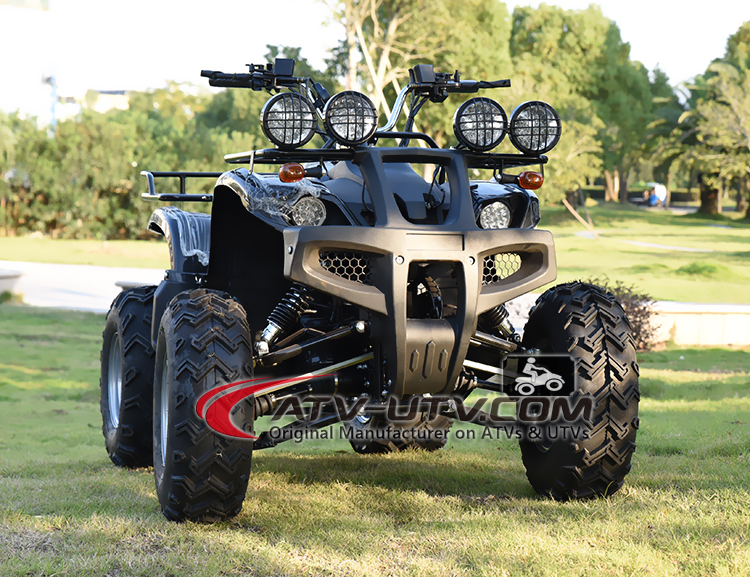

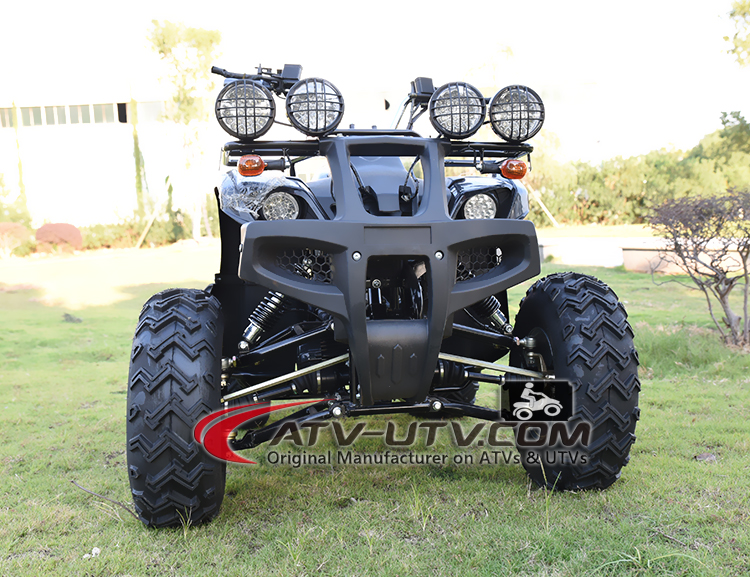

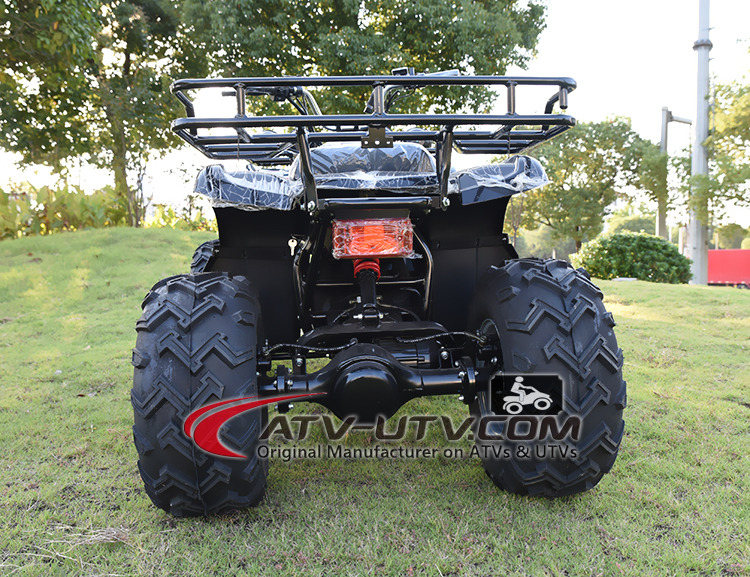

4000W AC motor 4 wheel drive 4X4 Electric Quad bike ATV



Product Discription:


4000W AC motor 4 wheel drive 4X4 Electric Quad bike ATV


Wheel number: 4

Product size: 1830x1100x1100mm

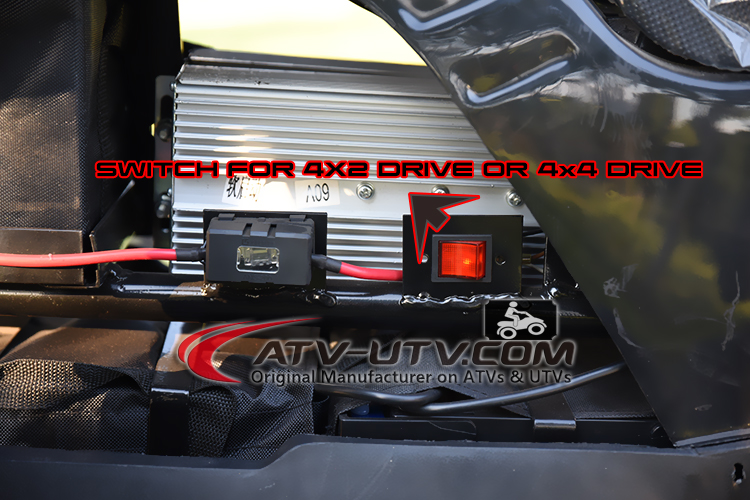

Drive: 4X4

Motor power: 60V 2000W Brushless DC x2

=4000W Motor

Battery: 60V 50AH Lead Acid

Rate power: 4000W±10%

Max torque(N/M): 68(2WD) 100(4WD)

Charging power input: 80-240V/50-60Hz 7A

Charging time: 8-12 hours

Max speed: 55km/h(4WD) ; 45Km/h (2WD)

Max range: 50km(2WD) ; 30Km(4WD)

Brake: front: disc brake, rear: disc brake

Transmission: shaft drive transmission

Wheel size: 10 inch iron wheel

Wheel: Aluminum Alloy wheelrim

Tyre size: Front 23*7-10 ,Rear 22*10.0-10

Max climbing angle: 45(4WD) ; 35(2WD)

Mas load capacity: 180kgs

Head light: 12V35W

Wheelbase: 1100mm

Front & Reverse gearshift

Iron wheel rim

Color available: red, blue, black, yellow

Package: Iron cage with carton outside

Net weight: 271kgs/596.2lbs

Gross weight: 243kgs/534.6lbs

Carton size: 158x106x76cm/1pc

Container: 20pcs/20, 42pcs/40’HQ
