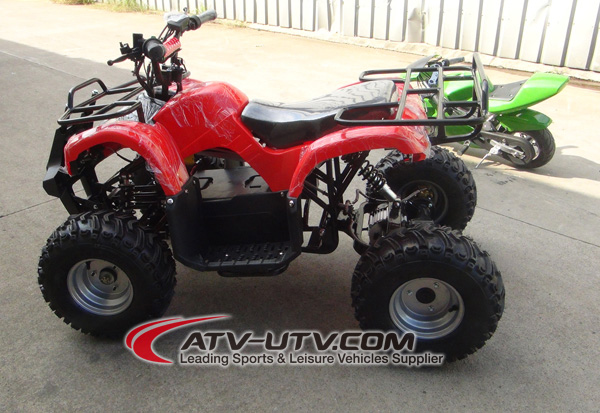

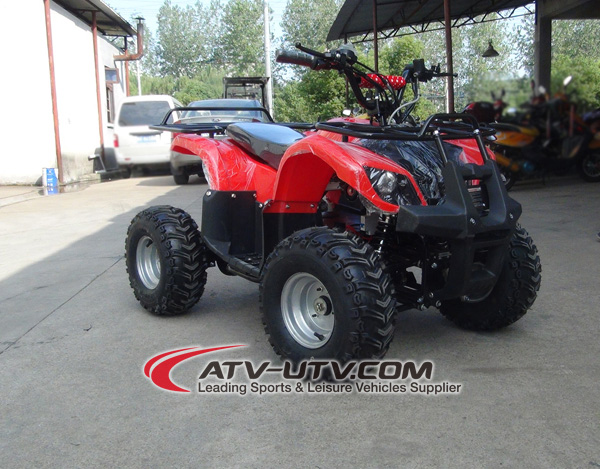

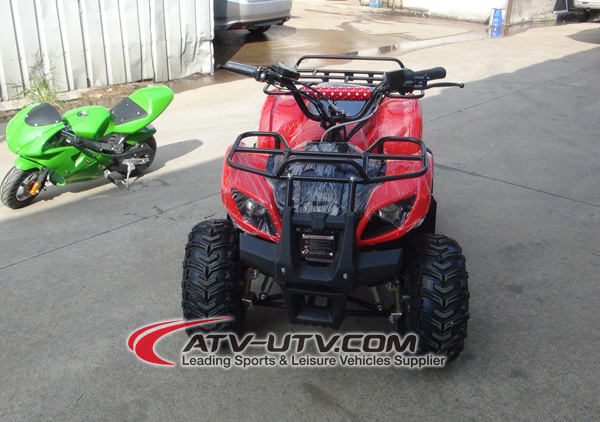

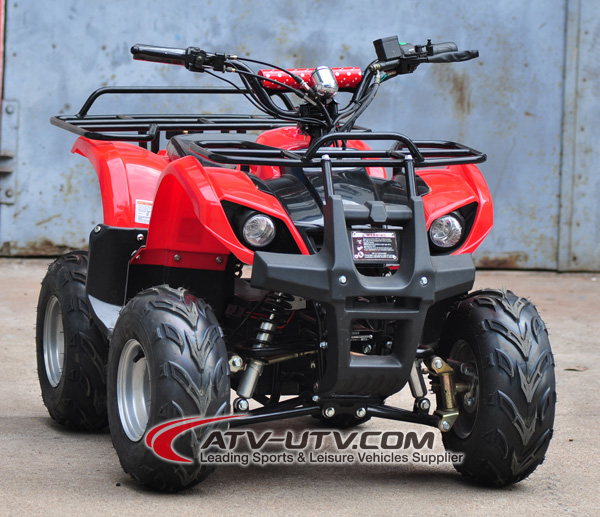

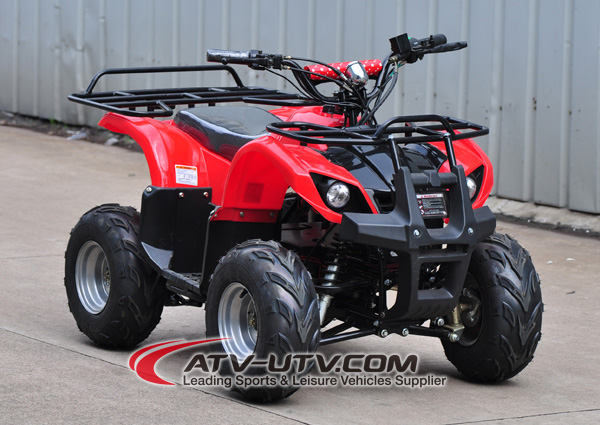

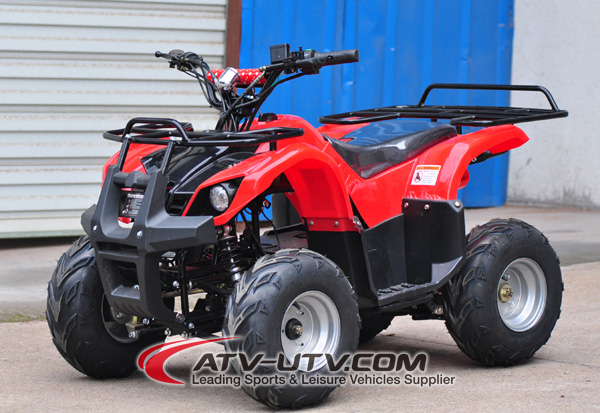

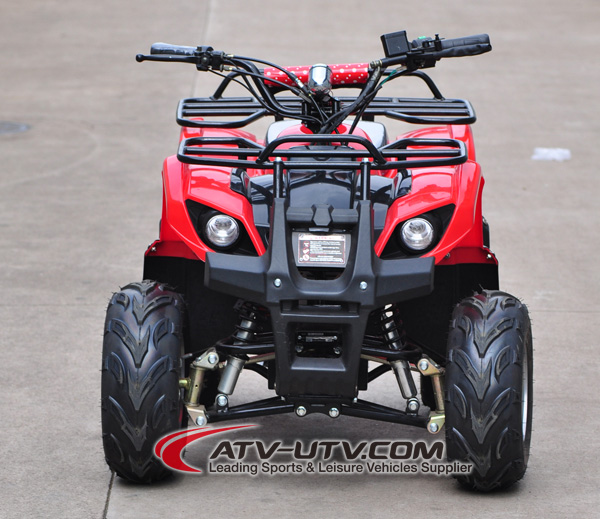

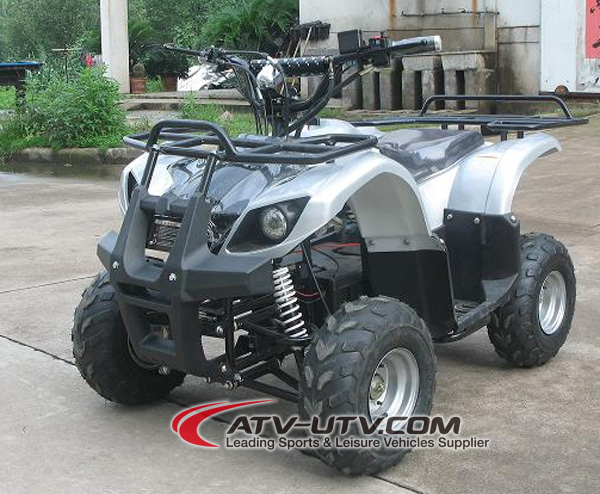

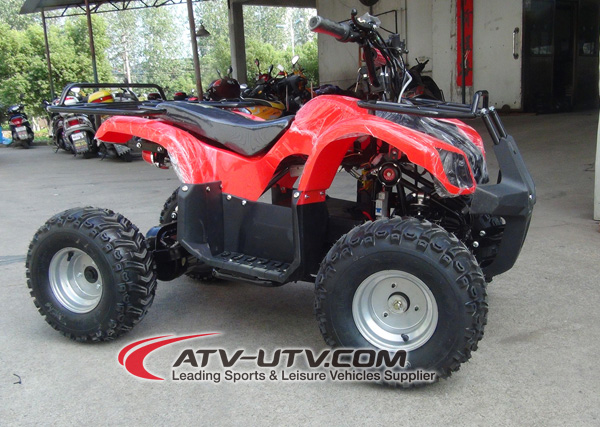

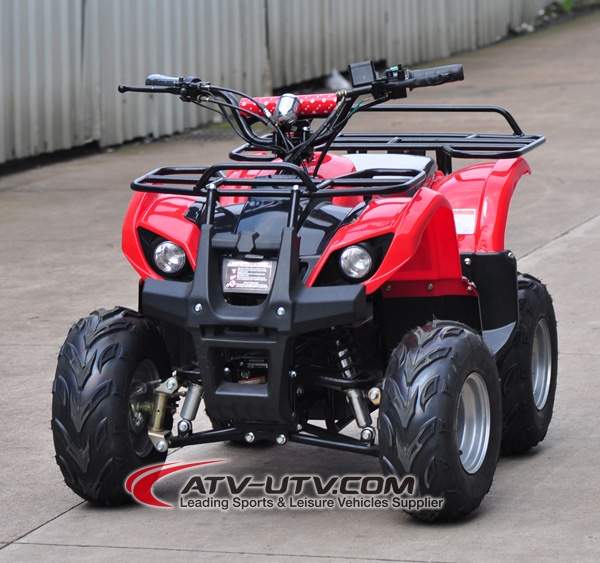

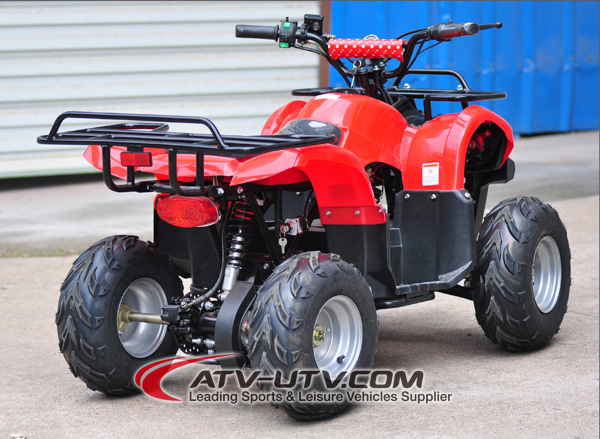

Shaft Drive 2015 NEW CE Approved 500W Electric Differential Quads Bike (ATV) with Reverse Gearshift

Item NO.:	EA0801
Category:	Electric ATV
Update:	6/26/2015 2:31:16 AM

Inquire

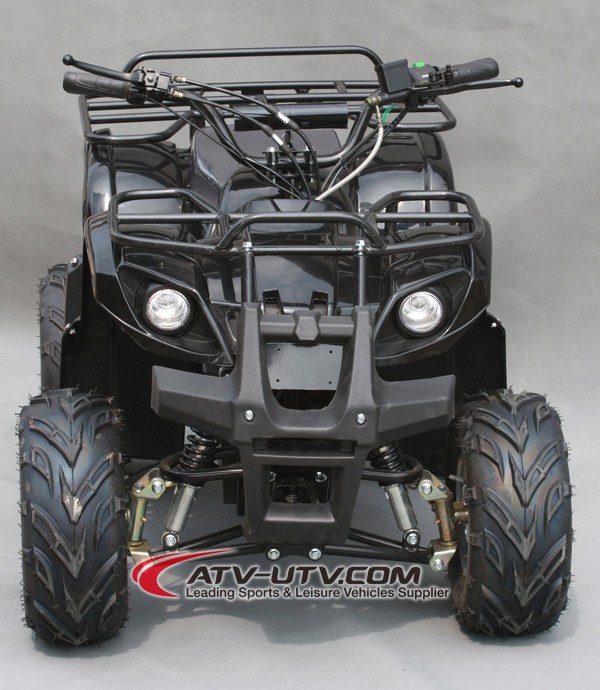

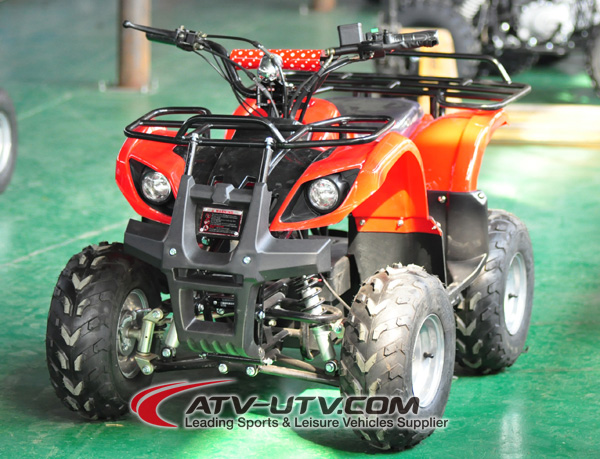

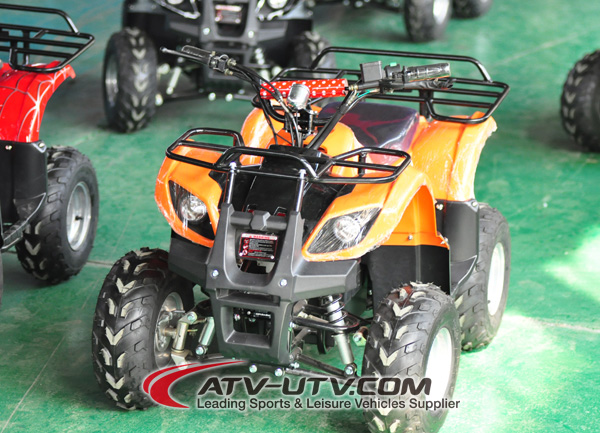

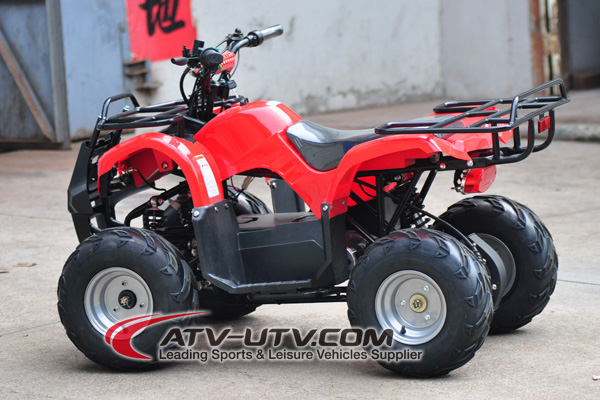

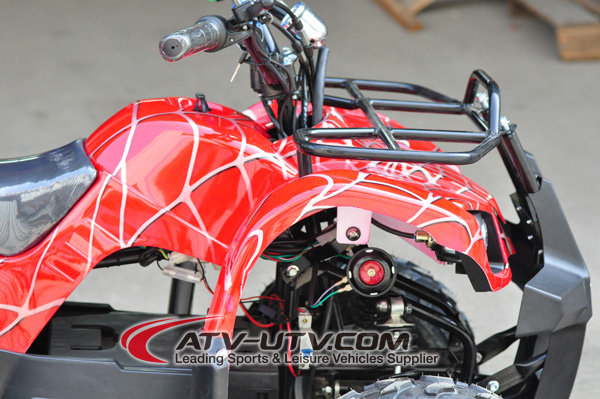

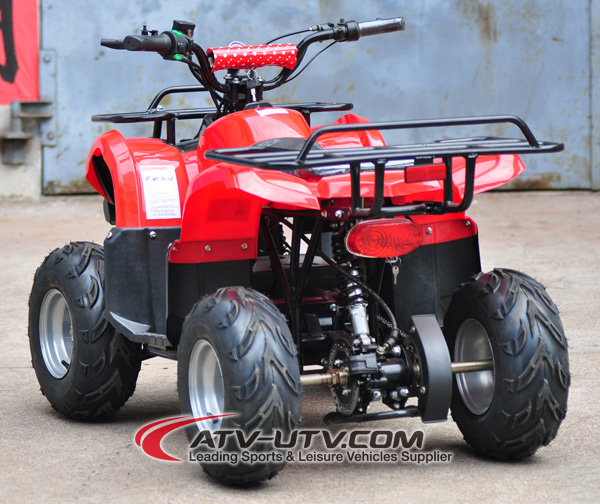

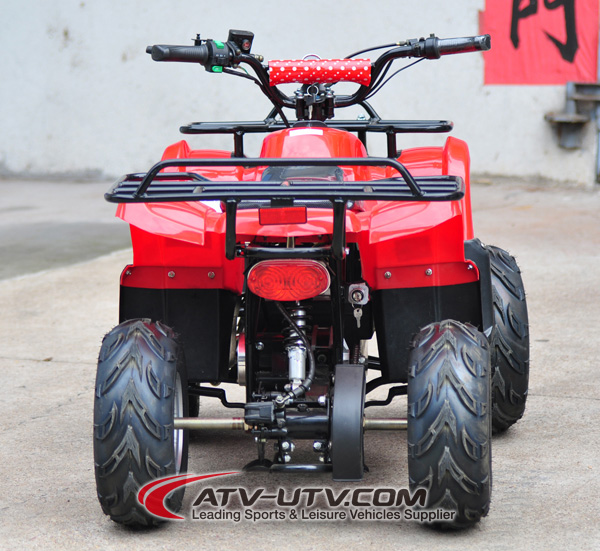

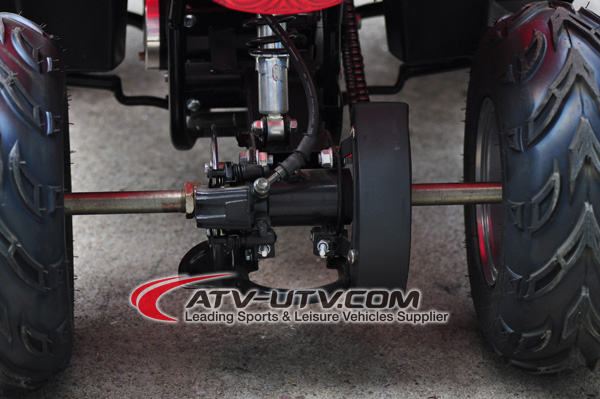

More Pictures:

Product Discription:

Electric ATV
2015 NEW CE Approved 500W Electric Differential Quads Bike (ATV) with Reverse Gearshift
EA0801-A
Key Specifications:
1. Wheel number: 4
2. Out dimensions: 1570x800x950mm
3. Motor power: 500W
4. Battery: 48V 20AH
5. Head light: 12V 35W
6. Rate power: 500W±10%
7. Control chip: 48V/500W
8. Charging power input: AC80-240V 50-60Hz 48V/MAX1.8A
9. Charging time: 8-9 hours
10. Load capacity: ≤ 80kgs
11. Max speed: ≤ 45km/h, 27.96miles/h
12. Brake: front drum brake, rear single real hydraulic disc brake
13. Transmission: chain drive
14. Wheel size: 145/70-6
15. Wheelbase: 1065mm

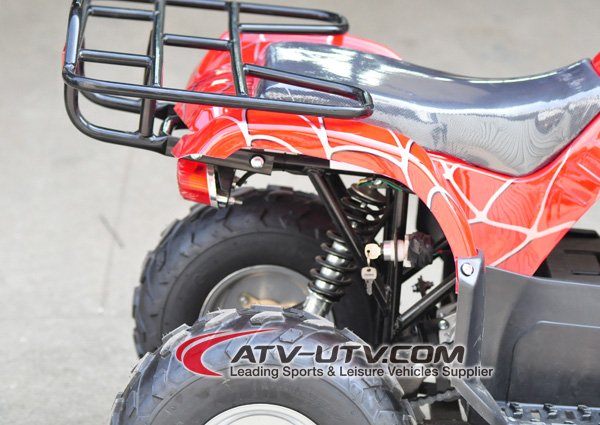

16. Shock suspensions: hydraulic suspensions
17. Climb capacity: ≥15 degrees
18. Color available: red, blue, black, yellow, etc.
Package: Iron cage with carton outside
19. Net weight: 95kgs/209lbs
20. Gross weight: 107kgs/236lbs
21. Carton size: 124x77x63cm/1pc
22. Container: 46pcs/20’, 96pcs/40’, 113pcs/40’HQ
Special Features:
 CE Approved
 Front & Reverse gearshift
 Iron wheel rim

Electric ATV
2012 NEW CE Approved 800W Electric Differential Quads Bike (ATV) with Reverse Gearshift
EA0801-B
Key Specifications:
1. Wheel number: 4
2. Out dimensions: 1570x800x950mm
3. Motor power: 800W
4. Battery: 48V 20AH
5. Head light: 12V 35W
6. Rate power: 800W±10%
7. Control chip: 48V/800W
8. Charging power input: AC80-240V 50-60Hz 48V/MAX1.8A
9. Charging time: 8-9 hours
10. Load capacity: ≤ 80kgs
11. Max speed: ≤ 45km/h, 27.96miles/h
12. Brake: front drum brake, rear single real hydraulic disc brake
13. Transmission: chain drive
14. Wheel size: 145/70-6
15. Wheelbase: 1065mm
16. Shock suspensions: hydraulic suspensions
17. Climb capacity: ≥15 degrees
18. Color available: red, blue, black, yellow, etc.
Package: Iron cage with carton outside
19. Net weight: 95kgs/209lbs
20. Gross weight: 107kgs/236lbs
21. Carton size: 124x77x63cm/1pc
22. Container: 46pcs/20’, 96pcs/40’, 113pcs/40’HQ
Special Features:
 CE Approved
 Front & Reverse gearshift
 Iron wheel rim

Electric ATV
2012 NEW CE Approved 1000W Electric Differential Quads Bike (ATV) with Reverse Gearshift
EA0801-C
Key Specifications:
1. Wheel number: 4
2. Out dimensions: 1570x800x950mm
3. Motor power: 1000W
4. Battery: 48V 20AH
5. Head light: 12V 35W
6. Rate power: 1000W±10%
7. Control chip: 48V/1000W
8. Charging power input: AC80-240V 50-60Hz 48V/MAX1.8A
9. Charging time: 11-13 hours
10. Load capacity: ≤ 80kgs
11. Max speed: ≤ 45km/h, 27.96miles/h
12. Brake: front drum brake, rear single real hydraulic disc brake
13. Transmission: chain drive
14. Wheel size: 145/70-6
15. Wheelbase: 1065mm
16. Shock suspensions: hydraulic suspensions
17. Climb capacity: ≥15 degrees
18. Color available: red, blue, black, yellow, etc.
Package: Iron cage with carton outside
19. Net weight: 95kgs/209lbs
20. Gross weight: 107kgs/236lbs
21. Carton size: 124x77x63cm/1pc
22. Container: 46pcs/20’, 96pcs/40’, 113pcs/40’HQ
Special Features:
 CE Approved
 Front & Reverse gearshift
 Iron wheel rim
