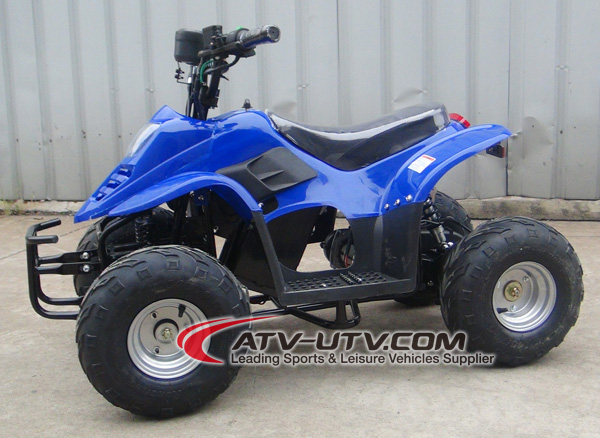

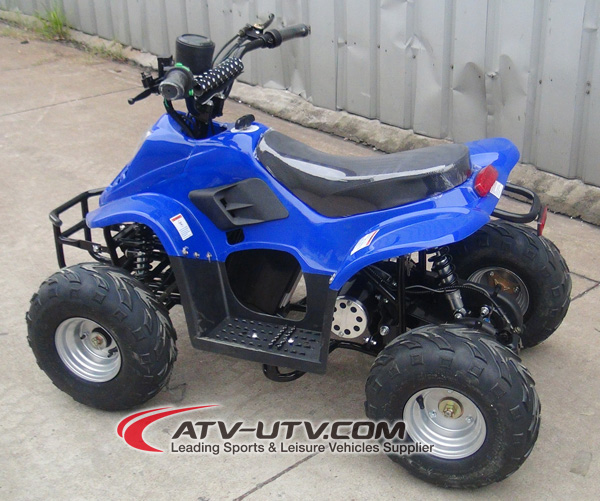

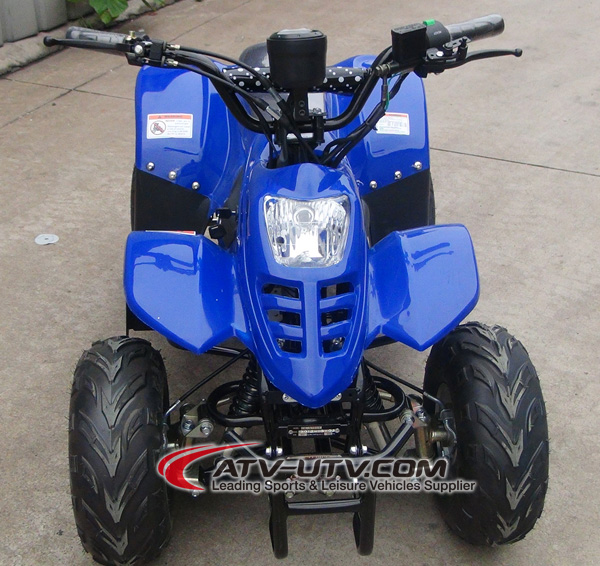

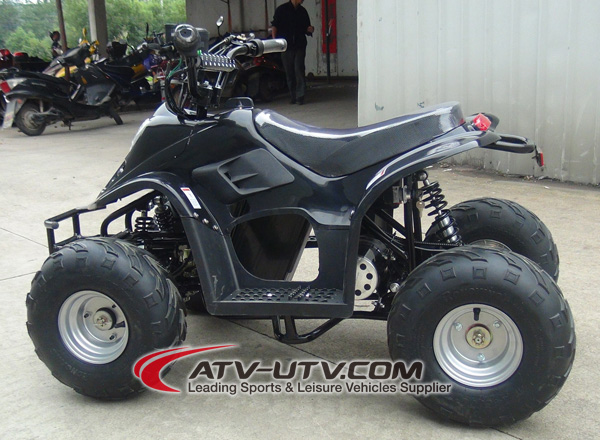

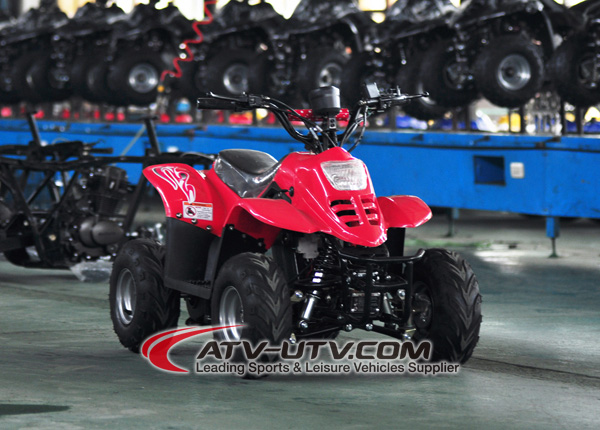

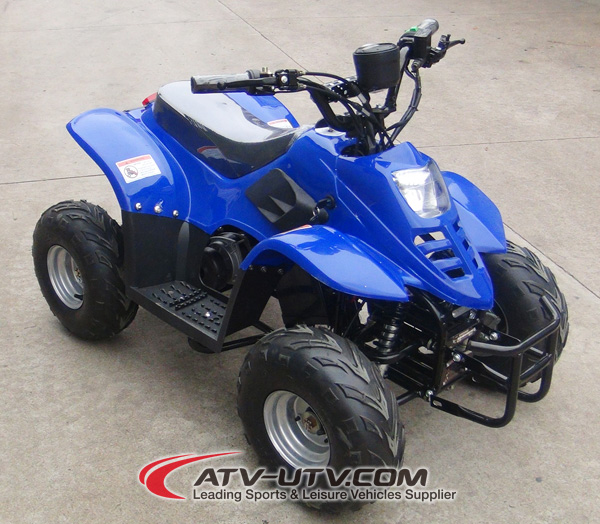

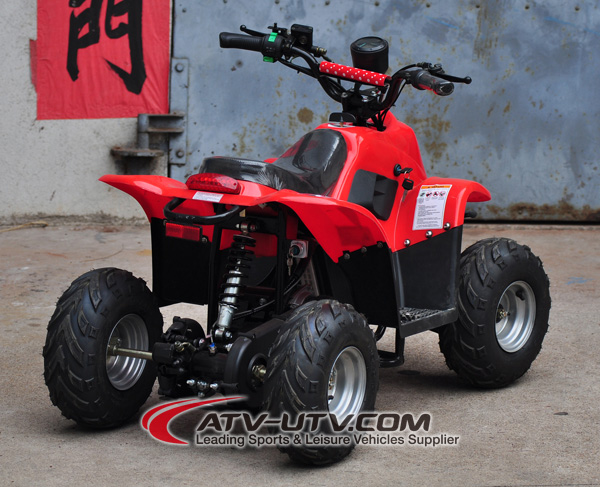

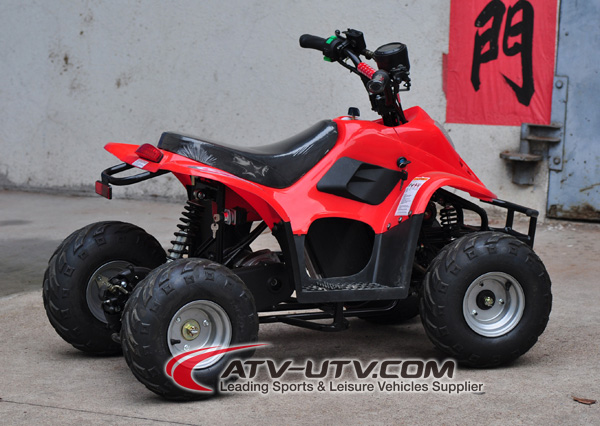

Best Christmas Children Gift, CE Approved 500W Electric Quads Bike (ATV)
Best Christmas Children Gift, CE Approved 500W Electric Quads Bike (ATV)
Item NO.: EA0451
Category: Electric ATV
Update:
6/26/2015 2:21:07 AM
Inquire
Print

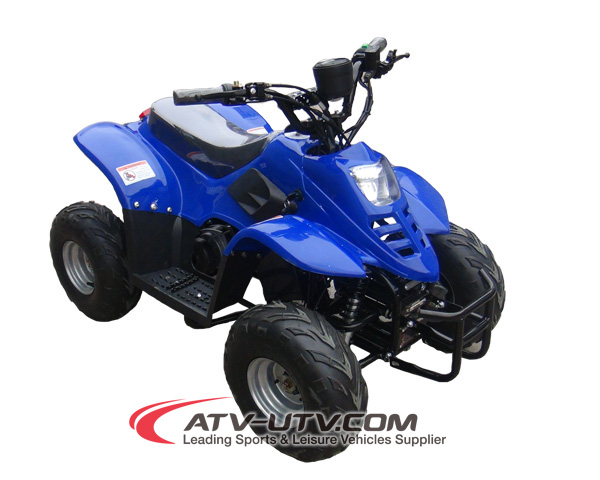

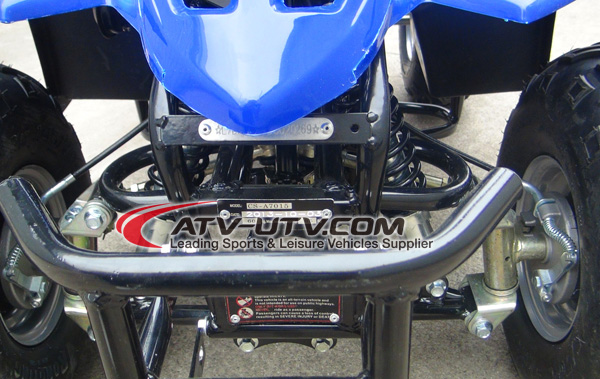

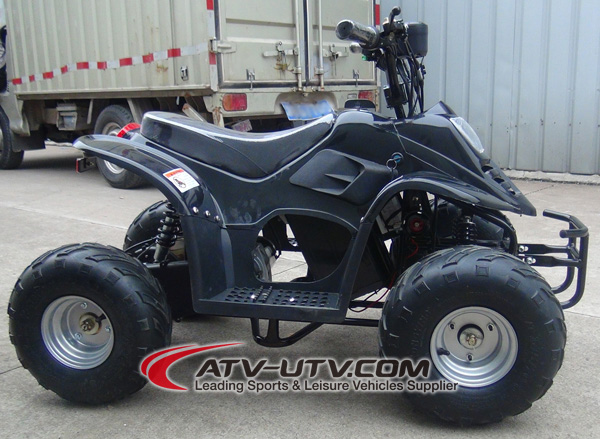

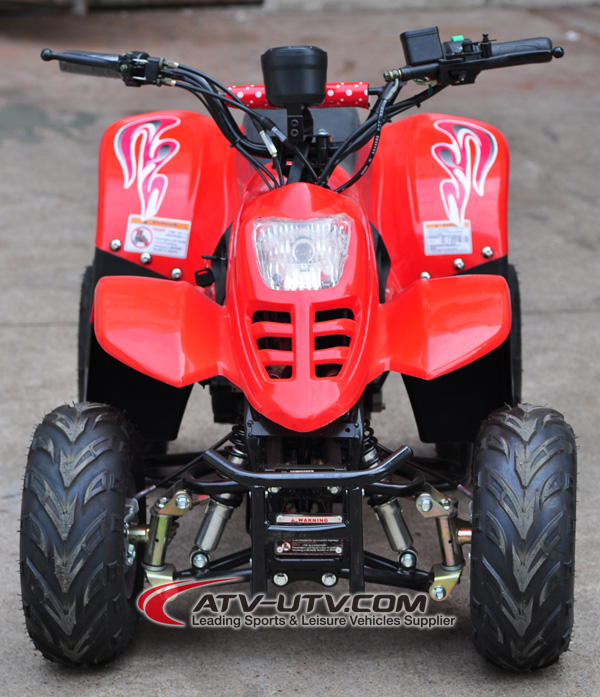

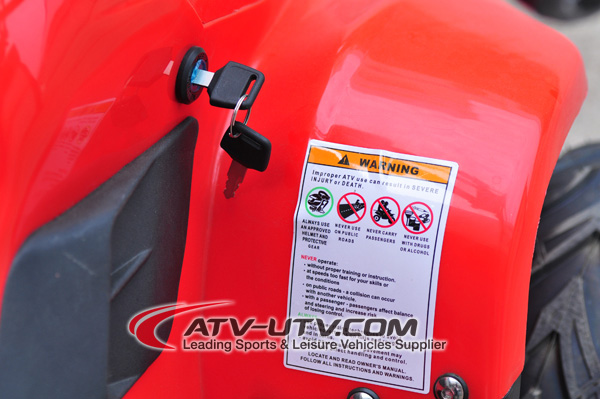

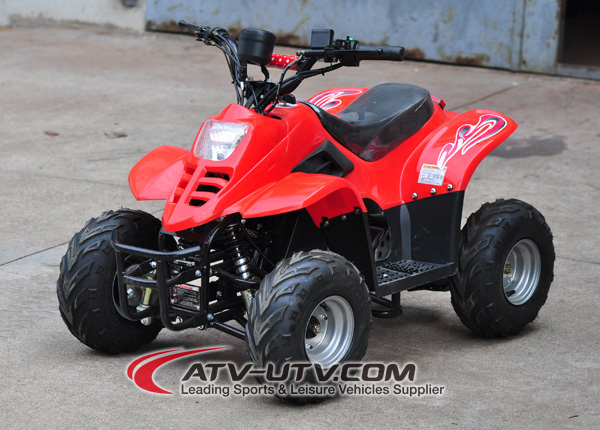

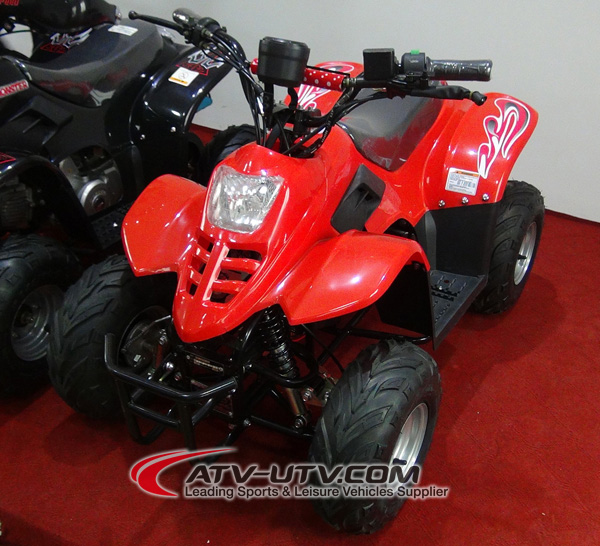

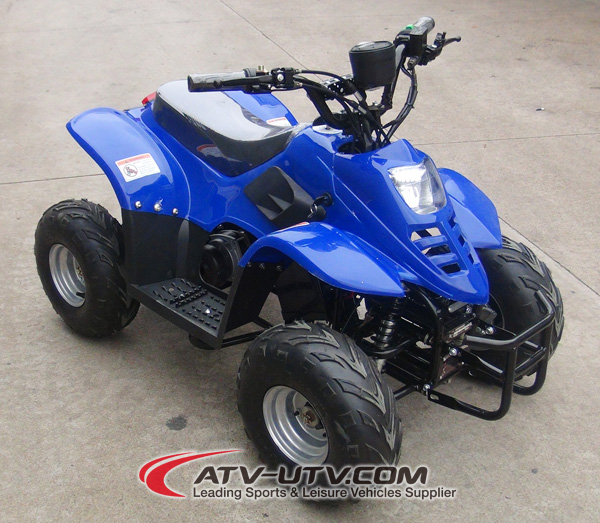

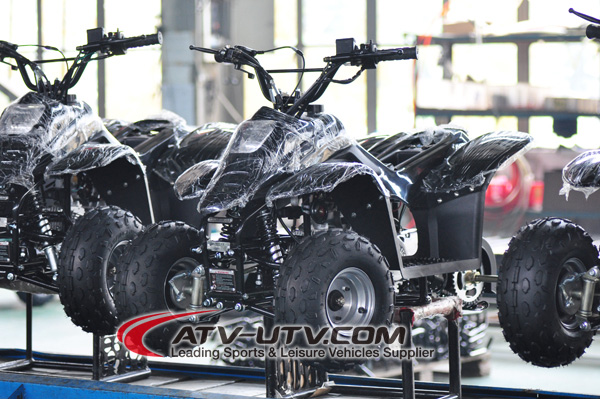

More Pictures:

Best Christmas Children Gift, CE Approved 500W Electric Quads Bike (ATV)



Product Discription:


Electric ATV
Best Christmas Children Gift, CE Approved 500W Electric Quads Bike (ATV)
EA0451-A
Key Specifications:
1. Wheel number: 4
2. Product size: 1270x740x850mm
3. Motor power: 500W
4. Battery: 36V 12AH
5. Headlamp: 12V 35W
6. Rate power: 500W±10%
7. Control chip: 36V/500W
8. Charging power input: AC80-240V 50-60Hz 36V/MAX1.6A
9. Charging time: 8-9 hours
10. Max speed: > 25km/h, 15.52miles/h
11. Brake: front: drum brake, rear: single real hydraulic disc brake
12. Transmission: chain drive
13. Wheel size: 14.5/70-6
14. Climb capacity: ≥ 15 degrees
15. Min ground clearance: 75mm
16. Color available: red, blue, black, yellow
Package: Iron cage with carton outside
17. Net weight: 73kgs/160.93lbs
18. Gross weight: 85kgs/187.39lbs
19. Carton size: 116x65x57cm/1pc
20. Container: 54pcs/20,124pcs/40,136pcs/40’HQ
Special Features:
 CE Approved

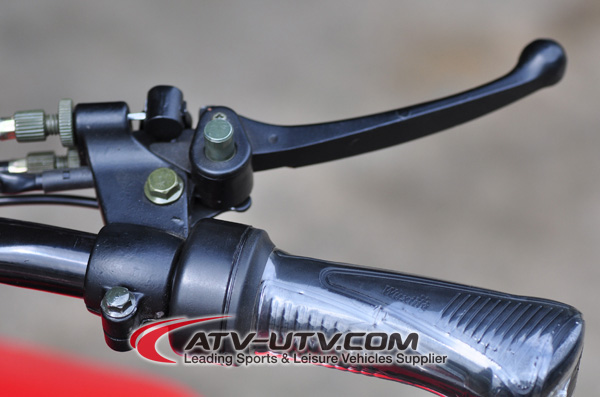

 Handle throttle speed controlling

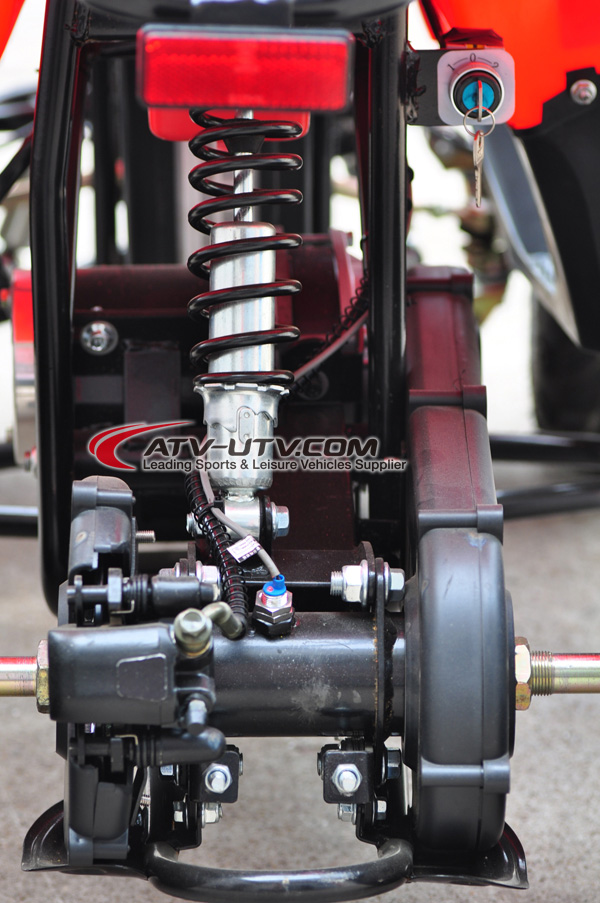

 Front & Rear spring shock suspensions

Electric ATV
Best Christmas Children Gift, CE Approved 800W Electric Quads Bike (ATV)
EA0451-B
Key Specifications:
1. Wheel number: 4
2. Product size: 1270x740x850mm
3. Motor power: 800W
4. Battery: 36V 12Ah
5. Headlamp: 12V 35W
6. Rate power: 800W±10%
7. Control chip: 36V/800W
8. Charging power input: AC80-240V 50-60Hz 36V/MAX1.6A
9. Charging time: 8-9 hours
10. Max speed: > 25km/h, 15.52miles/h
11. Brake: front:drum brake, rear: single real hydraulic disc brake
12. Transmission: chain drive
13. Wheel size: 14.5/70-6
14. Climb capacity: ≥ 15 degrees
15. Min ground clearance: 75mm
16. Color available: red, blue, black, yellow
Package: Iron cage with carton outside
17. Net weight: 73kgs/160.93lbs
18. Gross weight: 85kgs/187.39lbs
19. Carton size: 116x65x57cm/1pc
20. Container: 54pcs/20,124pcs/40,136pcs/40’HQ
Special Features:
 CE Approved
 Handle throttle speed controlling
 Front & Rear spring shock suspensions

Electric ATV
Best Christmas Children Gift, CE Approved 1000W Electric Quads Bike (ATV)
EA0451-C
Key Specifications:
1. Wheel number: 4
2. Product size: 1270x740x850mm
3. Motor power: 1000W
4. Battery: 36V 12Ah
5. Headlamp: 12V 35W
6. Rate power: 1000W±10%
7. Control chip: 48V/1000W
8. Charging power input: AC80-240V 50-60Hz 48V/MAX1.8A
9. Charging time: 11-13 hours
10. Max speed: > 25km/h, 15.52miles/h
11. Brake: front: drum brake, rear: single real hydraulic disc brake
12. Transmission: chain drive
13. Wheel size: 14.5/70-6
14. Climb capacity: ≥ 15 degrees
15. Min ground clearance: 75mm
16. Color available: red, blue, black, yellow
Package: Iron cage with carton outside
17. Net weight: 74kgs/163.28lbs
18. Gross weight: 86kgs/189.59lbs
19. Carton size: 116x65x57cm/1pc
20. Container: 54pcs/20,124pcs/40,136pcs/40’HQ
Special Features:
 CE Approved
 Handle throttle speed controlling
 Front & Rear spring shock suspensions

Electric ATV
Best Christmas Children Gift, CE Approved 800W Electric Quads Bike (ATV)
EA0451-D
Key Specifications:
1. Wheel number: 4
2. Product size: 1270x740x850mm
3. Motor power: 800W
4. Battery: 48V 20Ah
5. Headlamp: 12V 35W
6. Rate power: 800W±10%
7. Control chip: 48V/800W
8. Charging power input: AC80-240V 50-60Hz 48V/MAX2.5A
9. Charging time: 11-13 hours
10. Max speed: > 25km/h, 15.52miles/h
11. Brake: front: drum brake, rear: single real hydraulic disc brake
12. Transmission: chain drive
13. Wheel size: 14.5/70-6
14. Climb capacity: ≥ 15 degrees
15. Min ground clearance: 75mm
16. Color available: red, blue, black, yellow
Package: Iron cage with carton outside
17. Net weight: 74kgs/163.28lbs
18. Gross weight: 86kgs/189.59lbs
19. Carton size: 116x65x57cm/1pc
20. Container: 54pcs/20,124pcs/40,136pcs/40’HQ
Special Features:
 CE Approved
 Handle throttle speed controlling
 Front & Rear spring shock suspensions
