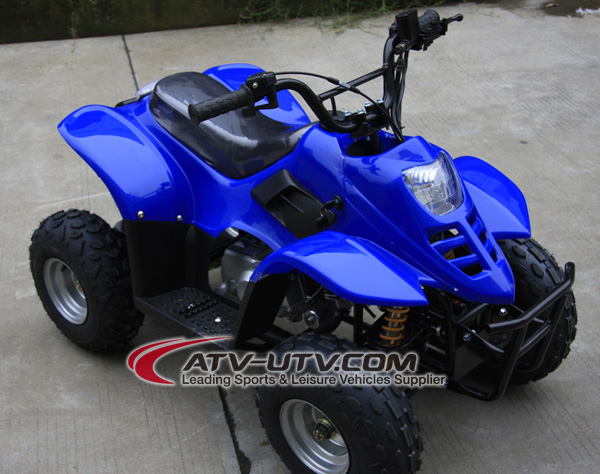

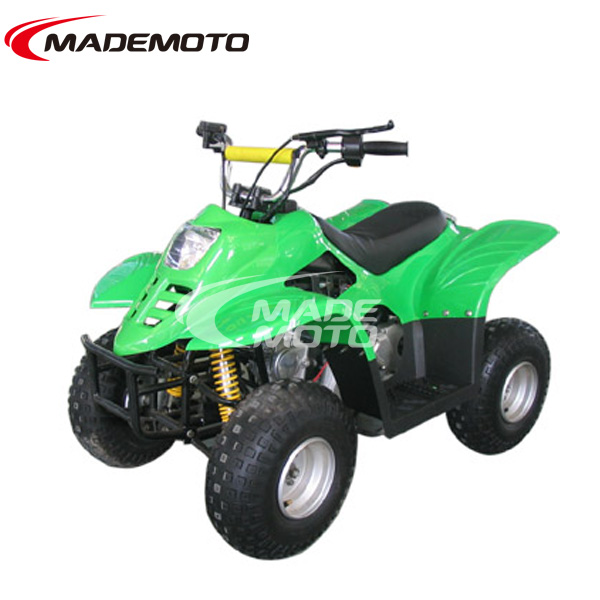

China Made Cheap Gas-Powered 4-Stroke Full Automatic Engine 50CC ATV
China Made Cheap Gas-Powered 4-Stroke Full Automatic Engine 50CC ATV
Item NO.: AT0501
Category: Gas ATV
Update:
6/26/2015 1:15:12 AM
Inquire
Print
More Pictures:

China Made Cheap Gas-Powered 4-Stroke Full Automatic Engine 50CC ATV



Product Discription:


ATV
China Made Cheap Gas-Powered 4-Stroke Full Automatic Engine 50CC ATV
AT0501-A
Key Specifications:
1. Wheel number: 4
2. Product size: 1180x735x755mm
3. Compression ratio: 9.0:1
4. Piston displacement: 50cc
5. Engine: single-cylinder, 4-stroke, air-cooling
6. Battery:12V 5AH
7. Fuel tank volume: 3.4L
8. Oil consumption: 3.4L/100km
9. Lubricating oil: SE15W/40 SF10W/30
10. Starting system: CDI electric start
11. Electric sparking plug: A7RTC
12. Drive system: chain drive
13. Brake: Front: drum brake; Rear: disc brake
14. Max speed: 40km/h
15. Load capacity: 85kgs
16. Rated power: 2.0Kw/8000r/min
17. Rated torque: 2.6N.m/5000r/min
18. Wheel: front and rear 145/70-6
19. Seat height: 67cm
20. Gearshift method: automatically
21. Clutch method: automatic clutch
22. Break method: manual brake
23. Shock absorption method: front and rear hydraulic shock absorber
24. Color available: black, blue, silver, red optional
Package: Iron cage with carton outside
25. Net weight: 81kgs/178lbs
26. Gross weight: 97kgs/214lbs
27. Carton size: 115x69x59cm/1pc
28. Container: 54pcs/20’,124pcs/40’,136pcs/40’HQ
Special Features:
Remote starter
Emergency stop button ensures safety
Rotative gearing speed control
High quality

ATV
China Made Cheap Gas-Powered 4-Stroke Full Automatic Engine 110CC ATV
AT0501-B
Key Specifications:
1. Wheel number: 4
2. Product size: 1180x735x755mm
3. Compression ratio: 9.0:1
4. Piston displacement: 110cc
5. Engine: single-cylinder, 4-stroke, air-cooling
6. Battery:12V 5AH
7. Fuel Tank Volume: 3.4L
8. Oil consumption: 3.4L/100km
9. Lubricating oil: SE15W/40 SF10W/30
10. Starting system: CDI electric start
11. Electric sparking plug: A7RTC
12. Drive system: chain drive
13. Brake: Front: drum brake; Rear: disc brake
14. Max speed: 40km/h
15. Load capacity: 85kgs
16. Rated power: 5.2Kw/7500r/min
17. Rated torque: 7.0N.m/5500r/min
18. Wheel: front and rear 16/8-7
19. Seat height: 67cm
20. Gearshift method: automatically
21. Clutch method: automatic clutch
22. Break method: manual brake
23. Shock absorption method: front and rear hydraulic shock absorber
24. Color available: black, blue, silver, red optional
Package: Iron cage with carton outside
25. Net weight: 81kgs/178lbs
26. Gross weight: 97kgs/214lbs
27. Carton size: 115x69x59cm/1pc
28. Container: 54pcs/20’,124pcs/40’,136pcs/40’HQ
Special Features:
Remote starter
Emergency stop button ensures safety
Rotative gearing speed control
High quality
