250CC Water Cooled ATV NEW Quad Bike from Wiztem With Chain Drive Reverse Gear
250CC Water Cooled ATV NEW Quad Bike from Wiztem With Chain Drive Reverse Gear
Item NO.: AT2507
Category: Gas ATV
Update:
5/20/2016 10:56:50 PM
Inquire
Print

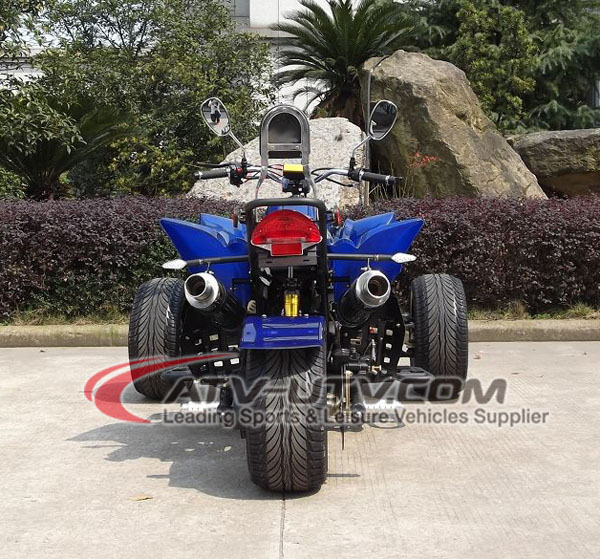

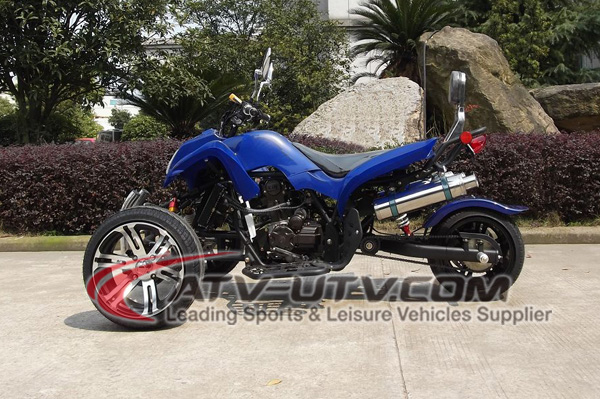

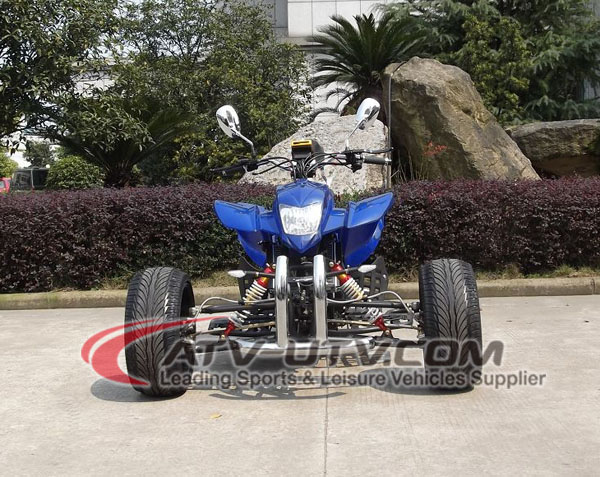

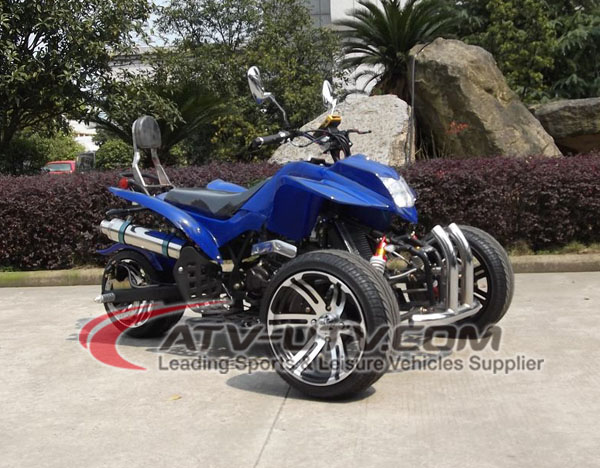

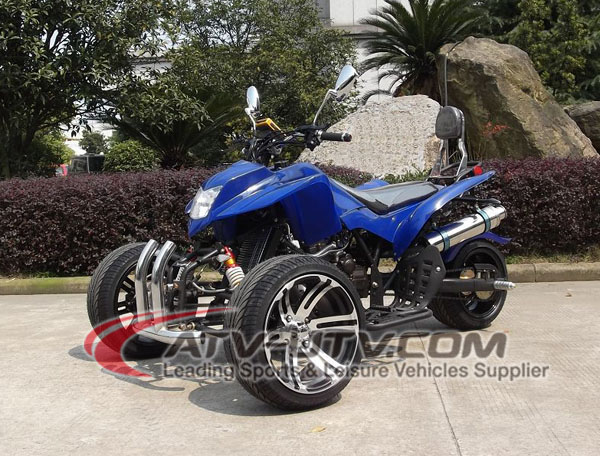

More Pictures:

250CC Water Cooled ATV NEW Quad Bike from Wiztem With Chain Drive Reverse Gear



Product Discription:


250CC Water Cooled ATV NEW Quad Bike from Wiztem With Chain Drive Reverse Gear



Wheel number: 3

Piston displacement: 250cc

Engine type: 4 storke, Water Cooled.

Max torque: 17.5Nm/5000rpm

Max power: 13kw/7500rpm.

Transmission: manual clutch,4-speed,reverse gear,chain

Brake: Front/Rear: disc brake

Starting system: CDI electric start

Battery spec: 12V,9AH

Front suspension details: double A x swing arm,air chamber shock absorbers

Rear suspension details: inner ballonet absorber

Wheel size: Front: 235/30-12  Rear: 235/30-12

Product size: 202x113x104cm

Wheel base: 130cm

Seat height from ground: 60cm

Ground clearance: 80mm

Load capacity: 370kgs

Fuel tank capacity: 8L

Package: Iron cage with carton outside

Net Weight: 155kgs/341lbs

Gross Weight: 170kgs/374lbs

Carton size: 148x83x84cm

Container: 18pcs/20, 36pcs/40,42pcs/40HQ
