Best Christmas Gift for Kids, CE Approved 500W Kids Electric Quads Bike ATV
Best Christmas Gift for Kids, CE Approved 500W Kids Electric Quads Bike ATV
Item NO.: EA0504
Category: Electric ATV
Update:
6/26/2015 2:24:21 AM
Inquire
Print

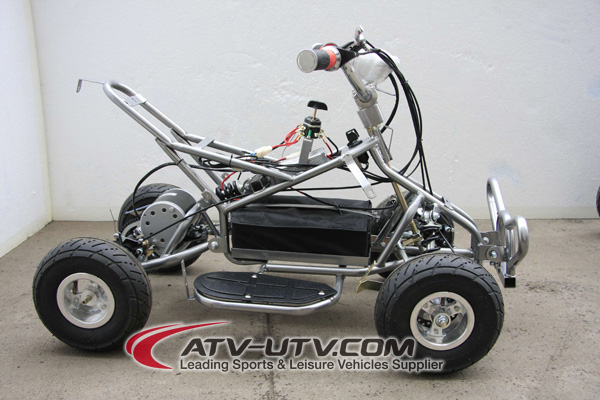

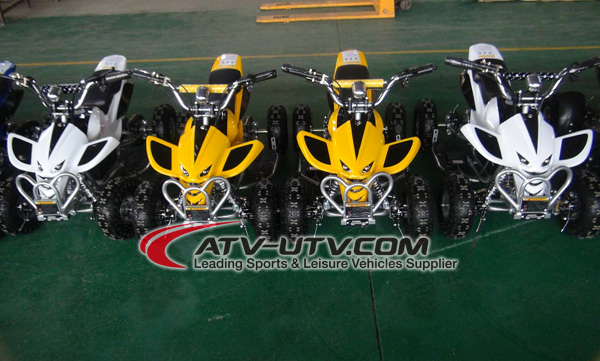

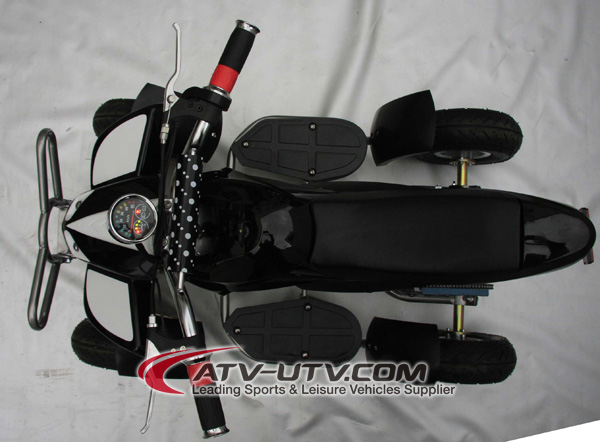

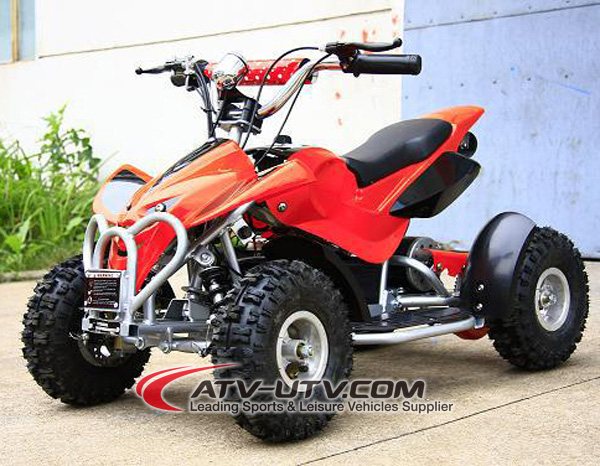

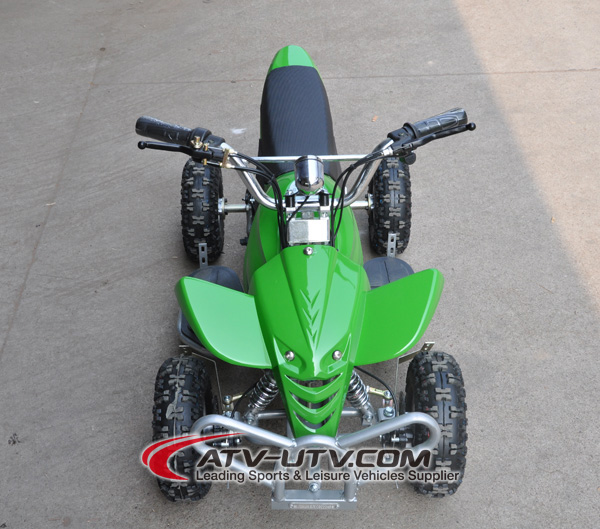

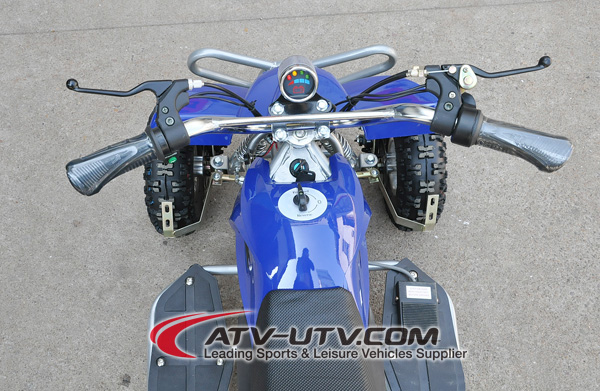

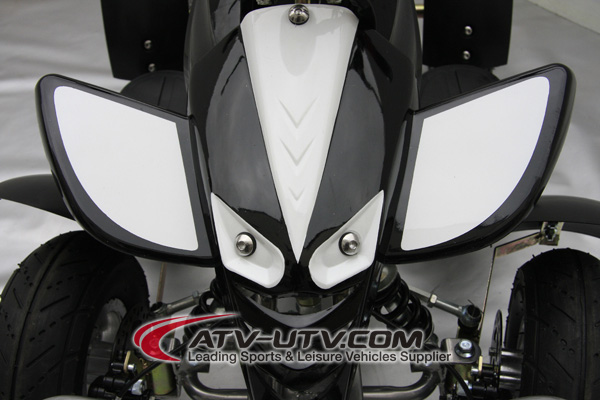

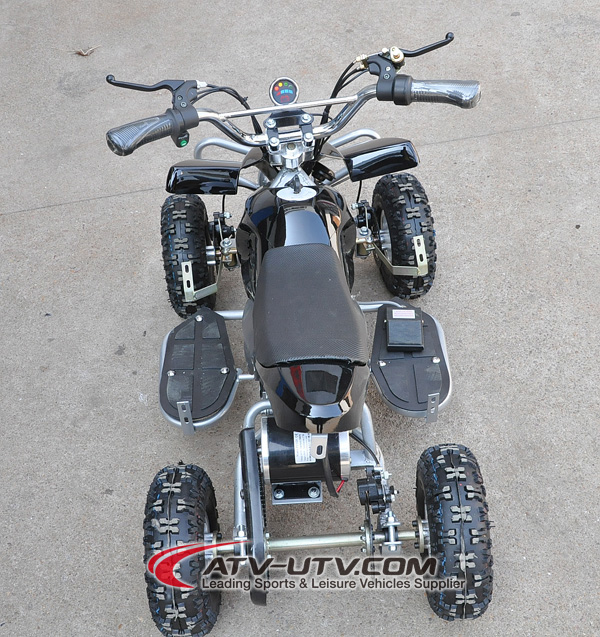

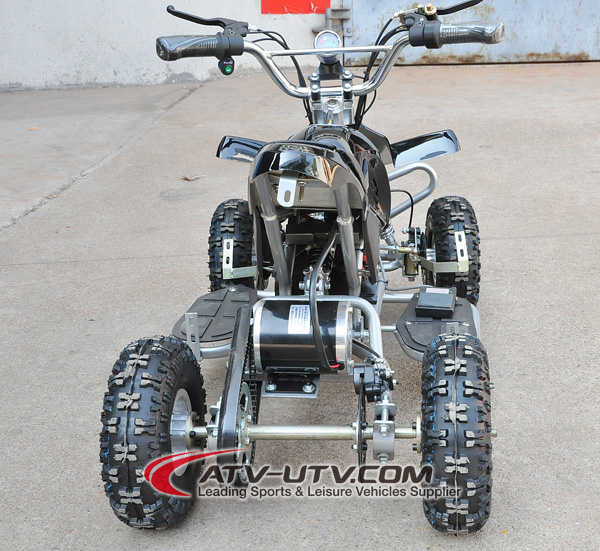

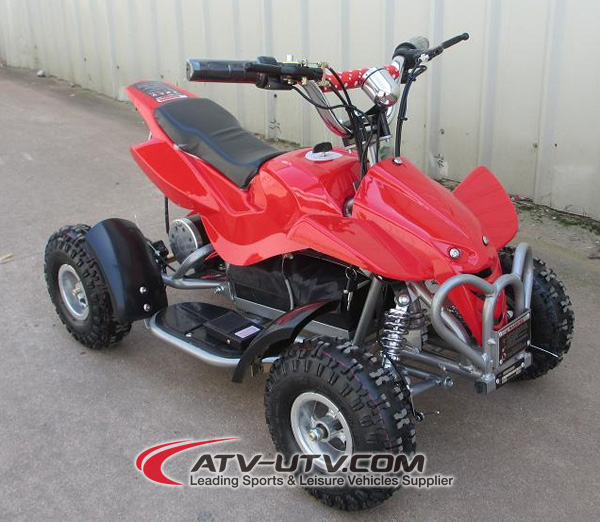

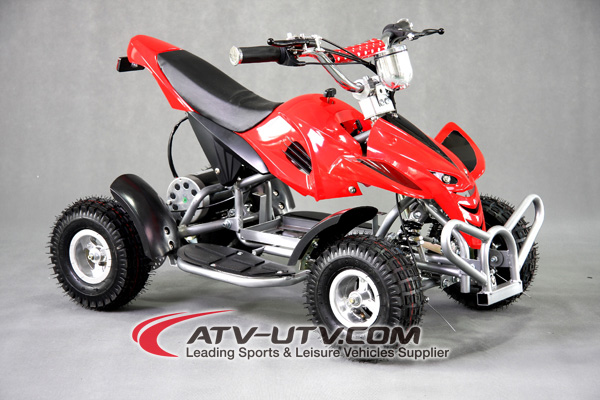

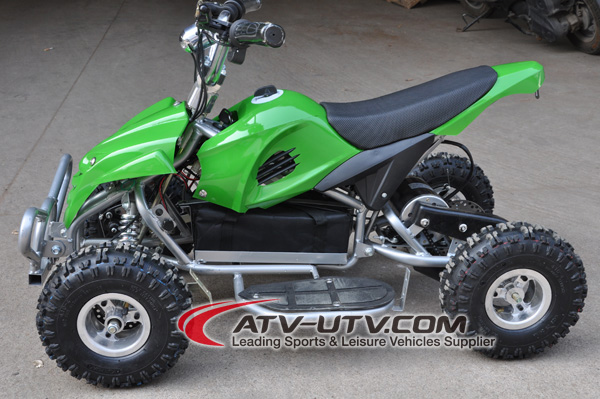

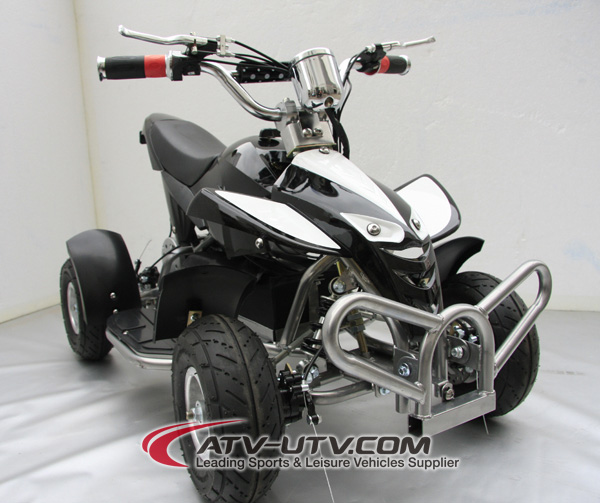

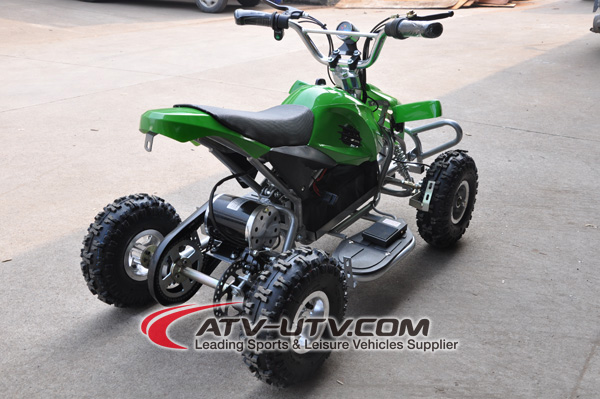

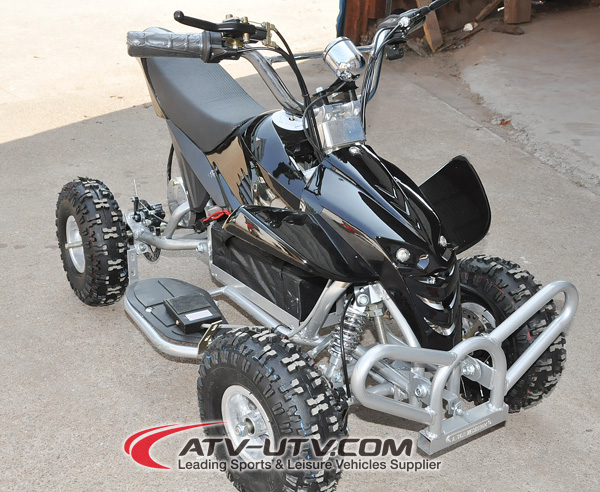

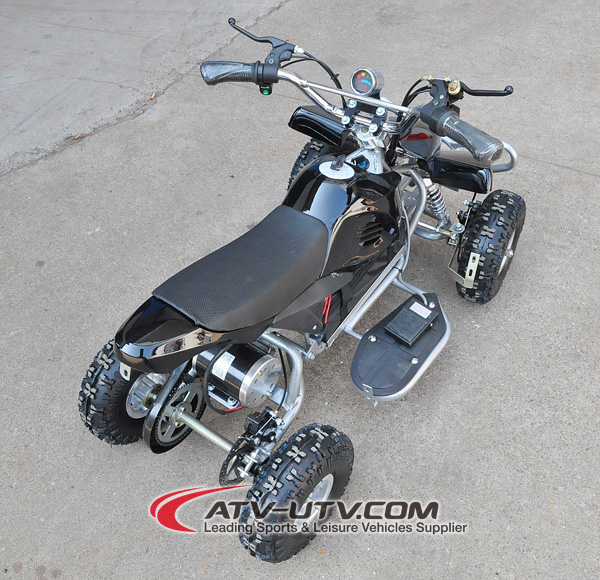

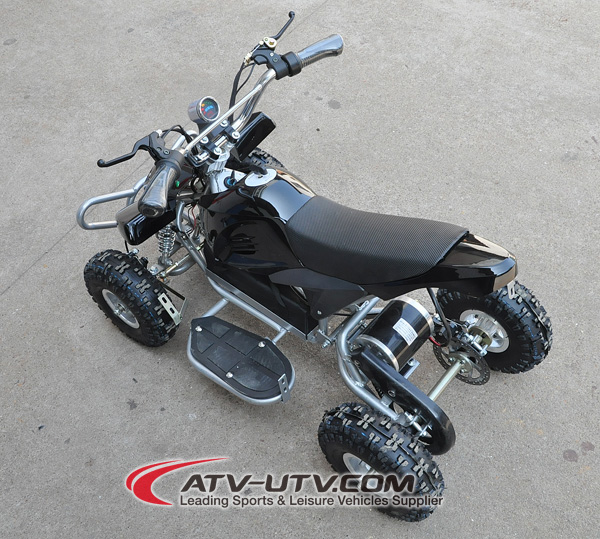

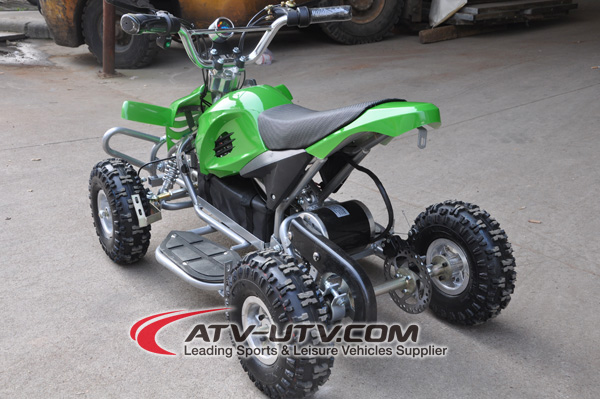

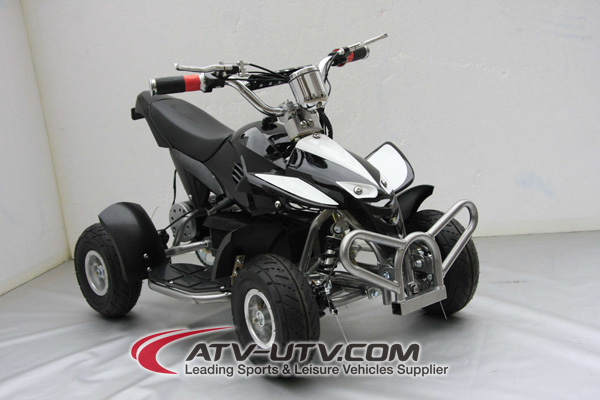

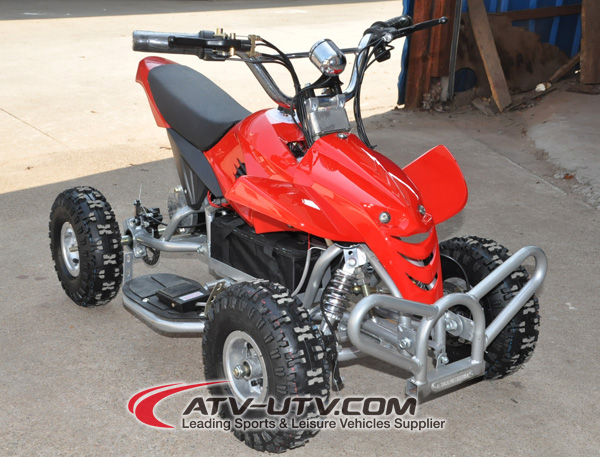

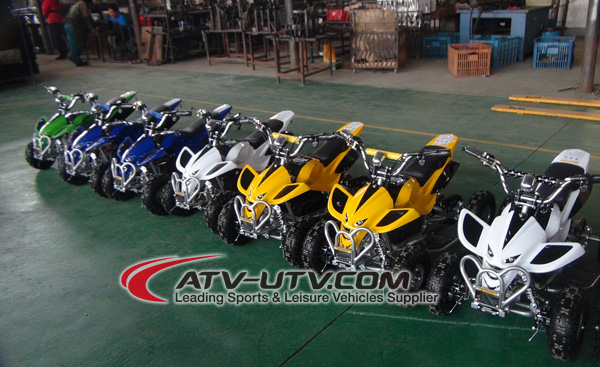

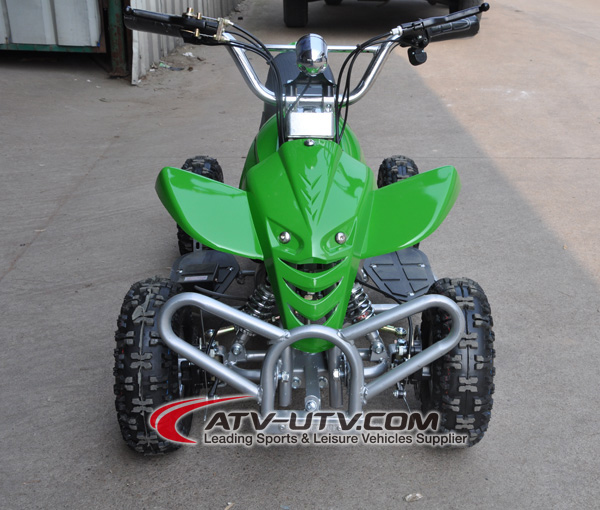

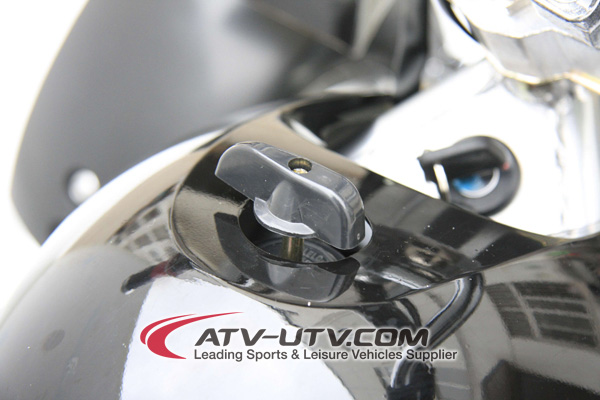

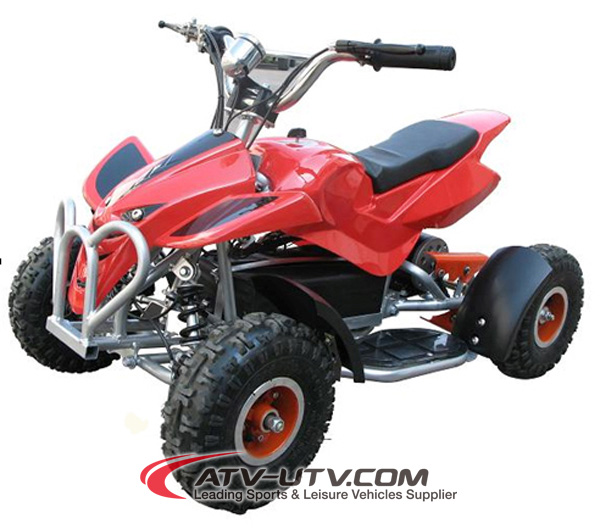

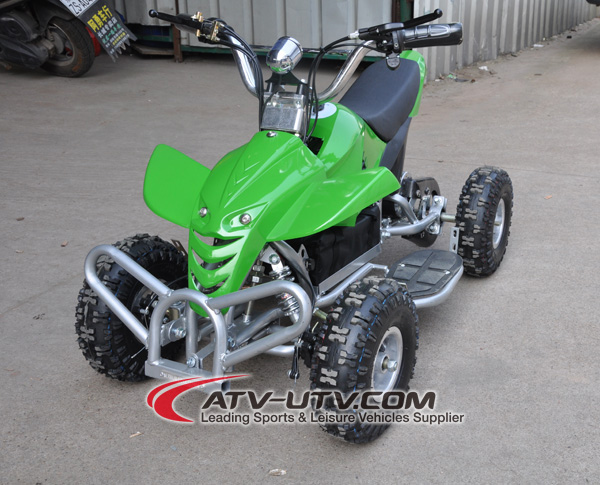

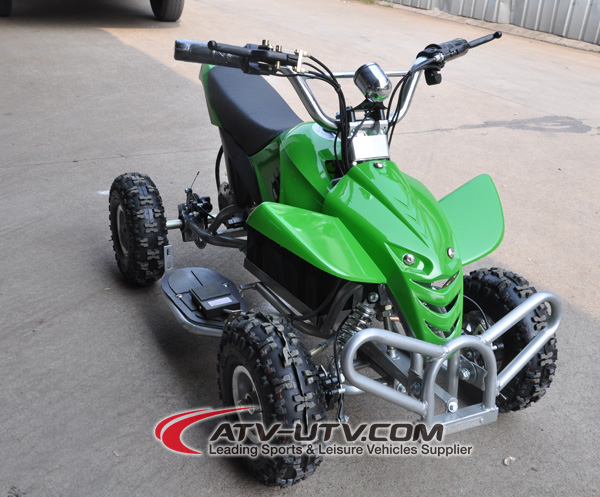

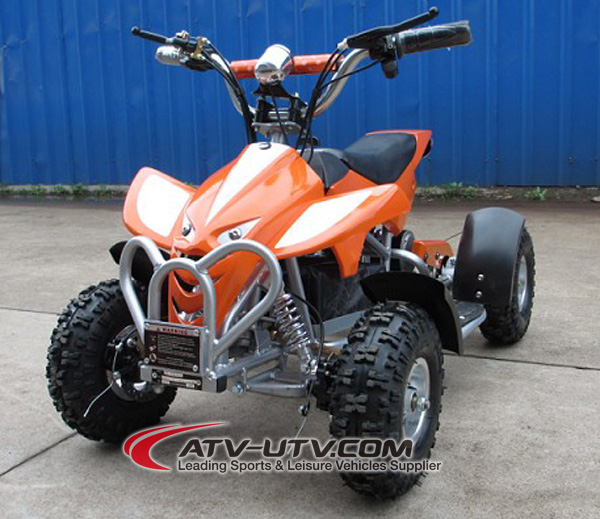

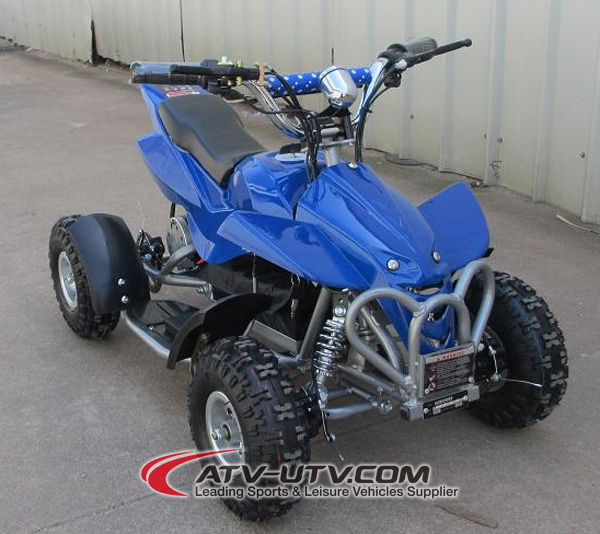

More Pictures:

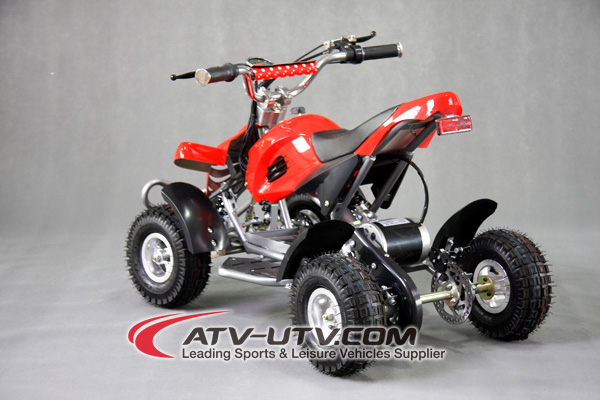

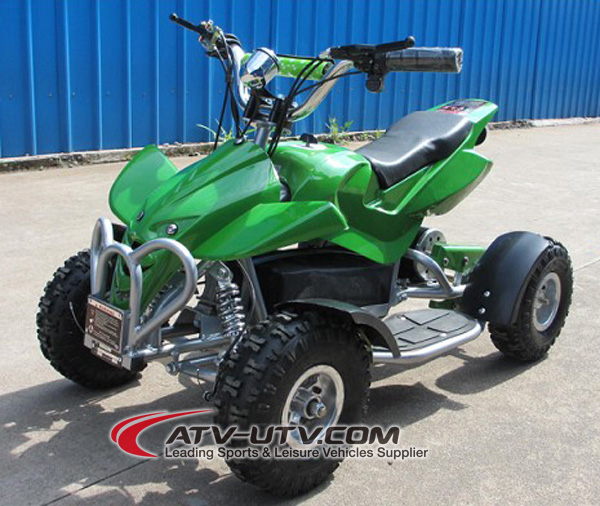

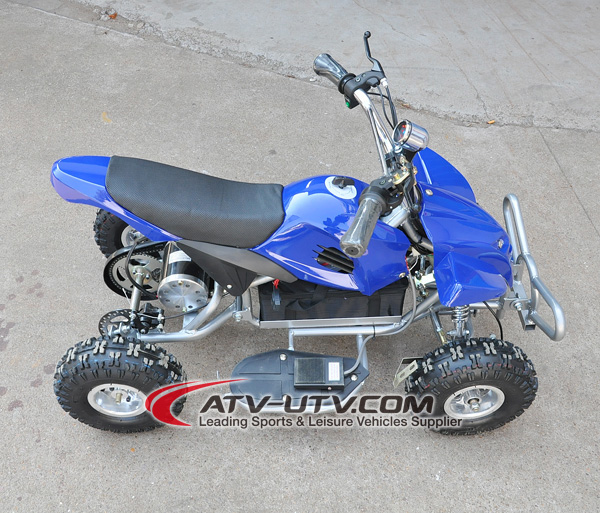

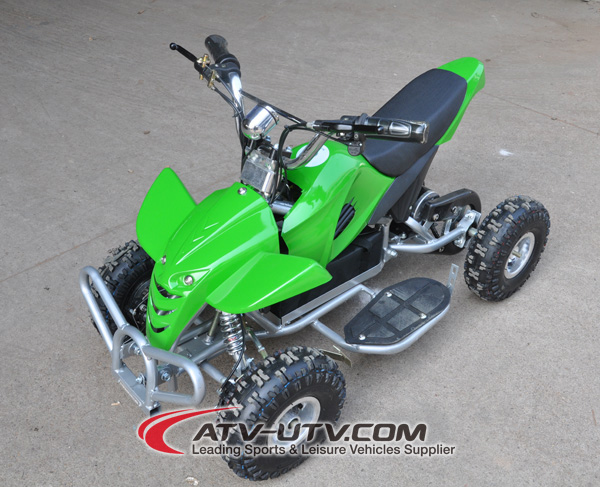

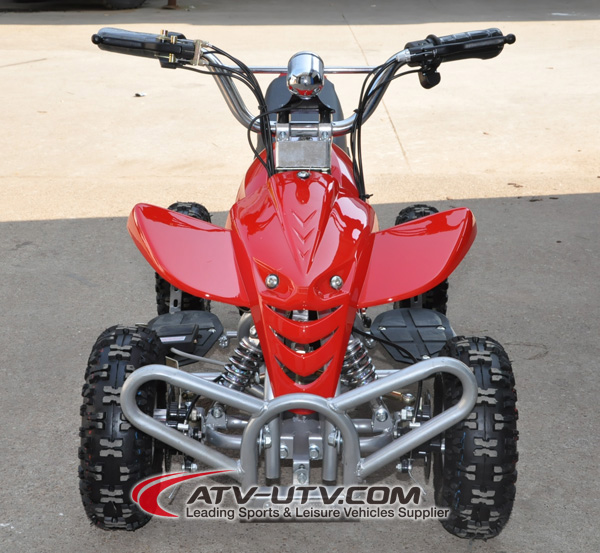

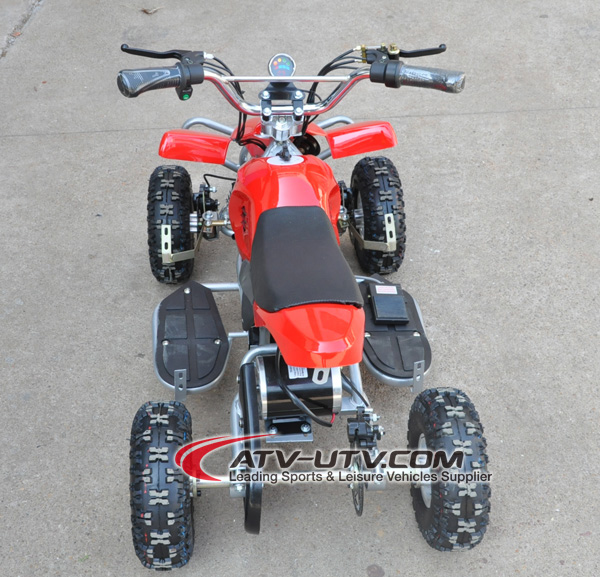

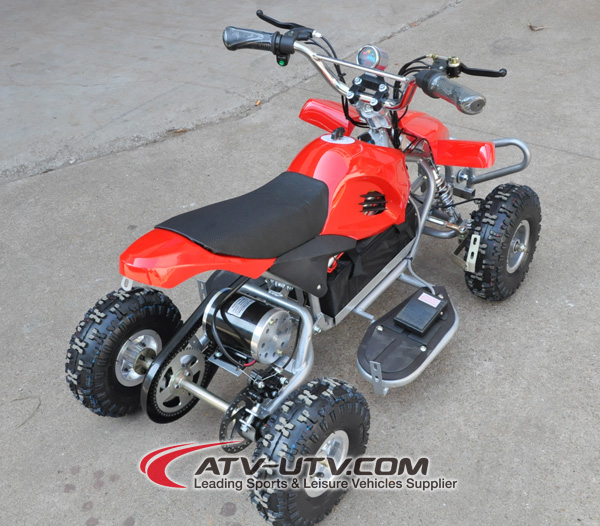

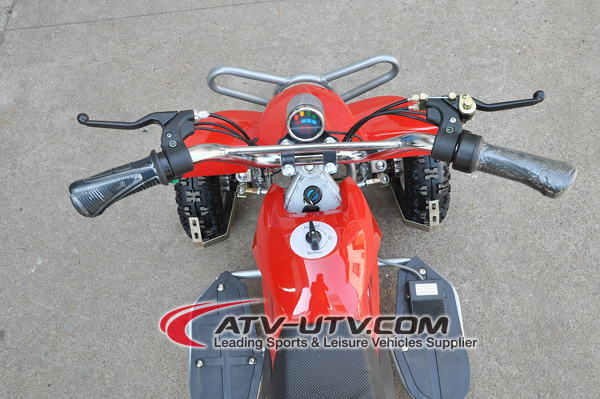

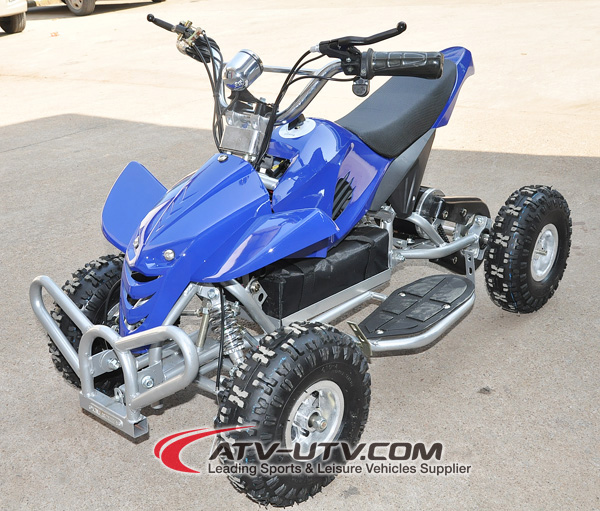

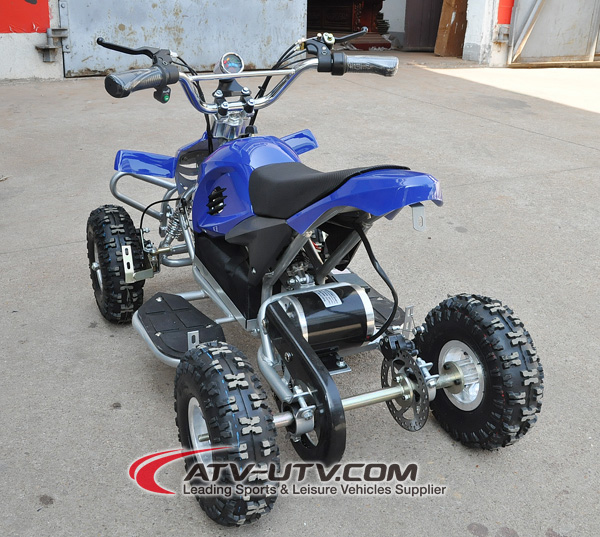

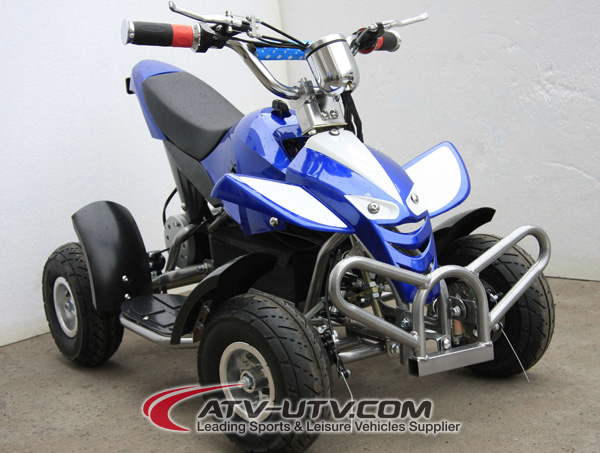

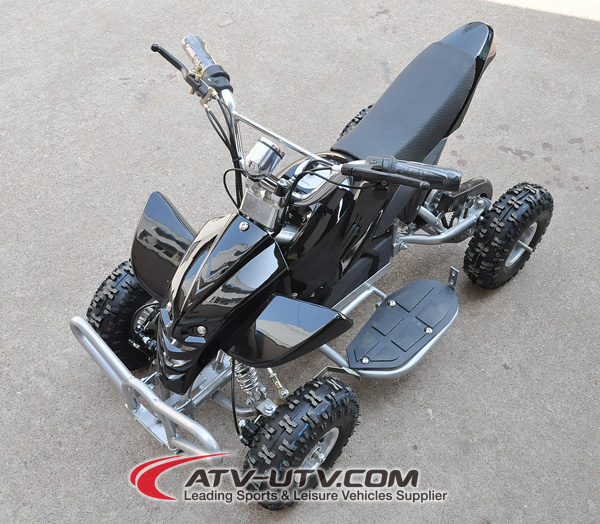

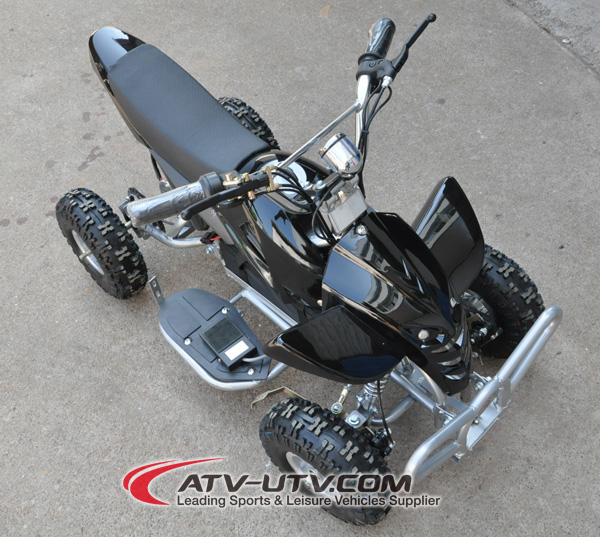

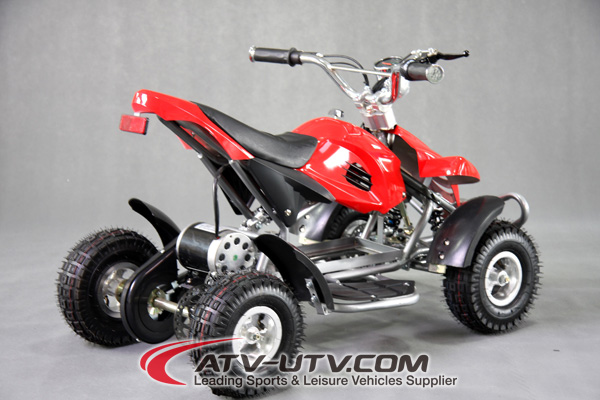

Best Christmas Gift for Kids, CE Approved 500W Kids Electric Quads Bike ATV



Product Discription:


Electric ATV
Best Christmas Gift for Kids, CE Approved 500W Kids Electric Quads Bike ATV

EA0504-A
Key Specifications:
1. Wheel number: 4
2. Out dimensions: 1000x590x600mm

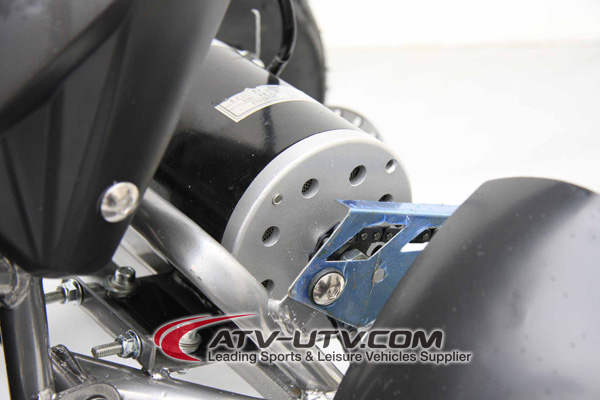

3. Motor power: 500W
4. Battery: 36V 12AH
5. Rated power: 450W±10%
6. Control chip: 36V/500W
7. Charging power input: AC80-240V 50-60Hz 36V/MAX1.6A
8. Charging time: 8-9 hours
9. Life of storage battery: about 300 cycles
10. Speed: 18-20km/h

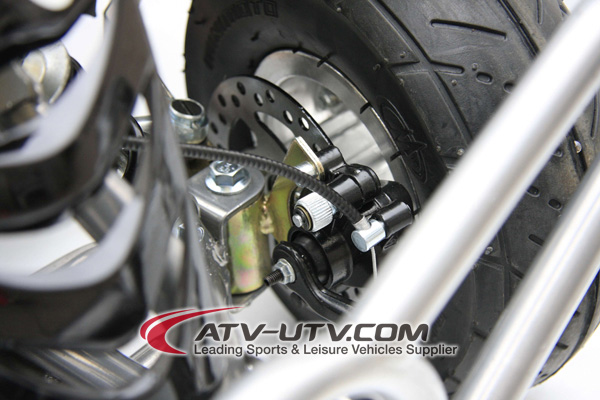

11. Brake: Front double disc brake/φ120; Rear single disc brake/φ140

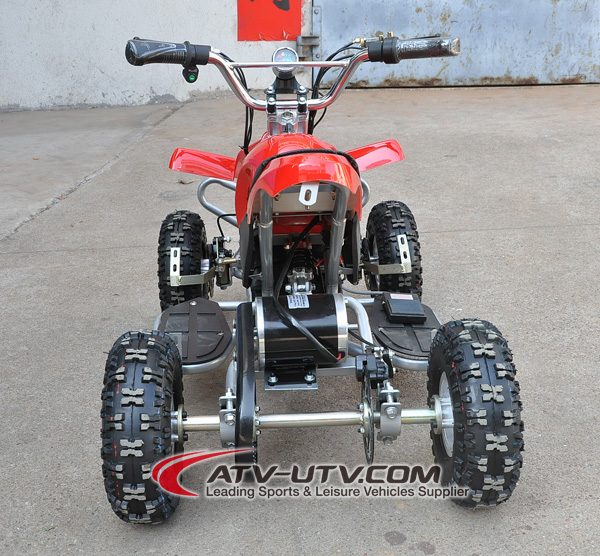

12. Transmission: chain drive
13. Wheel size: 4.10-4
14. Load capacity: ≤ 70kgs
15. Climb capacity: ≥ 15 degrees
16. Front /Rear wheel: aluminum
17. Color available: red, blue, black, yellow
Package: Iron cage with carton outside
18. Net weight: 38kgs/84lbs
19. Gross weight: 47kgs/104lbs
20. Carton size: 99.5x58x43cm/1pc
21. Container: 110pcs/20’,220pcs/40’,283pcs/40’HQ
Special Features:
 CE Approved
 Handle throttle speed controlling
 Front & Rear spring shock suspensions

Electric ATV
Best Christmas Gift for Kids, CE Approved 800W Electric Quads Bike (ATV)
EA0504-B
Key Specifications:
1. Wheel number: 4
2. Out dimensions: 1000x590x600mm
3. Motor power: 800W
4. Battery: 36V 12AH
5. Rated power: 750W±10%
6. Control chip: 36V/800W
7. Charging power input: AC80-240V 50-60Hz 36V/MAX1.6A
8. Charging time: 8-9 hours
9. Life of storage battery: about 300 cycles
10. Speed: 18-20km/h
11. Brake: Front double disc brake/φ120; Rear single disc brake/φ140
12. Transmission: chain drive
13. Wheel size: 4.10-4
14. Load capacity: ≤ 70kgs
15. Climb capacity: ≥ 15 degrees
16. Front /Rear wheel: aluminum
17. Color available: red, blue, black, yellow
Package: Iron cage with carton outside
18. Net weight: 40kgs/88lbs
19. Gross weight: 50kgs/110lbs
20. Carton size: 99.5x58x43cm/1pc
21. Container: 110pcs/20’, 220pcs/40’, 283pcs/40’HQ
Special Features:
 CE Approved
 Handle throttle speed controlling
 Front & Rear spring shock suspensions

Electric ATV
Best Christmas Gift for Kids, CE Approved 1000W Electric Quads Bike (ATV)
EA0504-C
Key Specifications:
1. Wheel number: 4
2. Out dimensions: 1000x590x600mm
3. Motor power: 1000W
4. Battery: 36V 12AH
5. Rated power: 1000W±10%
6. Control chip: 36V/1000W
7. Charging power input: AC80-240V 50-60Hz 36V/MAX1.6A
8. Charging time: 8-9 hours
9. Life of storage battery: about 300 cycles
10. Speed: 18-20km/h
11. Brake: Front double disc brake/φ120; Rear single disc brake/φ140
12. Transmission: chain drive
13. Wheel size: 4.10-4
14. Load capacity: ≤ 70kgs
15. Climb capacity: ≥ 15 degrees
16. Front /Rear wheel: aluminum
17. Color available: red, blue, black, yellow
Package: Iron cage with carton outside
18. Net weight: 40kgs/88lbs
19. Gross weight: 50kgs/110lbs
20. Carton size: 99.5x58x43cm/1pc
21. Container: 110pcs/20’,220pcs/40’,283pcs/40’HQ
Special Features:
 CE Approved
 Handle throttle speed controlling
 Front & Rear spring shock suspensions
