Double Seat Racing 4 Stroke Go-Kart for Adult with air cooling 150CC Wang Ye Engine
Double Seat Racing 4 Stroke Go-Kart for Adult with air cooling 150CC Wang Ye Engine
Item NO.: GC1501
Category: Off-Road Go Kart
Update:
6/28/2015 10:06:52 PM
Inquire
Print

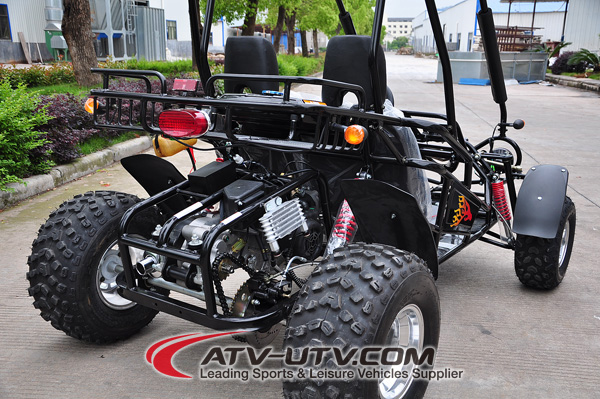

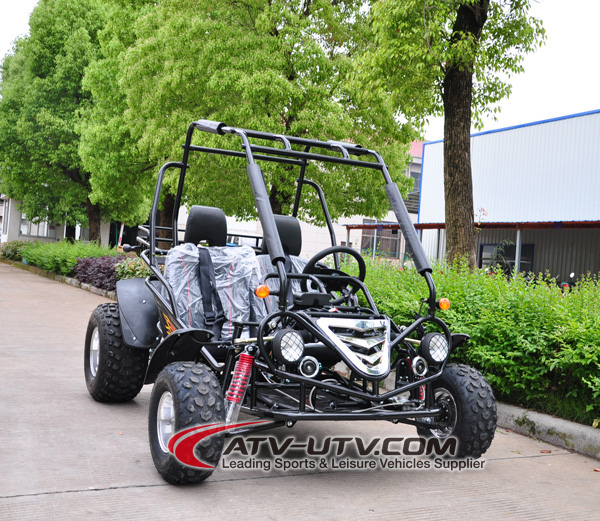

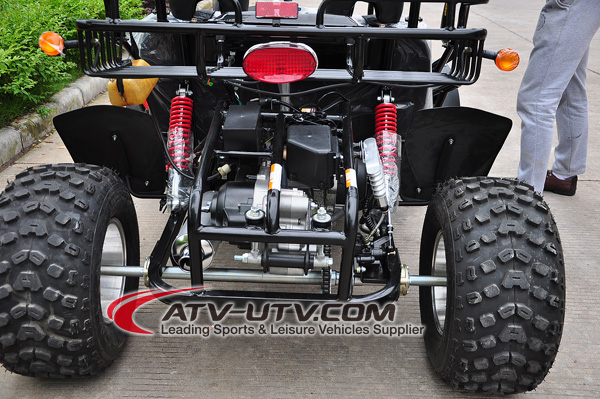

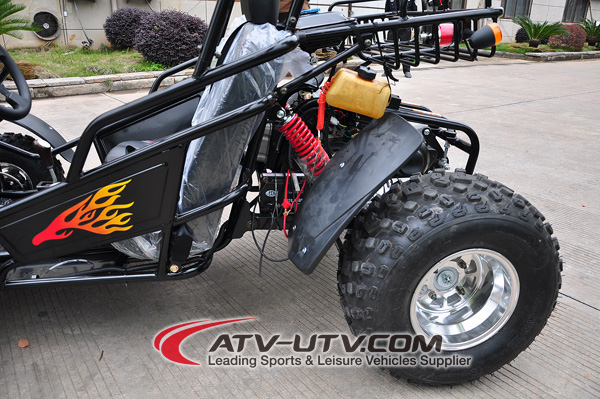

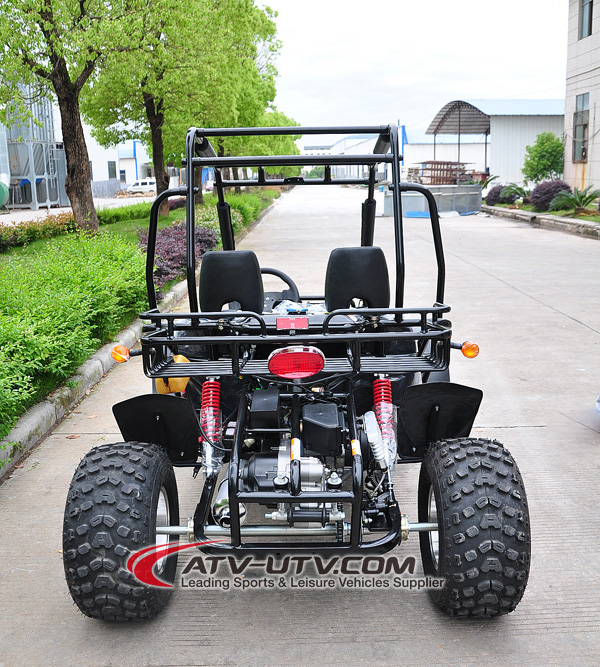

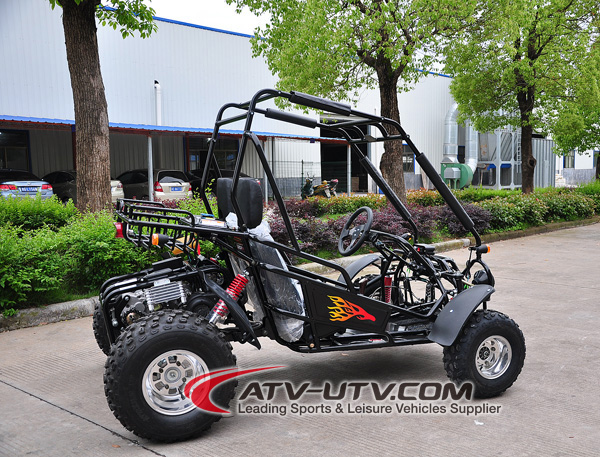

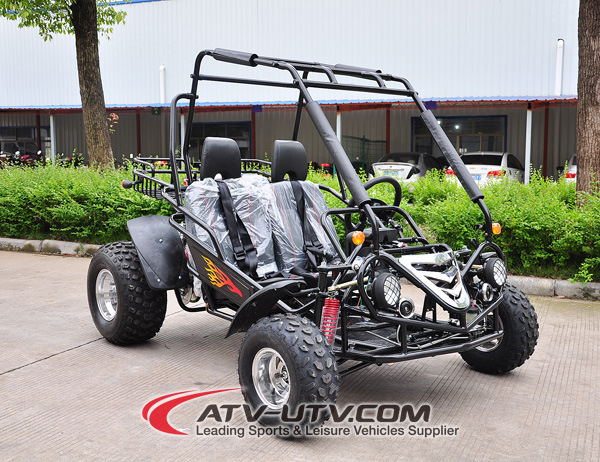

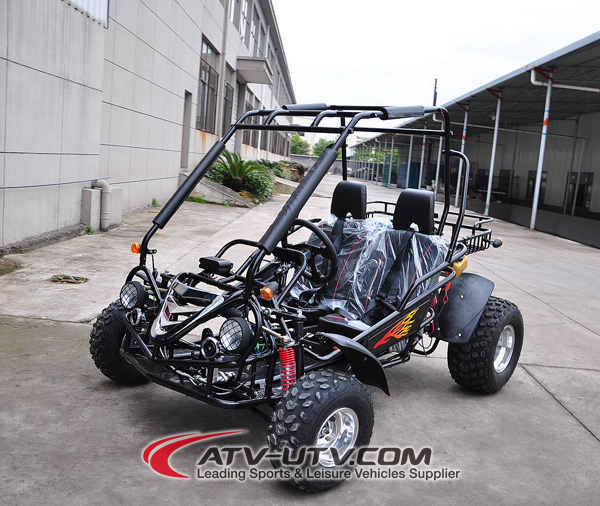

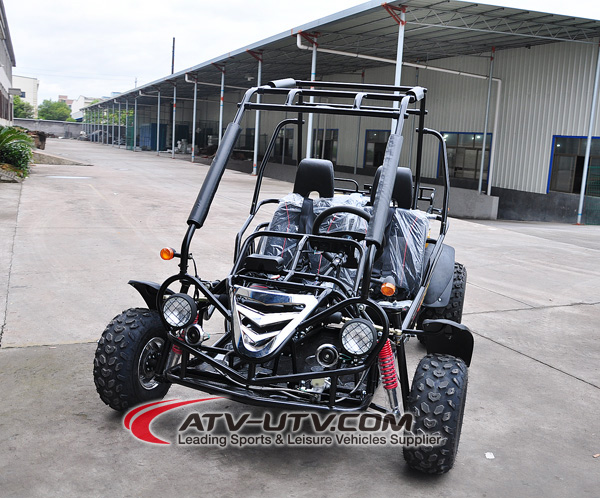

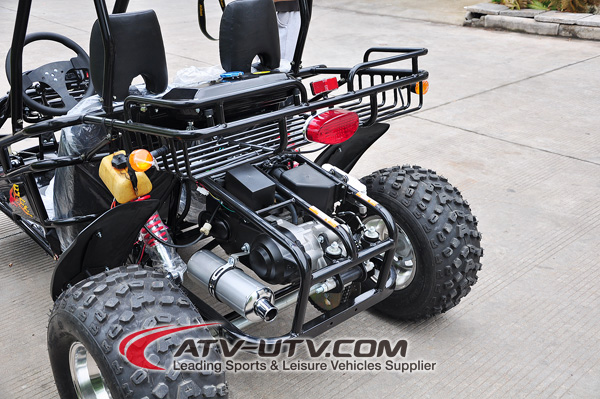

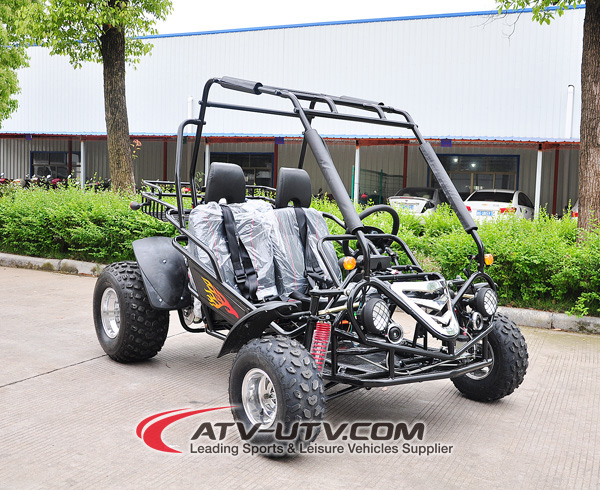

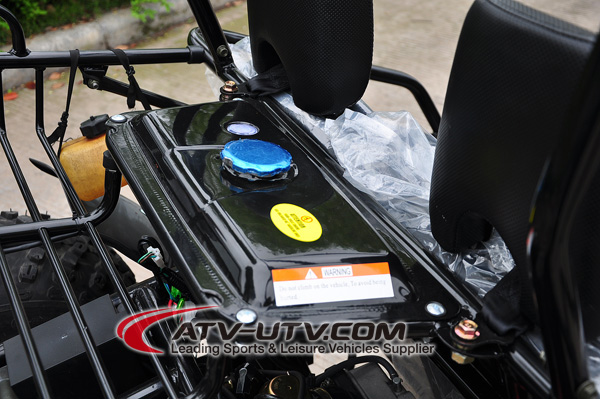

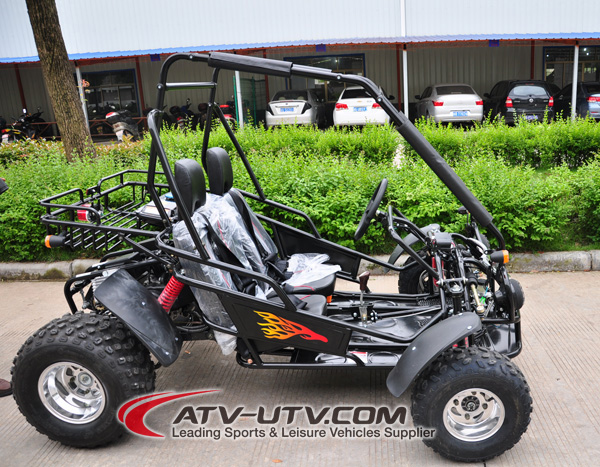

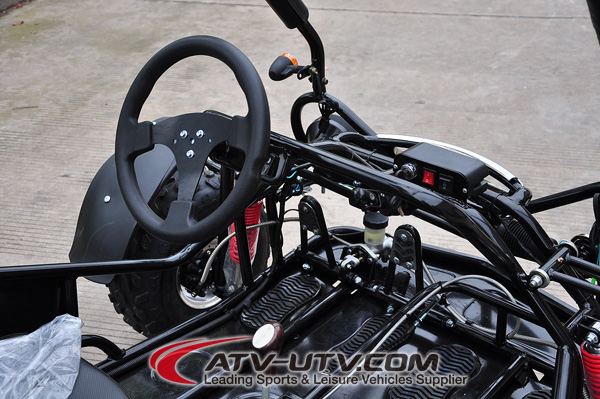

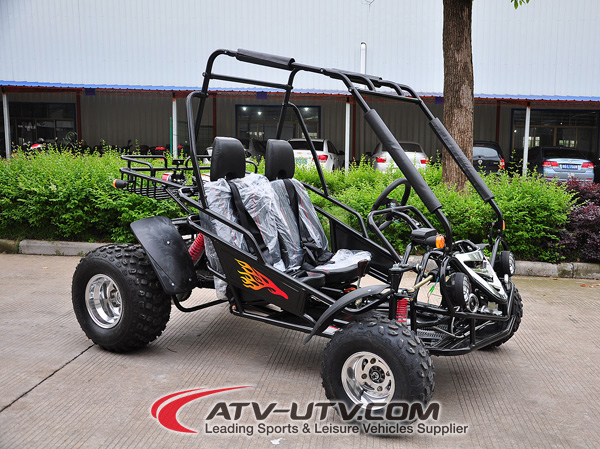

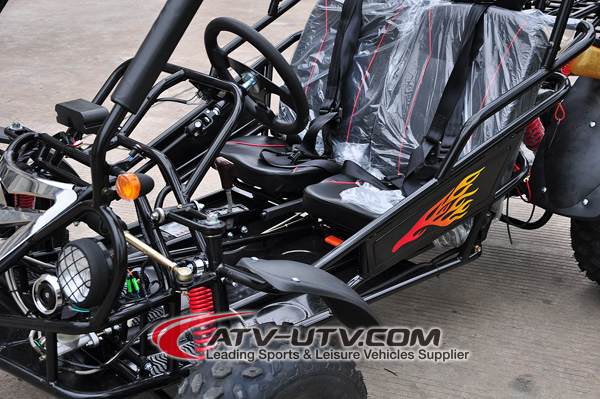

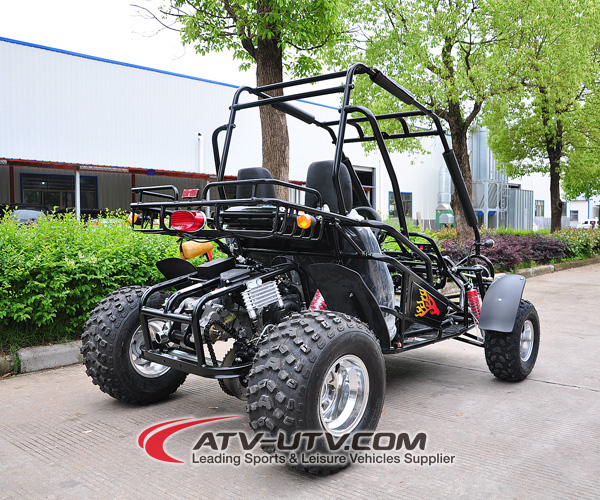

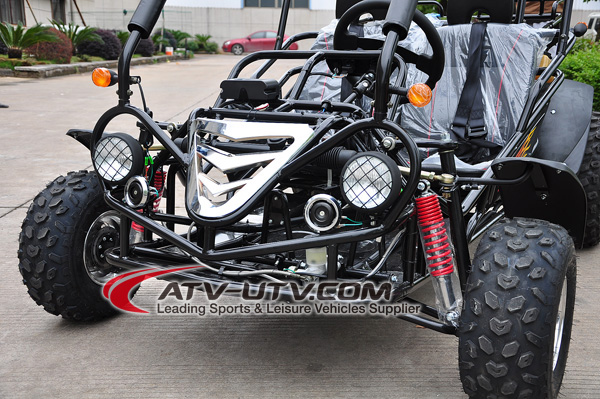

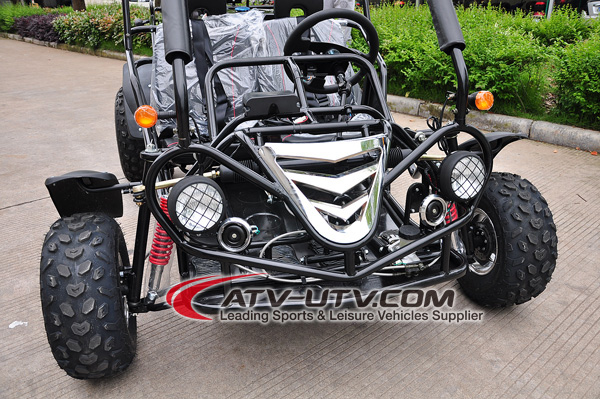

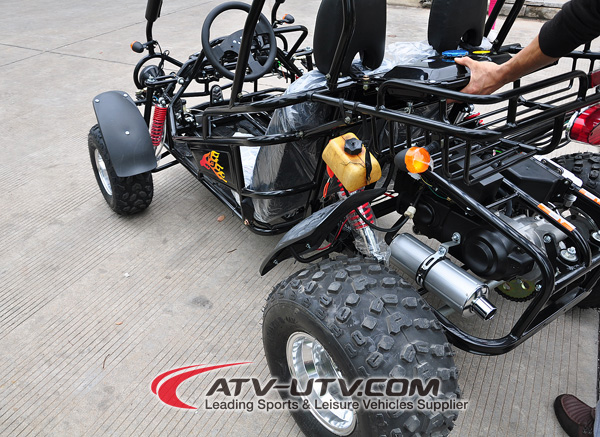

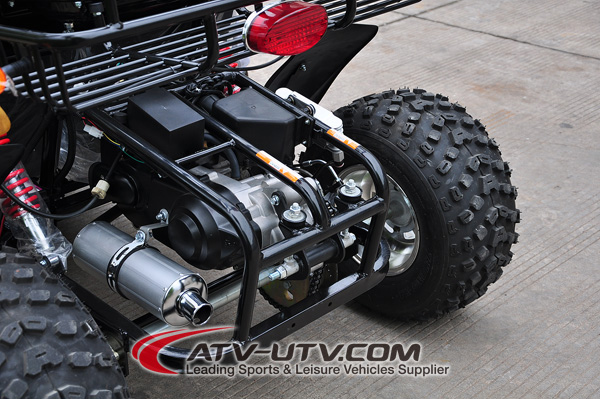

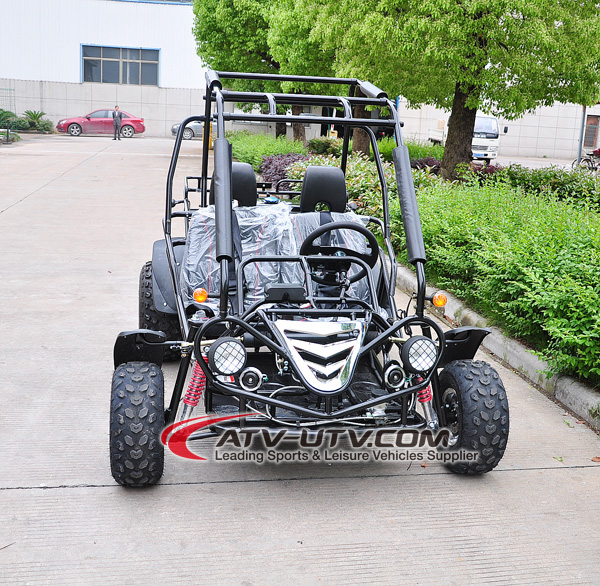

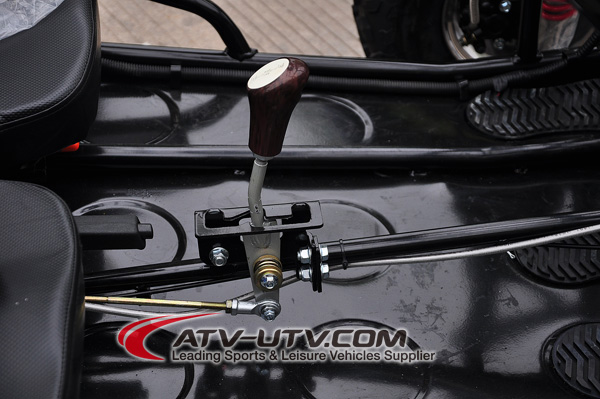

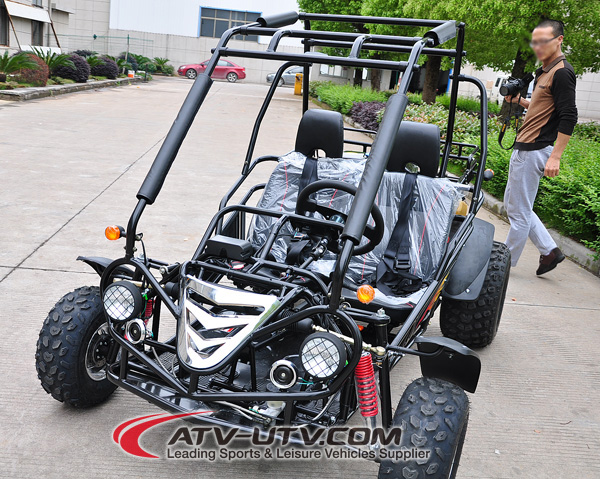

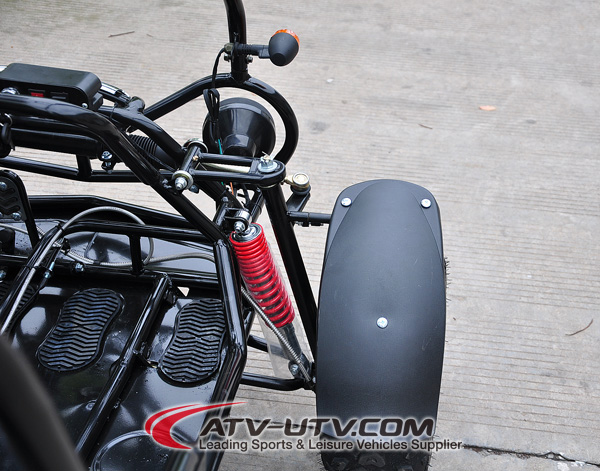

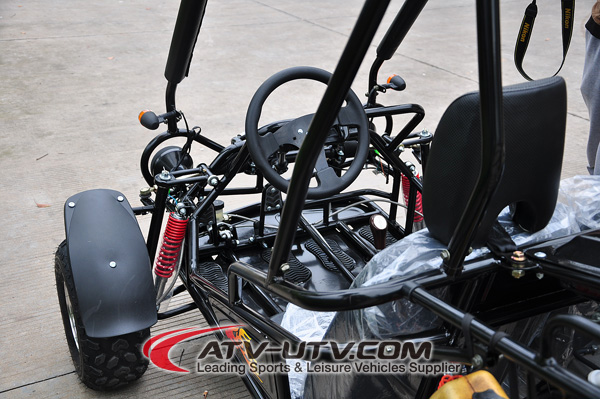

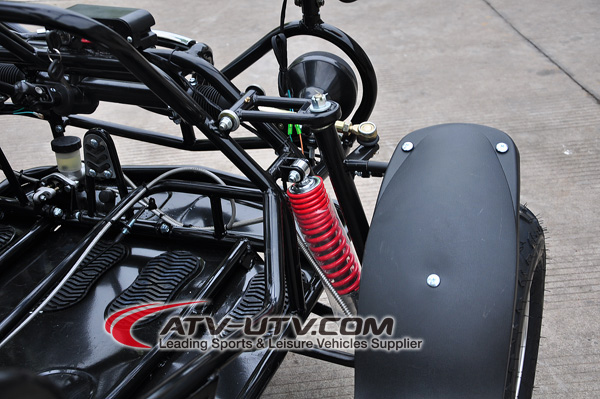

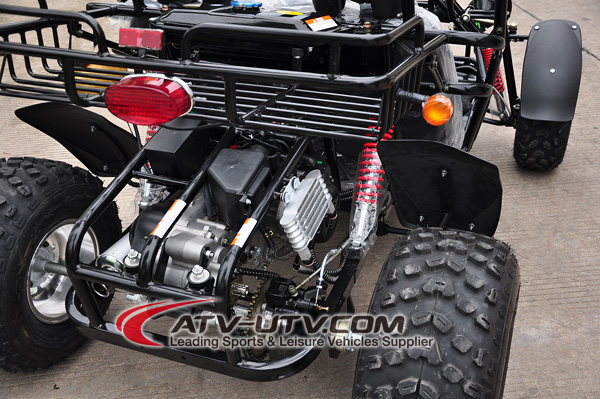

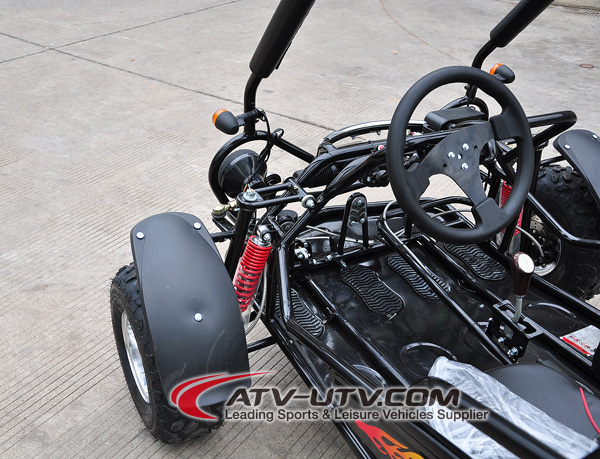

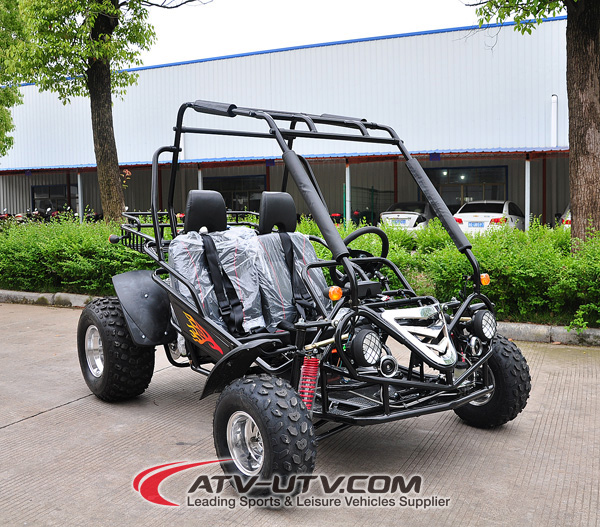

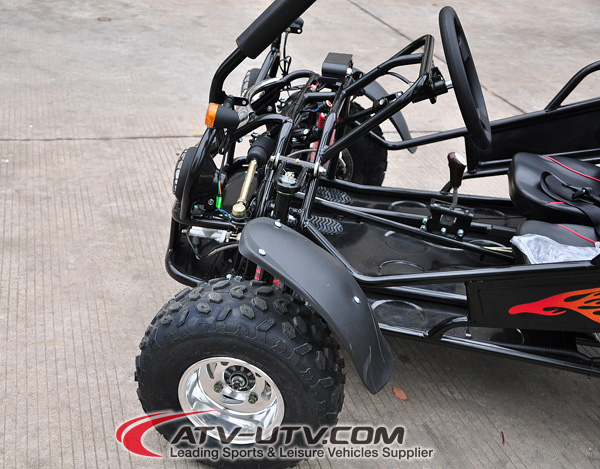

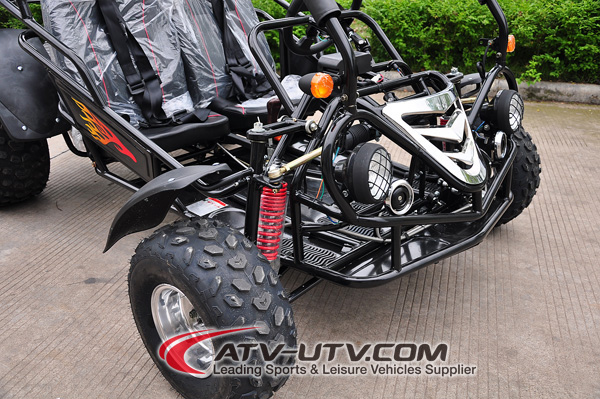

More Pictures:

Double Seat Racing 4 Stroke Go-Kart for Adult with air cooling 150CC Wang Ye Engine



Product Discription:


Go Karts
Double Seat Racing 4 Stroke Go-Kart for Adult with air cooling 150CC Wang Ye Engine

GC1501
Key Specifications:
1. Wheel number: 4
2. Outer dimensions: 2220*1330*1520
3. Piston displacement: 150cc
4. Fuel tank: 7(L)
5. Engine type: 150cc,4 stroke,1-cylinder, air-cooling
6. Starting system:electric start
7. Power transmission: chain drive
8. Ignition method: CDI
9. Brakes:Front/Rear hydraulic brake
10. Wheel size: Front:19*7-8 ;Rear:22*11-10
11. Max loading: 165(kg)
12. Max speed: 50(Km/h)
13. Seat height:460mm
14. Color:yellow,black,red,blue,
15. Max Power:7/7500(kw/rpm)
16. Max Torque:8/4500(Nm/rpm)
17. Lubrication:Pressure and Splash
18. Compression Ratio:10:1
19. Transmission:CVT with reverse
20. Battery:12V9Ah
21. Wheel Base:1580(mm)
22. Mini Ground Clearance:160(mm)
Package: Carton Packing
23. Net weight:200(kgs)
24. Gross weight: 215(kgs)
25. Carton size:2205*1195*800mm
26. Container:8pcs/20’,30pcs/40’HQ

http://youtu.be/_Qiho-pW2_0
