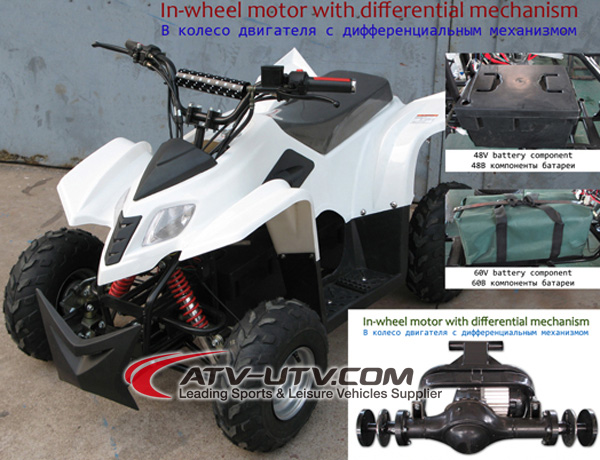

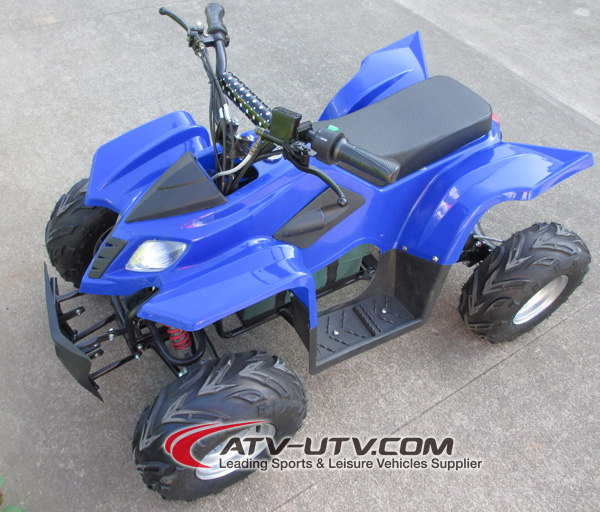

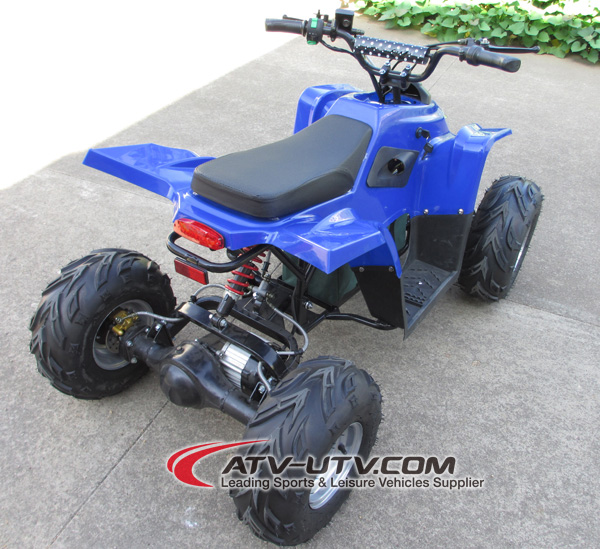

NEW CE Approved 800W Electric Differential Quads Bike (ATV) with Reverse Gearshift
NEW CE Approved 800W Electric Differential Quads Bike (ATV) with Reverse Gearshift
Item NO.: EA0803
Category: Electric ATV
Update:
6/26/2015 2:32:05 AM
Inquire
Print
More Pictures:

NEW CE Approved 800W Electric Differential Quads Bike (ATV) with Reverse Gearshift



Product Discription:


Electric ATV
NEW CE Approved 800W Electric Differential Quads Bike (ATV) with Reverse Gearshift
EA0803-A
Key Specifications:
1. Wheel number: 4
2. Product size: 1480x860x900mm
3. Motor power: 800W
4. Battery: 48V 20Ah
5. Rate power: 800W±10%
6. Control chip: 48V/800W
7. Charging power input: AC80-240V 50-60Hz 48V/MAX1.8A
8. Charging time: 11-13 hours
9. Rate speed: 35±3km/h
10. Brake: front: drum brake, rear: dual-disc brake/front and rear dual-disc brake
11. Transmission: shaft drive transmission
12. Wheel size: 16x8.00-7
13. Climb capacity: ≥15 degrees
14. Load capacity: 85kgs
15. Color available: red, blue, black, yellow
Package: Iron cage with carton outside
16. Net weight: 98kgs/216lbs
17. Gross weight: 115kgs/254lbs
18. Carton size: 124x76x63cm/1pc
19. Container: 47pcs/20, 98pcs/40, 115pcs/40’HQ
Special Features:
 CE Approved
 Gear driving with speed differential control
 Front & Reverse gearshift
 Iron wheel rim

Electric ATV
2013 NEW CE Approved 800W Electric Differential Quads Bike (ATV) with Reverse Gearshift
EA0803-B
Key Specifications:
1. Wheel number: 4
2. Product size: 1480x860x900mm
3. Motor power: 800W
4. Battery: 60V 20Ah
5. Rate power: 800W±10%
6. Control chip: 60V/800W
7. Charging power input: AC200-240V 50-60Hz 60V/MAX2.5A
8. Charging time: 8-9 hours
9. Rate speed: 40±3km/h
10. Brake: front: drum brake, rear: dual-disc brake/front and rear dual-disc brake
11. Transmission: shaft drive transmission
12. Wheel size: 16x8.00-7
13. Climb capacity: ≥15 degrees
14. Load capacity: 85kgs
15. Color available: red, blue, black, yellow
Package: Iron cage with carton outside
16. Net weight: 105kgs/231lbs
17. Gross weight: 122kgs/269lbs
18. Carton size: 124x76x63cm/1pc
19. Container: 47pcs/20, 98pcs/40, 115pcs/40’HQ
Special Features:
 CE Approved
 Gear driving with speed differential control
 Front & Reverse gearshift
 Iron wheel rim
