50CC ATV Equipped with Powerful Air Cooling Engine & Reverse Gear Shift

Item NO.:	AT0526
Category:	Gas ATV
Update:	6/22/2016 1:38:12 AM

Inquire

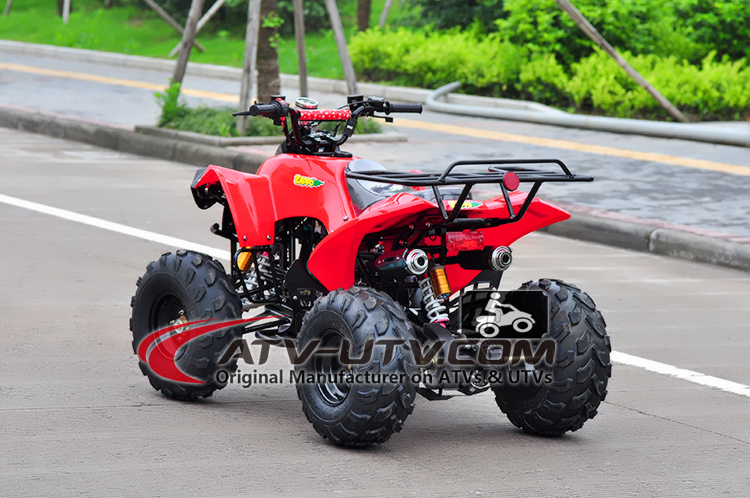

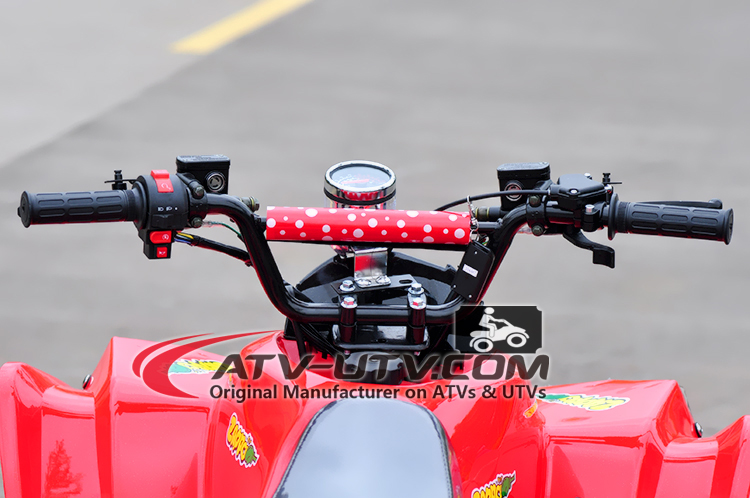

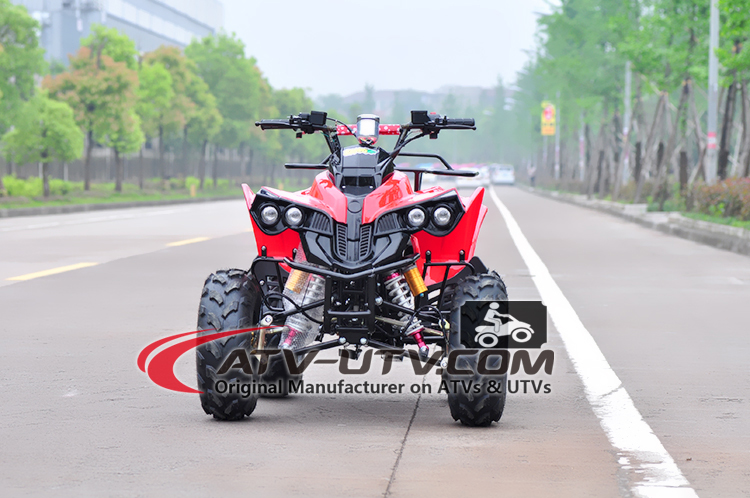

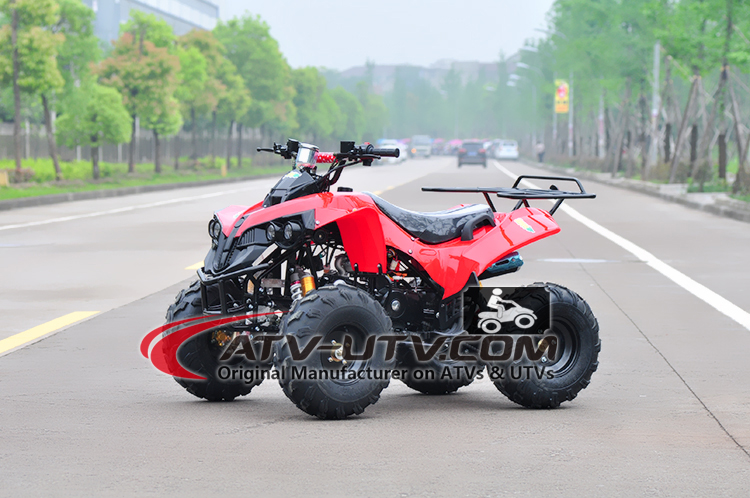

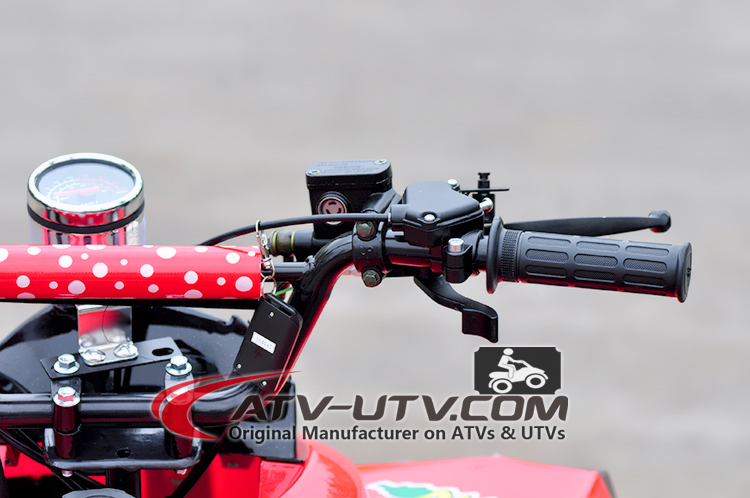

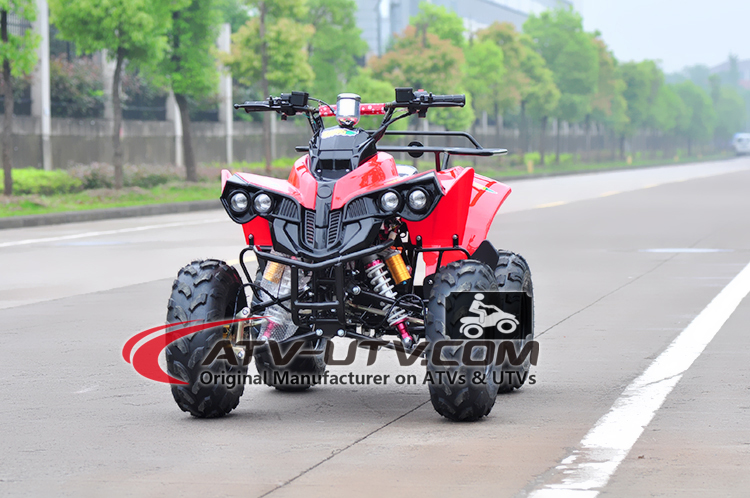

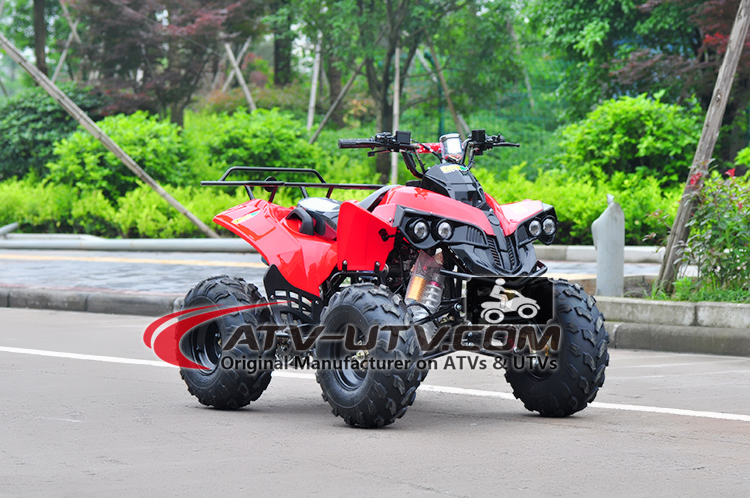

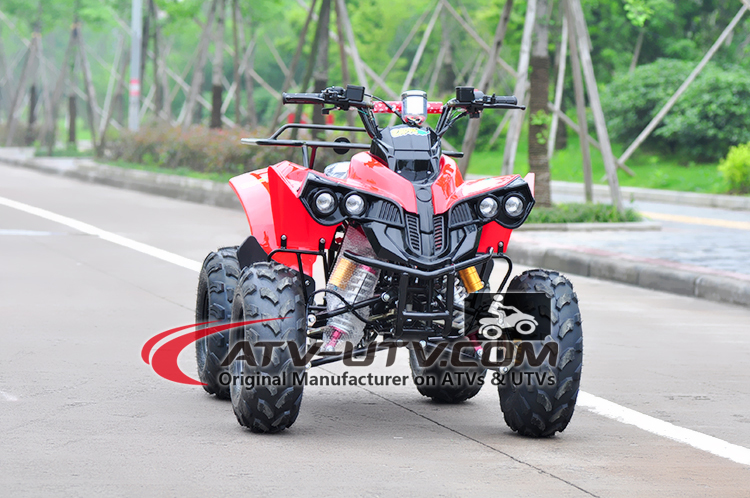

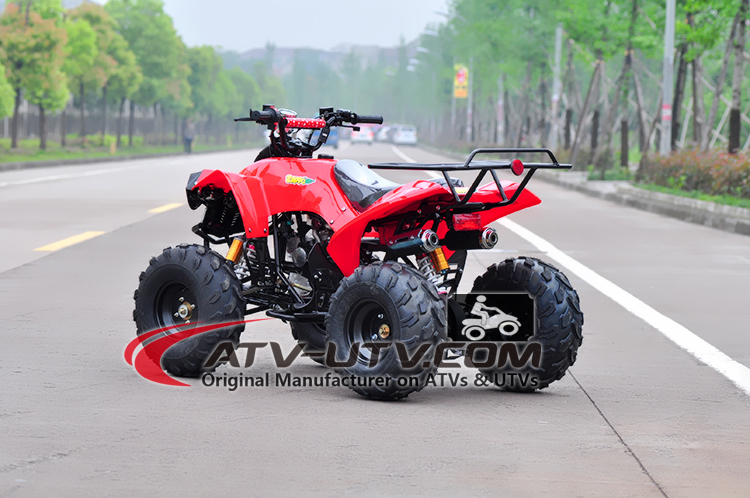

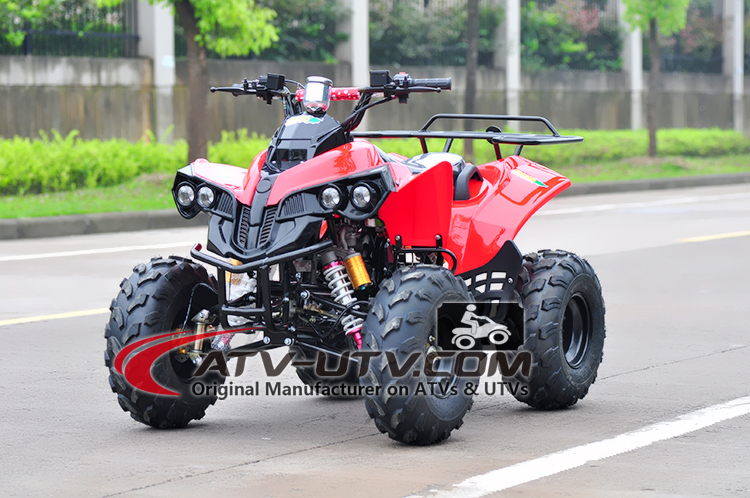

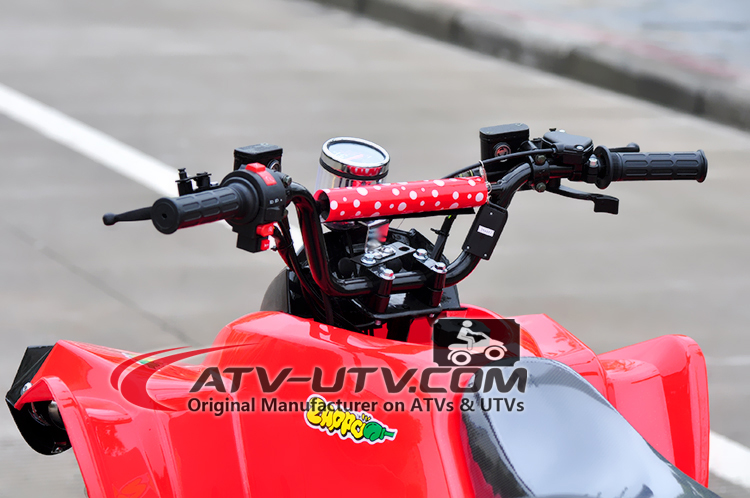

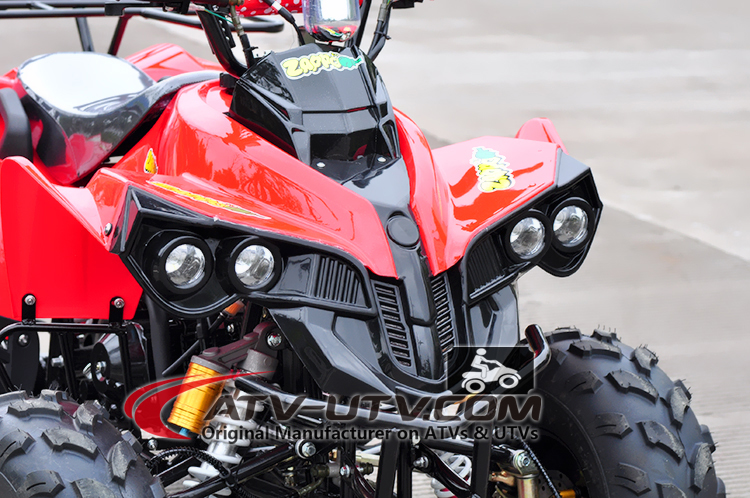

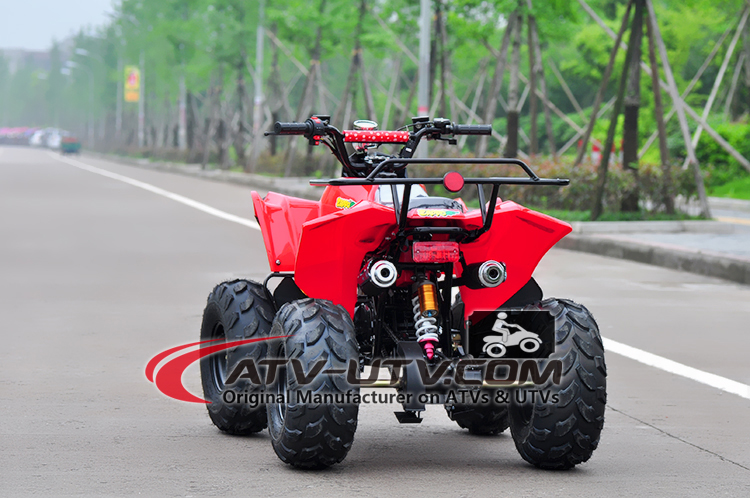

More Pictures:

Product Discription:

ATV

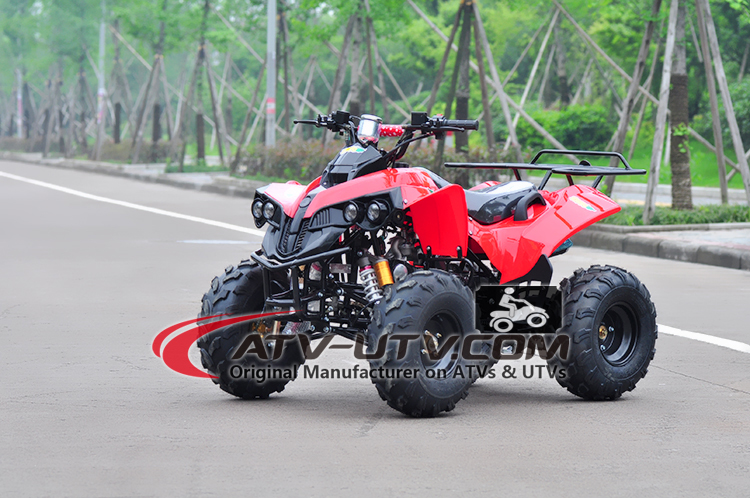

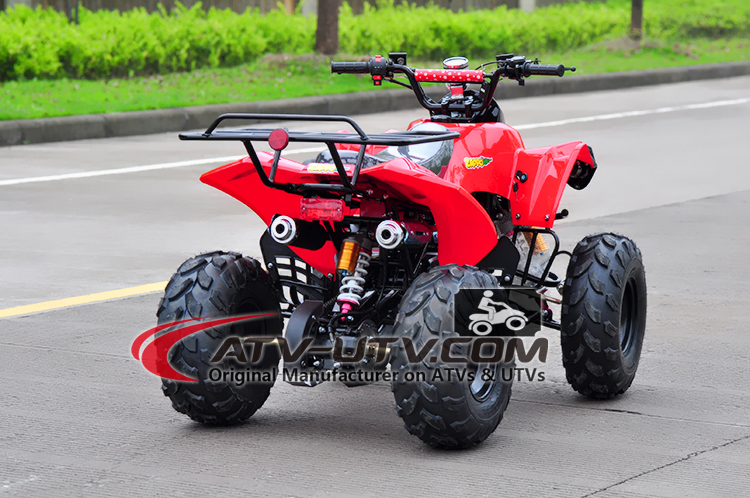

50CC ATV Equipped with Powerful Air Cooling Engine & Reverse Gear Shift
AT0526-A
Key Specifications:
1. Wheel number: 4
2. Compression ratio: 9.0:1
3. Piston displacement: 50cc

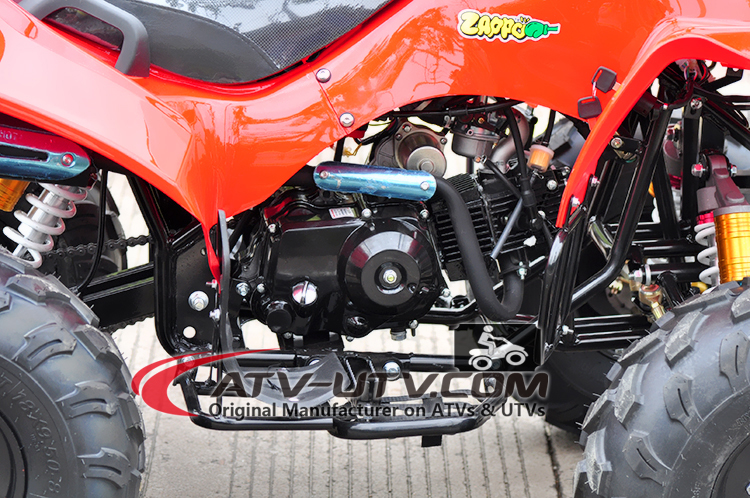

4. Engine: single-cylinder, 4-stroke, air-cooling
5. Battery:12V 4AH
6. Fuel tank volume: 3.4L
7. Oil consumption: 3.4L/100km
8. Lubricating oil: SE15W/40 SF 10W/30
9. Starting system: CDI electric start
10. Electric sparking plug: A7RTC
11. Drive system: chain dive

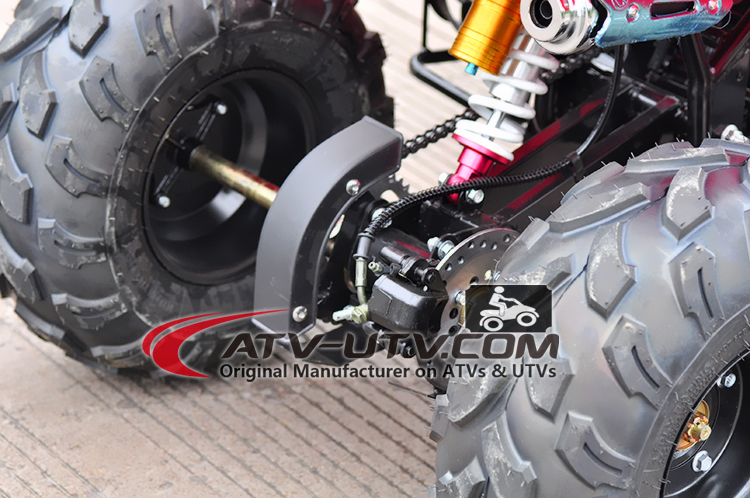

12. Brake: Front: drum brake; Rear: disc brake
13. Max speed: 40km/h
14. Load capacity: 85kgs
15. Rated power: 2.0Kw/8000r/min
16. Rated torque: 2.6N.m/5000r/min
17. Wheel: front and rear 16/8-7
18. Wheel spider: iron
19. Clutch method: automatic clutch
20. Break method: manual brake

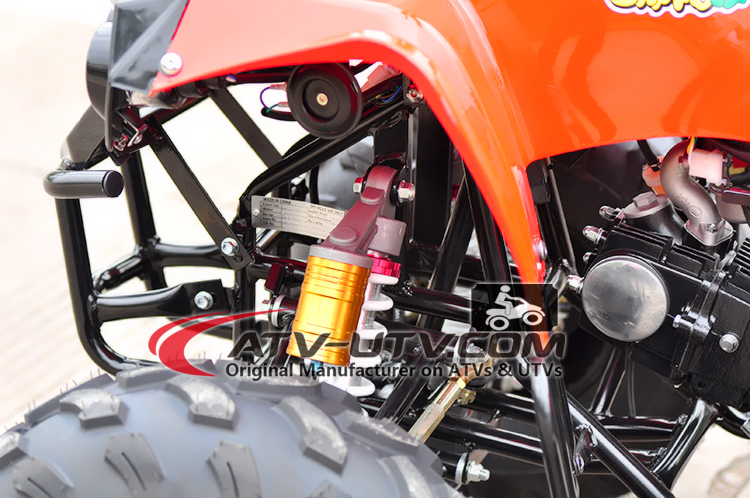

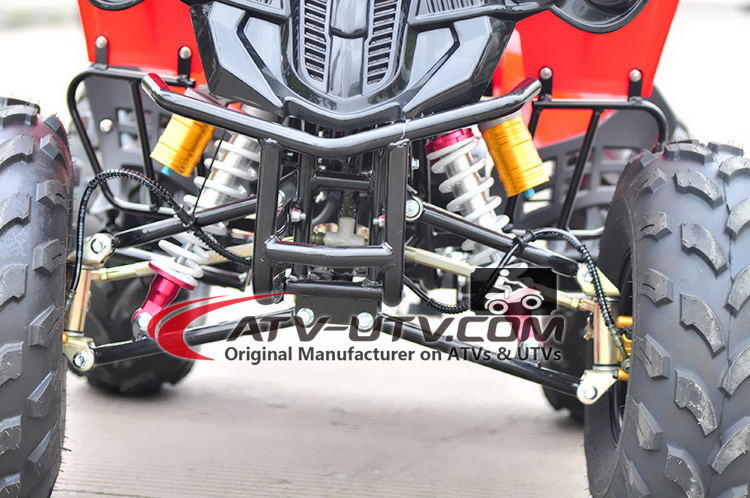

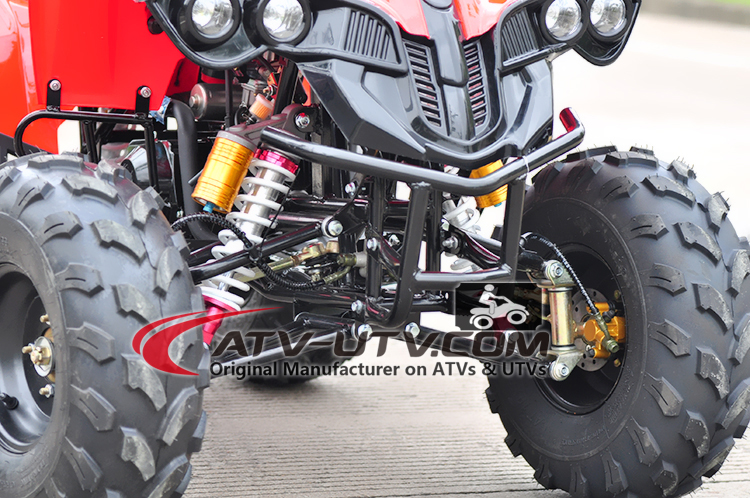

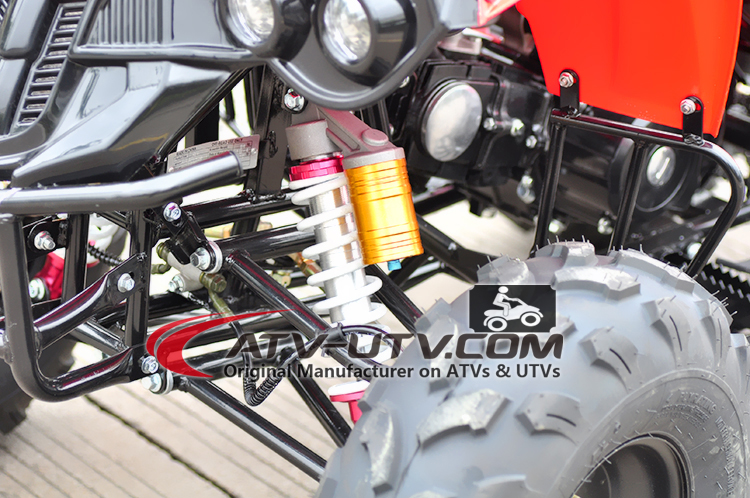

21. Shock absorption method: front and rear hydraulic shock absorber
22. Color available: black, blue, silver, red optional
Package: Iron cage with carton outside
23. Net weight: 97kgs/214lbs
24. Gross weight: 112kgs/247lbs
25. Carton size: 132x83x64m/1pc
26. Container: 38pcs/20’, 82pcs/40’, 96pcs/40’HQ
Special Features:
110cc engine is optional
Chain driving power transmission

ATV
110CC ATV Equipped with Powerful Air Cooling Engine & Reverse Gear Shift
AT0526-B
Key Specifications:
1. Wheel number: 4
2. Compression ratio: 9.0:1
3. Piston displacement: 110cc
4. Engine: single-cylinder, 4-stroke, air-cooling
5. Battery: 12V 4AH
6. Fuel tank volume: 3.4L
7. Oil consumption: 3.4L/100km
8. Lubricating oil: SE15W/40 SF 10W/30
9. Starting system: CDI electric start
10. Electric sparking plug: A7RTC
11. Drive system: chain dive
12. Brake: Front: drum brake; Rear: disc brake
13. Max speed: 40km/h
14. Load capacity: 85kgs
15. Rated power: 5.2Kw/7500r/min
16. Rated torque: 7.0N.m/5500r/min
17. Wheel: front and rear 16/8-7
18. Wheel spider: iron
19. Clutch method: automatic clutch
20. Break method: manual brake
21. Shock absorption method: front and rear hydraulic shock absorber
22. Color available: black, blue, silver, red optional
Package: Iron cage with carton outside
23. Net weight: 97kgs/214lbs
24. Gross weight: 112kgs/247lbs
25. Carton size: 132x83x64m/1pc
26. Container: 38pcs/20’, 82pcs/40’, 96pcs/40’HQ
Special Features:
50cc engine is optional
Chain driving power transmission
