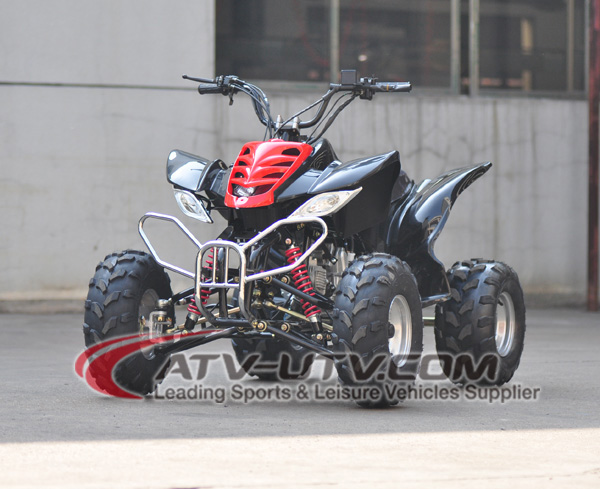

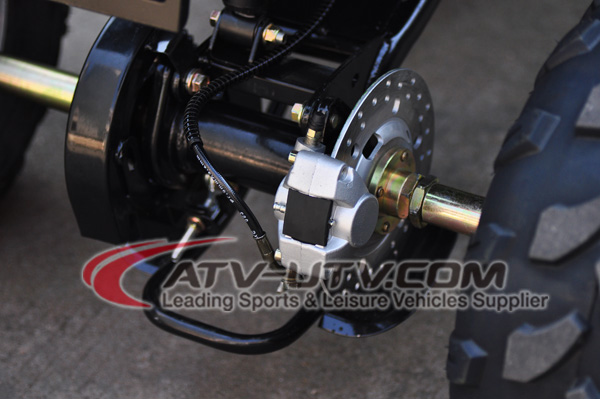

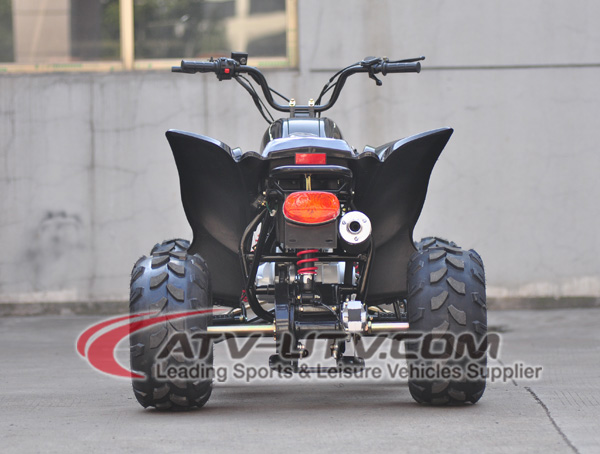

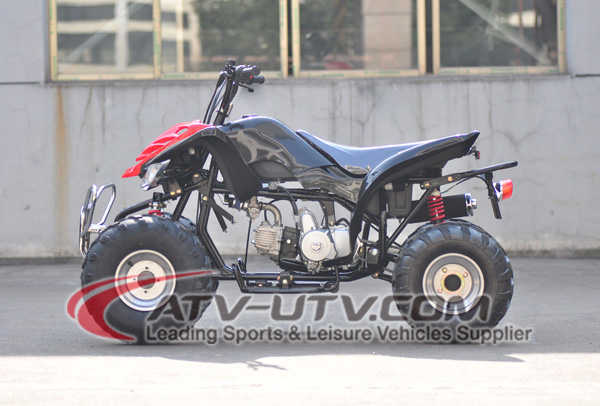

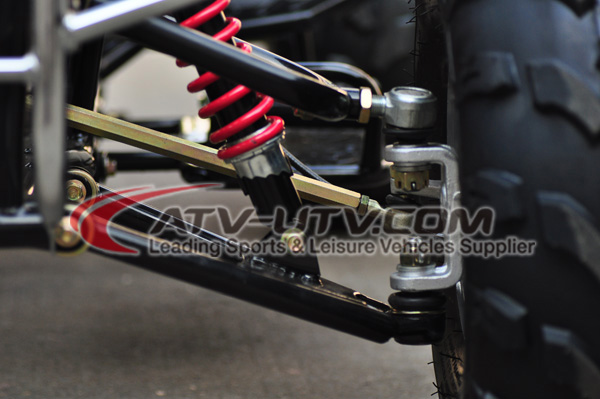

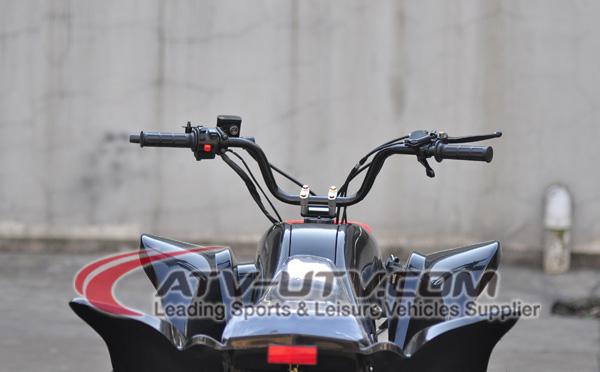

Homepage >> Product Detail 110CC Gas ATV with 4 stroke Air Cooling with Rear Disc Brake Quad Bike Item NO.: AT1101 Category: Gas ATV Update: 6/26/2015 1:27:13 AM Inquire Print More Pictures: Product Discription:   110CC Gas ATV with 4 stroke Air Cooling with Rear Disc Brake Quad Bike Wheel number: 4 Product size: 1550x880x950mm Piston displacement: 110cc Engine: single-cylinder, 4-stroke, air-cooling Battery:12V 9AH Fuel tank volume: 4.5L Starting system: CDI electric start Wheel base: 1000mm Seat height from ground: 75cm Ground clearance: 100mm Drive system: chain dive Brake: Front drum brakc, Rear disc brake Load capacity: 140kgs Max torque: 6.5/5000rpm,8.6Nm/5500rpm Max power: 4.7kw/7500rpm,8.0Kw/7500rpm Wheel: Front 19x7-8, Rear 18x9.5-8 Transmission mode: Chain Drive Clutch method: 4-speed,semi-automatic reverse Break method: manual brake Front suspension details: double A x swing arm Rear suspension details: mono shock swing arm Package: Iron cage with carton outside Net weight: 130kgs/286lbs Gross weight: 145kgs/319lbs Carton size: 145x83x73cm/1pc Container: 33pcs/20’, 66pcs/40’, 66pcs/40’HQ http://youtu.be/gNWTPZttlg8
