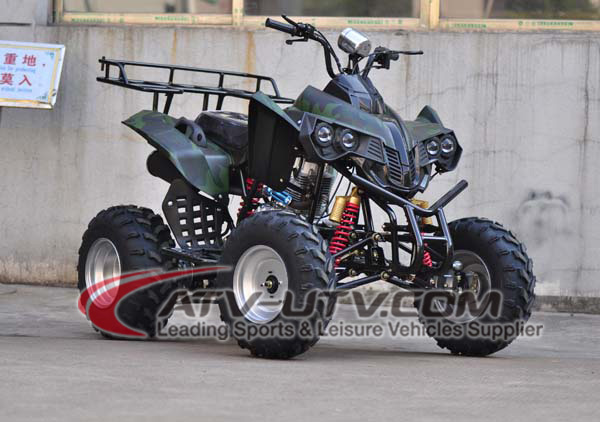

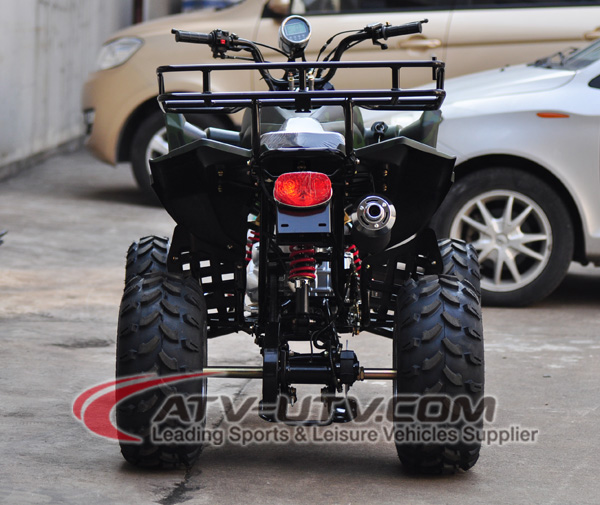

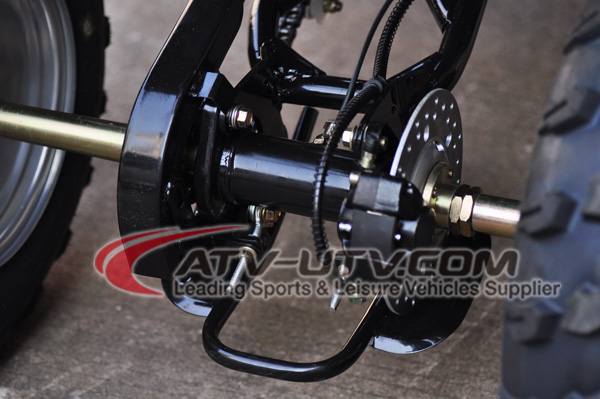

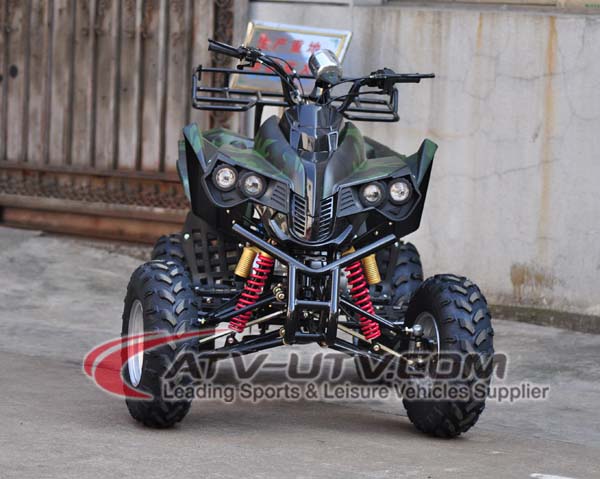

Homepage >> Product Detail 150cc/200cc/250cc with WangYe Vertical Engine With Chain Drive ATV Item NO.: AT1511 Category: Gas ATV Update: 6/25/2015 11:22:46 PM Inquire Print More Pictures: Product Discription:   150cc/200cc/250cc with WangYe Vertical Engine With Chain Drive ATV Wheel number: 4 Piston displacement: 150cc/200cc/250cc Engine type: WangYe vertical engine ,4 storke Max torque: 10Nm/5500rpm,13.5Nm/5500rpm,17.5Nm/500 0rpm Max power: 9.3kw/7500rpm,10kw/7500rpm,11kw/7500rpm Starting system: CDI electric start Transmission :manual reverse, chain drive Brake: Front drum brake, Rear disc brake Battery: 12V,9AH Front suspension details: double A x swing arm Rear suspension details: mono shock swing arm Wheel szie: Front: 19x7-8 Rear: 18x9.5-8 Product size: 156X112X85cm Wheel base: 1200mm Seat height from ground: 85cm Ground clearance: 140mm Load capacity: 180kg Fuel tank capacity: 5L Package: Iron cage with carton outside Net weight:175kg/385lbs Gross weight:195kg/429lbs Carton size:156X112X85cm Container: 20pcs/20ft; 48pcs/40HQ
