Gas-Powered 4-Stroke 150cc Engine ATV with WIZTEM Design Air Cooled Quad Bike
Gas-Powered 4-Stroke 150cc Engine ATV with WIZTEM Design Air Cooled Quad Bike
Item NO.: AT1502
Category: Gas ATV
Update:
6/26/2015 1:39:34 AM
Inquire
Print

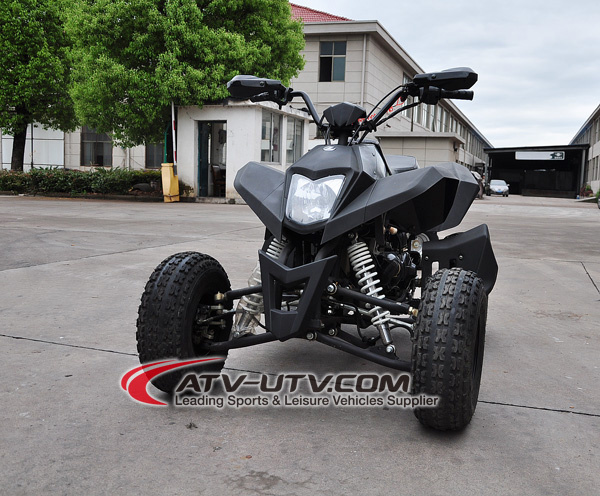

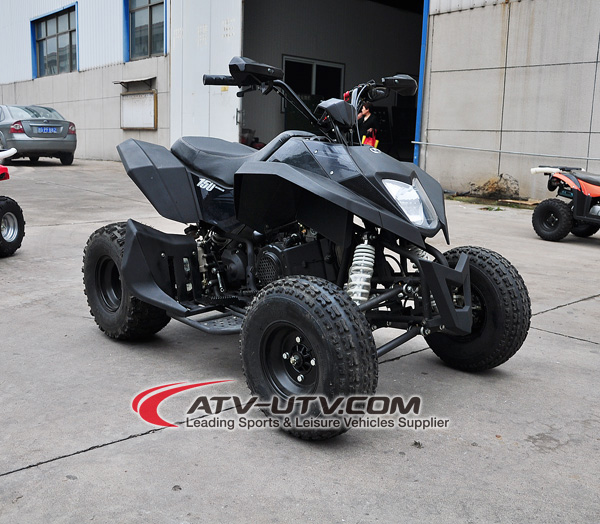

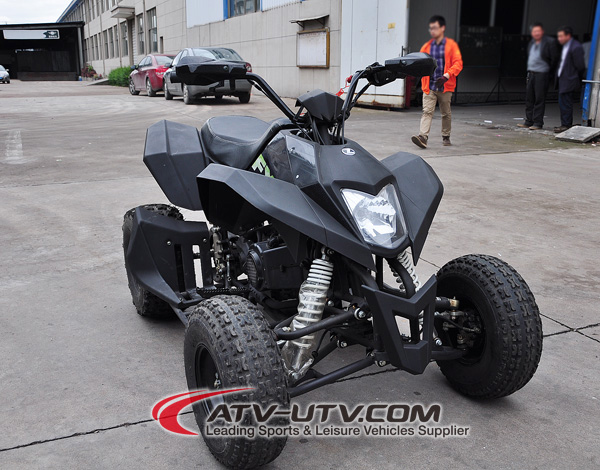

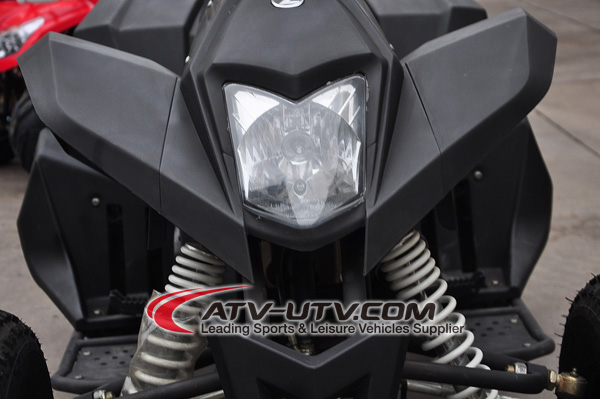

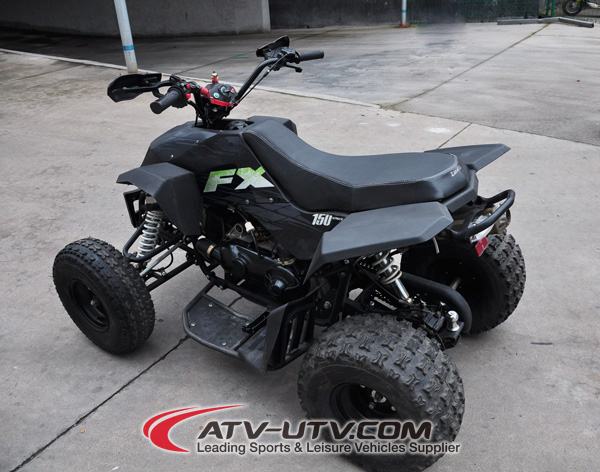

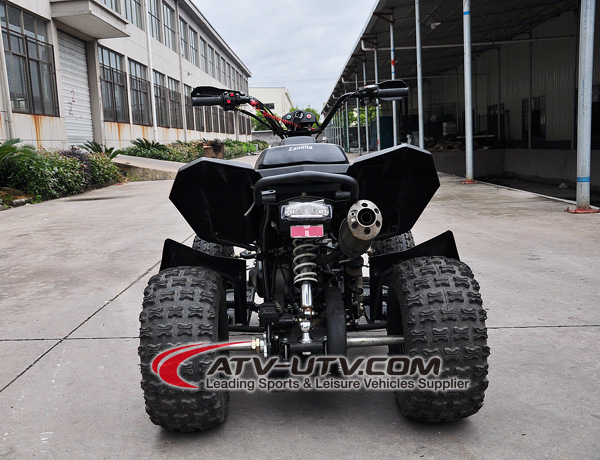

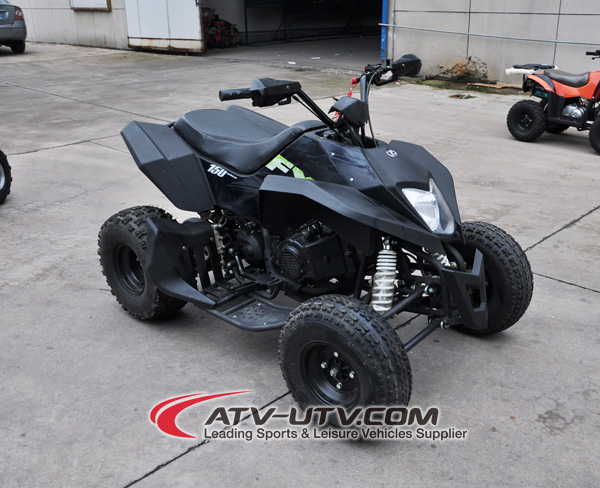

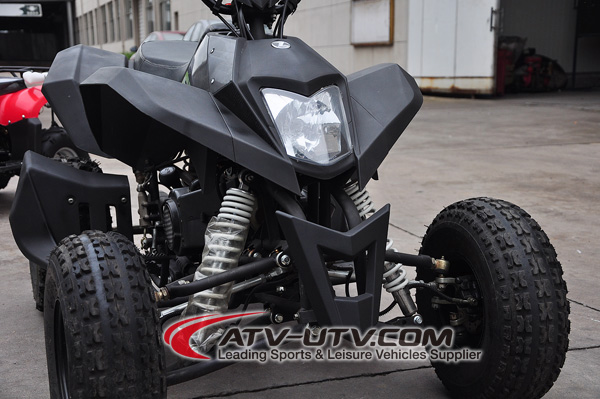

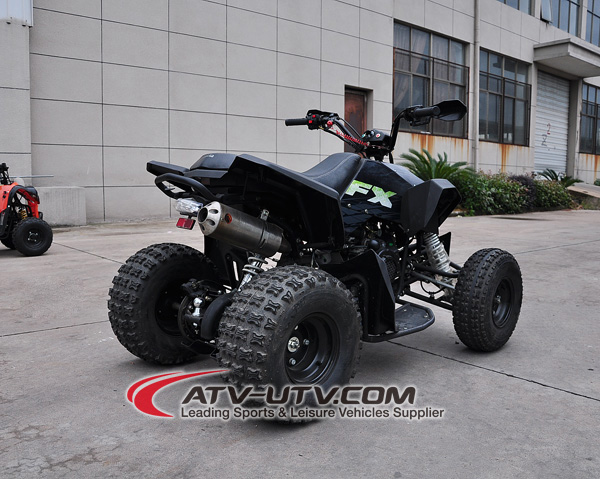

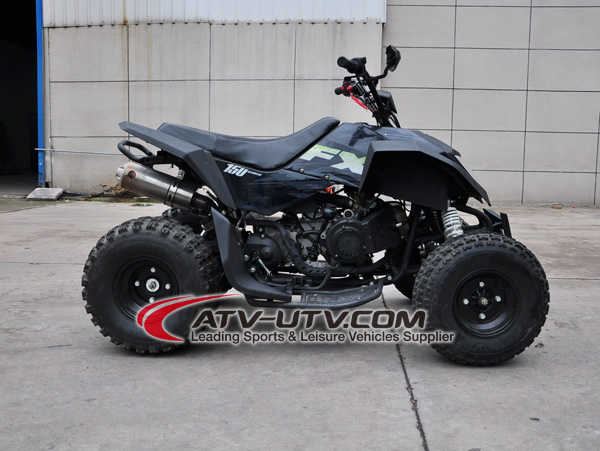

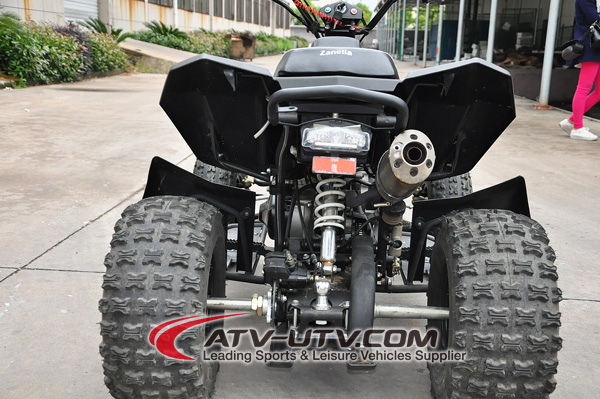

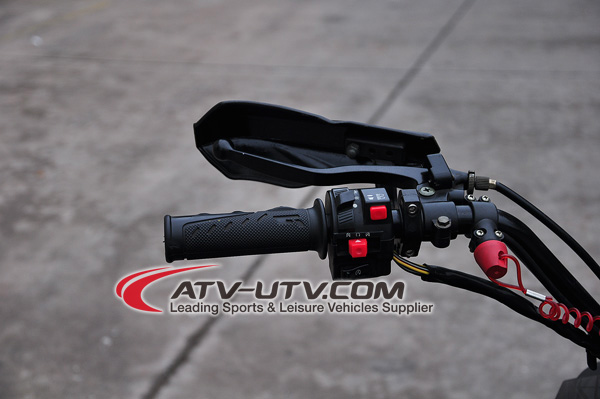

More Pictures:

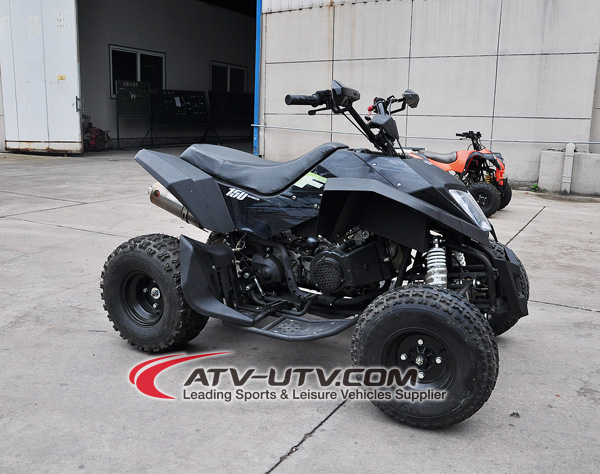

Gas-Powered 4-Stroke 150cc Engine ATV with WIZTEM Design Air Cooled Quad Bike



Product Discription:


ATV
Gas-Powered 4-Stroke 150cc Engine ATV with WIZTEM Design Air Cooled Quad Bike
AT1502
Key Specifications:
1. Product size:1610*1050*1050

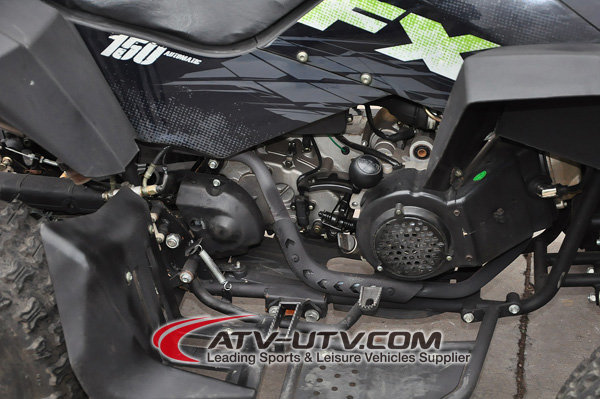

2. Engine Type:4-stroke,1-cylinder,air-cooled
3. Displacement:150cc
4. Max Power:6.0/7500(kw/rpm)
5. Max Torque:8.3/6000(Nm/rpm)
6. Capacity Weight::150kgs

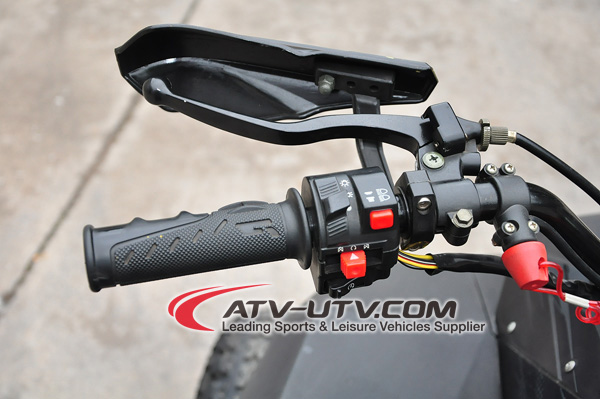

7. Starting: Electric
8. Ignition: C.D.I
9. Lubrication: Pressure and Splash
10. Compression Ratio:9.2:1

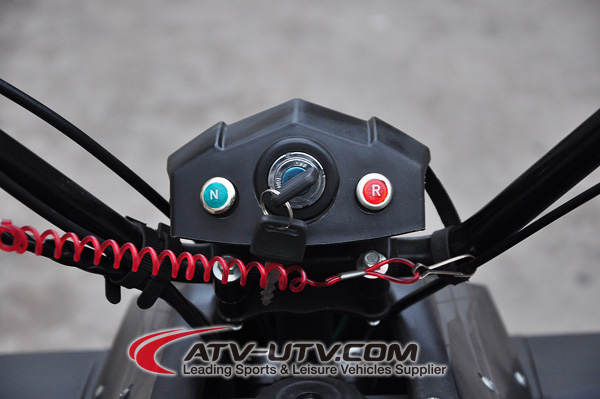

11. Transmission: CVT automatic with reverse inside

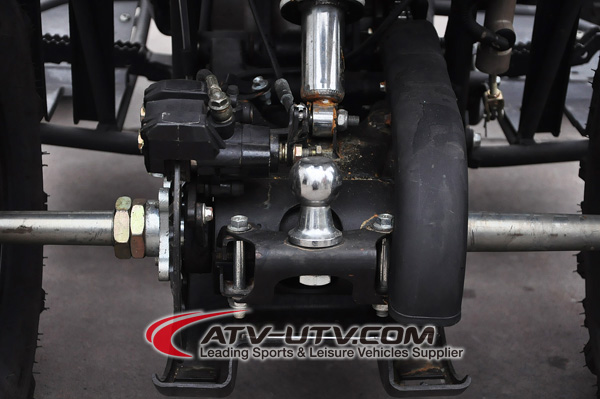

12. Final Drive: chain drive system
13. Brake: Front: Hydraulic disc, Rear: Hydraulic disc
14. Max Speed70(Km/h)
15. Fuel Capacity:7(L)
16. Battery:12V9Ah
17. Wheel Base:1130(mm)

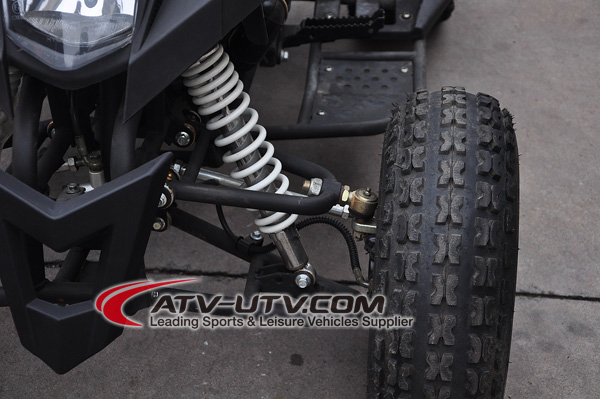

18. Front/Rear Tire:19*7-8,21*10-8
19. Seat Height:760
20. Mini Ground Clearance:100(mm)
21. Optional color: white, green, black, red, blue
Package: Iron cage with carton outside
22. Net weight: 145kgs
23. Gross weight: 172kgs
24. Carton size: 1430*900*865mm/1pc
25. Container: 20pcs/20GP; 63pcs/40HQ
