New 150cc ATV with front and rear Hydraulic disc

Item NO.:	AT1501
Category:	Gas ATV
Update:	6/26/2015 1:33:50 AM

Inquire

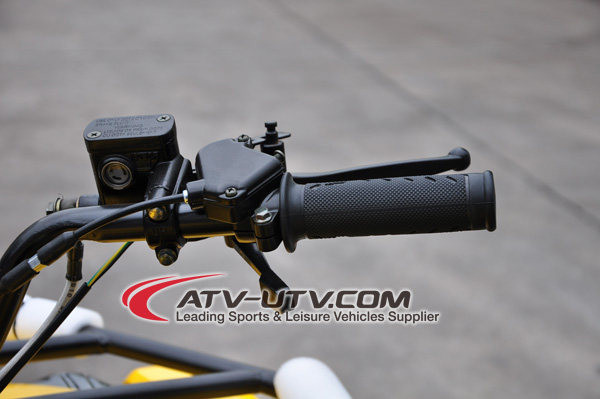

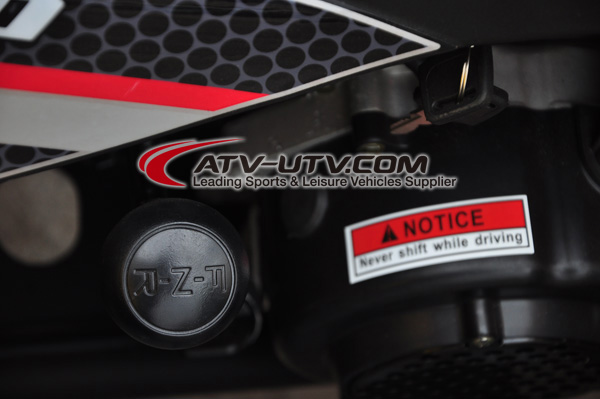

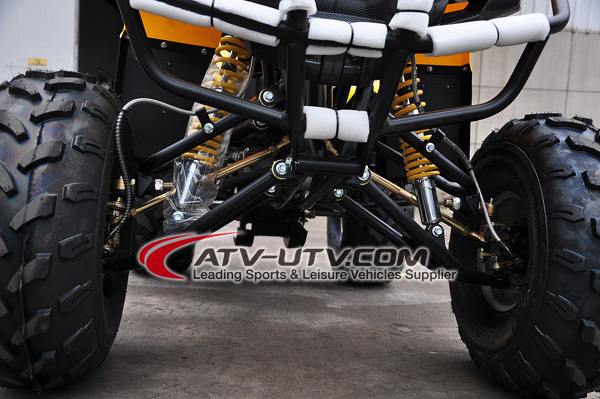

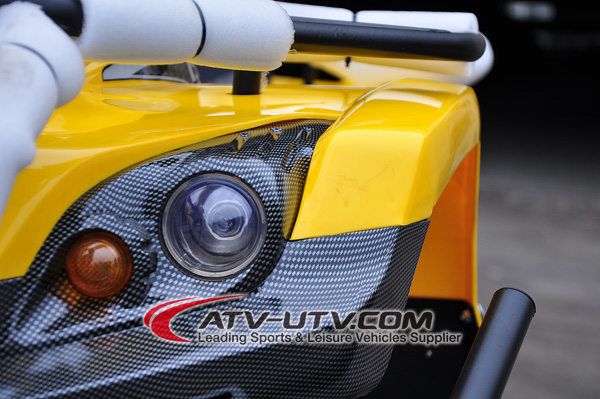

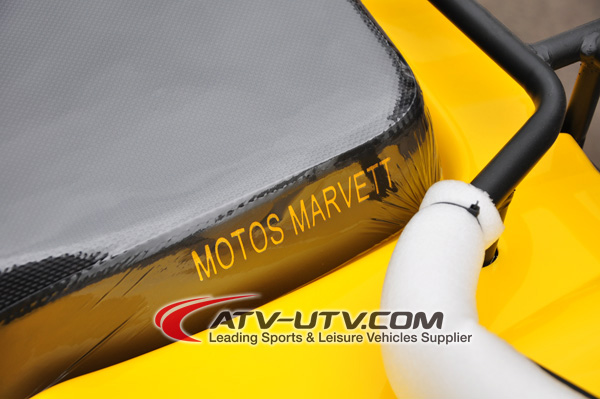

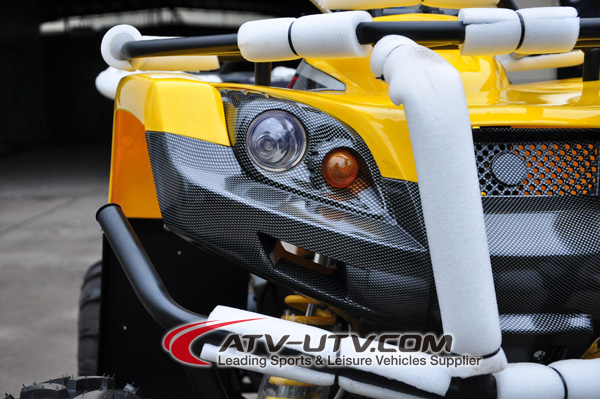

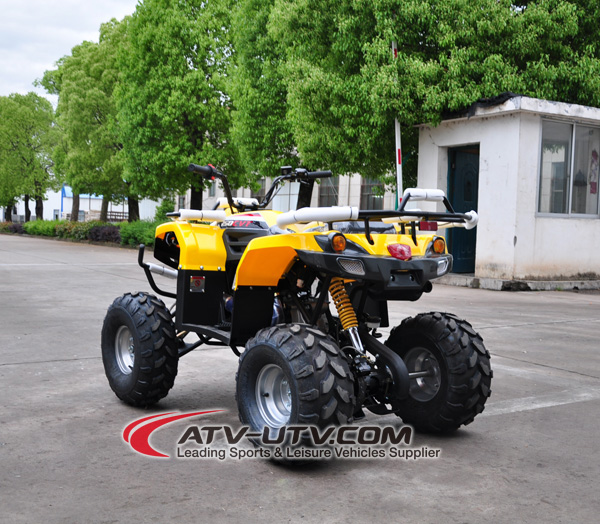

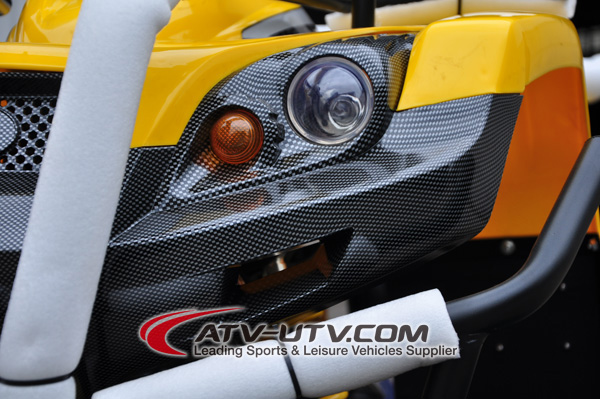

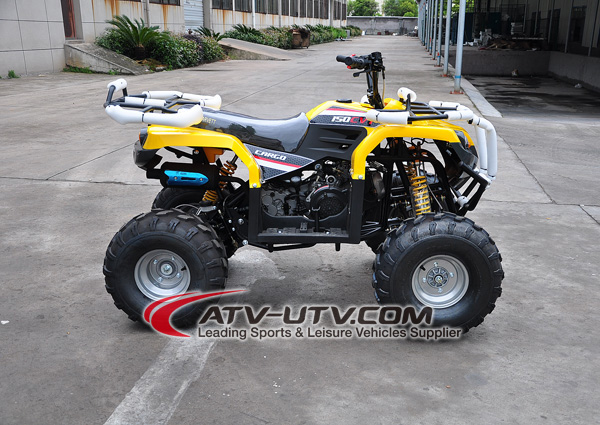

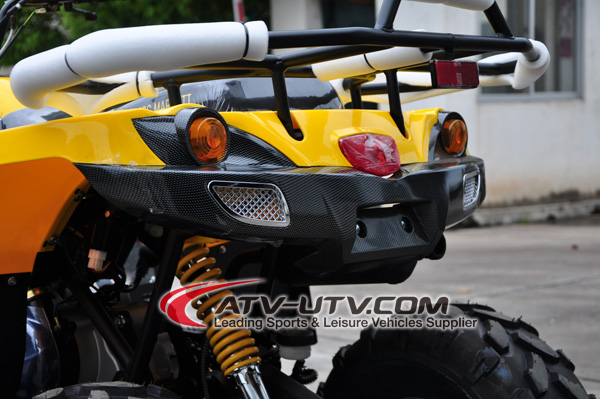

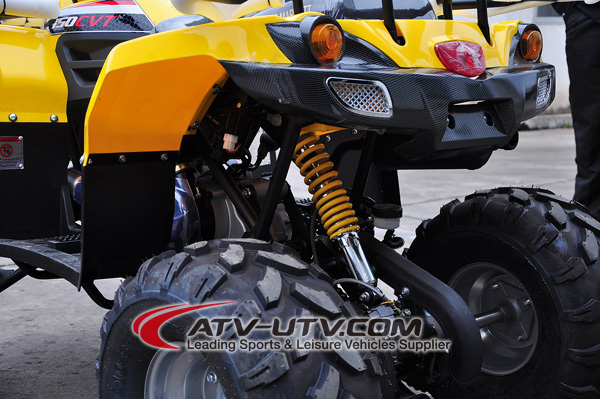

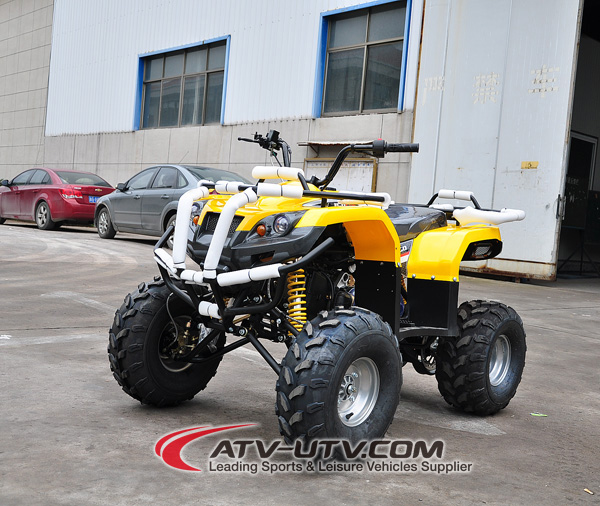

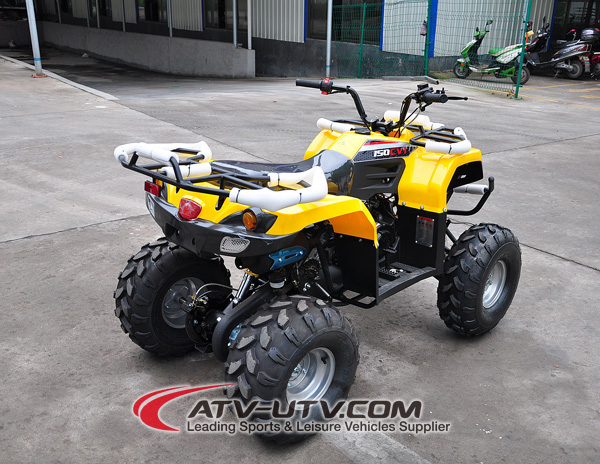

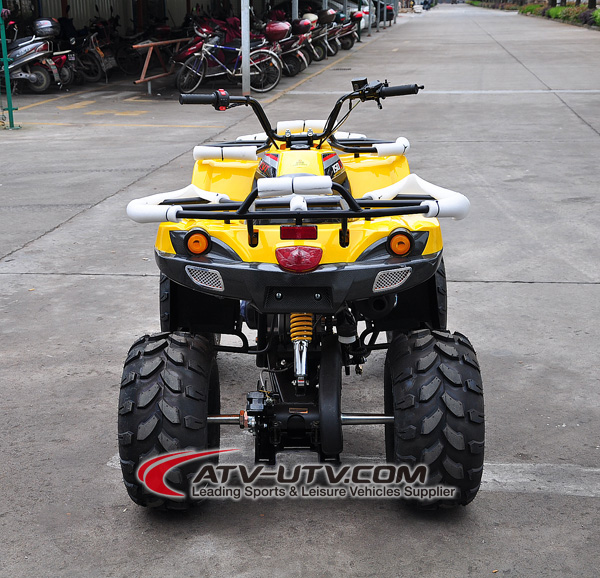

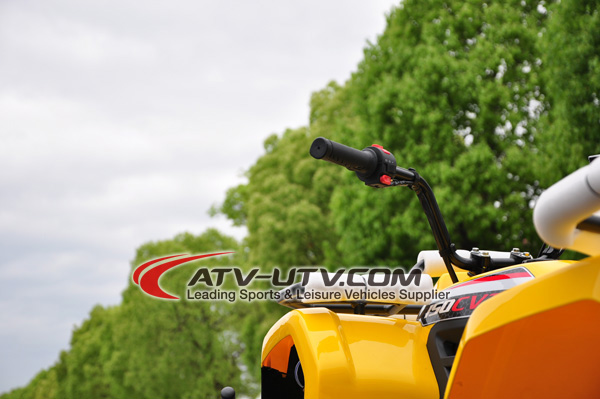

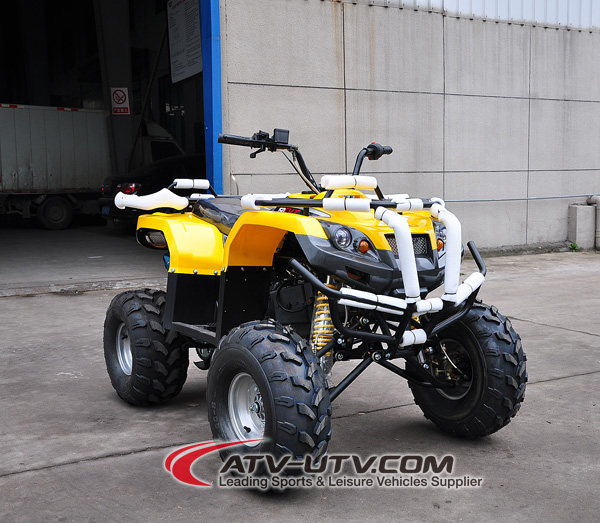

More Pictures:

Product Discription:

ATV

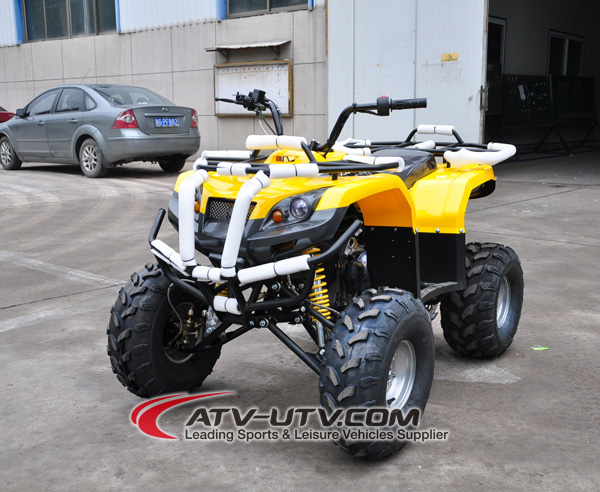

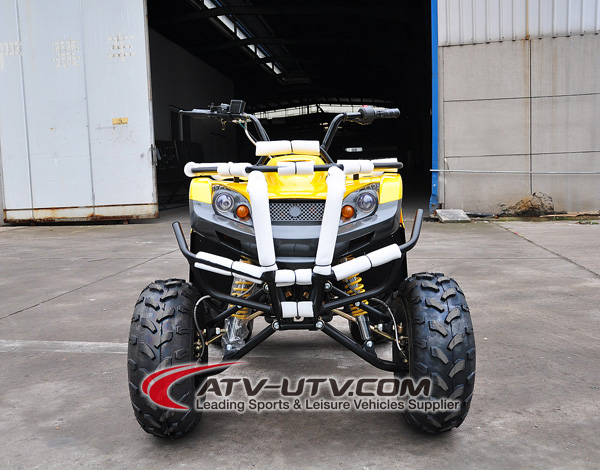

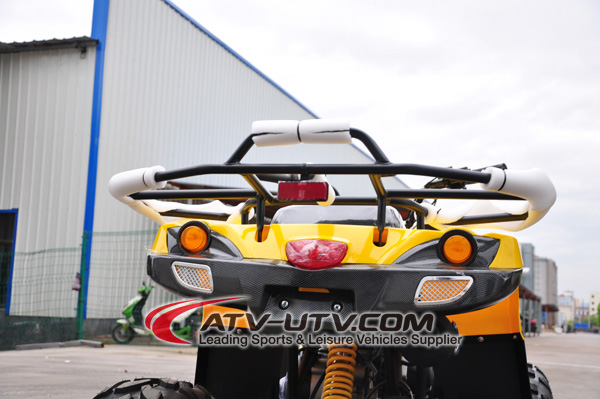

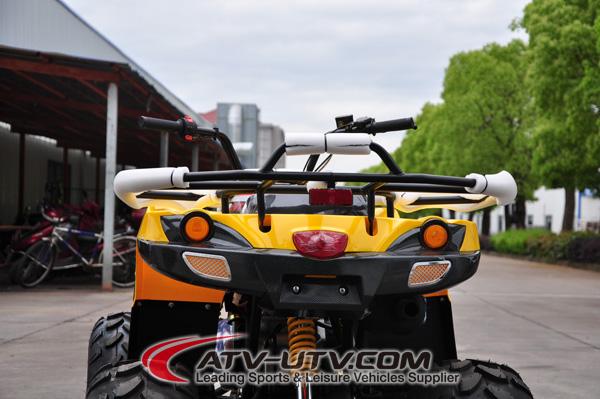

New 150cc ATV with front and rear Hydraulic disc
AT1501
Key Specifications:

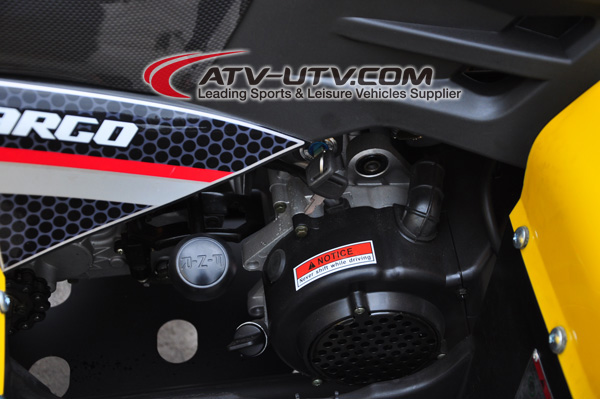

1. Engine Type: 4-stroke,1-cylinder,air-cooled
2. Product size:1660*1050*1110
3. Displacement:150cc
4. Max Power:8.5/7500(kw/rpm)
5. Max Torque:8.3/6000(Nm/rpm)
6. Starting:Electric
7. Ignition: C.D.I
8. Lubrication: Pressure and Splash
9. Compression Ratio: 10:1
10. Transmission:automatic with reverse

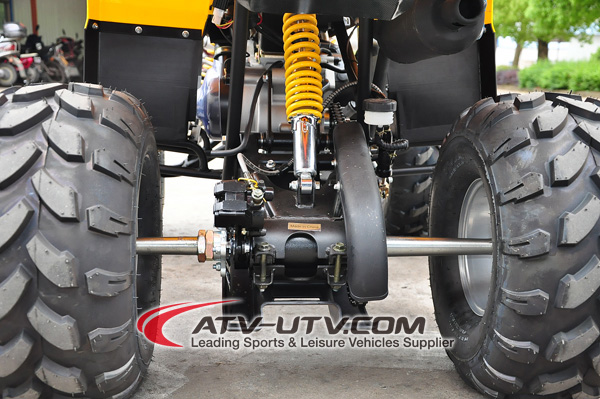

11. Final Drive: 2WD, chain drive system

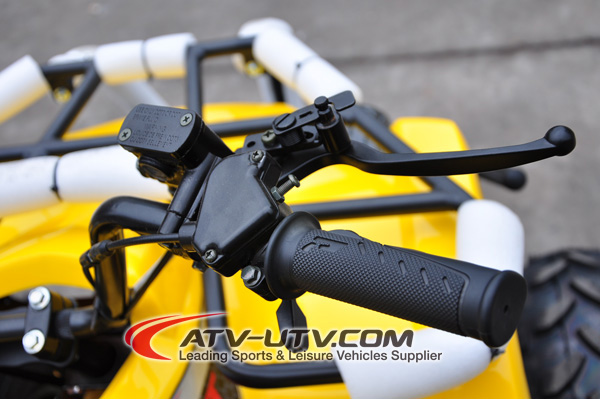

12. Front/Rear Brake:Front:Hydraulic disc; Rear:Hydraulic disc
13. Max Speed: 65(Km/h)
14. Fuel Capacity: 4(L)
15. Capacity Weight: 150(kg)
16. Battery: 12V9Ah
17. Wheel Base: 1105(mm)
18. Front/Rear Tire: 21*7-8; 21*10-8
19. Seat Height: 860MM
20. Mini Ground Clearance:125(mm)
21. Color:black,red,blue,yellow, camo(+$18.85), painting red(+$15)
Package: Iron cage with carton outside
22. Net Weight: 150(kgs)
23. Gross Weight: 184(kgs)
24. Carton Size: 1480*850*850
25. Container capacity: 20pcs/20GP; 63pcs/40HQ
