Homepage >> Product Detail

CE Approved 200CC Water Cooling Engine ATV with three wheels Quad Bike

Item NO.:	AT2502
Category:	Gas ATV
Update:	6/26/2015 2:08:18 AM

Inquire

More Pictures:

Product Discription:

ATV

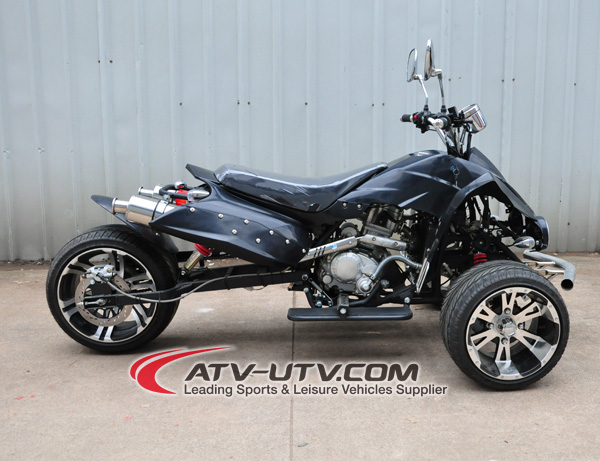

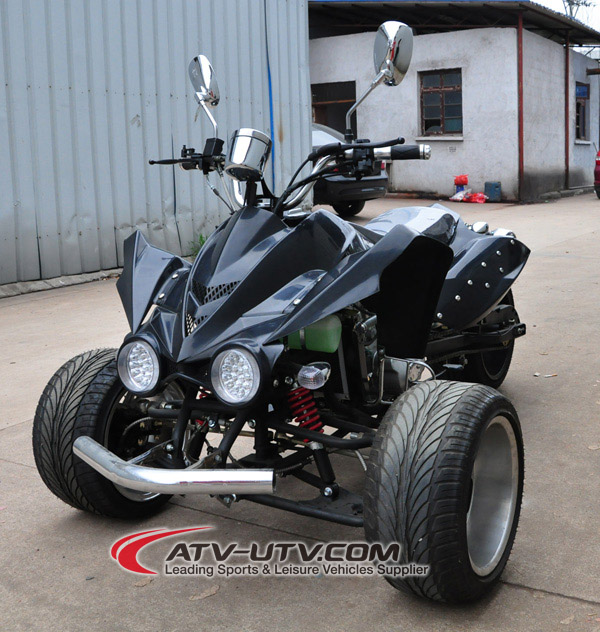

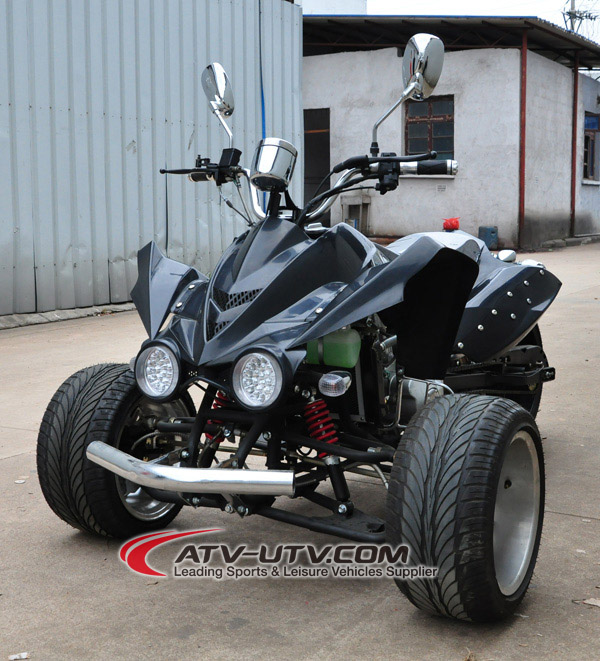

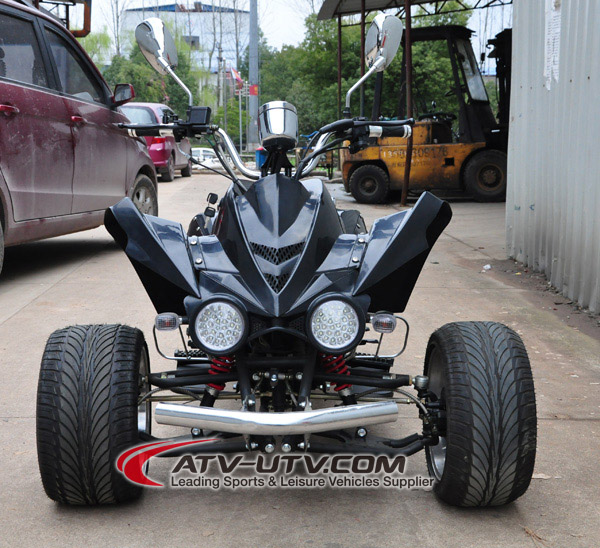

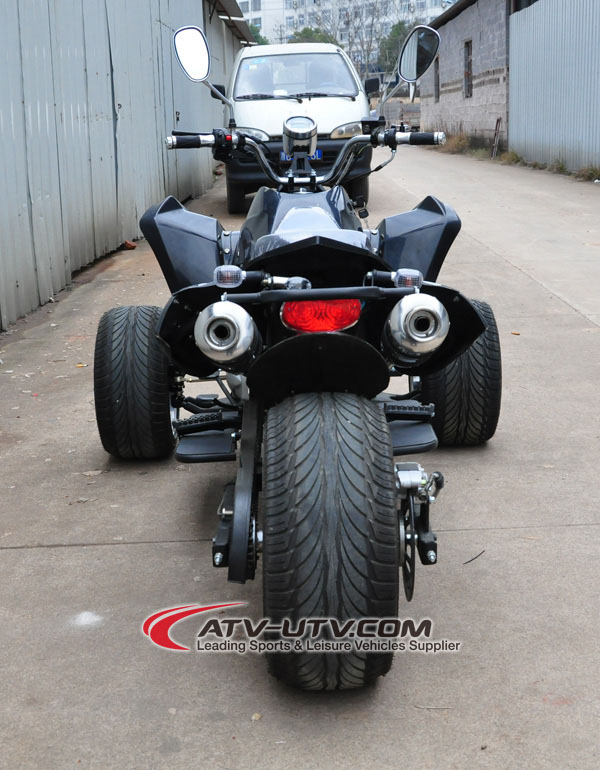

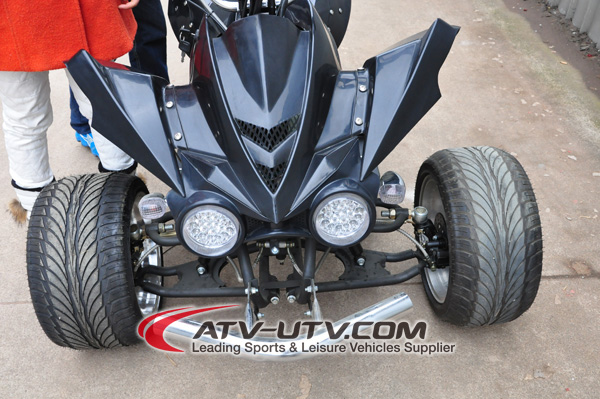

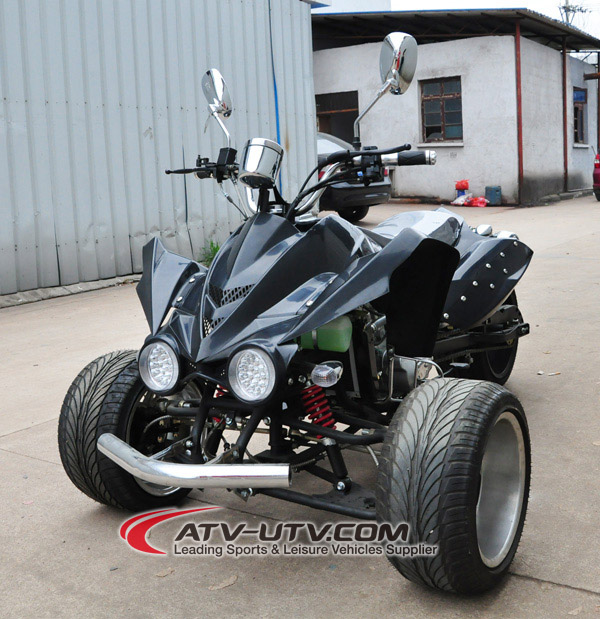

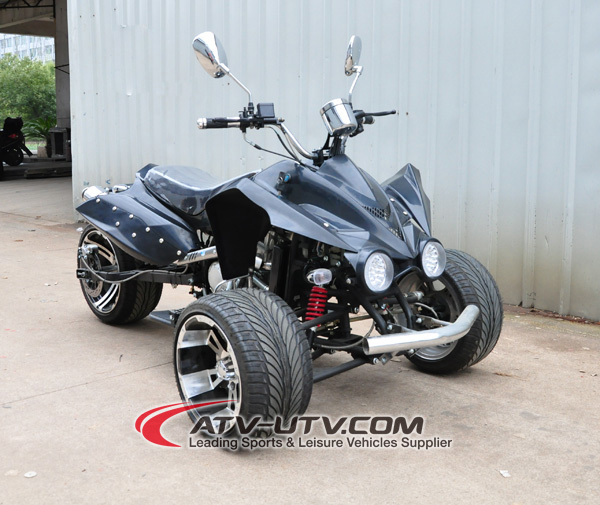

CE Approved 200CC Water Cooling Engine ATV with three wheels Quad Bike
AT2502-A
Key Specifications:
1. Overall size: 2130 x 1200 x 1200mm
2. Wheel number: 3
3. Piston displacement: 200cc
4. Fuel tank: 3.0 liters
5. Fuel type: Unleaded gasoline above No.90

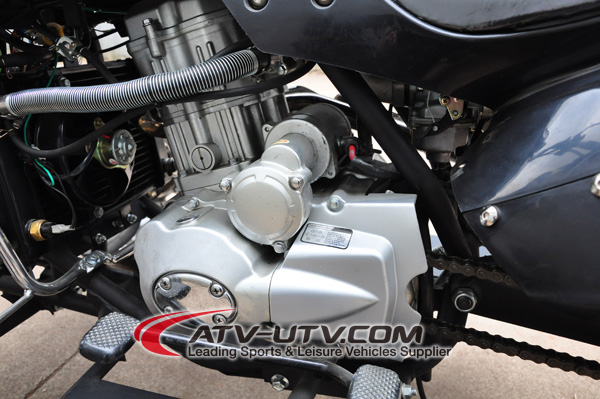

6. Engine type: single cylinder, 4 stroke, water Cooling , Double Wishbones Suspension, manually
operated clutch
7. Starting system: CDI electric
8. Battery: 12V.9AH
9. Drive train: chain
10. Rating power: 11kw7500rpm
11. Max. torque: 18.5N.m/6000rpm
12. Brake(Front/Rear): Front Double disk brake/ Rear Single disc brake

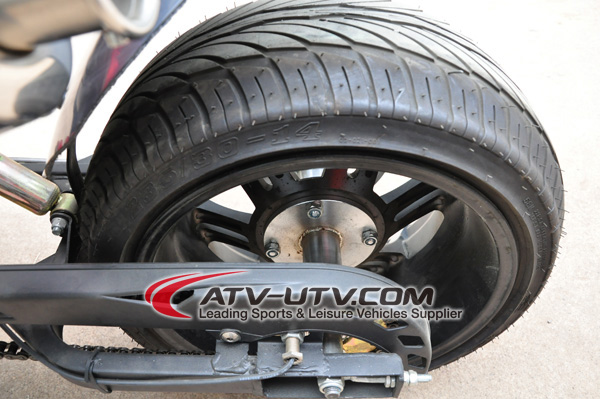

13. Wheel size: front: 235/30R12, rear: 235/30R14
14. Minimum ground clearance: 160mm
15. Max. load: 100kg
16. Max. speed: 80km/h,
17. Wheelbase: 1480mm
18. Electric spark plug: A7RTC

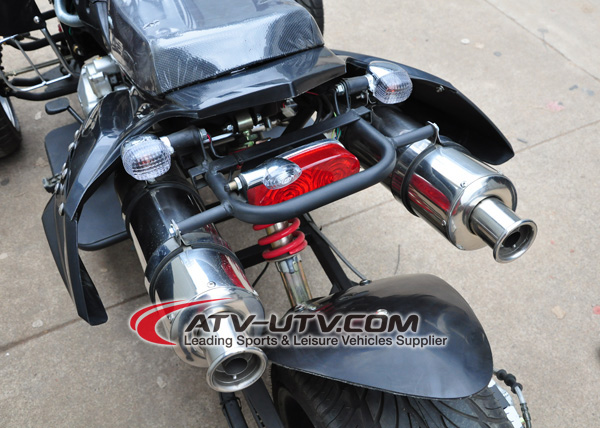

19. Exhaust pipe: single/double
20. Wheel hub material: Iron/Aluminum
21. Shock absorption: Front the spring /Rear the spring
22. Seat height: 700mm
23. Compression ratio: 10:1
24. Gearshift method: Stamped on the gear
25. Lubrication: Combined Pressure and Splashing
Package: Iron cage with carton outside
26. Net weight: 158kgs/348lbs
27. Gross weight: 180kgs/396lbs
28. Carton size: 2070x1220x850mm/1pc
29. Container: 12pcs/20’, 32pcs/40’HQ
Special Features:
 Chain Driving power Transmission
 Powerful water cooling engine
 Before hand brake back foot on the brakes

CE Approved 250CC Water Cooling Engine ATV with three wheels
AT2502-B
Key Specifications:
30. Overall dimensions: 2130 x 1200 x 1200mm
31. Wheel number: 3
32. Piston displacement: 250cc
33. Fuel tank: 3.0 liters
34. Fuel type: Unleaded gasoline above No.90
35. Engine type: single cylinder, 4 stroke, Water Cooling , Double Wishbones Suspension, manually
operated clutch
36. Starting system: CDI electric
37. Battery: 12V. 9AH
38. Drive train: chain
39. Rating power: 12.5kw/7500rpm
40. Max. torque: 18.5N.m/5500rpm
41. Brake(Front/Rear): Front Double disk brake/ Rear Single disc brake
42. Wheel size: 18*9.50-8
43. Minimum ground clearance: 160mm
44. Max. load: 100kg
45. Max. speed: 100km/h,
46. Wheelbase: 1480mm
47. Electric spark plug: A7RTC
48. Exhaust pipe: single/double
49. Wheel hub material: Iron/Aluminum
50. Shock suspension: Front the spring/Rear the spring
51. Seat height: 700mm
52. Compression ratio: 10:1
53. Gearshift method: Stamped on the gear
54. Lubrication: Combined Pressure and Splashing
Package: Iron cage with carton outside
55. Net weight: 240kgs/529lbs
56. Gross weight: 320kgs/705lbs
57. Carton size: 207 x122 x 85cm/1pc
58. Container: 8pcs/20’, 27pcs/40’HQ
Special Features:
 Chain Driving power Transmission
 Powerful water cooling engine
 Before hand brake back foot on the brakes
