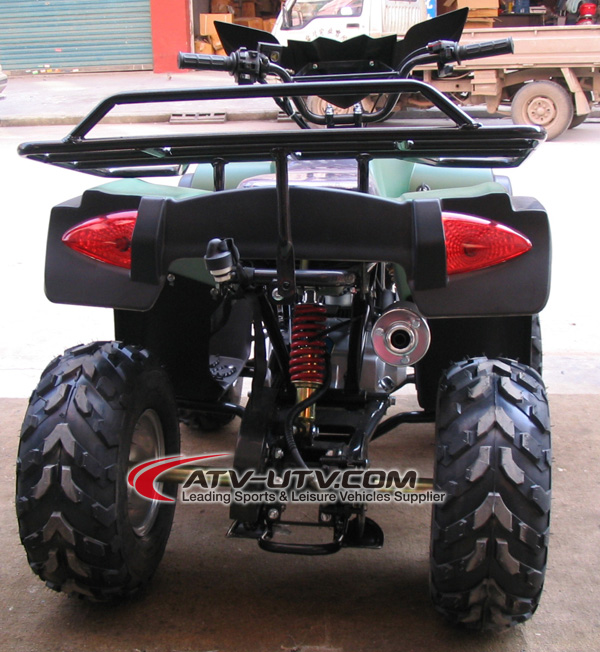

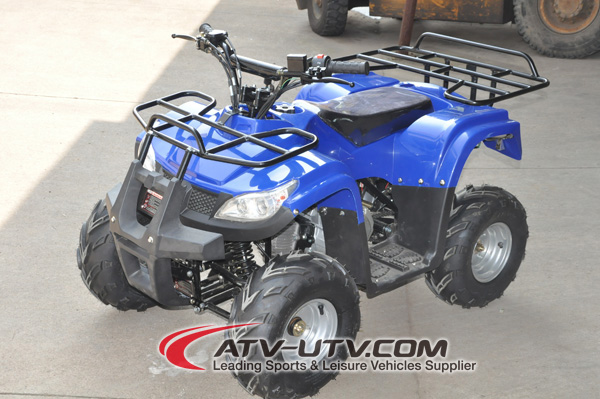

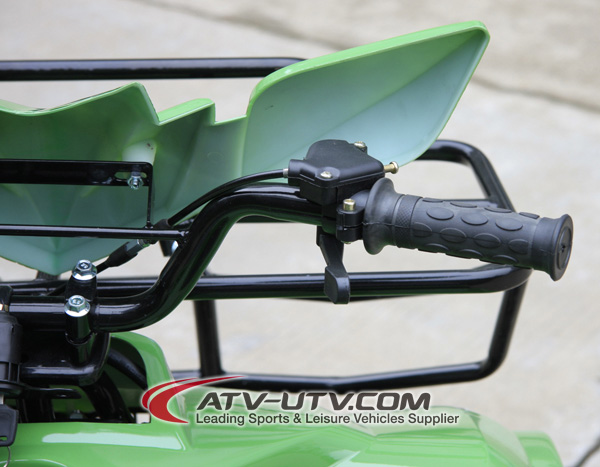

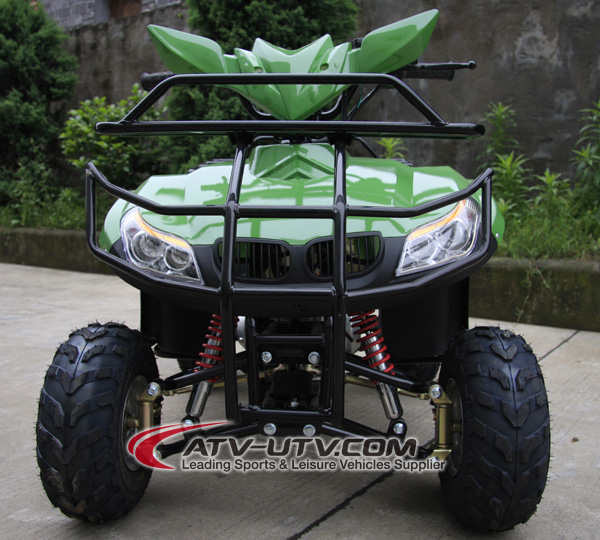

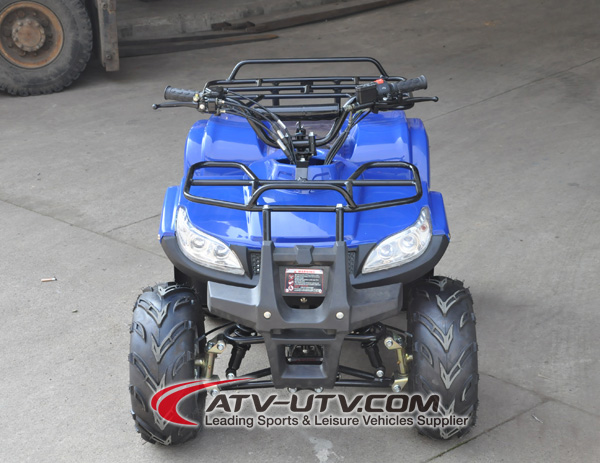

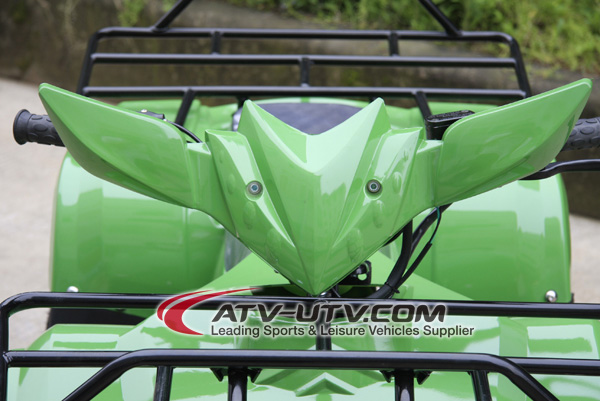

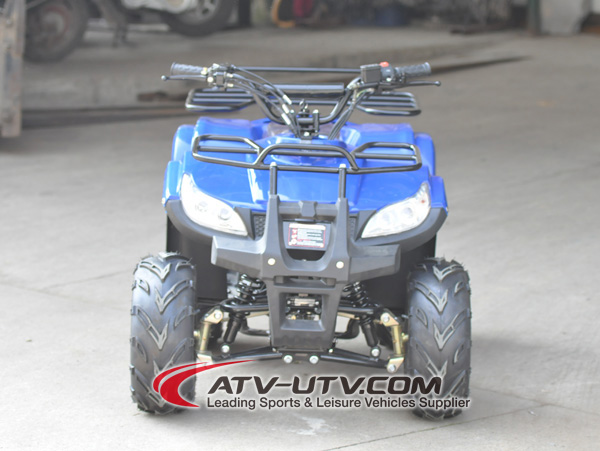

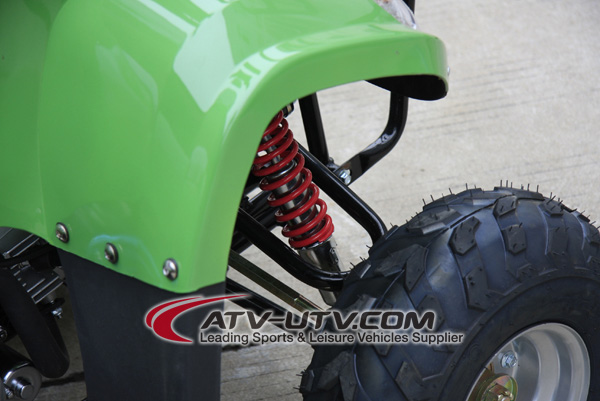

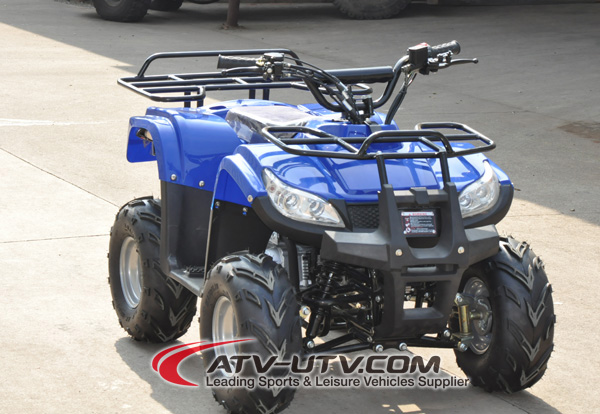

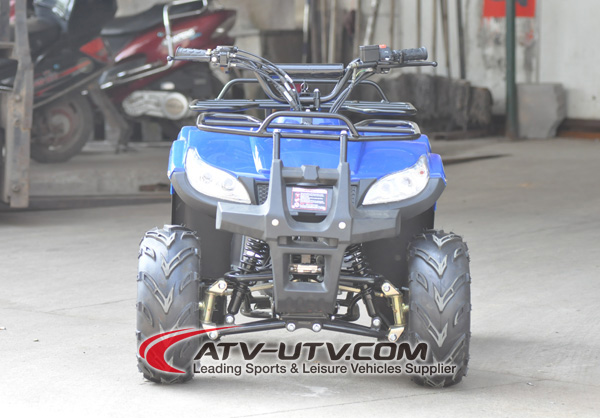

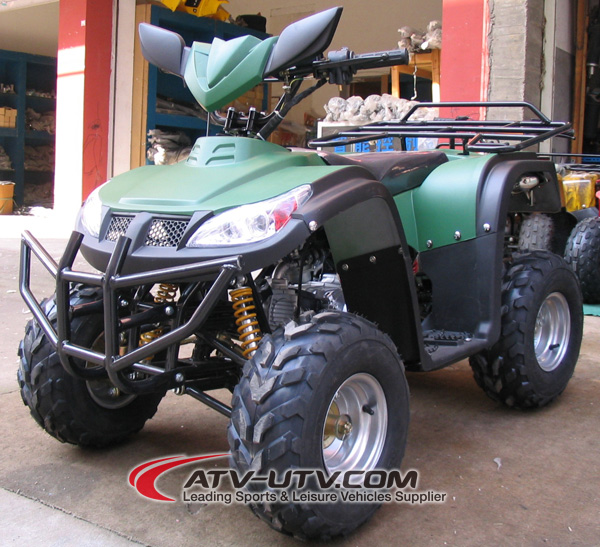

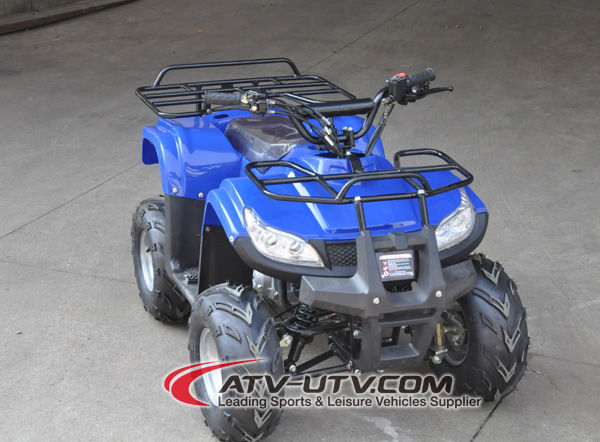

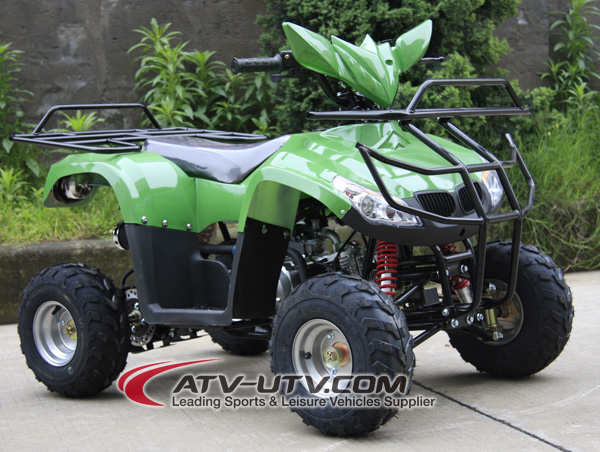

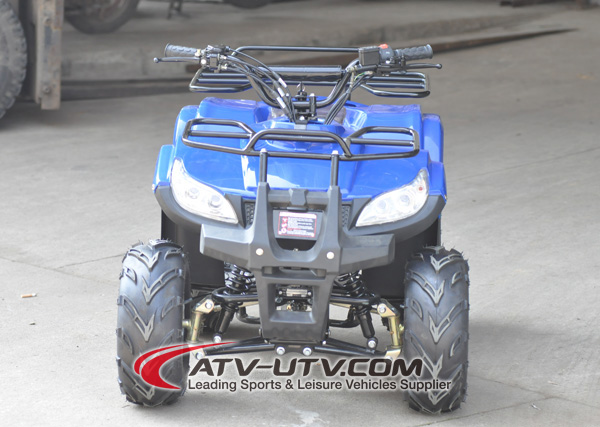

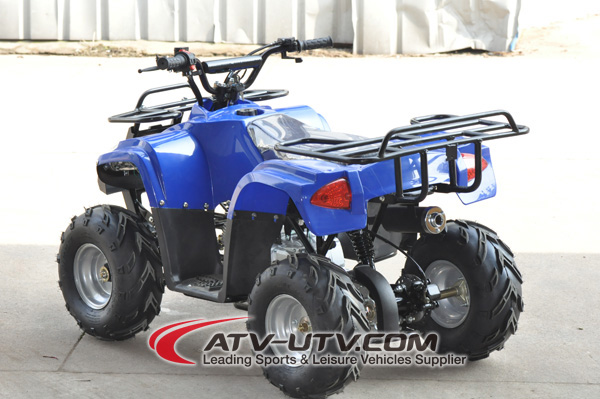

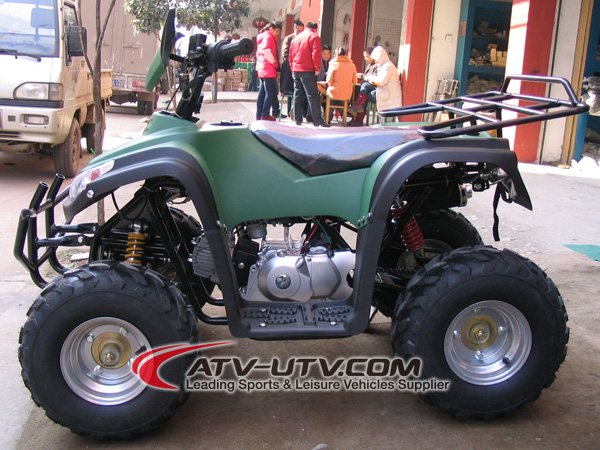

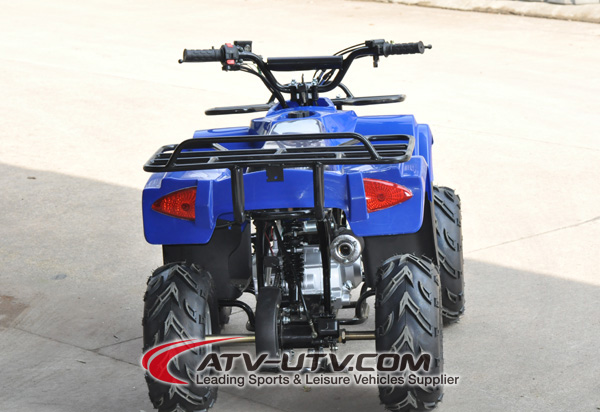

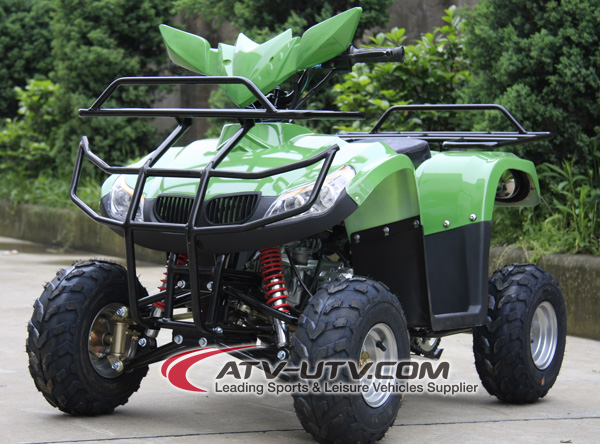

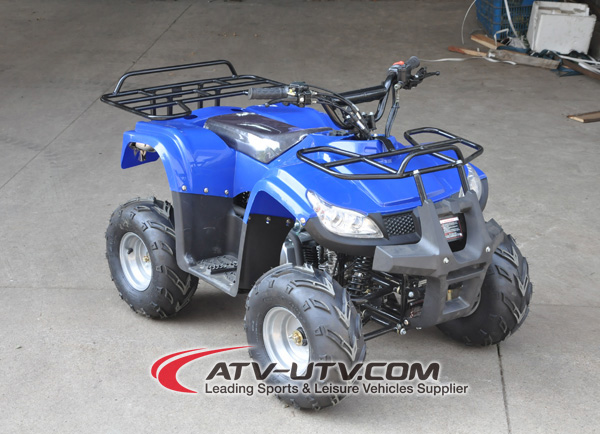

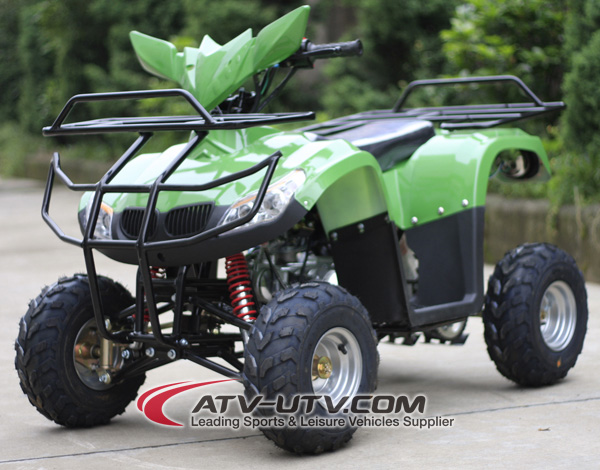

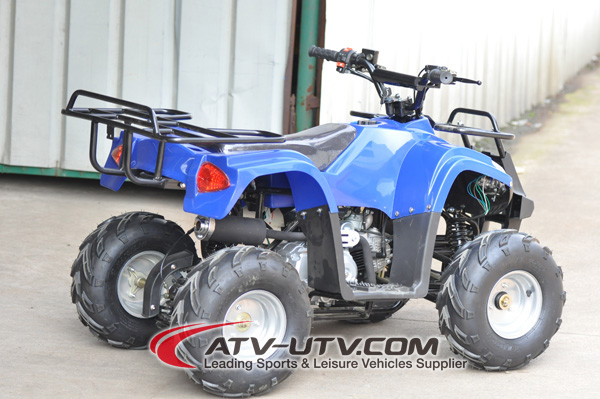

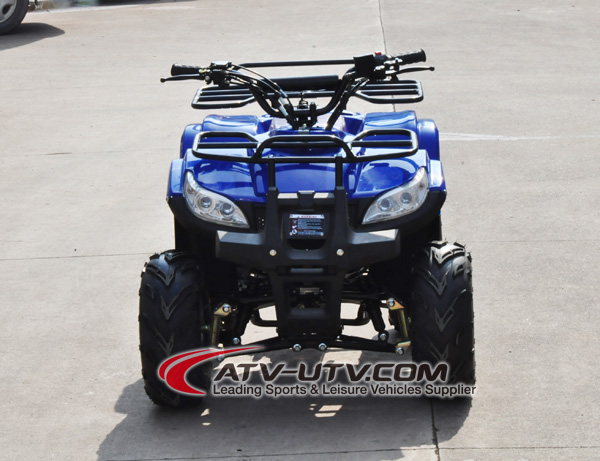

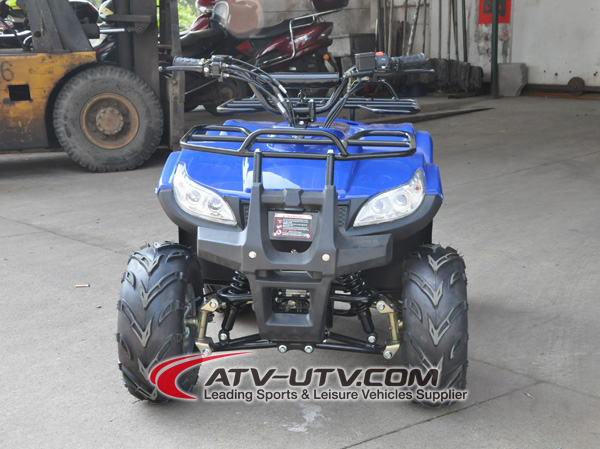

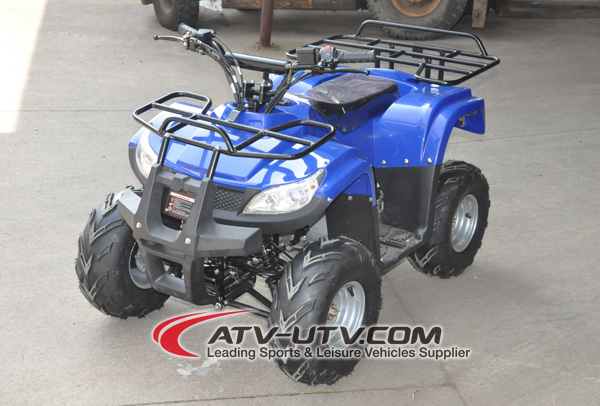

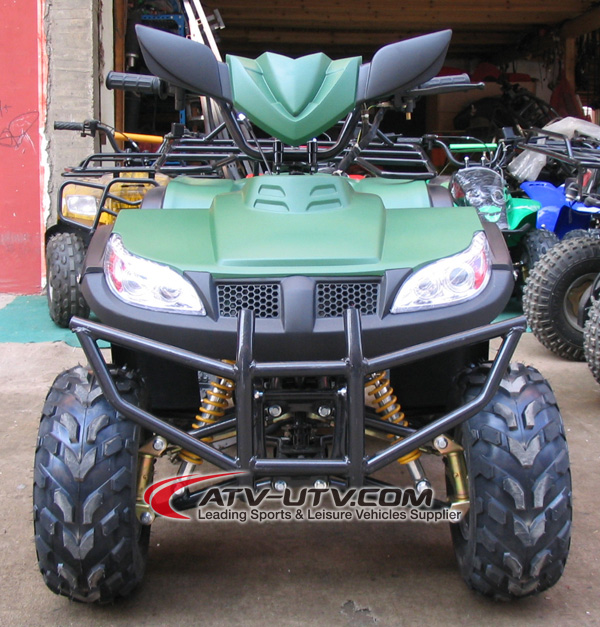

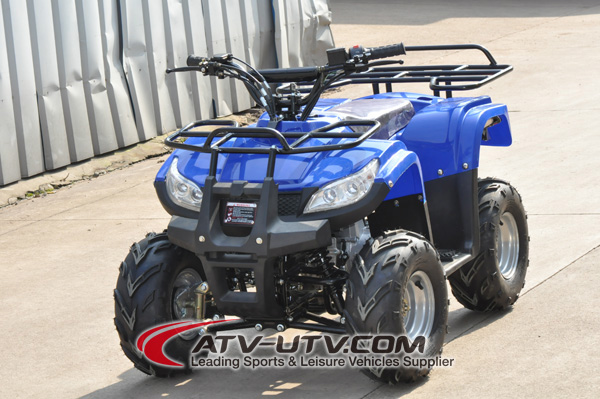

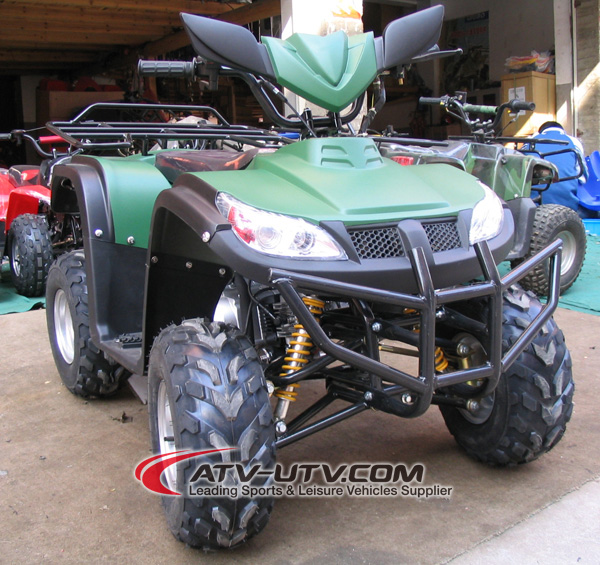

Homepage >> Product Detail 50cc/70cc/90cc/110cc Single Cylinder 4 Stroke Air Cooling ATV with Automatic Clutch Quad Bike Item NO.: AT0511 Category: Gas ATV Update: 6/25/2015 11:25:31 PM Inquire Print More Pictures: Product Discription:   50cc/70cc/90cc/110cc Single Cylinder 4 Stroke Air Cooling ATV with Automatic Clutch Quad Bike Wheel number: 4 Compression ratio: 9.0:1 Piston displacement: 50cc/70cc/90cc/110cc Engine: single-cylinder, 4-stroke, air-cooling Battery:12V 4AH Fuel tank volume: 3.2L Oil consumption: 3.2L/100km Vehicle dimensions: 138x86x94cm Starting system: CDI electric start Ground clearance: 100mm Drive system: chain drive Brake: Rear: disc brake Max speed: 40km/h Load capacity: 75kgs Max torque: 4.2Nm/5000rpm,4.2Nm/5000rpm,5.2Nm/5000rpm,5.5Nm/5000rpm Max power: 3.0Kw/8500rpm,3.0Kw/7500rpm,3.3Kw/7500rpm,3.6Kw/7500rpm Wheel: front and rear 145/70-6 Wheel base: 880mm Seat height: 60cm Gearshift method: automatically Clutch method: automatic clutch Break method: manual brake Front suspension details: double A x swing arm Rear suspension details: mono shock swing arm Color available: black, blue, silver, red optional Package: Iron cage with carton outside Net weight: 90kgs/198lbs Gross weight: 120kgs/265lbs Wheels assembled Package: Carton size: 145x77x86cm/1pc Container: 28pcs/20’, 60pcs/40’, 70pcs/40’HQ Wheels disassembled Package: Carton size: 117x77x64cm/1PC Container: 45pcs/20’, 90pcs/40’, 120pcs/40’HQ
