50CC ATV Equipped with Powerful Air Cooling Engine & Reverse Gear Shift
50CC ATV Equipped with Powerful Air Cooling Engine & Reverse Gear Shift
Item NO.: AT0523
Category: Gas ATV
Update:
6/22/2016 4:37:05 AM
Inquire
Print

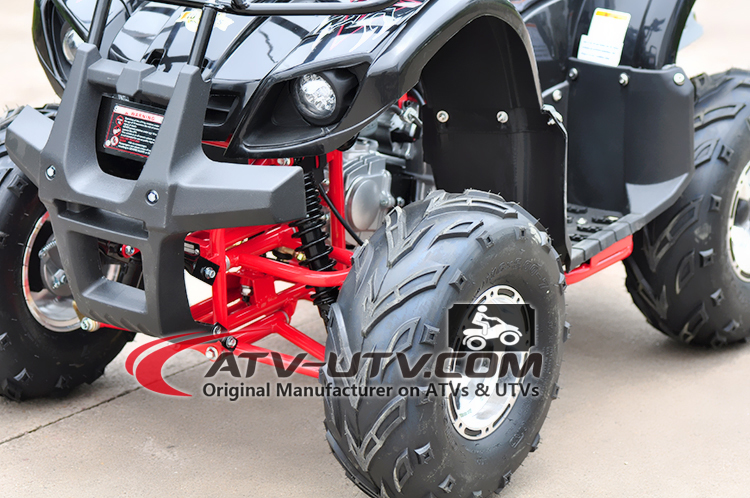

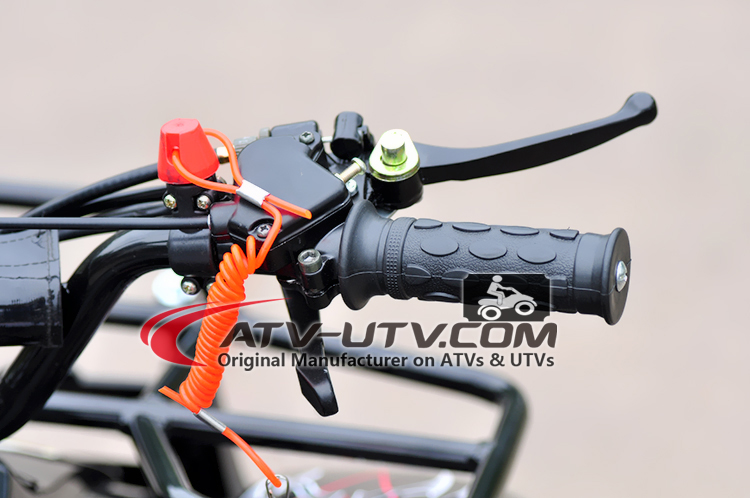

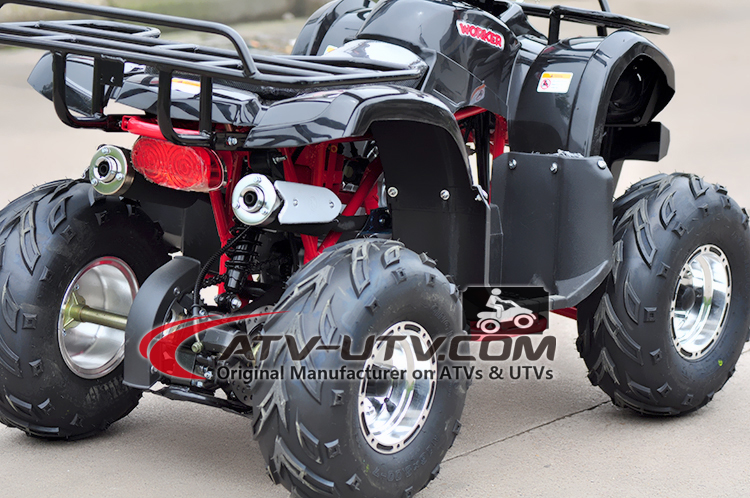

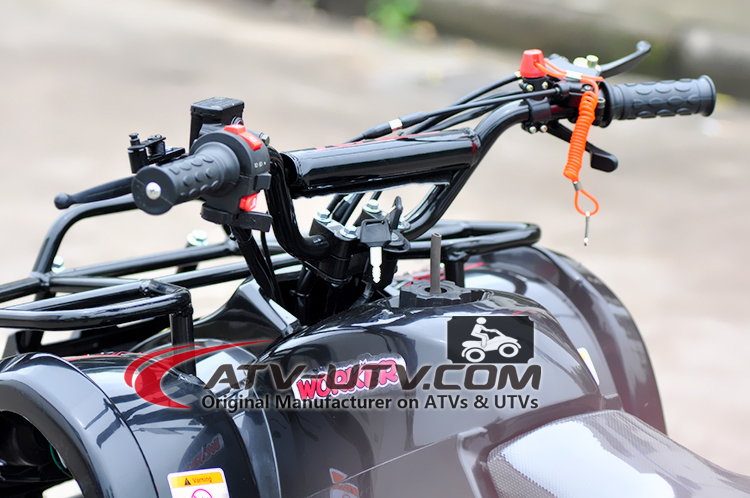

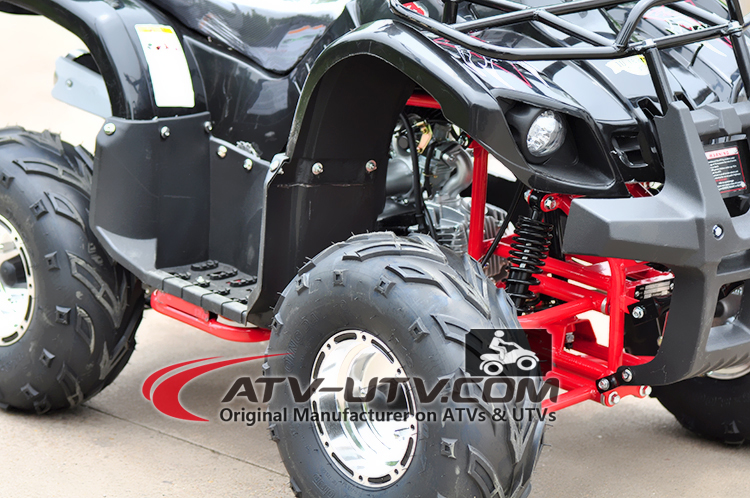

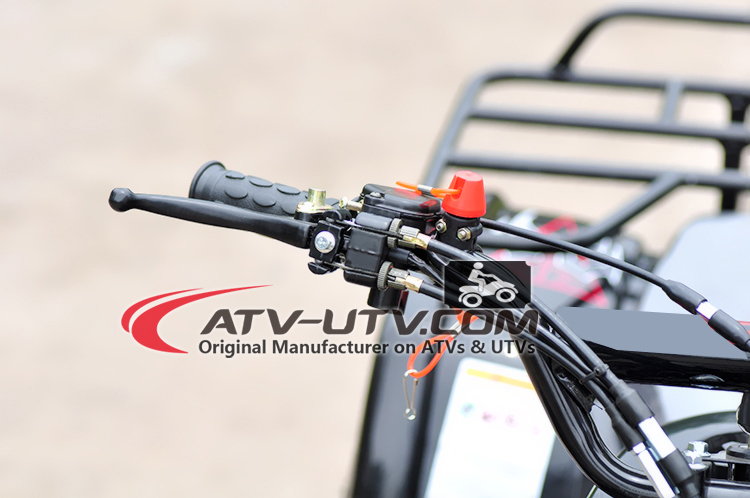

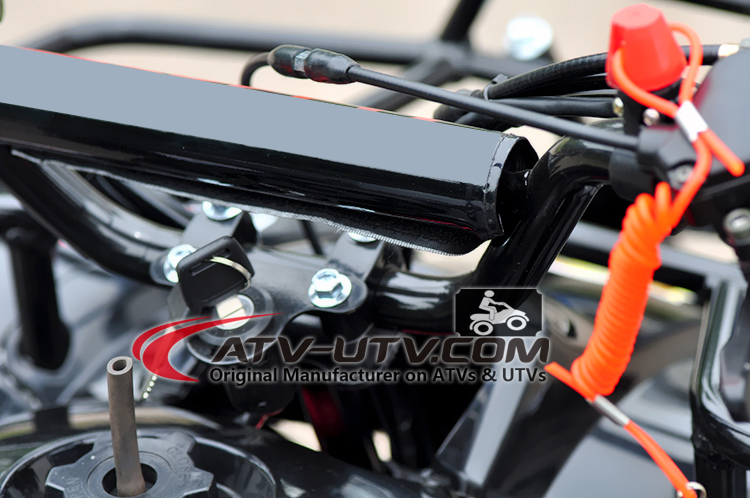

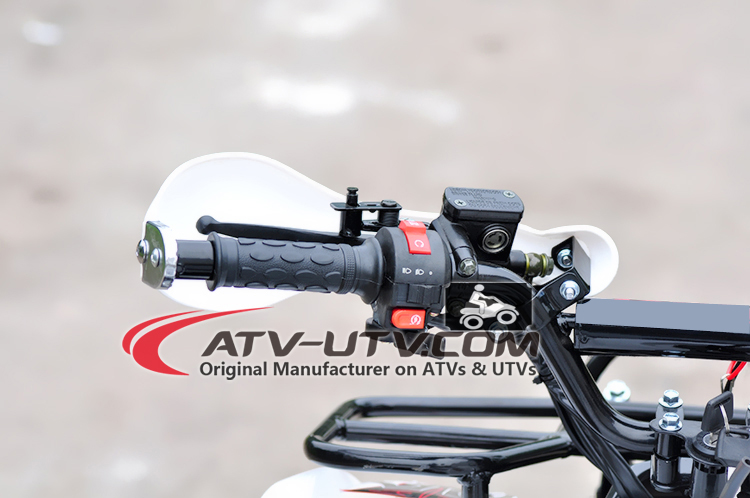

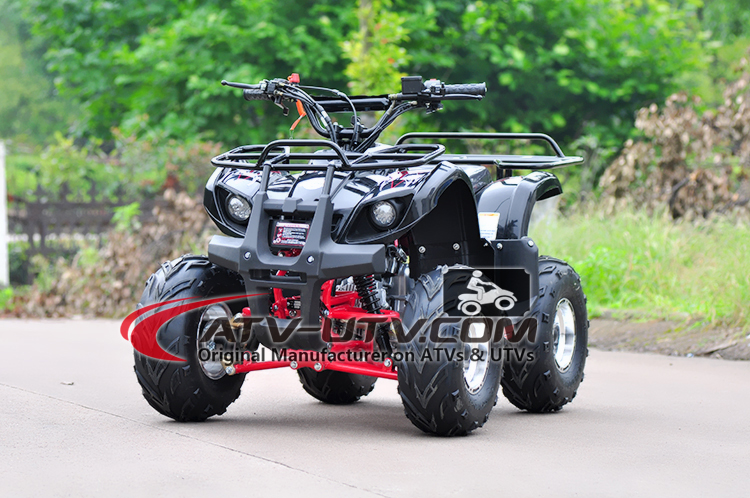

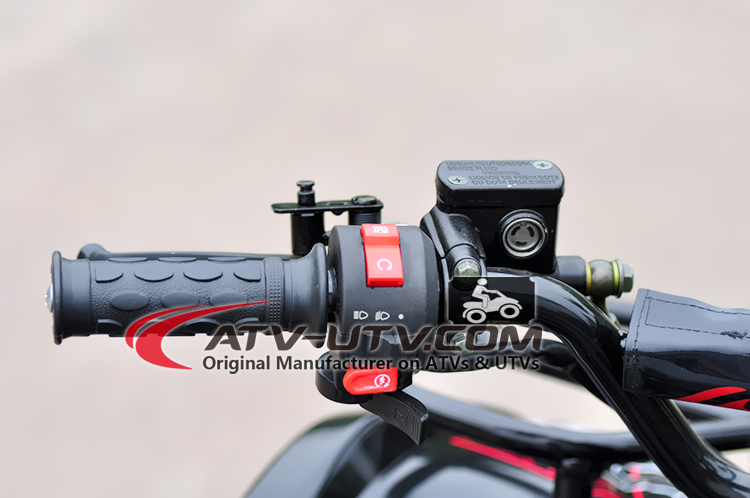

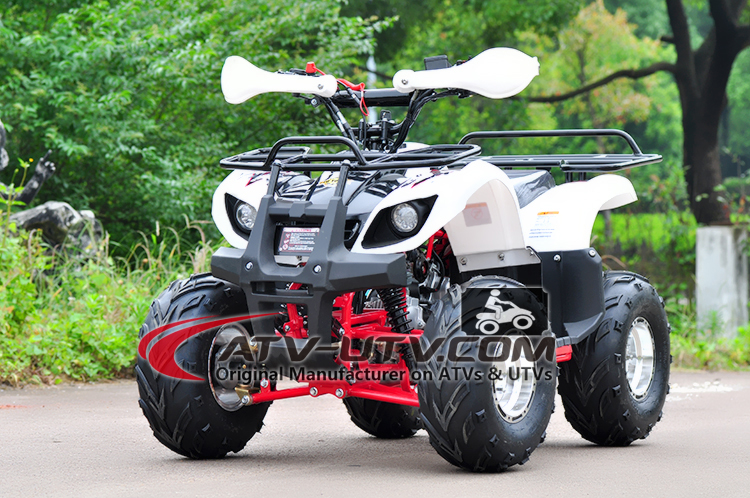

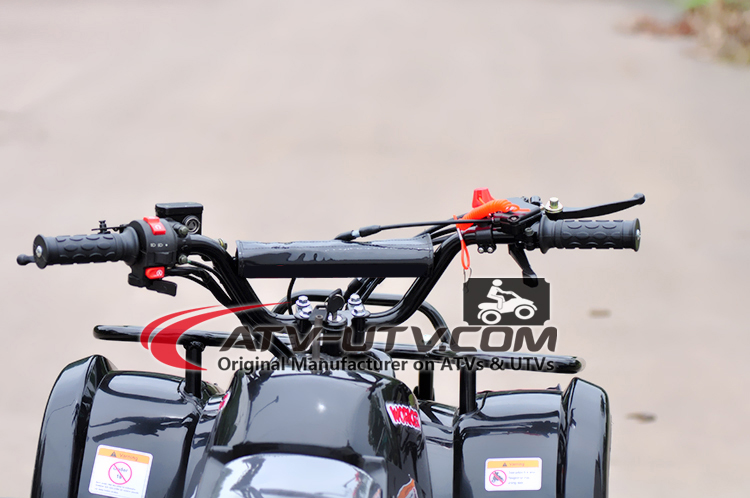

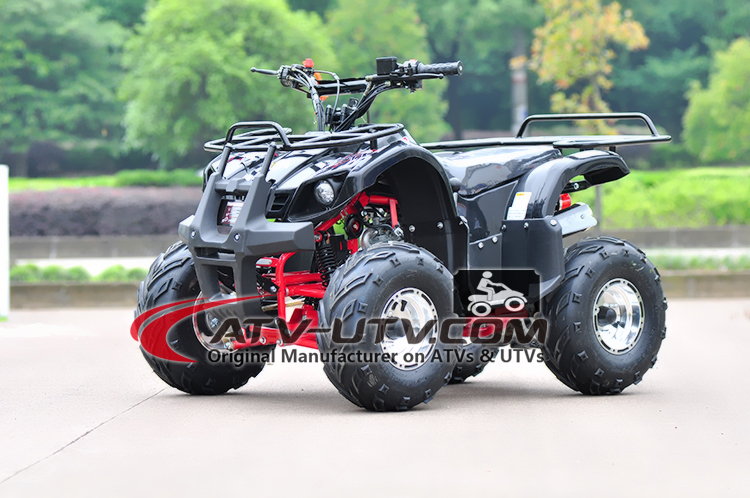

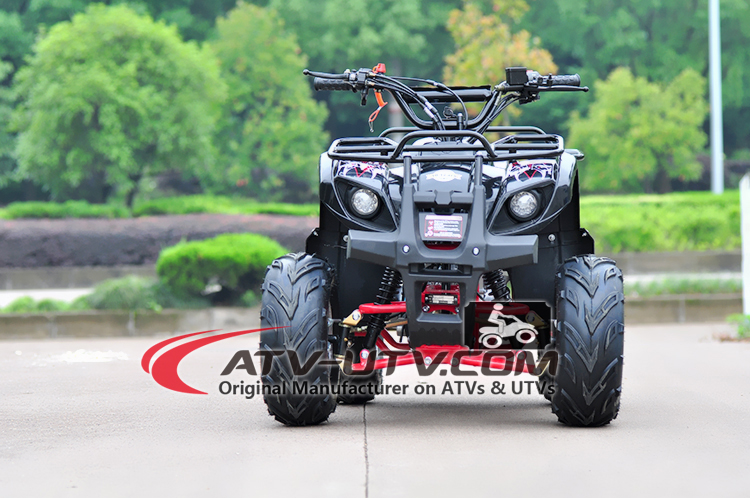

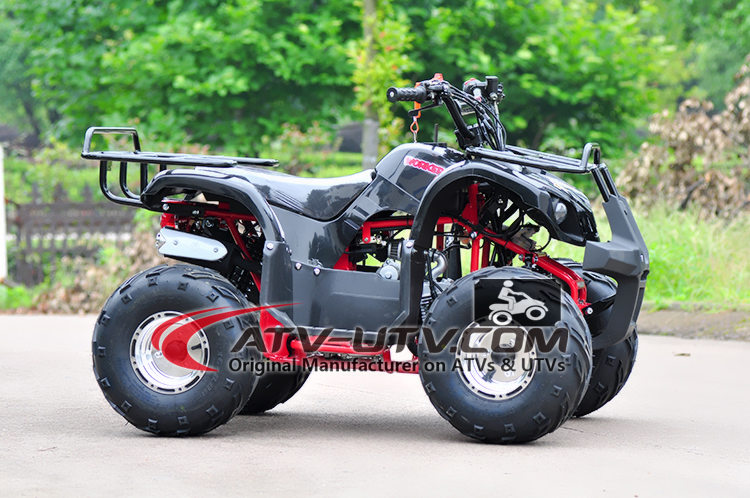

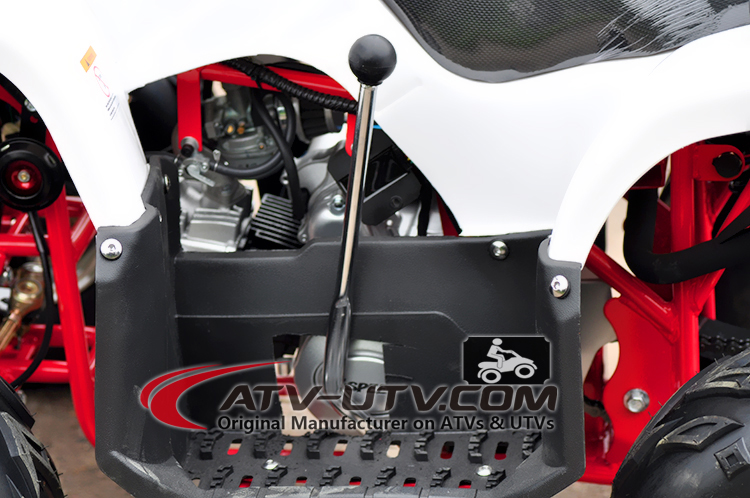

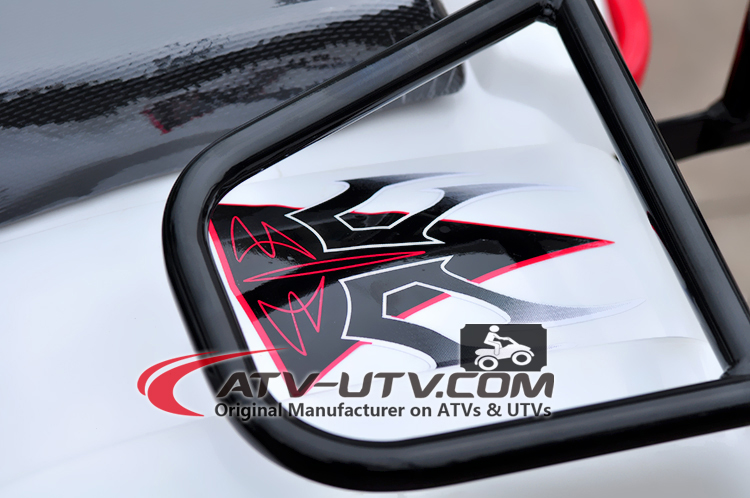

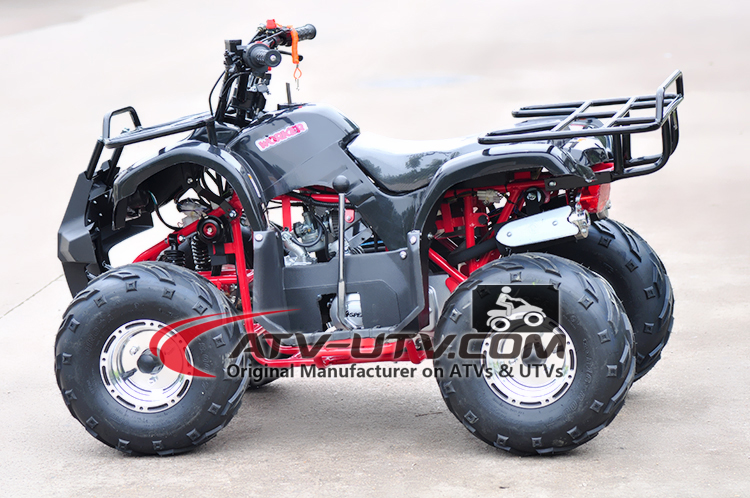

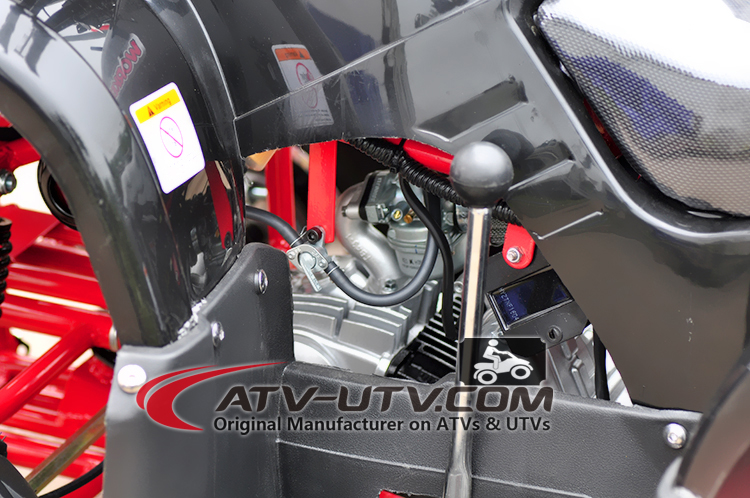

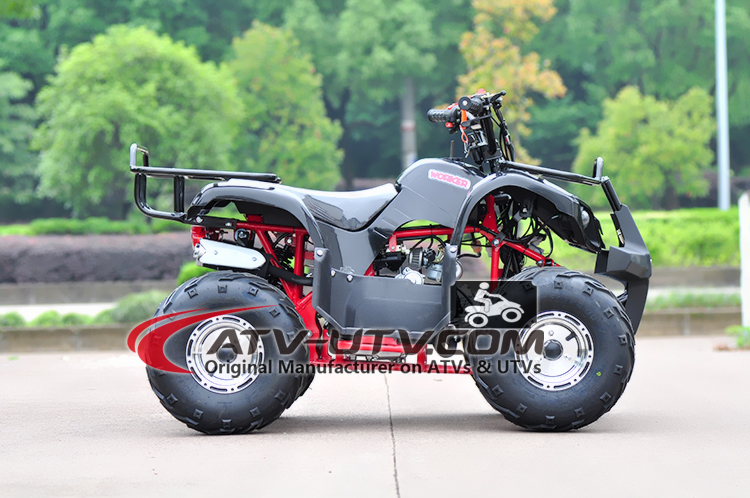

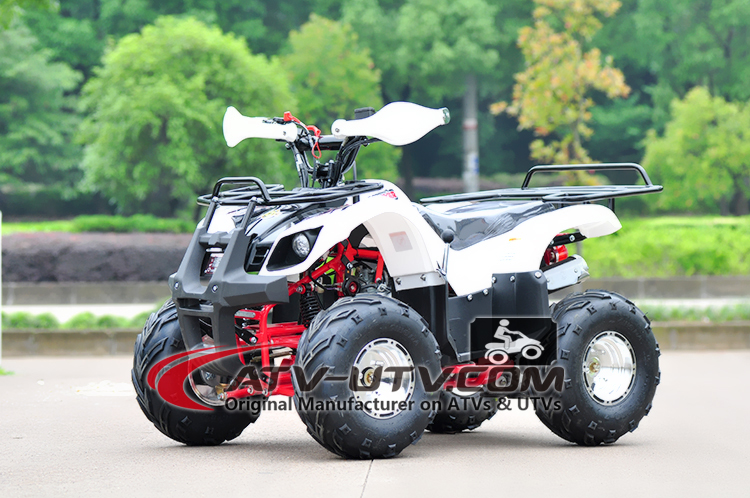

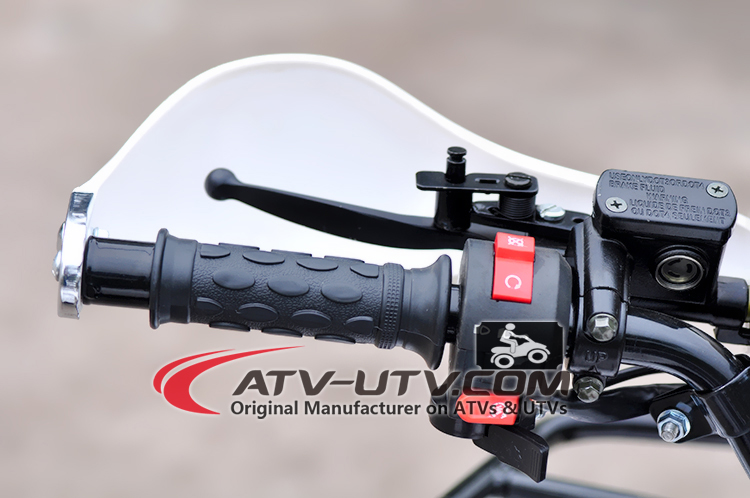

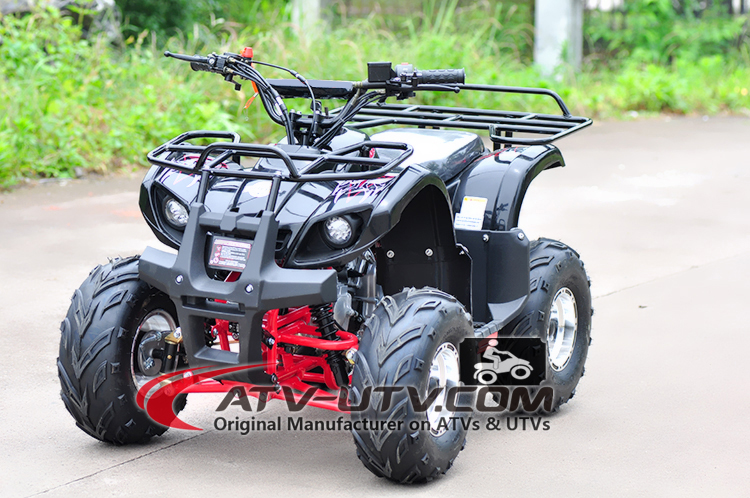

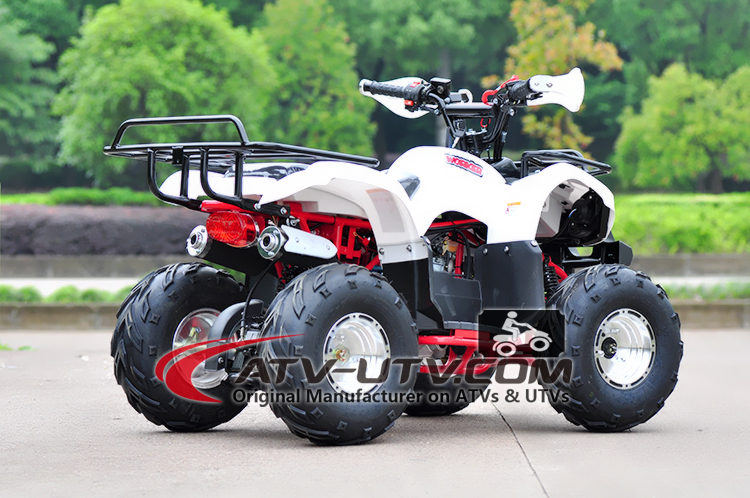

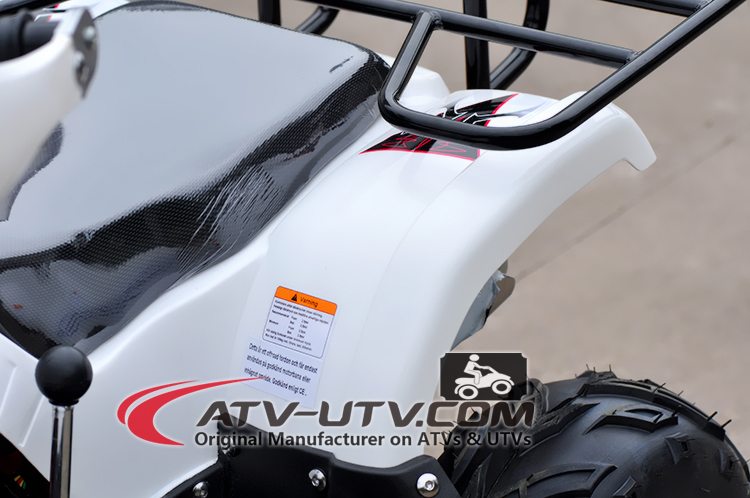

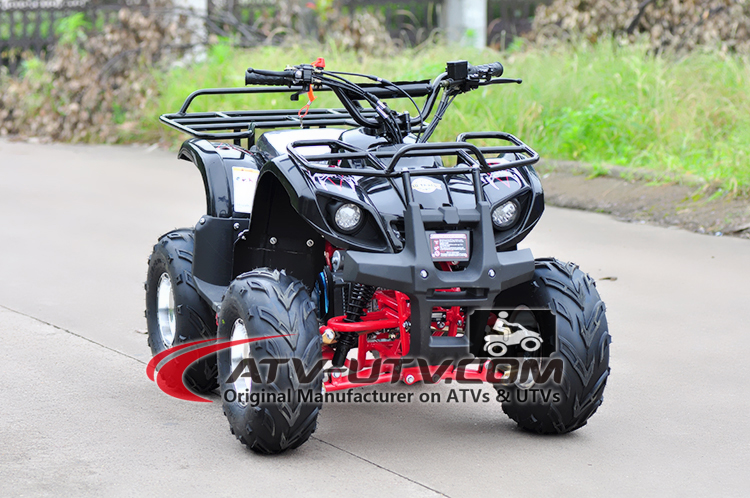

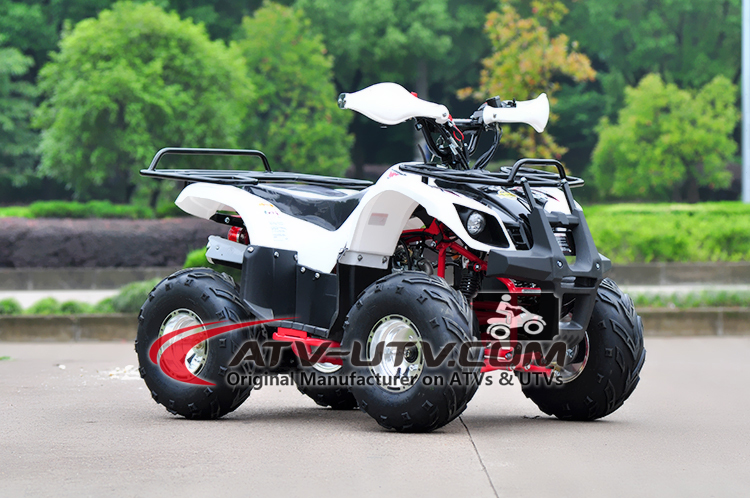

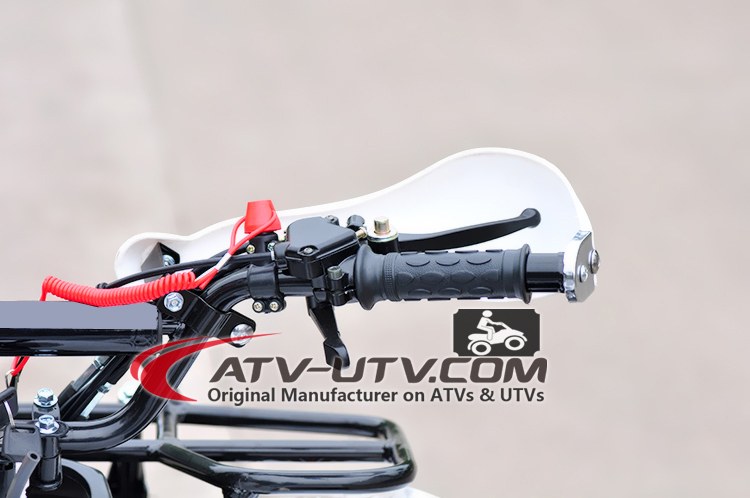

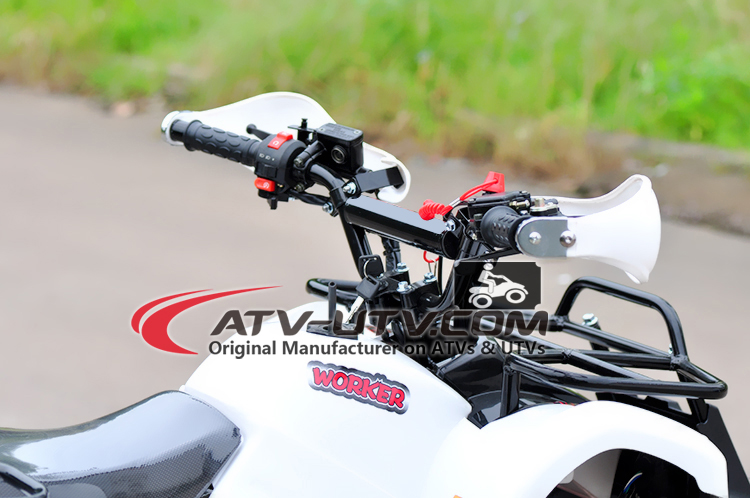

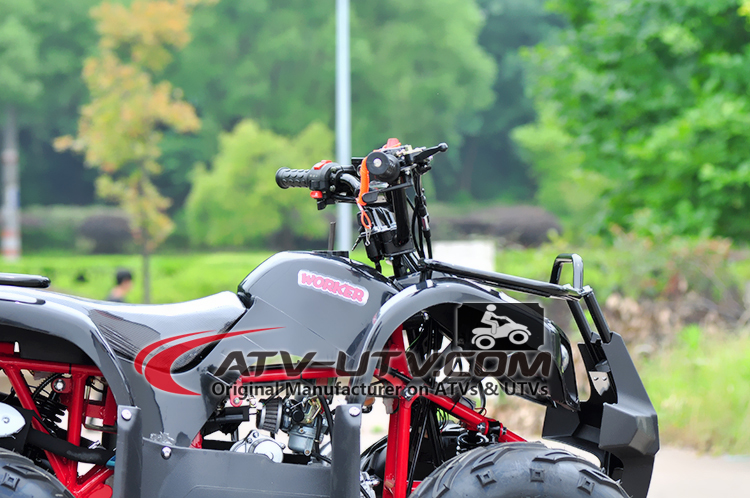

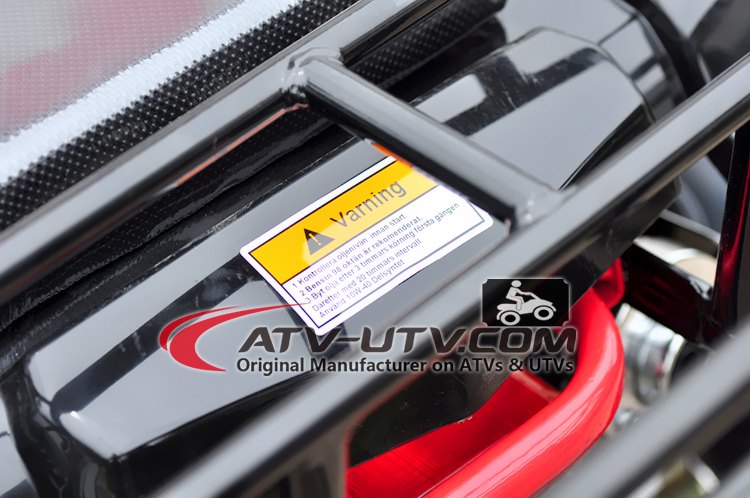

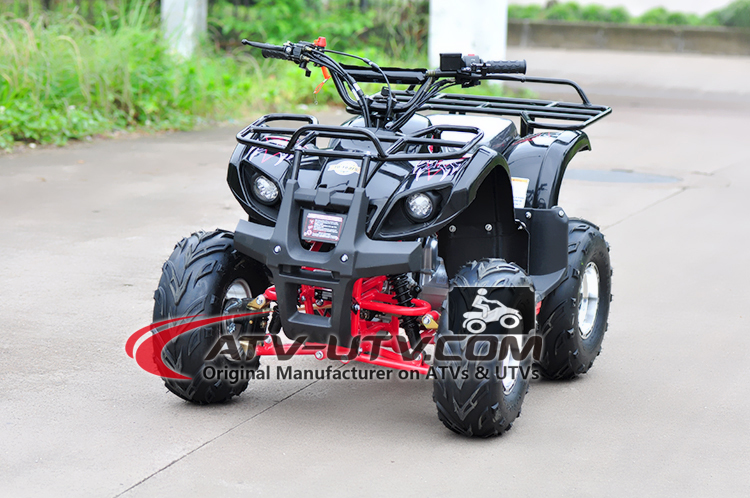

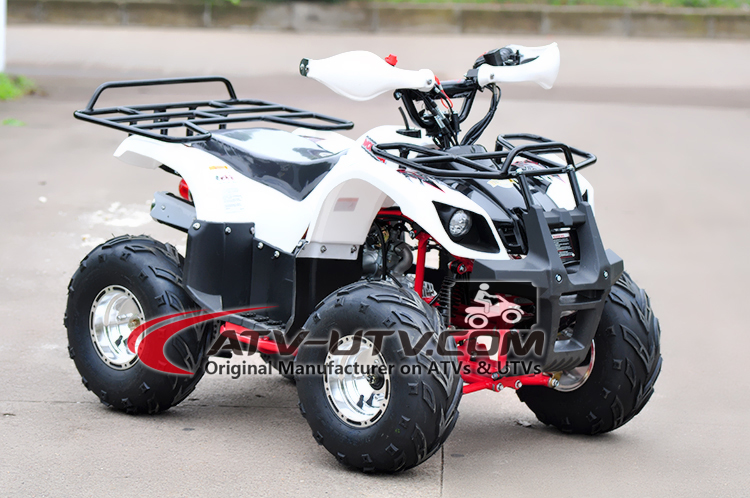

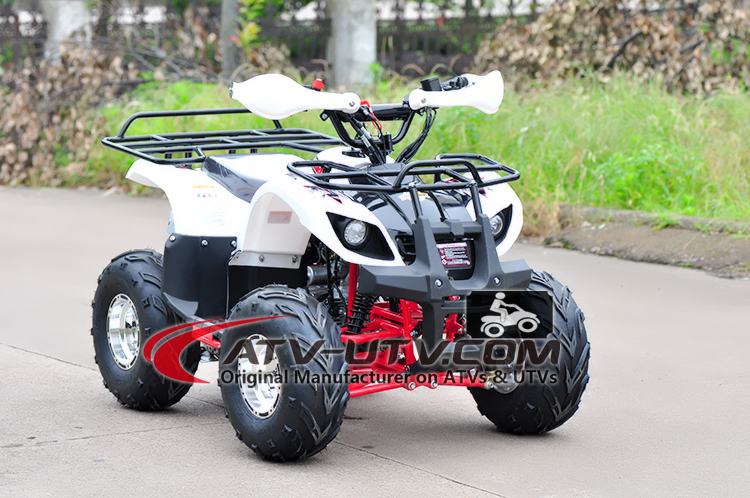

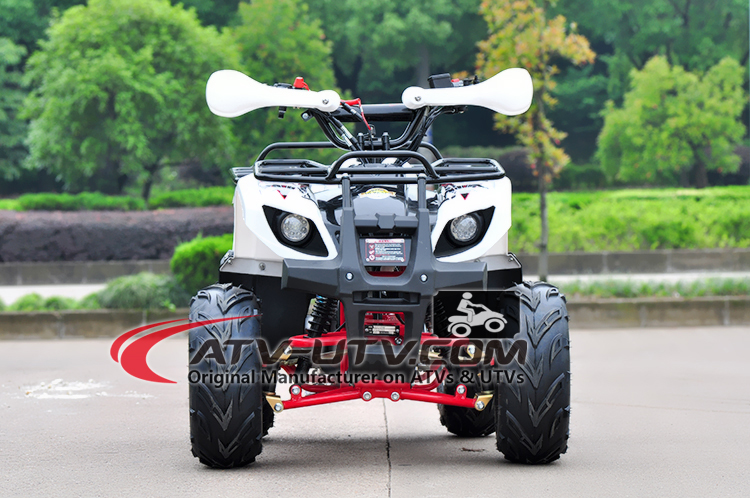

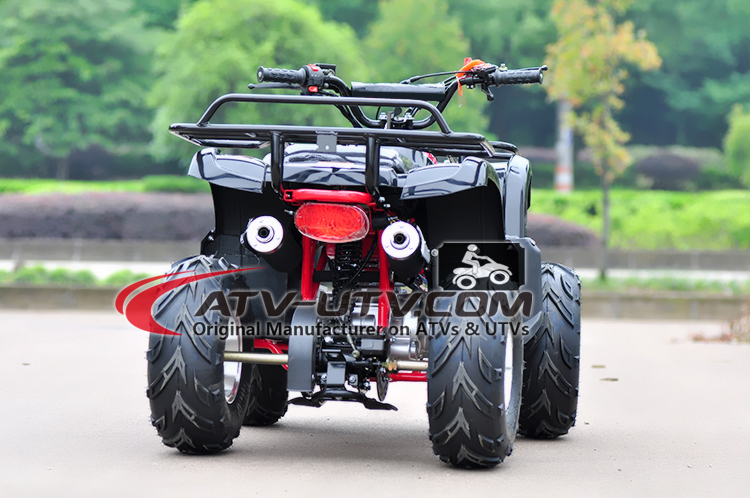

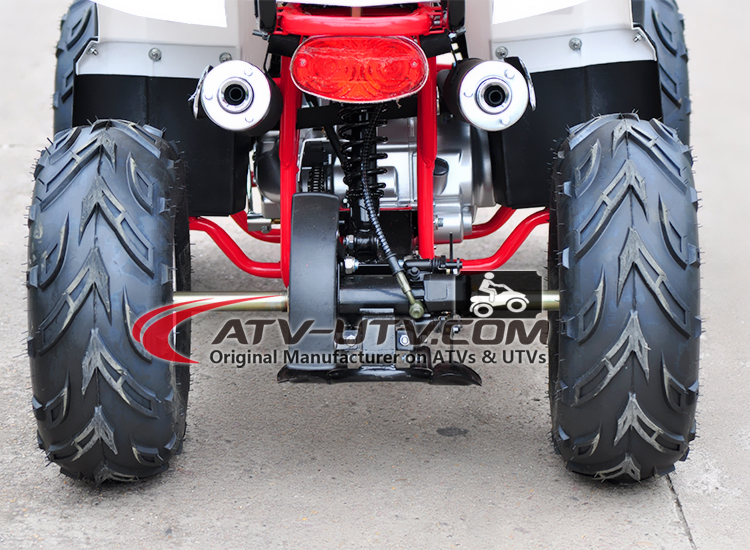

More Pictures:

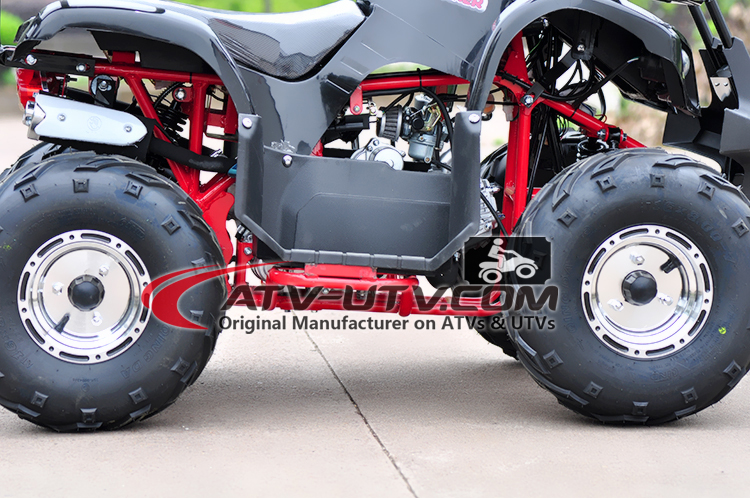

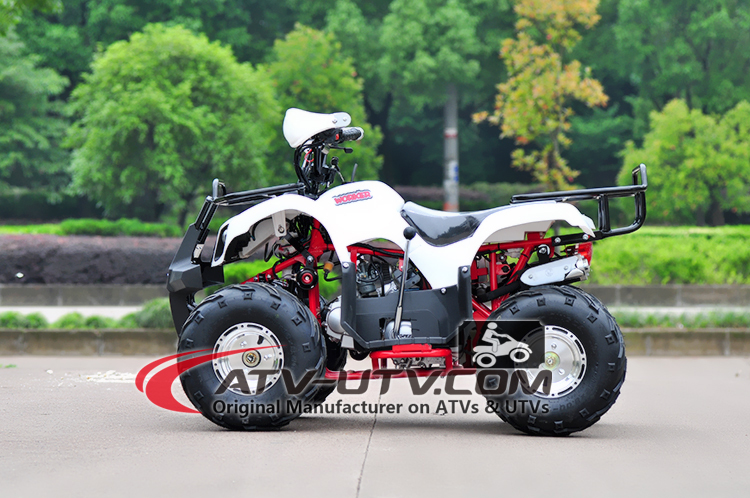

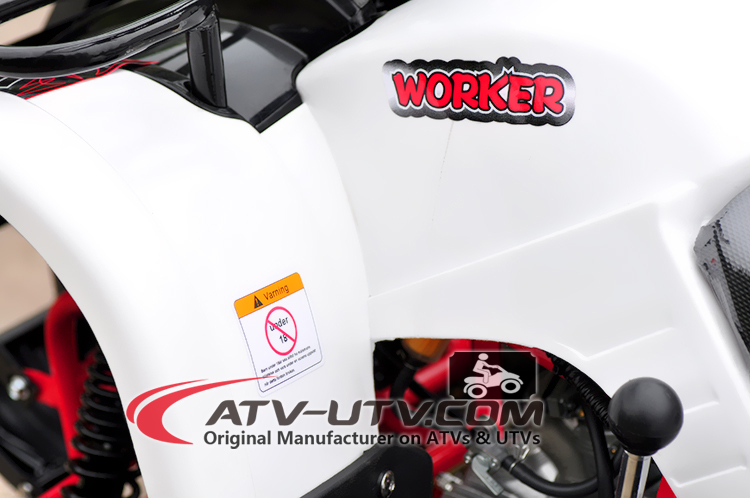

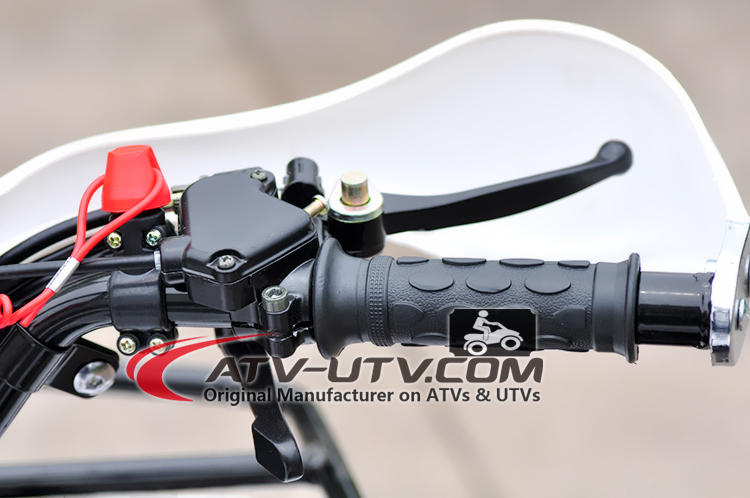

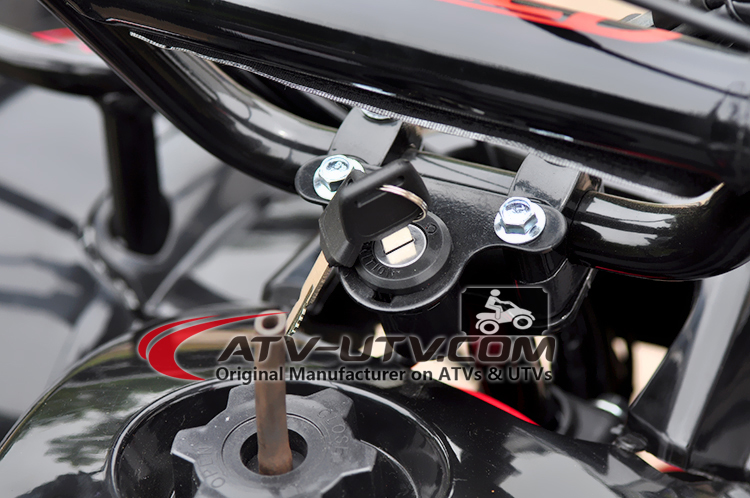

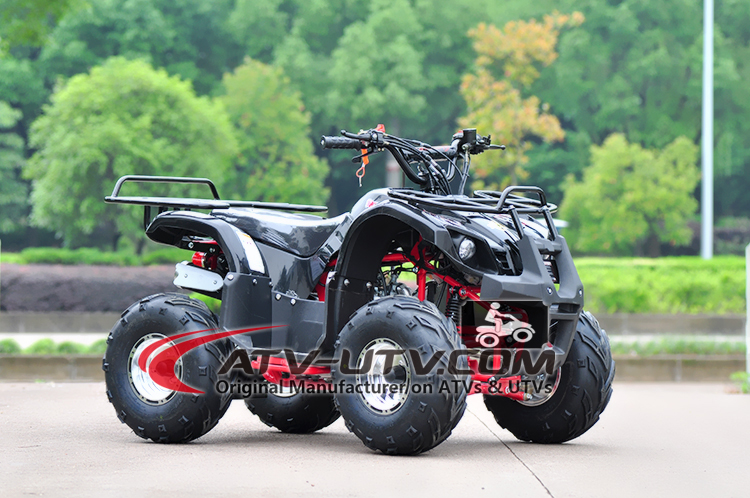

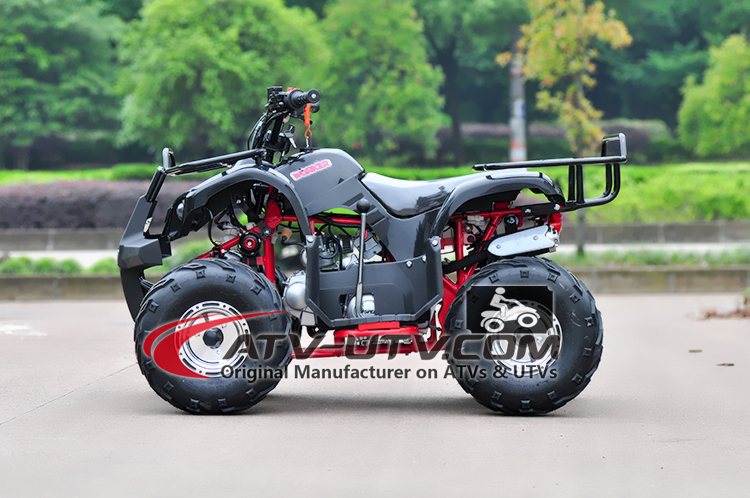

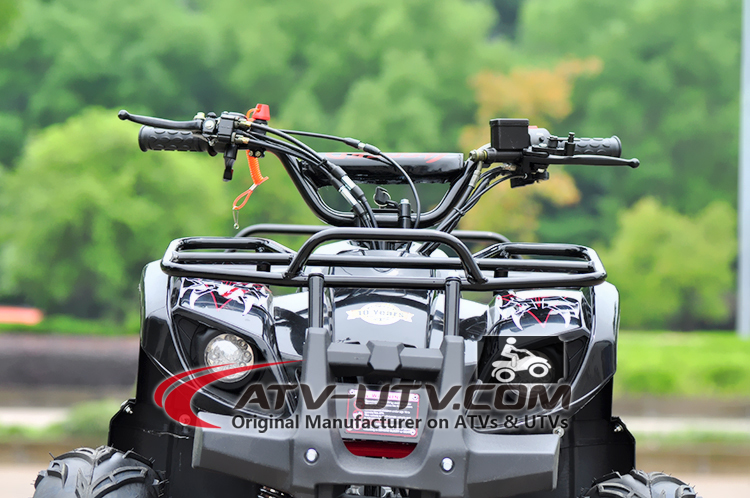

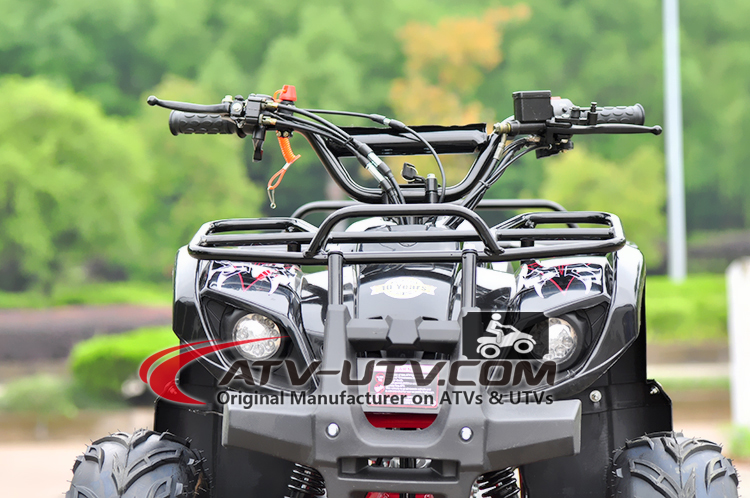

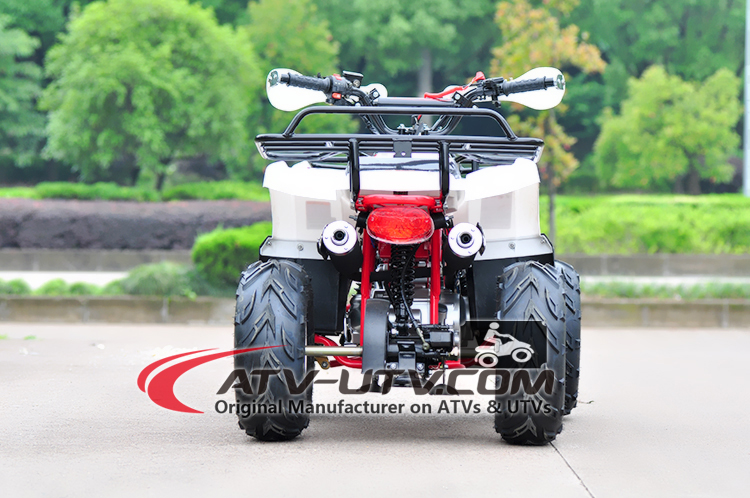

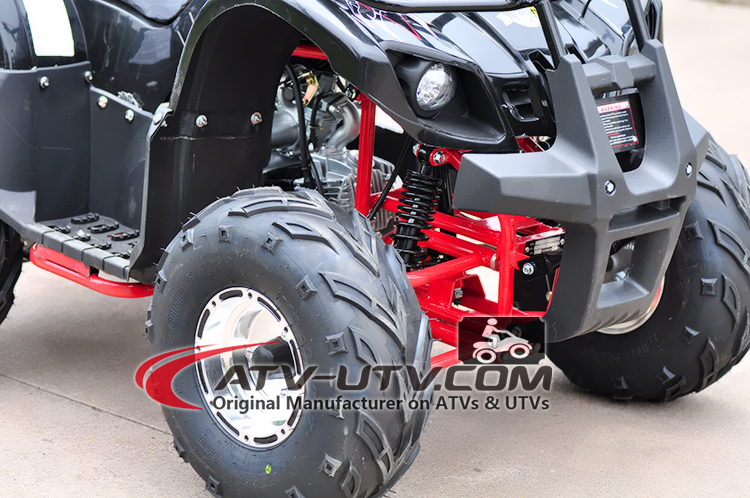

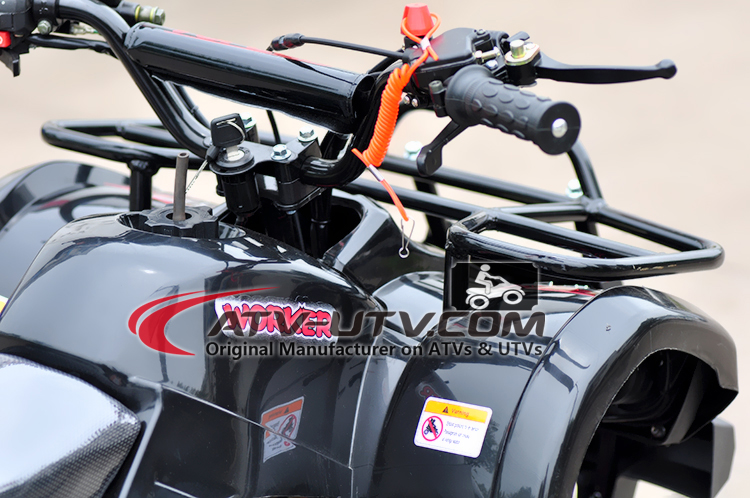

50CC ATV Equipped with Powerful Air Cooling Engine & Reverse Gear Shift



Product Discription:

Wheel number: 4
Piston displacement: 50cc/70cc/90cc/110cc
Starting system: CDI electric start
Engine: single-cylinder, 4-stroke, air-cooling
Battery:12V 4AH
Brake: Front: drum brake; Rear: disc brake
Drive system: chain dive
Clutch method: automatic clutch
Max torque: 4.2Nm/5000rpm,4.2Nm/5000rpm,5.2Nm/5000rpm,5.5Nm/5000rpm
Max power: 3.0Kw/8500rpm,3.0kw/7500rpm,3.3kw/7500rpm,3.6kw/7500rpm

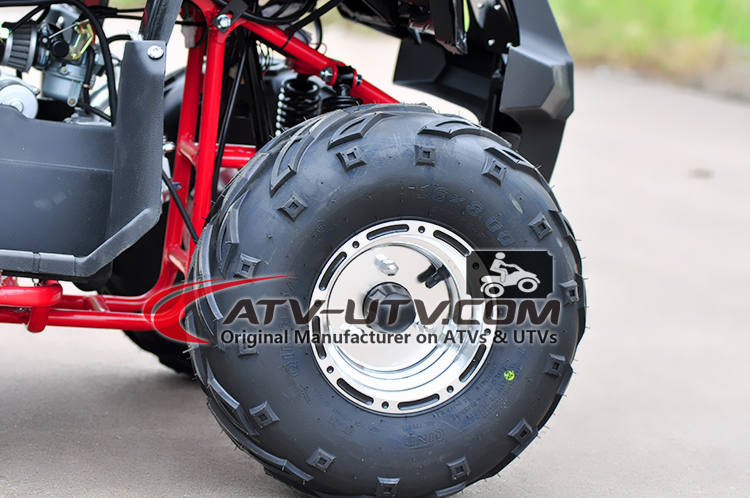

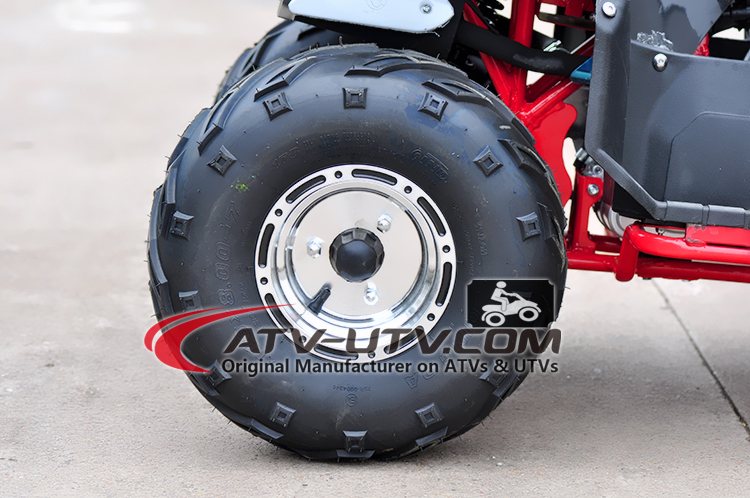

Wheel: front and rear 145/70-6

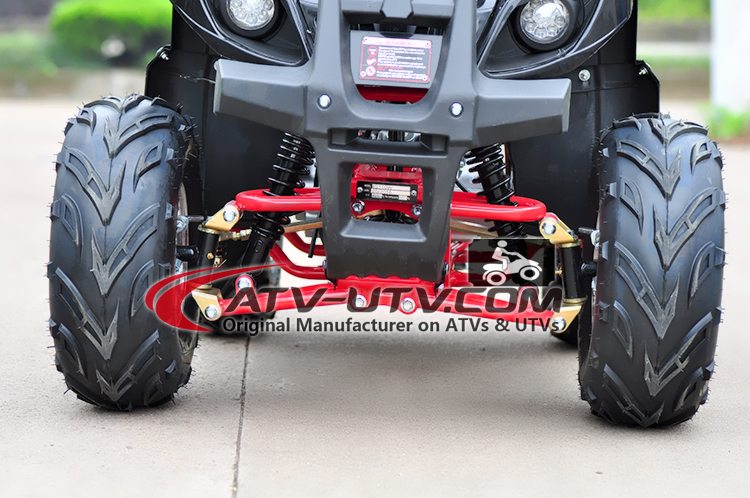

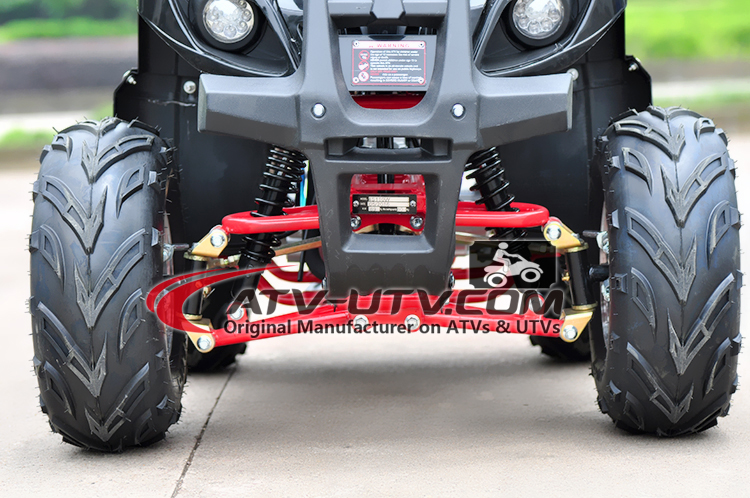

Front suspension details: double A x swing arm
Rear suspension details: mono shock swing arm
Vehicle size:152x86x91cm
Wheel base: 880mm
Seat height from ground: 60cm
Ground clearance: 100mm
Load capacity: 75kg
Fuel tank capacity: 3.2L
Package: Iron cage with carton outside
Net weight: 83kgs/182.6lbs
Gross weight: 90.5kgs/199.1lbs
Carton size: 125x76x66cm/1PC
Container: 36pcs/20’, 81pcs/40’, 108pcs/40’HQ

If you want to buy the quad bike same as above showed, you need to choose these Optional Parts:

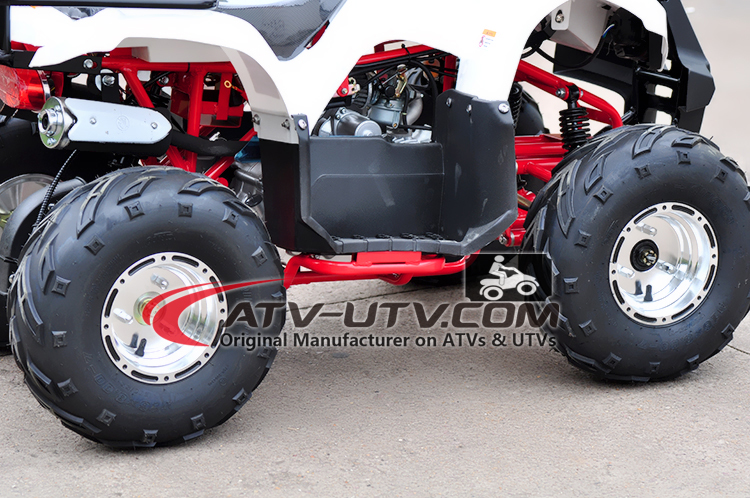

1)7” Aluminum Alloy Tire
2)125cc 3+1
3)Front bump cover

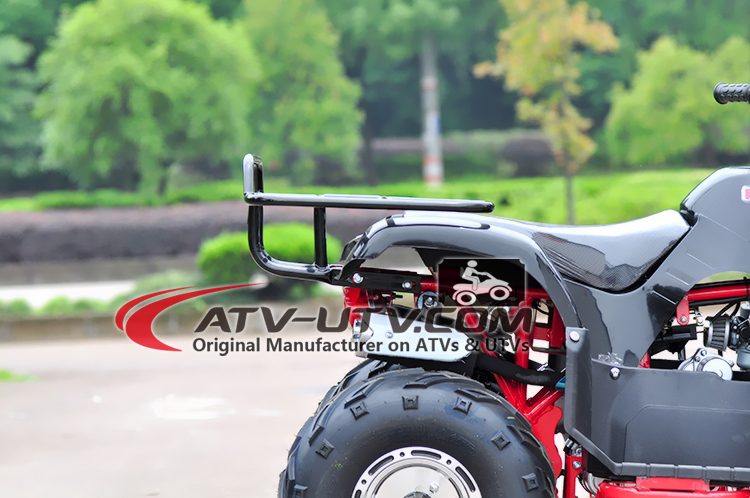

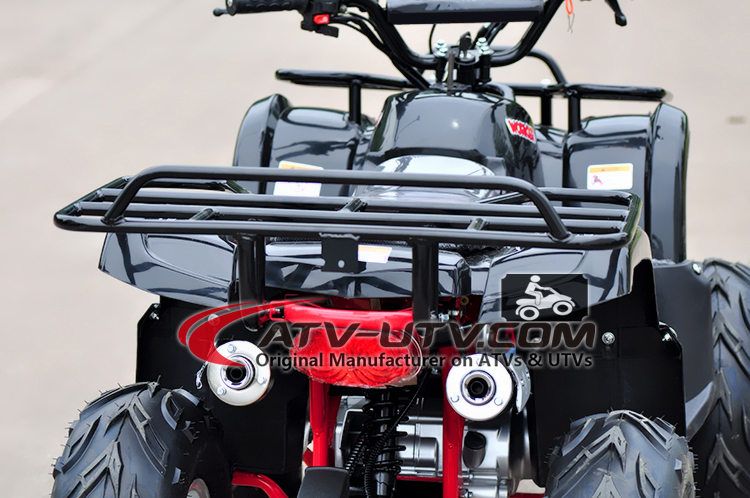

4)Rear Carrier
5)Front Disc Brake
6)Horn
7)Numeral meter
8)Remote control
9)Vehile frame to be Red, standard price is with black frame.
