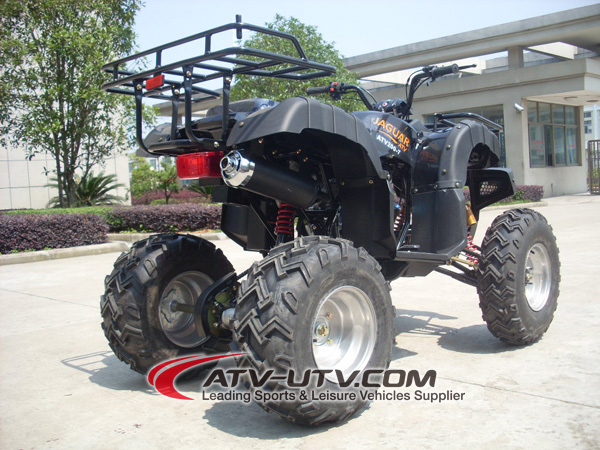

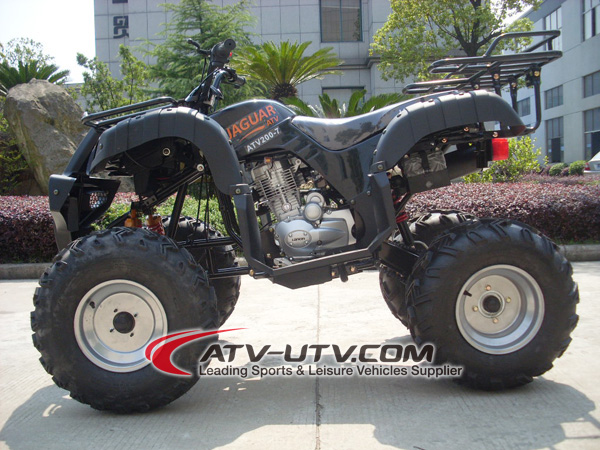

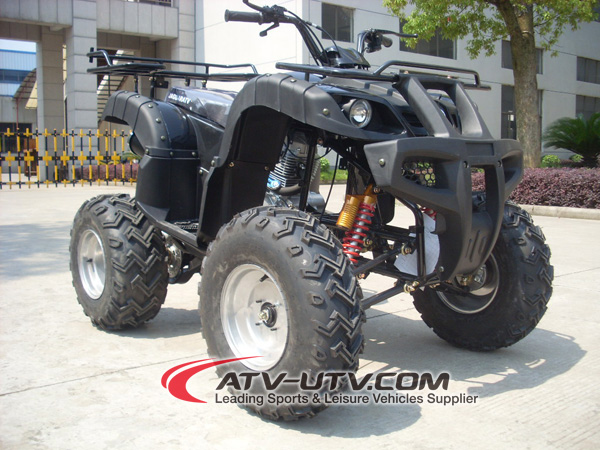

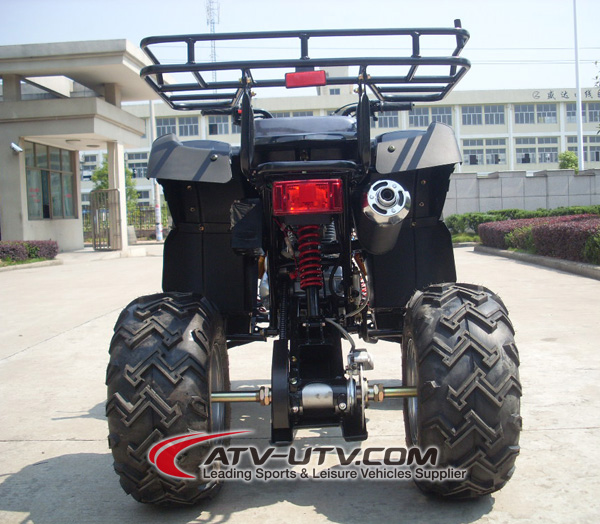

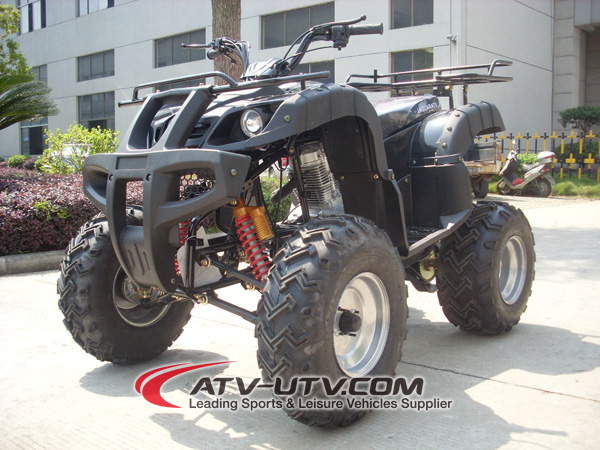

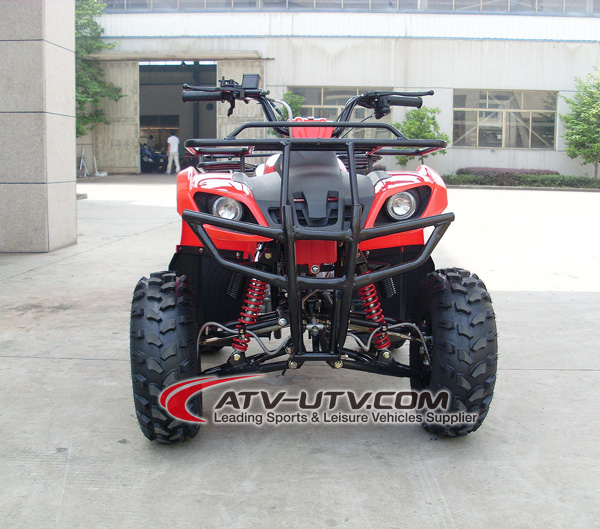

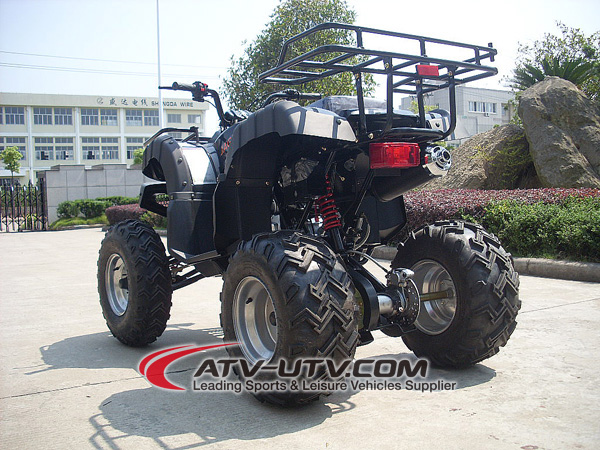

Homepage >> Product Detail Gas-Powered Hot Selling 150cc Engine ATV With Reverse Gear Chain Drive Quad Bike Item NO.: AT1503 Category: Gas ATV Update: 6/26/2015 1:41:09 AM Inquire Print More Pictures: Product Discription:   ATV Gas-Powered Hot Selling 150cc Engine ATV With Reverse Gear Chain Drive Quad Bike AT1503-A Key Specifications: 1. Engine type: 150cc 2. Max torque: 10Nm/5500rpm 3. Max power: 9.3kw/7500rpm 4. Ignition type: CDI 5. Transmission: manual reverse, chain drive 6. Brake (Front/Rear): Drum/Disc 7. Starting system: Electric start 8. Battery spec: 12V, 9AH 9. Front suspension details: double A x swing arm 10. Rear suspension details: mono shock swing arm 11. Front tire spec: 19x7-8. Rear tires spec: 18x9.5-8 12. Vehicle dimensions: 174X95X109cm 13. Wheel base: 1200mm 14. Seat height from ground: 80cm 15. Ground clearance: 120mm 16. Load capacity: 150kg 17. Fuel tank capacity: 7.8L Package: Iron cage with carton outside 18. Gross weight in carton: 180kg 19. Net weight: 165kg 20. Packing size: 156X112X85cm 21. Container: 30pcs/20ft; 59pcs/40ft; 66pcs/40HQ Gas-Powered Hot Selling 200cc Engine ATV AT1503-B Key Specifications: 1. Engine type: 200cc WIZTEM Industry Company Limited Add: hardware science & technology area, Yong Kang, Zhejiang, China 321300 Mobile: (0086) 138 5892 9900 Tel: (0086 579) 8729 7180; Fax: (0086 579) 8915 9373; E-mail: sales@mademoto.com; http://www.atv-utv.com 2. Max torque: 13.5Nm/5500rpm 3. Max power: 10kw/7500rpm 4. Ignition type: CDI 5. Transmission: manual reverse, chain drive 6. Brake (Front/Rear): Drum/Disc 7. Starting system: Electric start 8. Battery spec: 12V, 9AH 9. Front suspension details: double A x swing arm 10. Rear suspension details: mono shock swing arm 11. Front tire spec: 19x7-8. Rear tires spec: 18x9.5-8 12. Vehicle dimensions: 174X95X109cm 13. Wheel base: 1200mm 14. Seat height from ground: 80cm 15. Ground clearance: 120mm 16. Load capacity: 150kg 17. Fuel tank capacity: 7.8L Package: Iron cage with carton outside 18. Gross weight in carton: 180kg 19. Net weight: 165kg 20. Packing size: 156X112X85cm 21. Container: 30pcs/20ft; 59pcs/40ft; 66pcs/40HQ Gas-Powered Hot Selling 250cc Engine ATV AT1503-C Key Specifications: 1. Engine type: 250cc 2. Max torque: 17.5Nm/5000rpm 3. Max power: 11kw/7500rpm 4. Ignition type: CDI 5. Transmission: manual reverse, chain drive 6. Brake (Front/Rear): Drum/Disc 7. Starting system: Electric start WIZTEM Industry Company Limited Add: hardware science & technology area, Yong Kang, Zhejiang, China 321300 Mobile: (0086) 138 5892 9900 Tel: (0086 579) 8729 7180; Fax: (0086 579) 8915 9373; E-mail: sales@mademoto.com; http://www.atv-utv.com 8. Battery spec: 12V, 9AH 9. Front suspension details: double A x swing arm 10. Rear suspension details: mono shock swing arm 11. Front tire spec: 19x7-8. Rear tires spec: 18x9.5-8 12. Vehicle dimensions: 174X95X109cm 13. Wheel base: 1200mm 14. Seat height from ground: 80cm 15. Ground clearance: 120mm 16. Load capacity: 150kg 17. Fuel tank capacity: 7.8L Package: Iron cage with carton outside 18. Gross weight in carton: 180kg 19. Net weight: 165kg 20. Packing size: 156X112X85cm 21. Container: 30pcs/20ft; 59pcs/40ft; 66pcs/40HQ
