CE Approved 200CC ATV Equipped with Powerful Air Cooling Engine

Item NO.:	AT2007
Category:	Gas ATV
Update:	6/26/2015 2:07:48 AM

Inquire

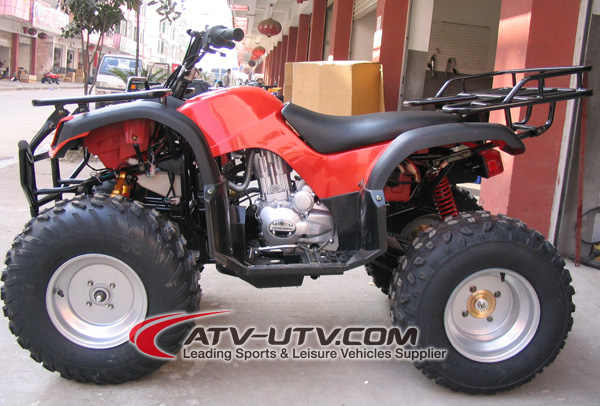

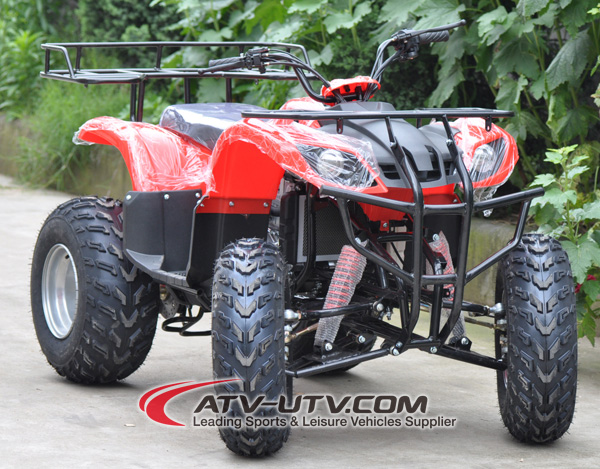

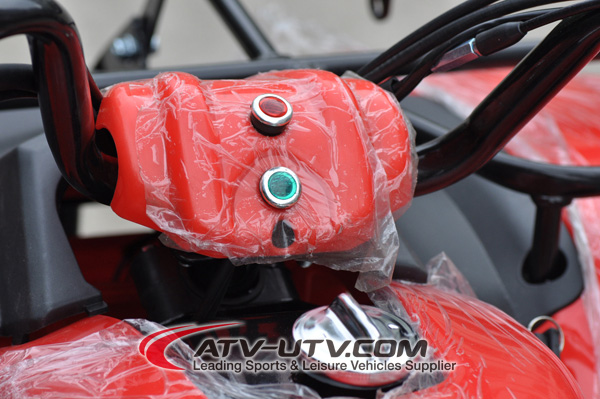

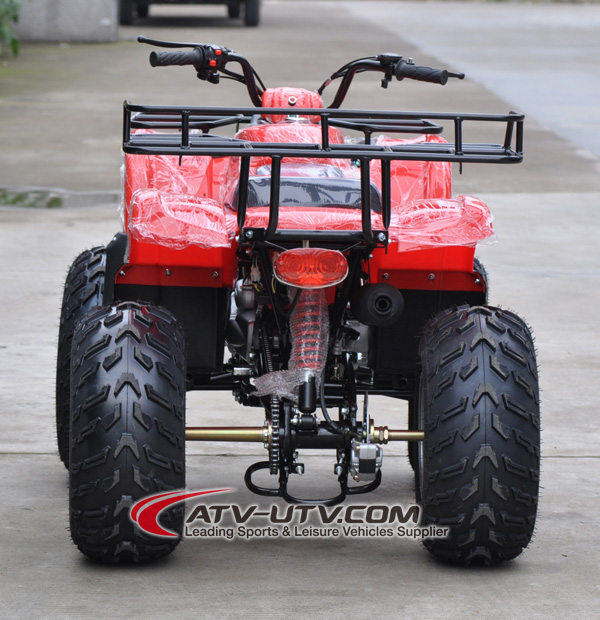

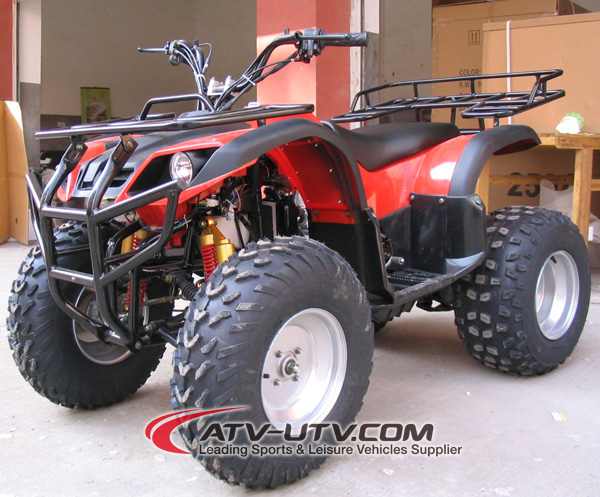

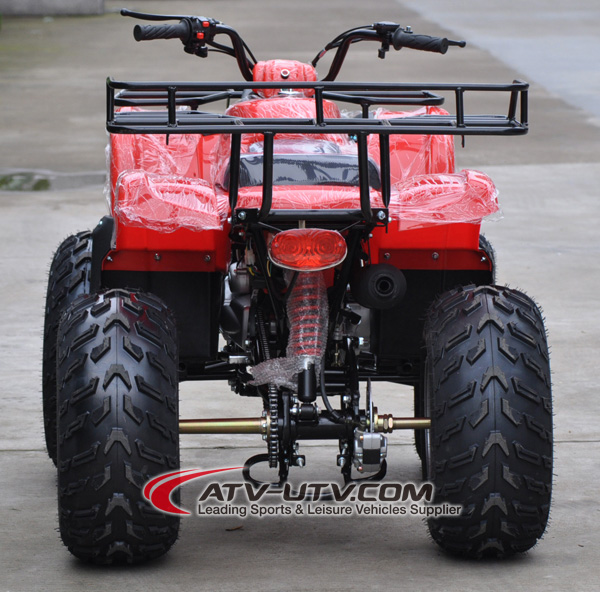

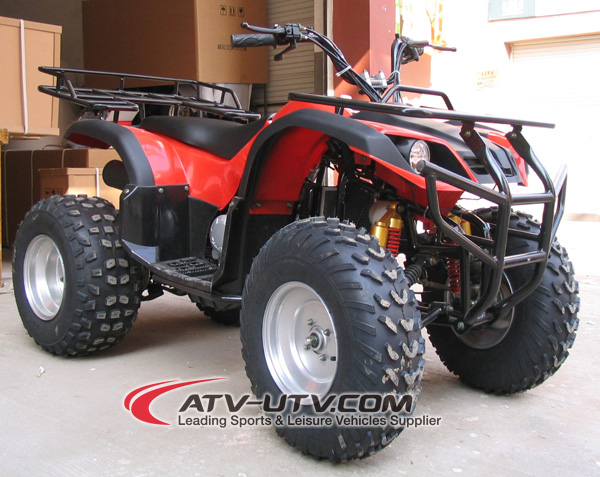

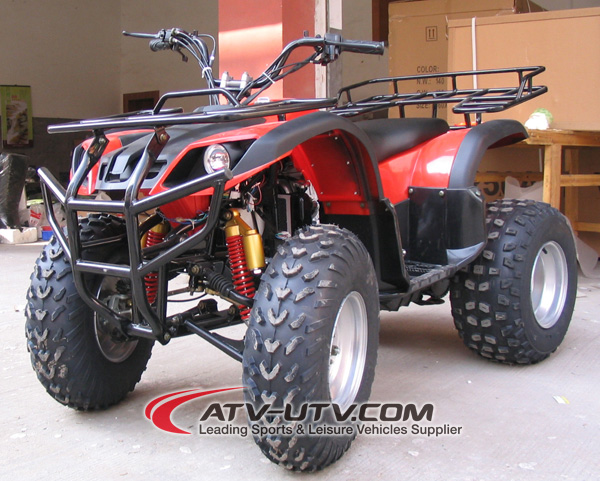

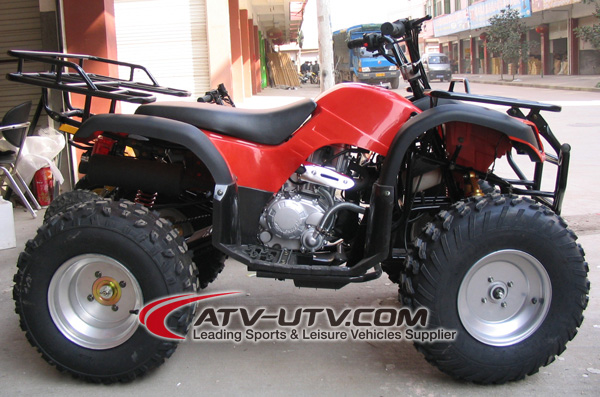

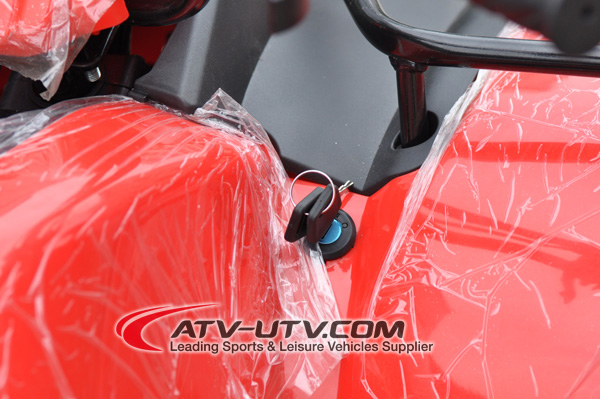

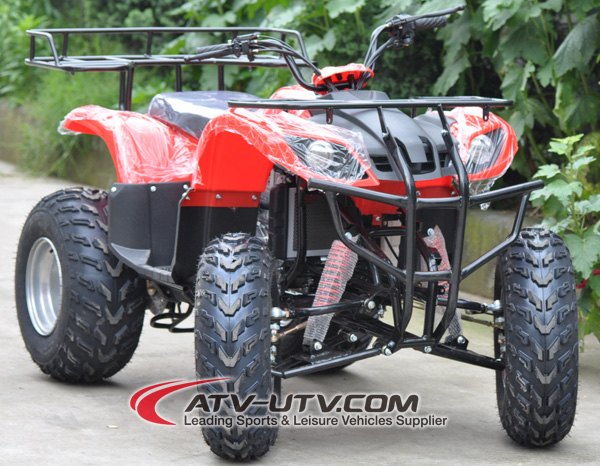

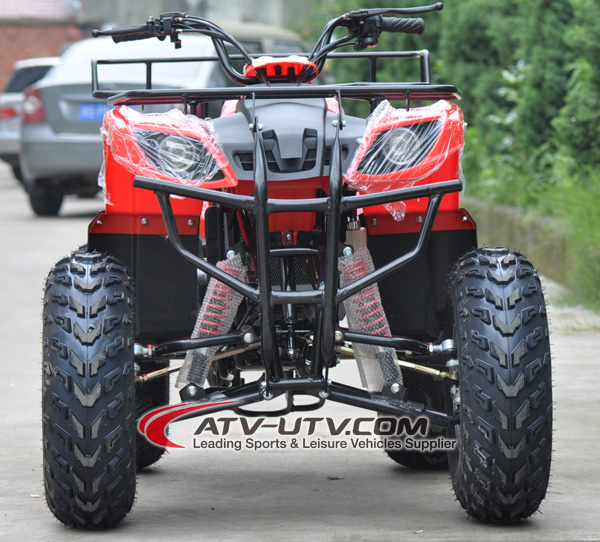

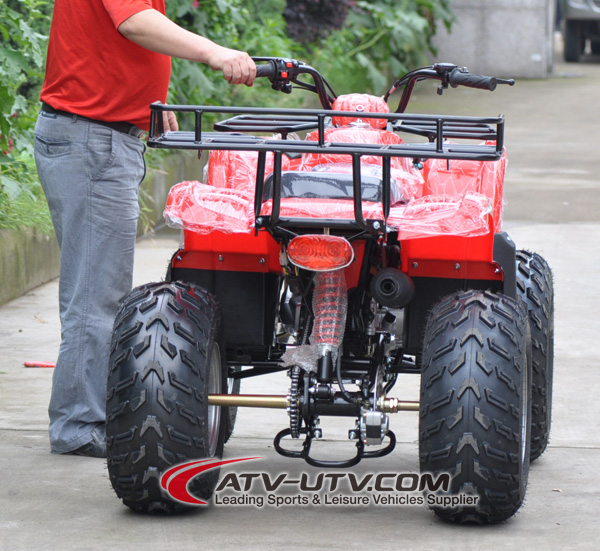

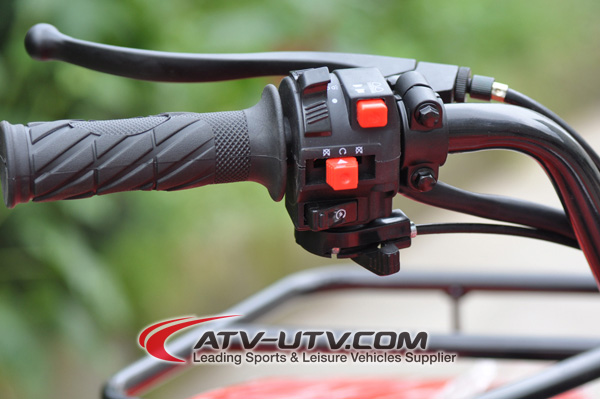

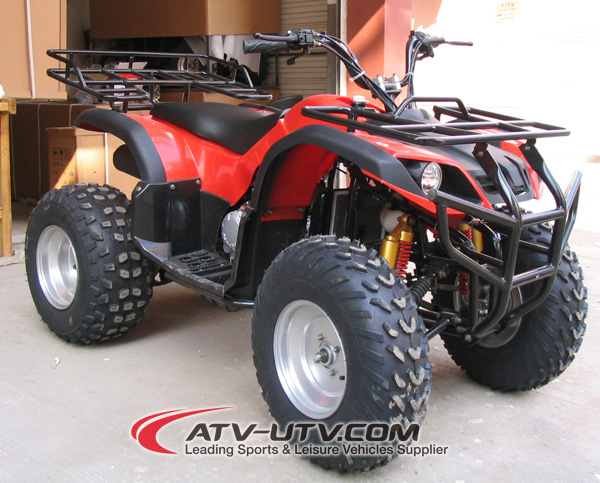

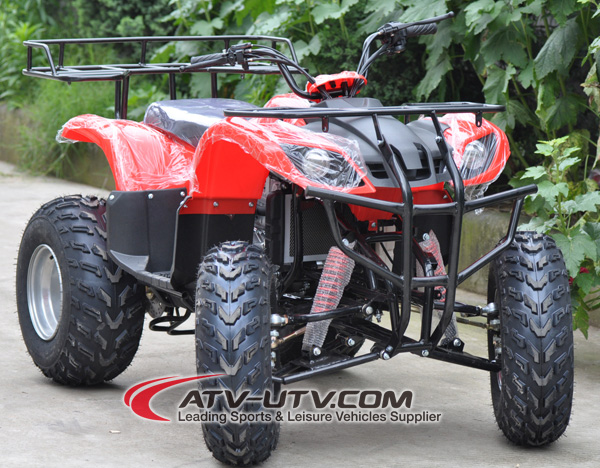

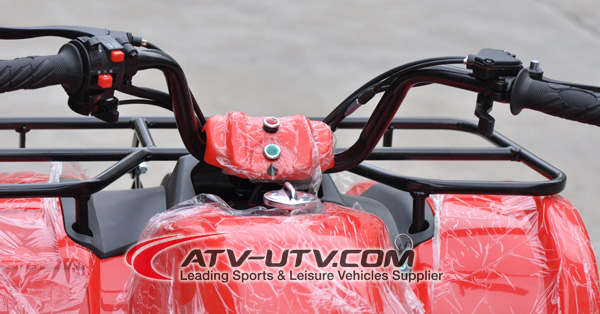

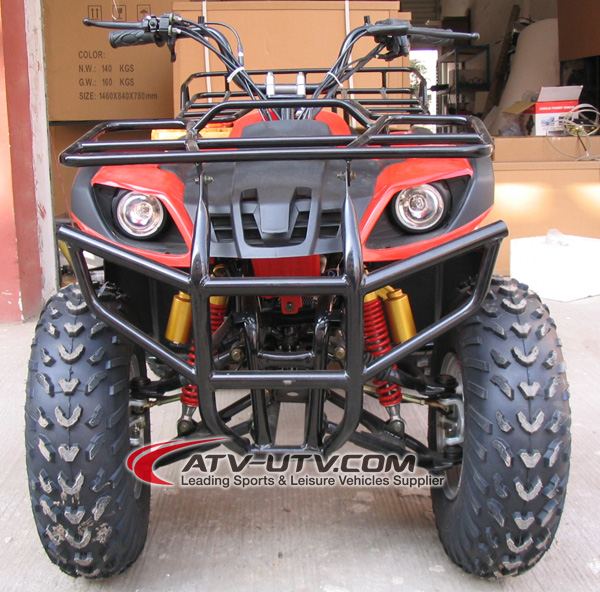

More Pictures:

Product Discription:

ATV
CE Approved 200CC ATV Equipped with Powerful Air Cooling Engine
AT2007-A
Key Specifications:
1. Wheel number: 4
2. Piston displacement: 200cc
3. Fuel tank: 4.5 liters
4. Fuel type: unleaded gasoline with octane no. 91 or higher
5. Engine type: single cylinder, air-cooled
6. Starting system: electric
7. Drive train: chain
8. Ignition method: CDI
9. Output: max. 10.0kw/7,500rpm
10. Torque: 13.5N.m/6,500rpm
11. Brakes: front: drum, rear: disc
12. Transmission: four gears with reverse and manual clutch
13. Wheel side: front: 21x7-8, rear: 20x9.5-8
14. Reserve: inner reverse gear
15. Min. ground clearance: 125mm
16. Max. load: 100kg/220lbs
17. Max. speed: >60km/h,37miles/h
18. Climbing ability: <20 degrees
19. Wheelbase: 1,050mm
20. Seat height: 780mm
Package: Iron cage with carton outside
21. Net weight: 150kgs/330lbs
22. Gross weight: 173kgs/381lbs
23. Carton size: 158x84x76cm/1pc
24. Container: 28pcs/20’, 57pcs/40’, 67pcs/40’HQ
Special Features:

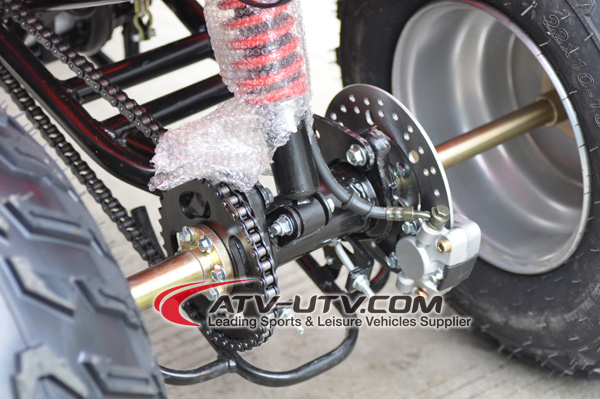

 Chain driving power transmission
 CDI ignition mode
 Powerful air cooling engine

ATV
CE Approved 200CC ATV Equipped with Powerful Water Cooling Engine
AT2007-B
Key Specifications:
25. Wheel number: 4
26. Piston displacement: 200cc
27. Fuel tank: 4.5 liters
28. Fuel type: unleaded gasoline with octane no. 91 or higher
29. Engine type: single cylinder, water-cooled
30. Starting system: electric
31. Drive train: chain
32. Ignition method: CDI
33. Output: max. 10.0kw/7,500rpm
34. Torque: 13.5N.m/6,500rpm
35. Brakes: front: drum, rear: disc
36. Transmission: four gears with reverse and manual clutch
37. Wheel side: front: 21x7-8, rear: 20x9.5-8
38. Reserve: inner reverse gear
39. Min. ground clearance: 125mm
40. Max. load: 100kg/220lbs
41. Max. speed: >60km/h,37miles/h
42. Climbing ability: <20 degrees
43. Wheelbase: 1,050mm
44. Seat height: 780mm
Package: Iron cage with carton outside
45. Net weight: 150kgs/330lbs
46. Gross weight: 173kgs/381lbs
47. Carton size: 158x84x76cm/1pc
48. Container: 28pcs/20’, 57pcs/40’, 67pcs/40’HQ
Special Features:
 Chain driving power transmission
 CDI ignition mode
 Powerful water cooling engine
