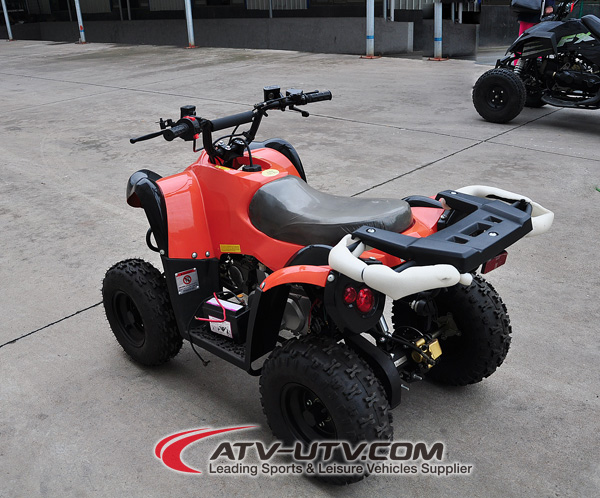

110cc ATV with electric start 4 stroke Gas Quad Bike with Air Cooled Engine

Item NO.:	AT1102
Category:	Gas ATV
Update:	6/26/2015 1:30:37 AM

Inquire

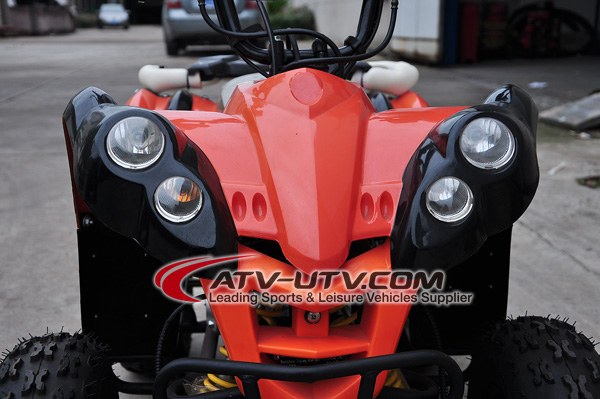

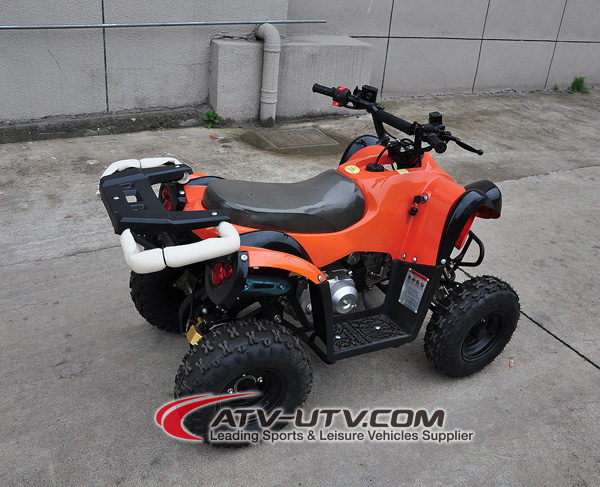

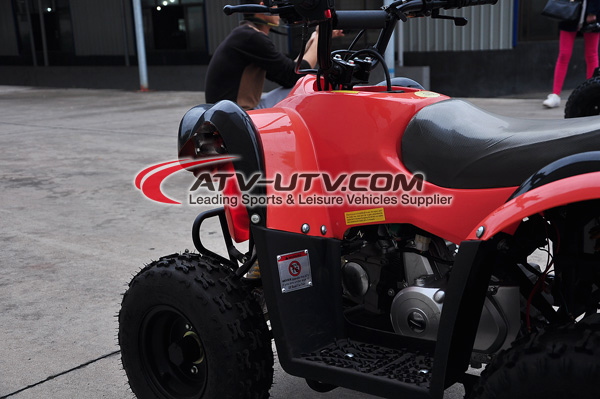

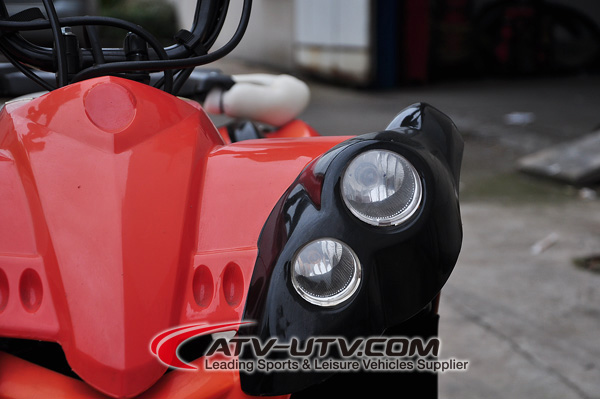

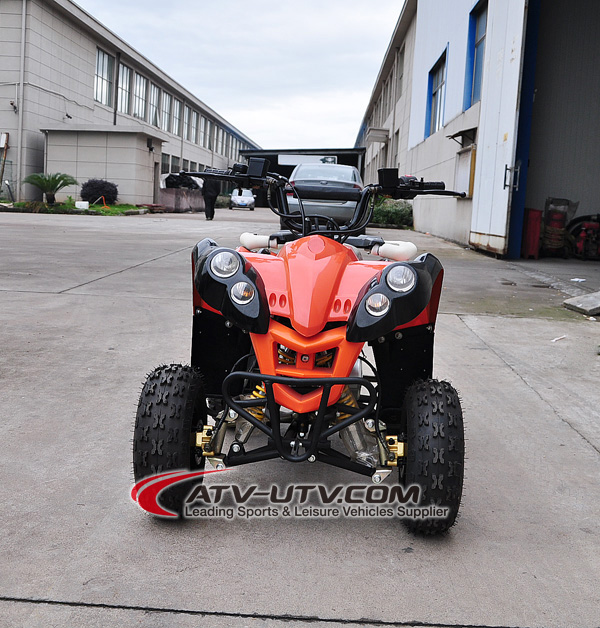

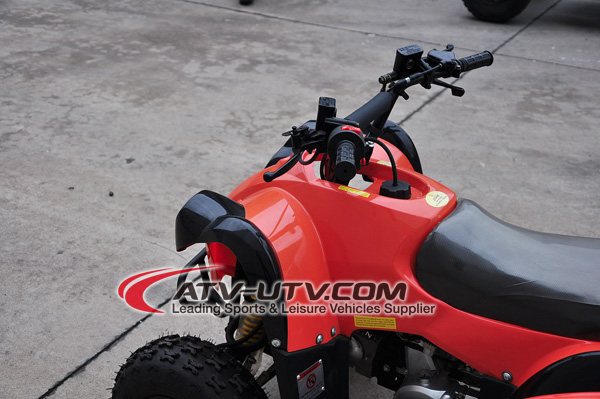

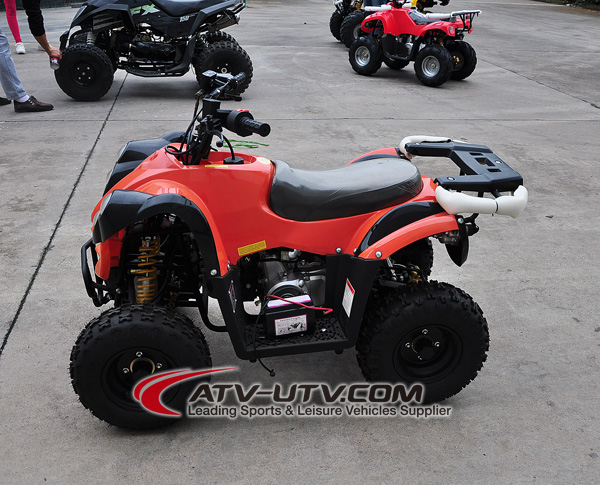

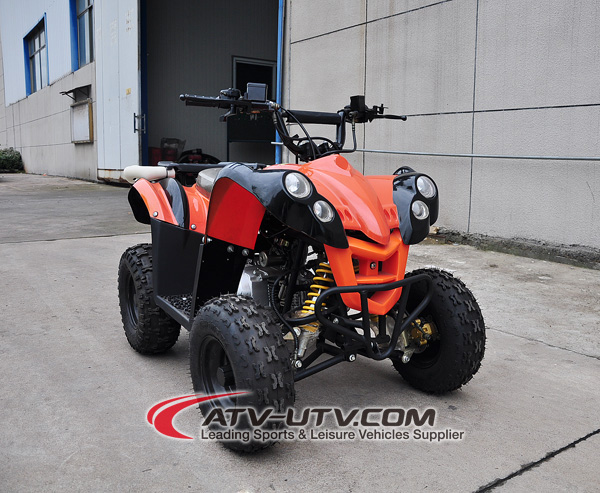

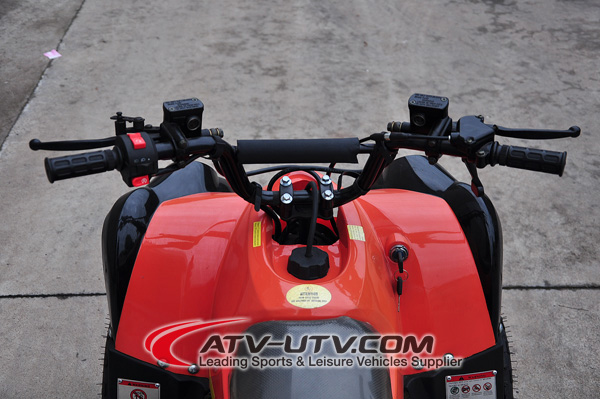

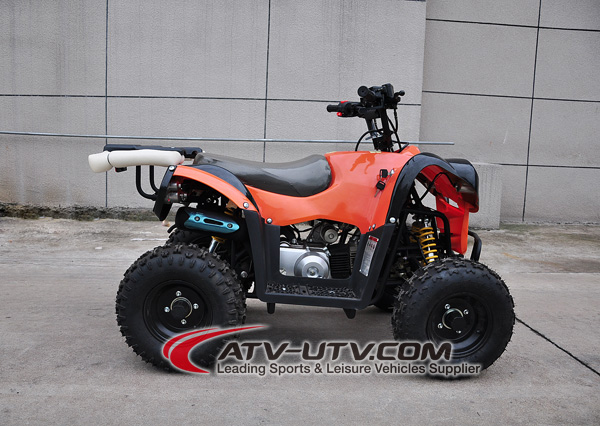

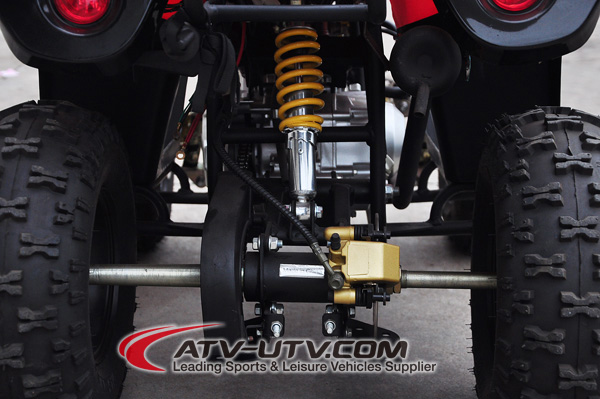

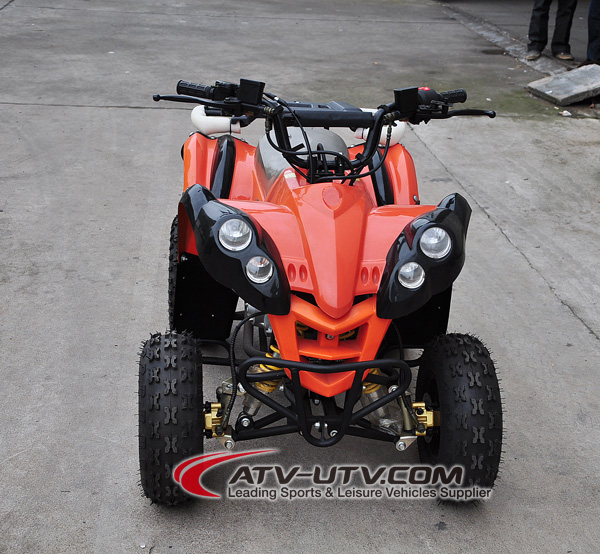

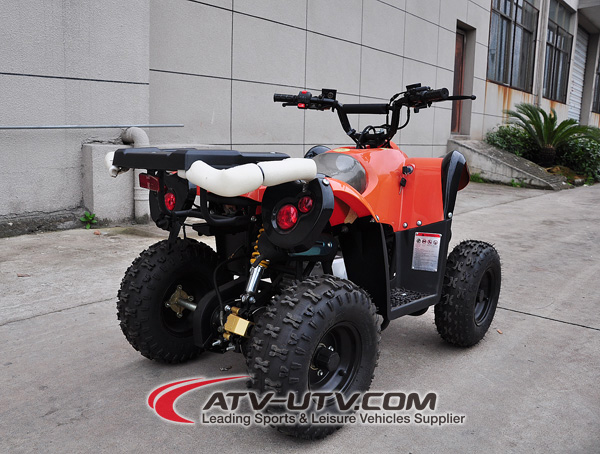

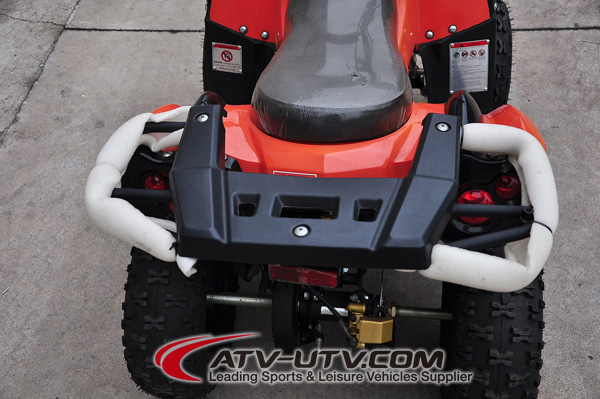

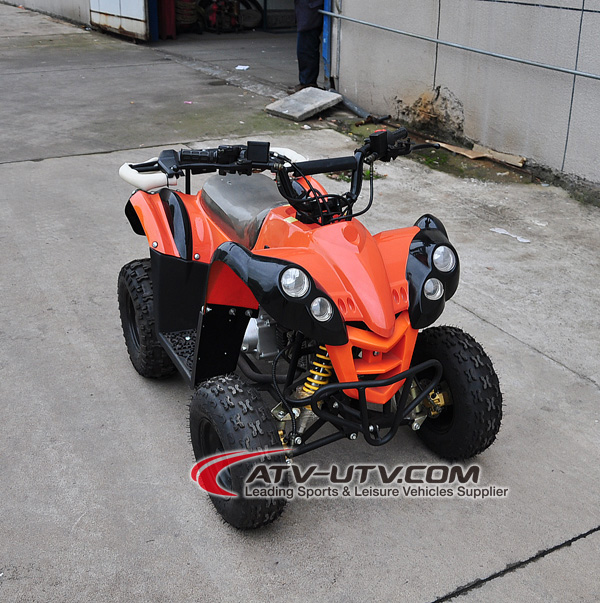

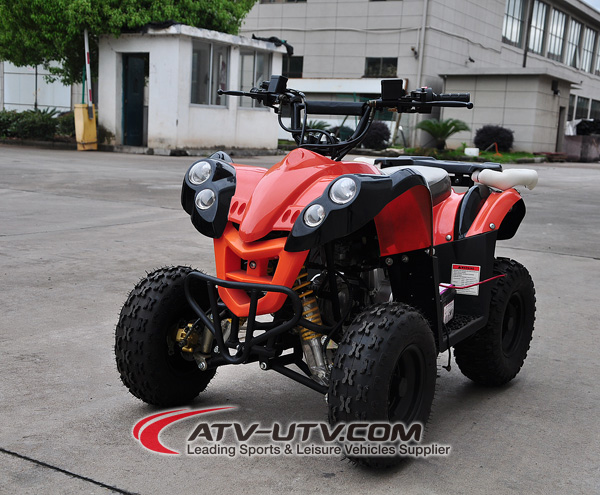

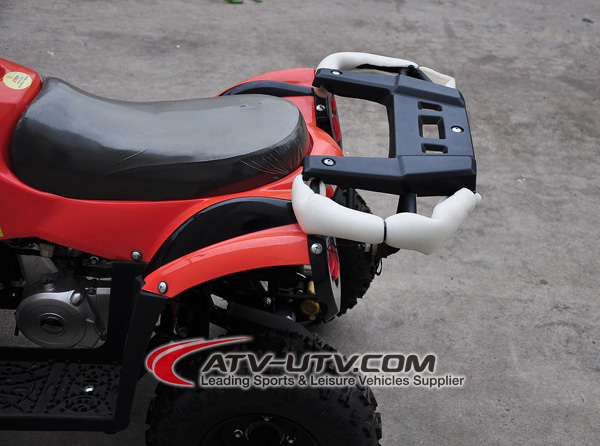

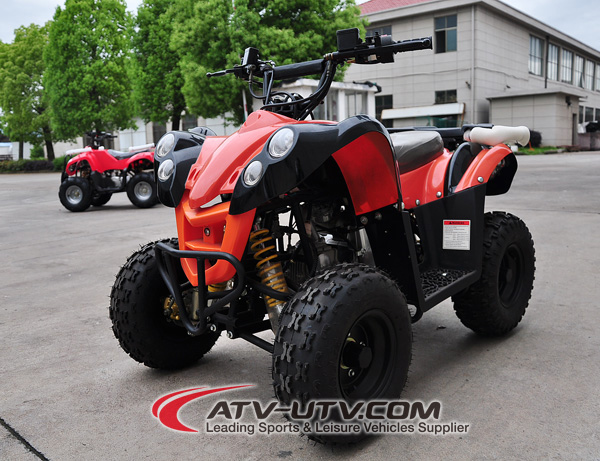

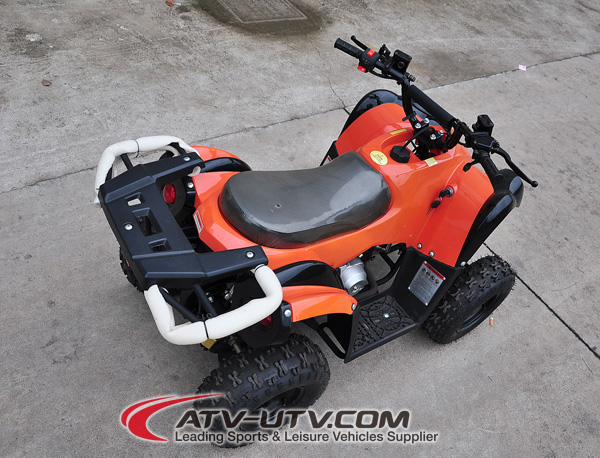

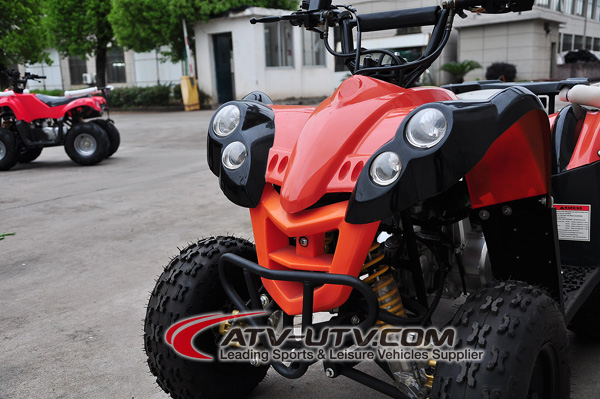

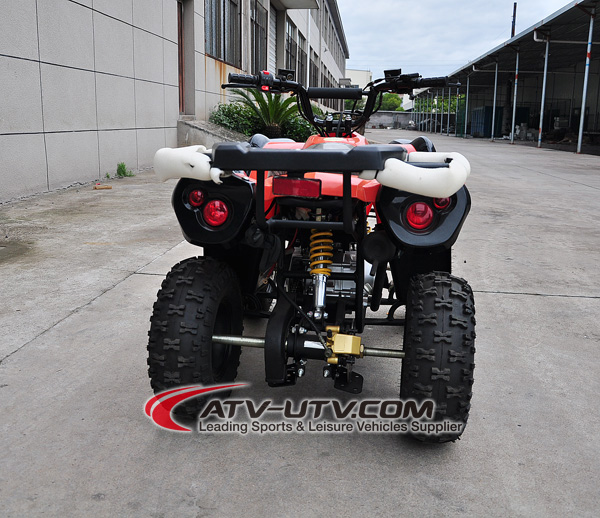

More Pictures:

Product Discription:

ATV
110cc ATV with electric start 4 stroke Gas Quad Bike with Air Cooled Engine
AT1102
1. engine type :110cc
2. max torque :7.2/6000(Nm/rpm)
3. max power :5.2/8500(kw/rpm)
4. ignition type :CDI
5. transmission :4-stroke,1-cylinder air-cooled
6.Brake (Front/Rear):Hydraulic disc/ Hydraulic disc
7. starting system :Electric start
8. battery spec :12V,4AH
9. Max Speed: 45(Km/h)
11. front tire spec : 145*70-6. rear tires spec : 145*70-6
12. wheel base :810mm
13. seat height from ground :600
14. ground clearance :105mm
15. load capacity :65kg
16. fuel tank capacity :2.5L
17. Product size:1200*750*870mm
18. Lubrication: Pressure and Splash
19. Compression Ratio: 9.1:1
20. Transmission: automatic
21. Final Drive: chain drive system
22. Colour: white,red,blue,orange,green in option
Package: Steel Frame+Carton
23. net weight :90kg
24. gross weight in carton :110kg
25. Carton size:1145x770x660mm
26. Container: 39pcs/20’,95pcs/40’,120pcs/40HQ
