New 110cc ATV with Hydraulic disc single Cylinder Air Cooled Quad bike

Item NO.:	AT1103
Category:	Gas ATV
Update:	6/26/2015 1:31:30 AM

Inquire

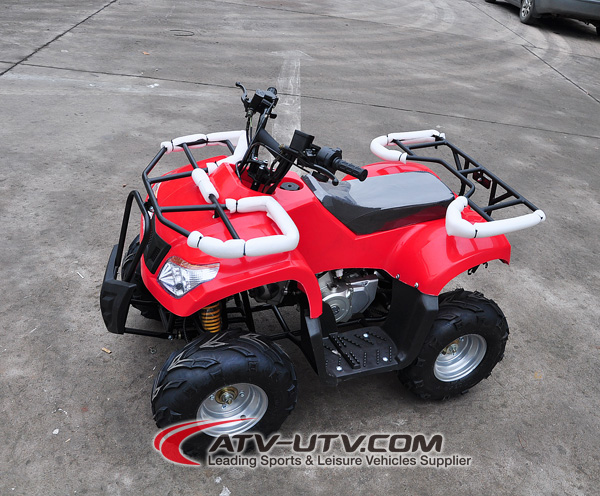

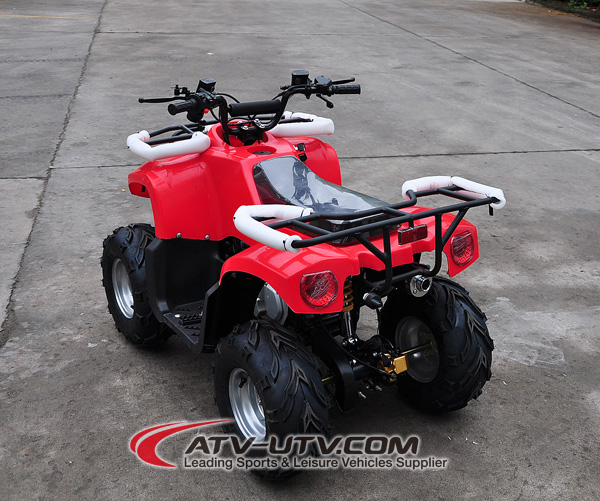

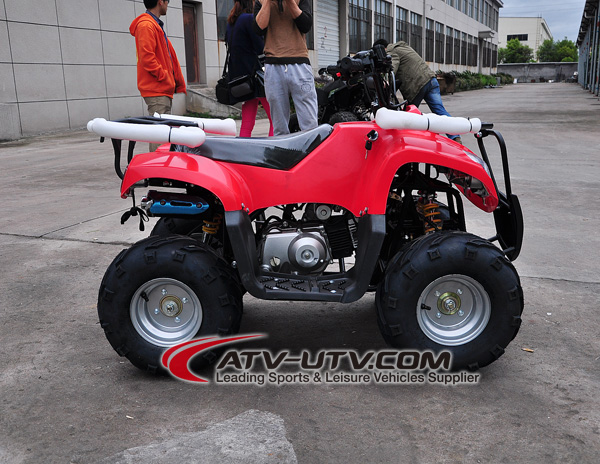

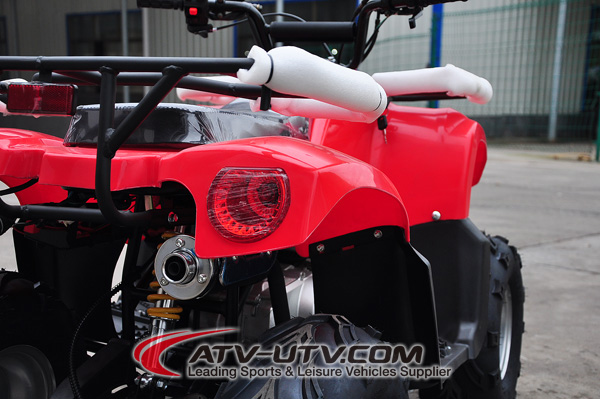

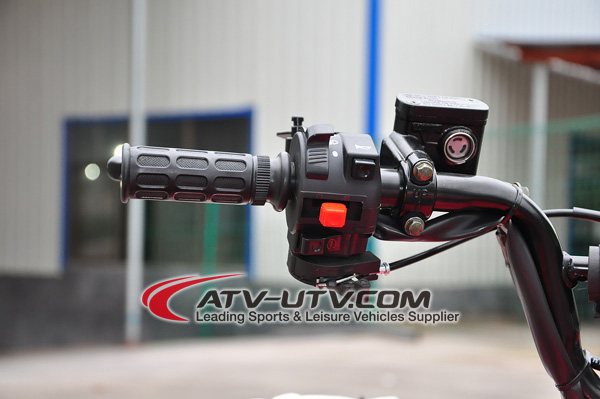

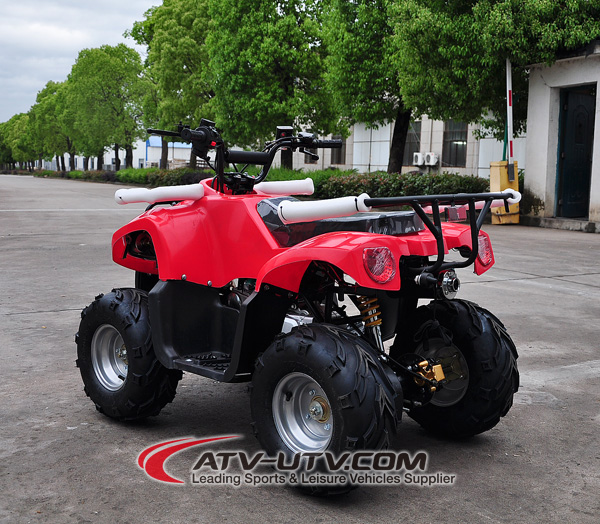

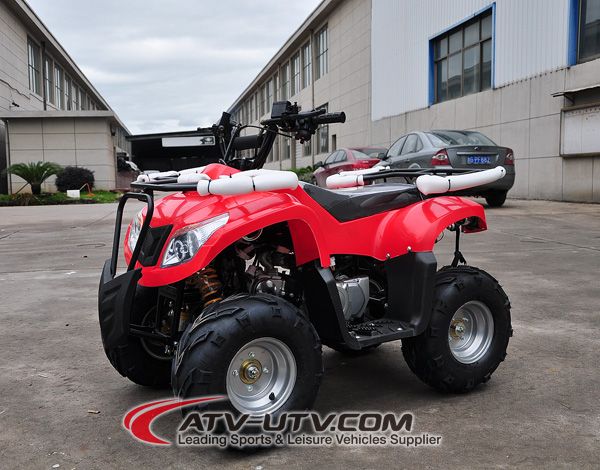

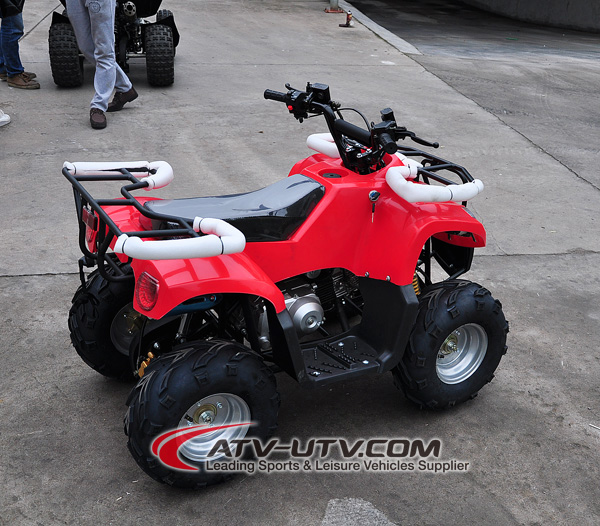

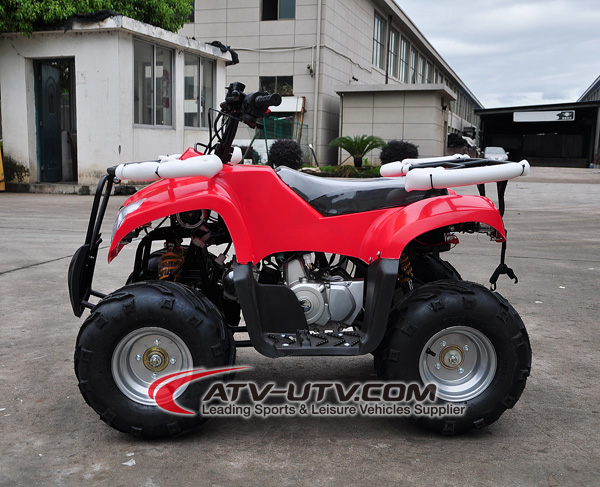

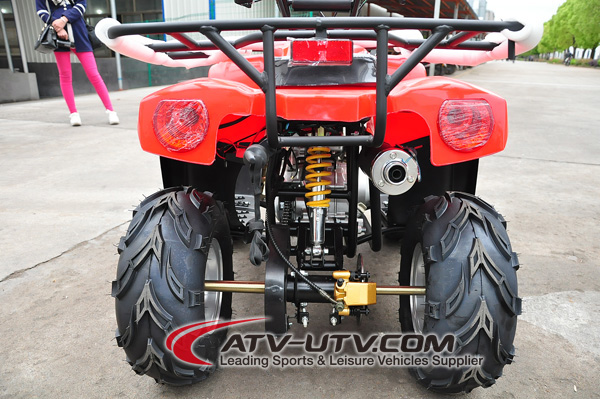

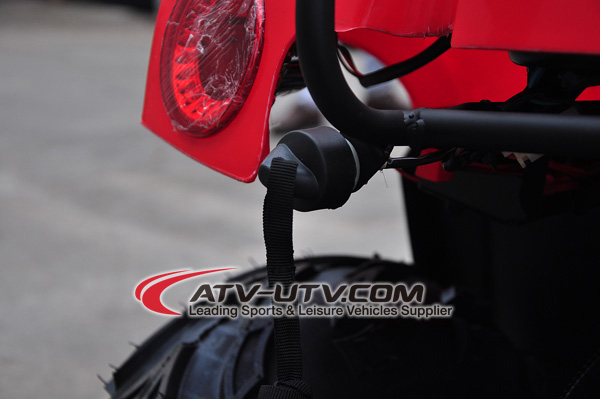

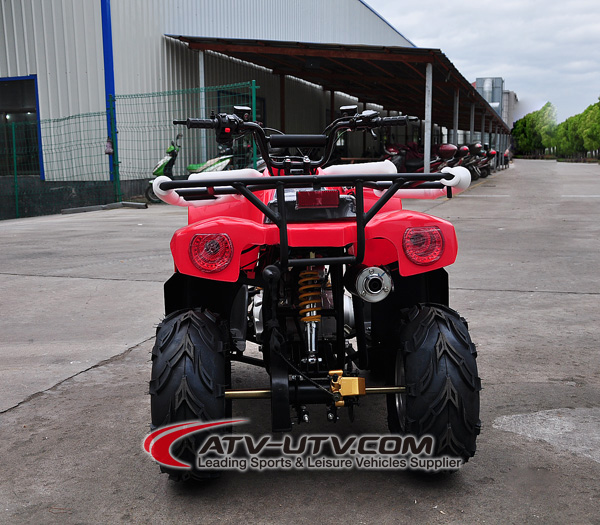

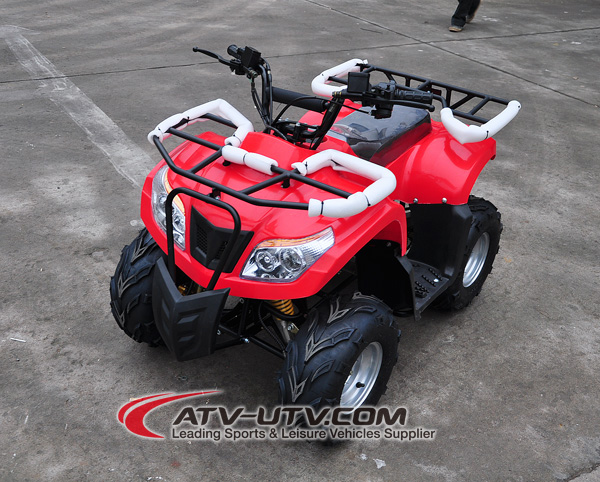

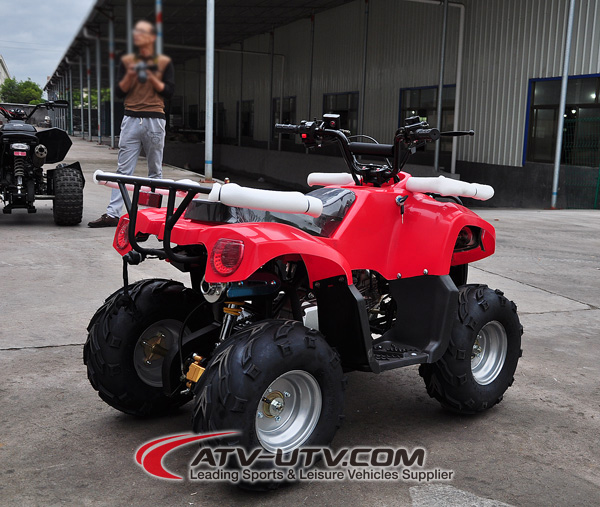

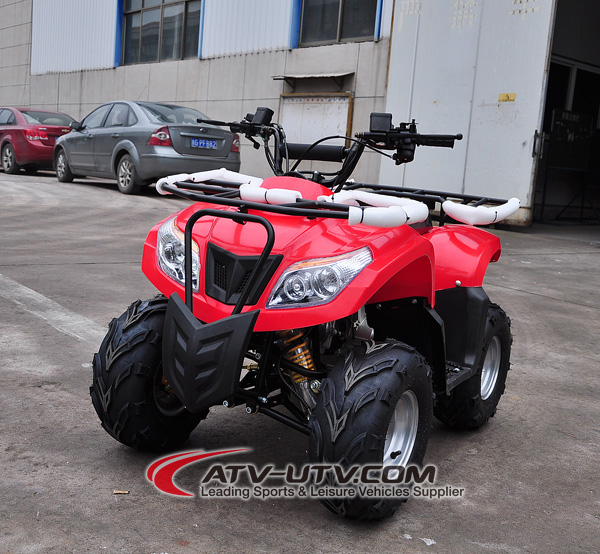

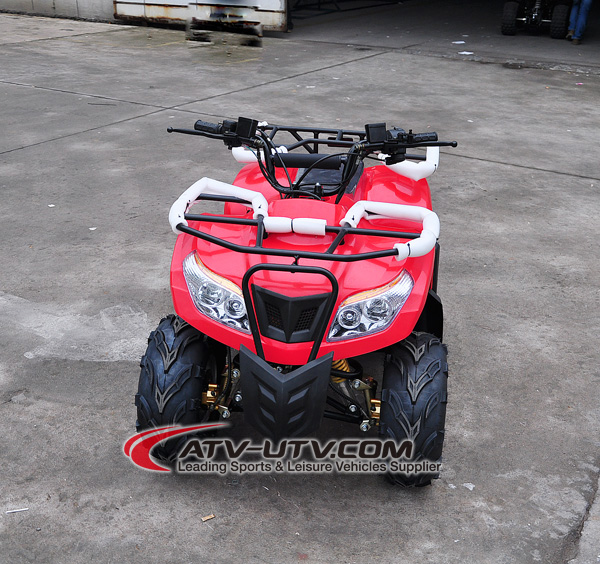

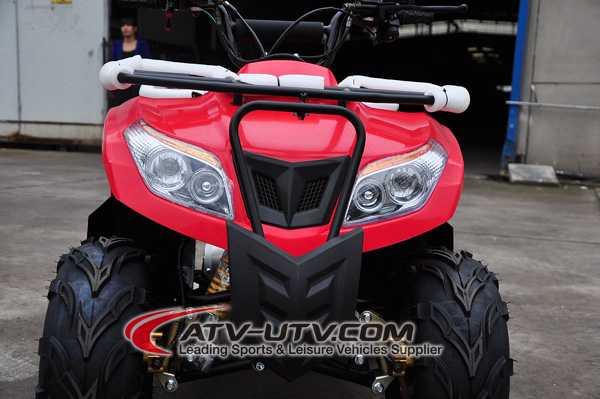

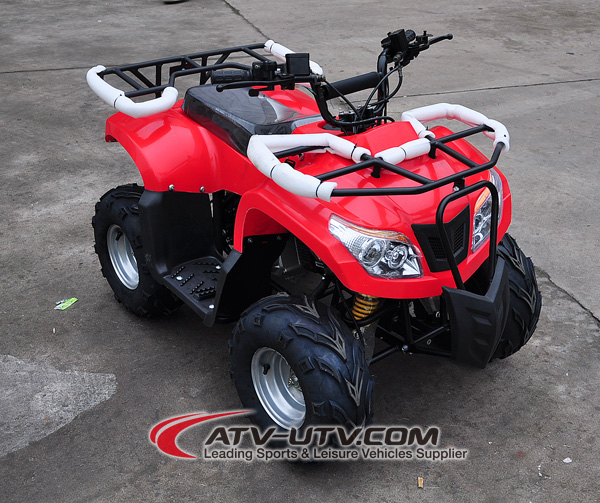

More Pictures:

Product Discription:

ATV
New 110cc ATV with Hydraulic disc single Cylinder Air Cooled Quad bike
AT1103
Key Specifications:
1. Engine Type: 4-stroke,1-cylinder,air-cooled
2. Product size:1380*810*920
3. Displacement:110cc
4. Max Power:5.2/8500(kw/rpm)
5. Max Torque:7.2/6000(Nm/rpm)
6. Starting:Electric
7. Ignition: C.D.I
8. Lubrication: Pressure and Splash
9. Compression Ratio: 9.1:1
10. Transmission:automatic
11. Final Drive: chain drive system

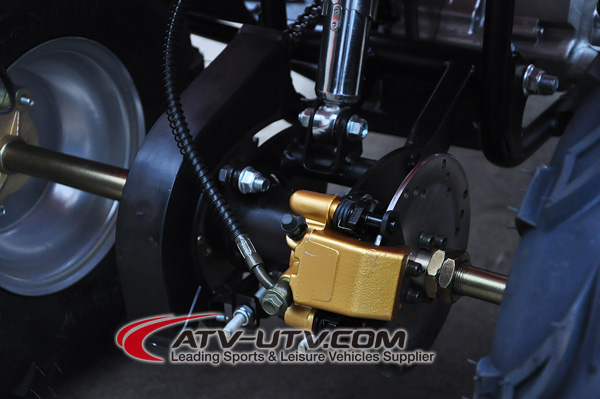

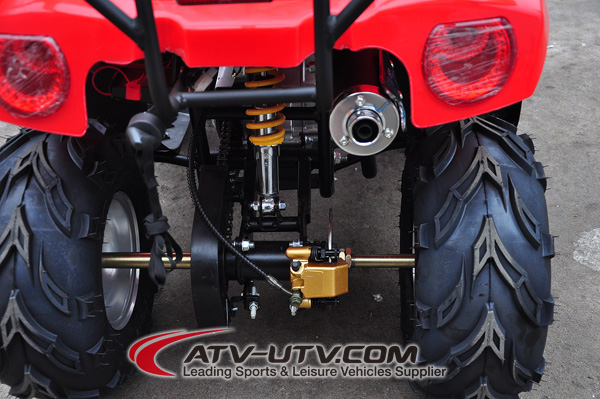

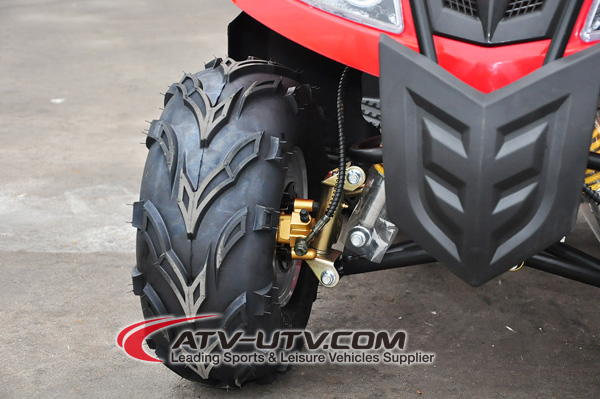

12. Front/Rear Brake:Front:Hydraulic disc; Rear:Hydraulic disc
13. Max Speed: 45(Km/h)
14. Fuel Capacity: 2.4(L)
15. Capacity Weight: 65(kg)
16. Battery: 12V4Ah
17. Wheel Base: 800(mm)
18. Front/Rear Tire: 200*55-7;200*55-7
19. Seat Height: 800
20. Mini Ground Clearance:125(mm)
21. Color:black,red,blue,yellow,green, camo(+$6.30)
Package: Iron cage with carton outside
22. Net Weight: 90(kgs)
23. Gross Weight: 112(kgs)
24. Product size: 1380*810*920
25. Carton Size: 1320*770*660
26. Container capacity: 36pcs/20GP; 108pcs/40HQ
