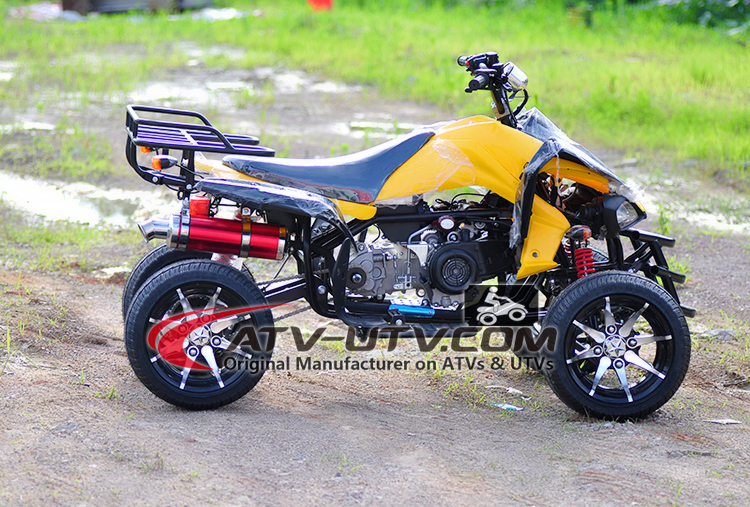

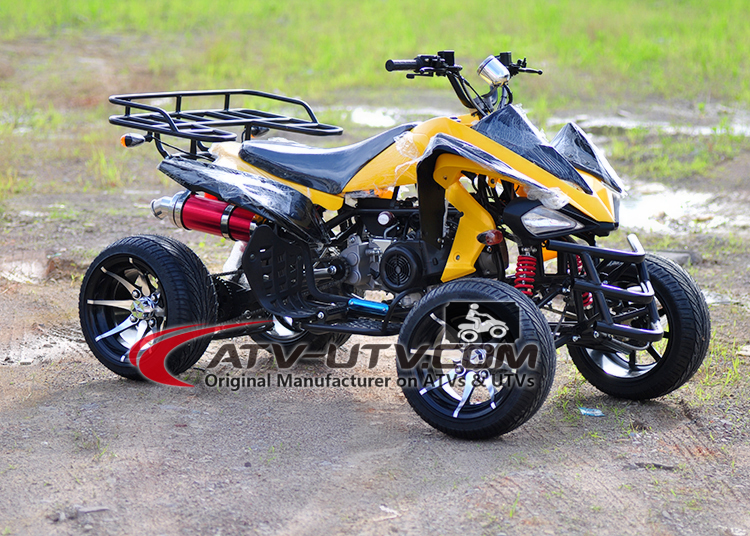

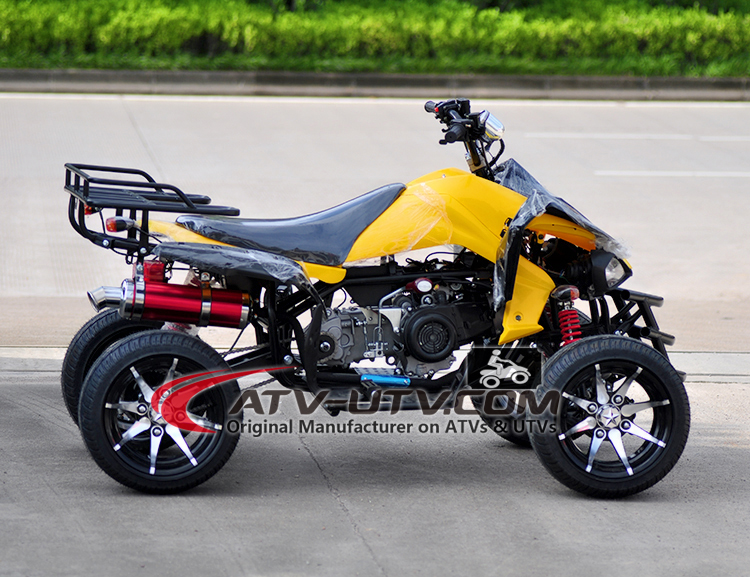

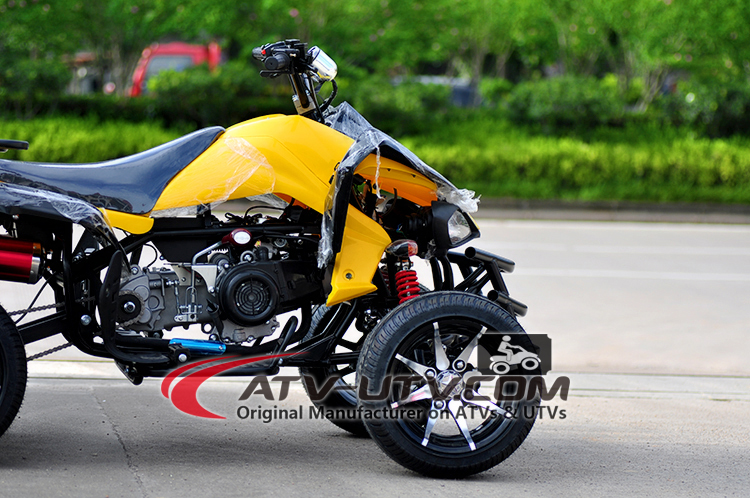

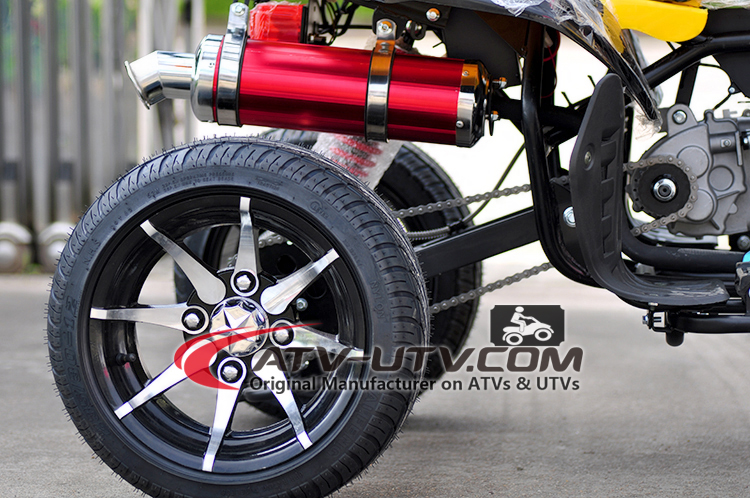

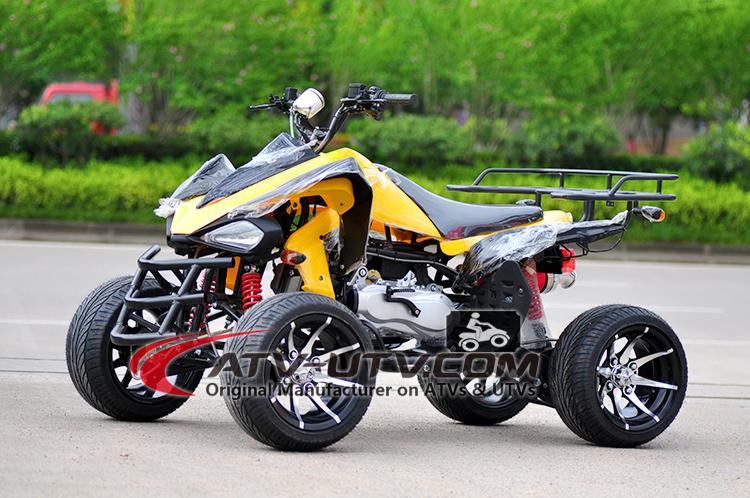

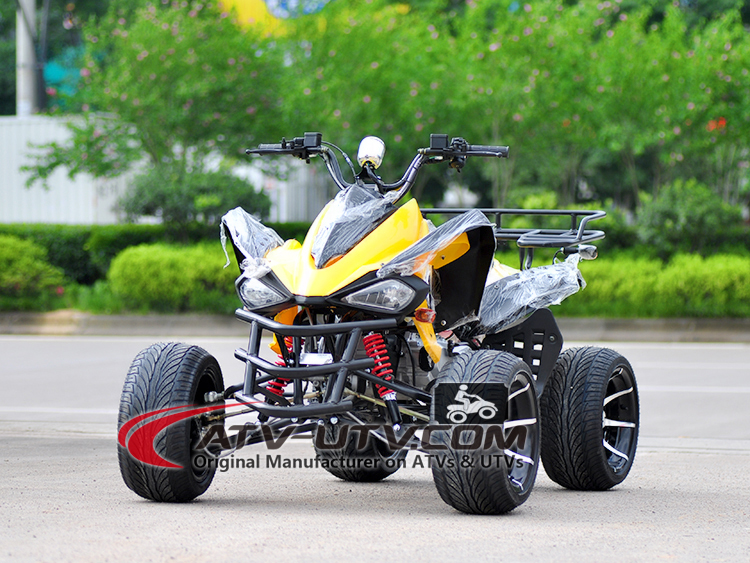

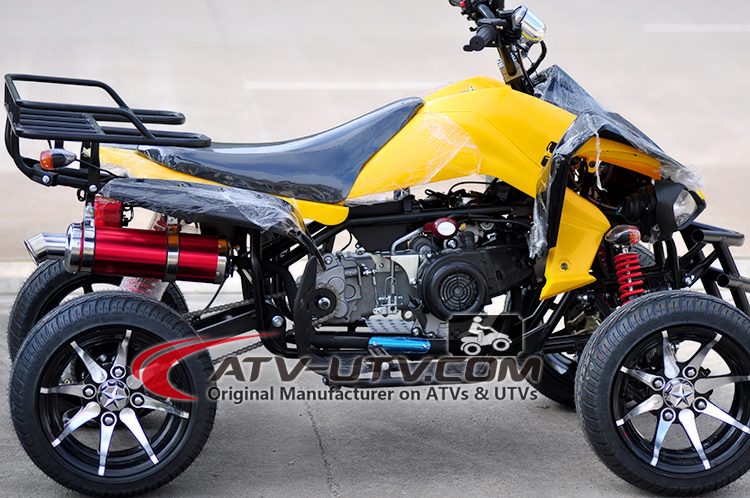

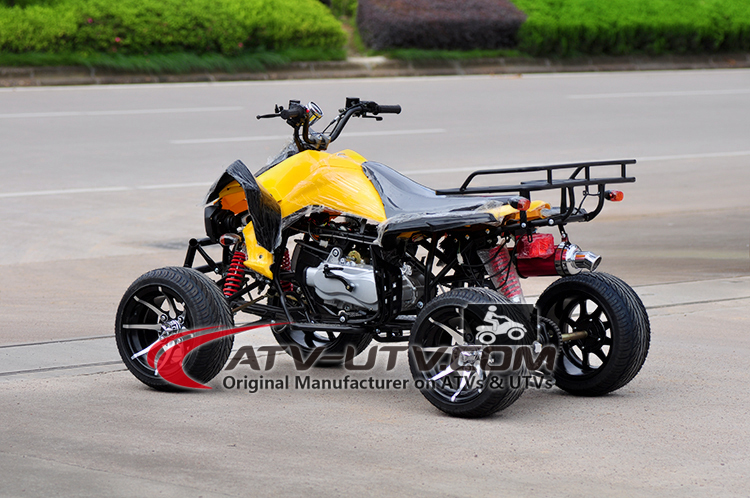

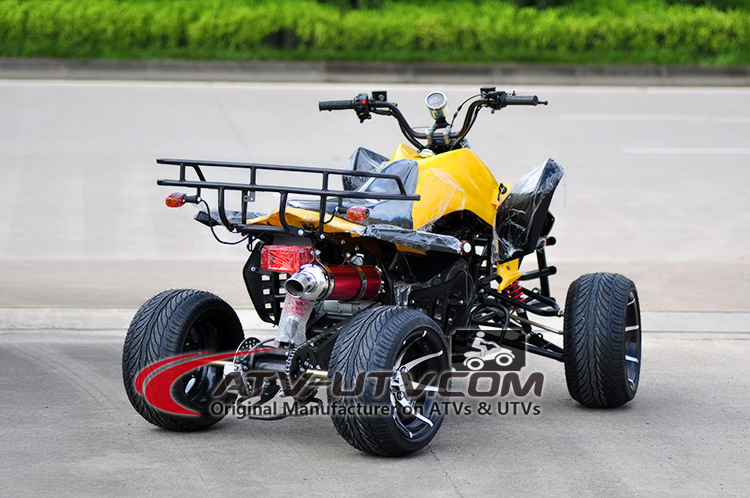

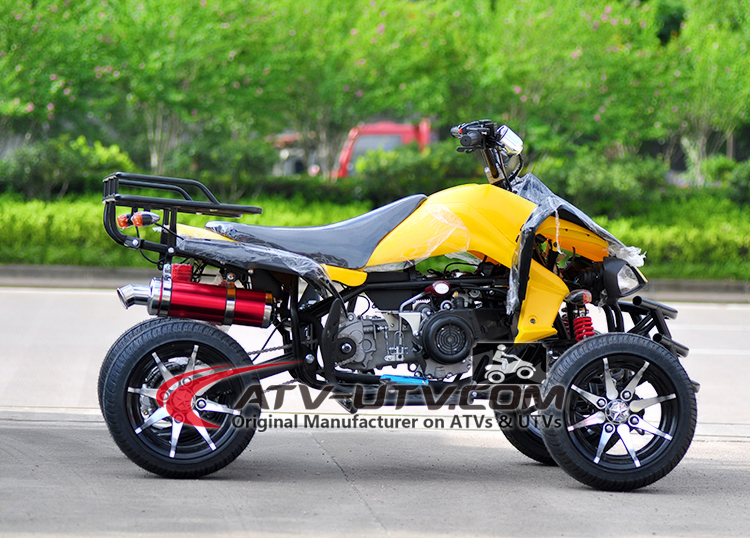

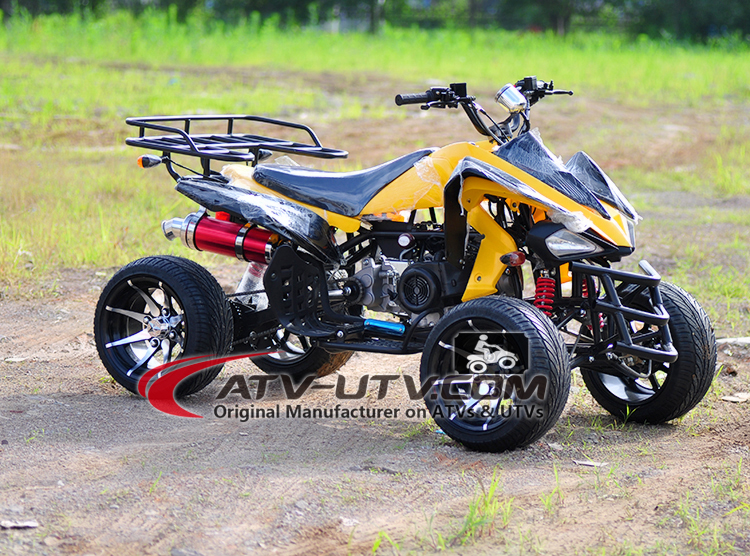

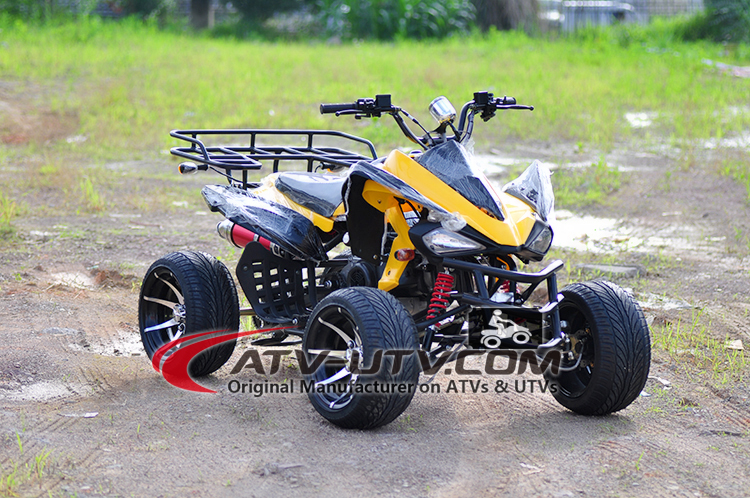

Gas-Powered 4-Stroke 150CC ATV Mono Shock Swing Arm Quad Bike

Item NO.:	AT1507
Category:	Gas ATV
Update:	7/4/2016 2:43:51 AM

Inquire

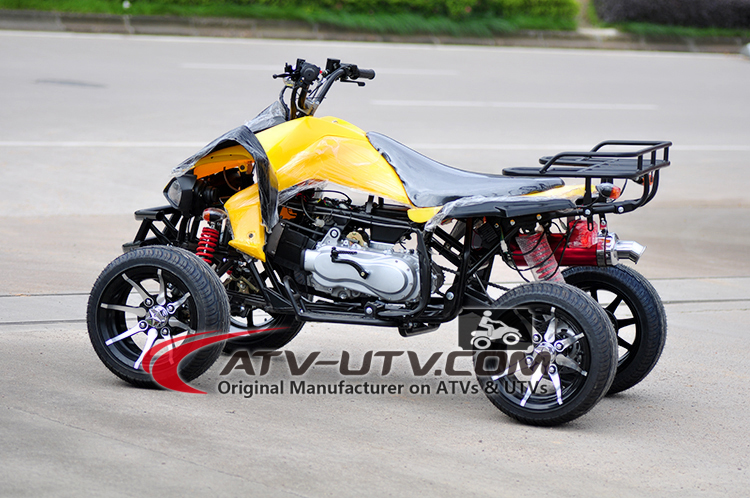

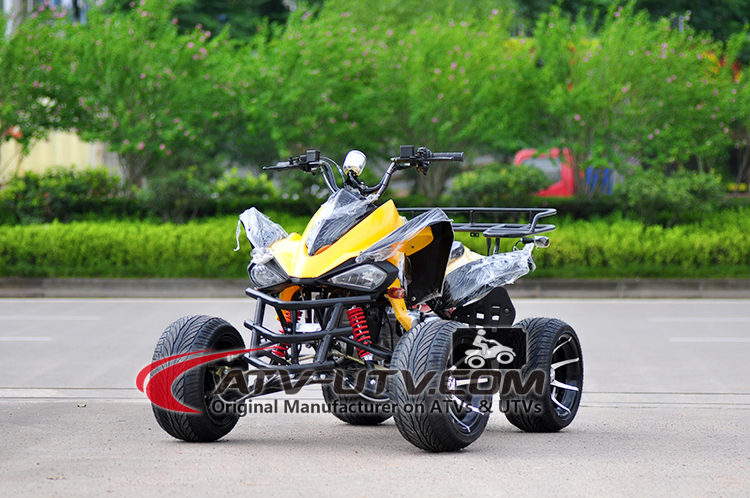

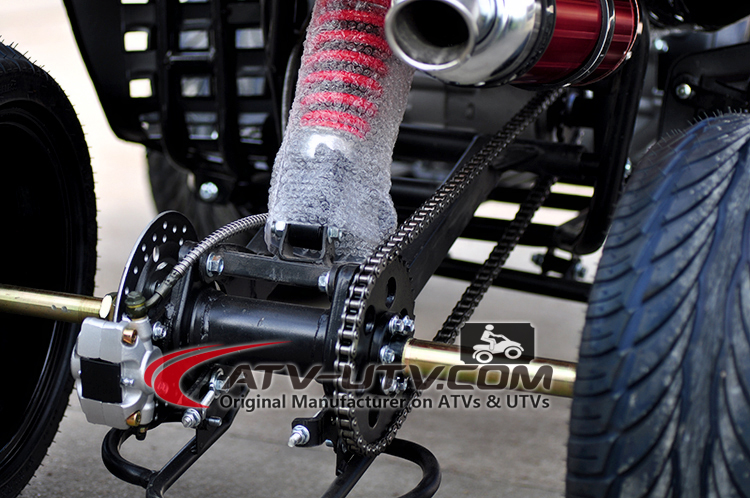

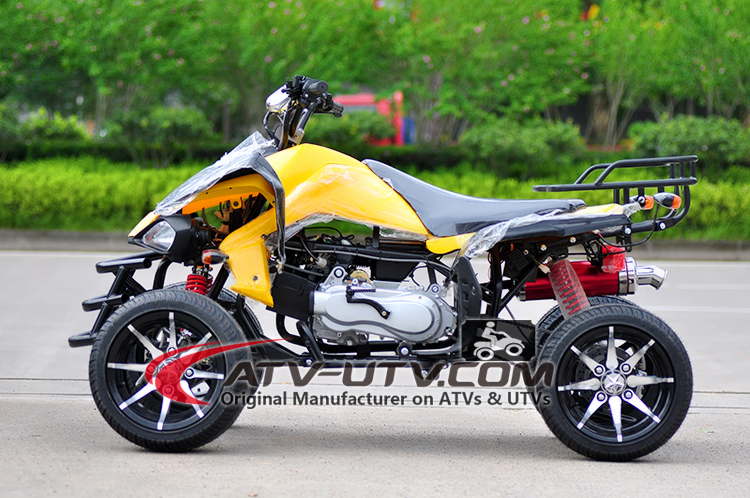

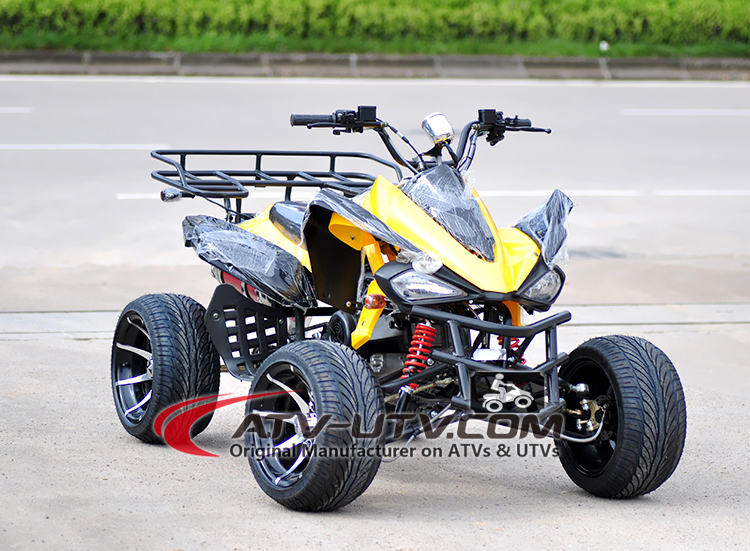

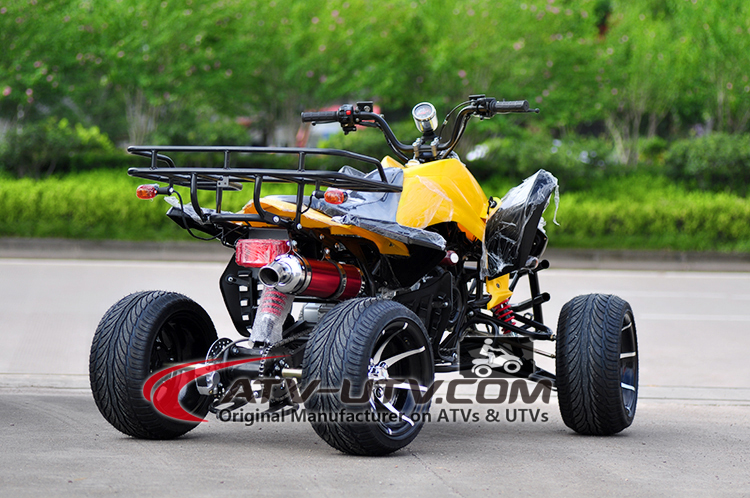

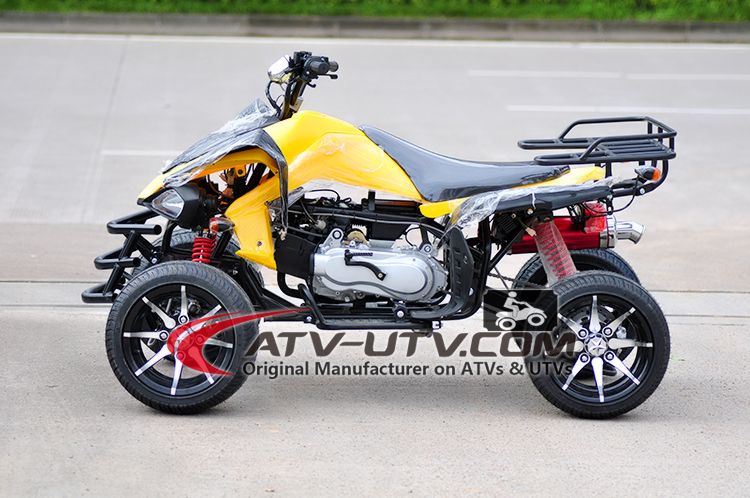

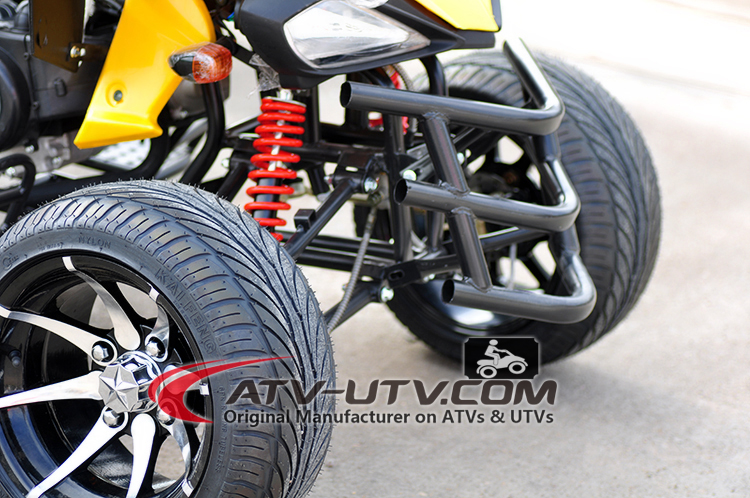

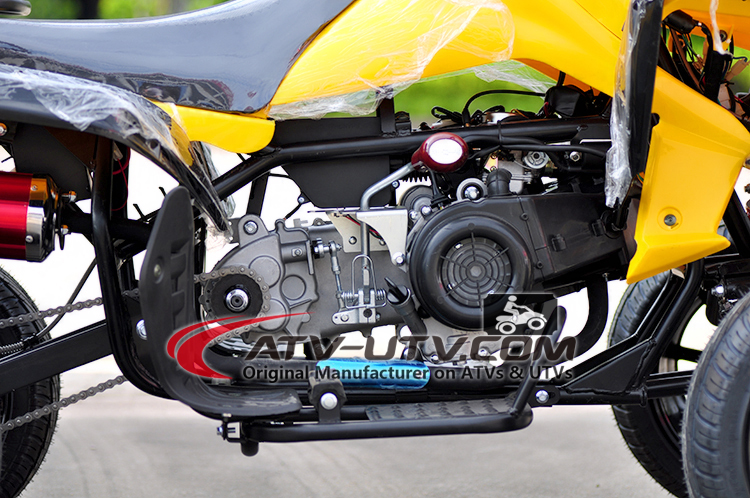

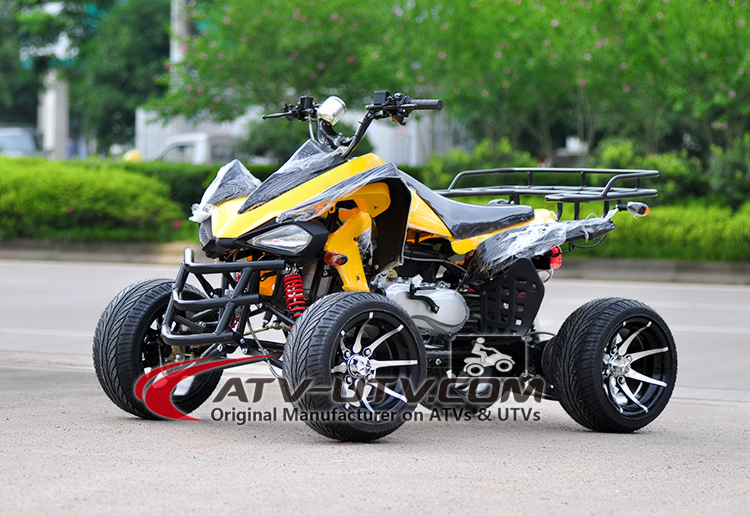

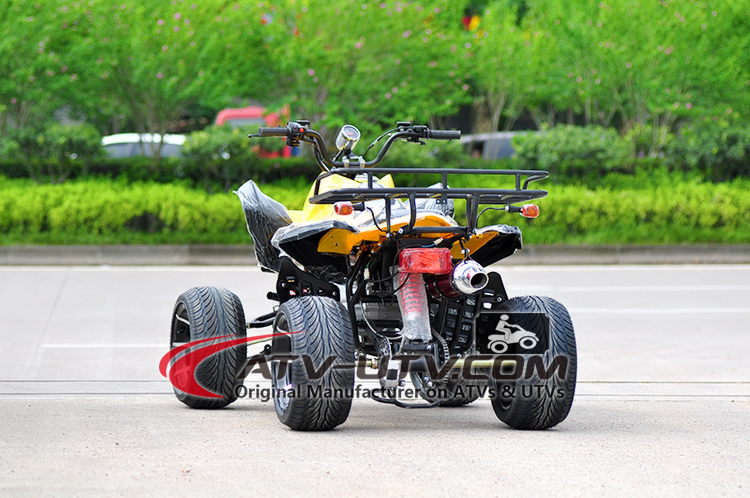

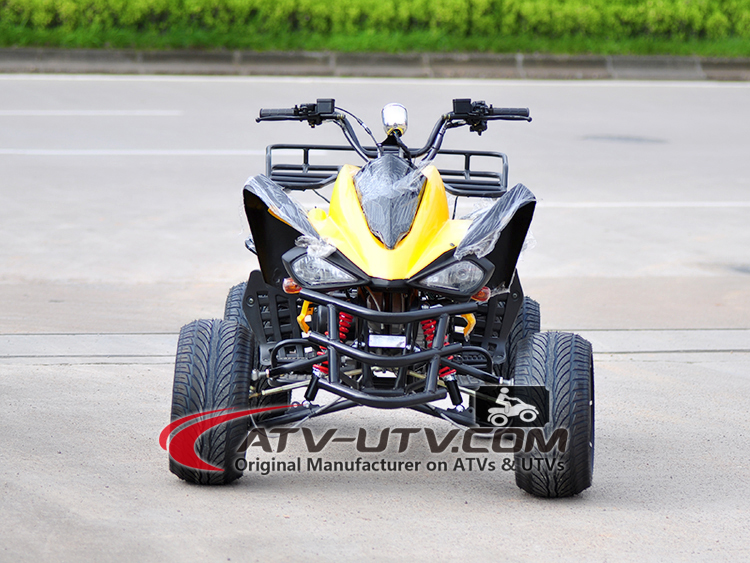

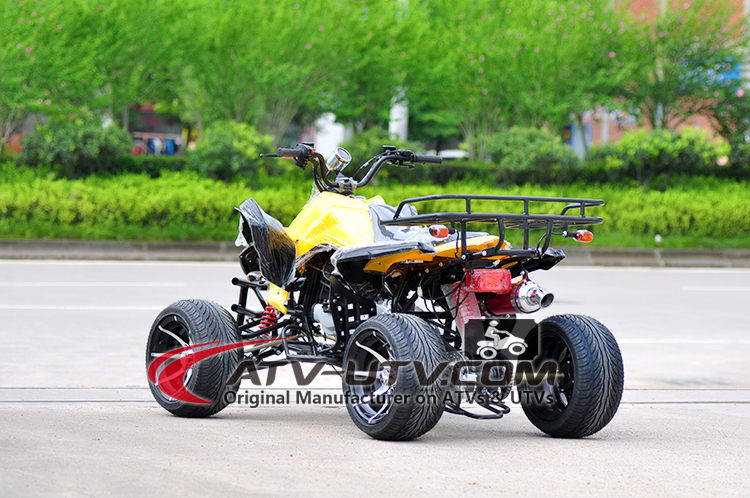

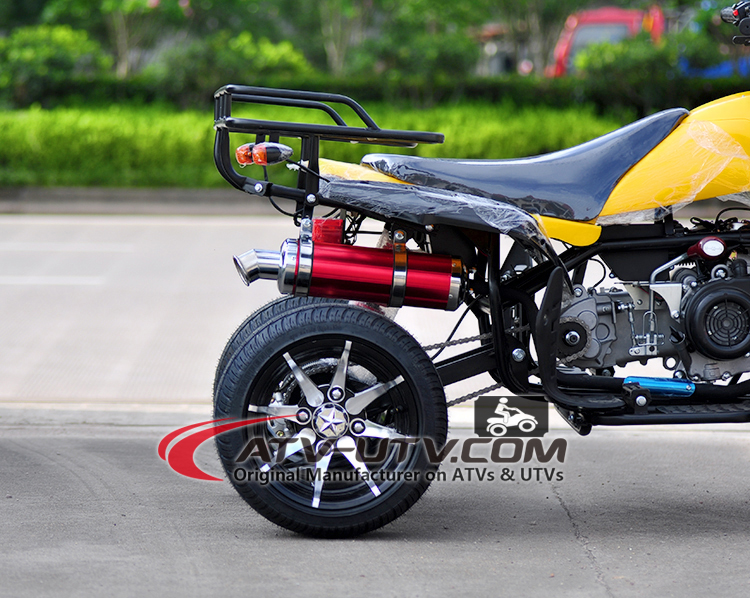

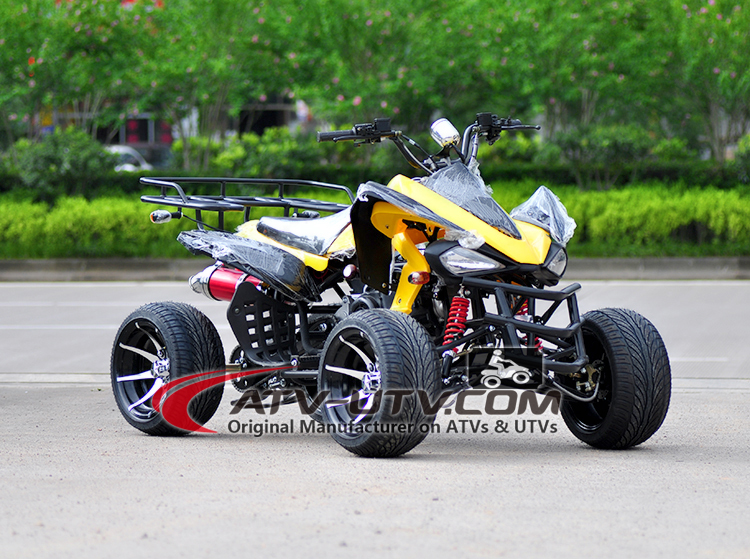

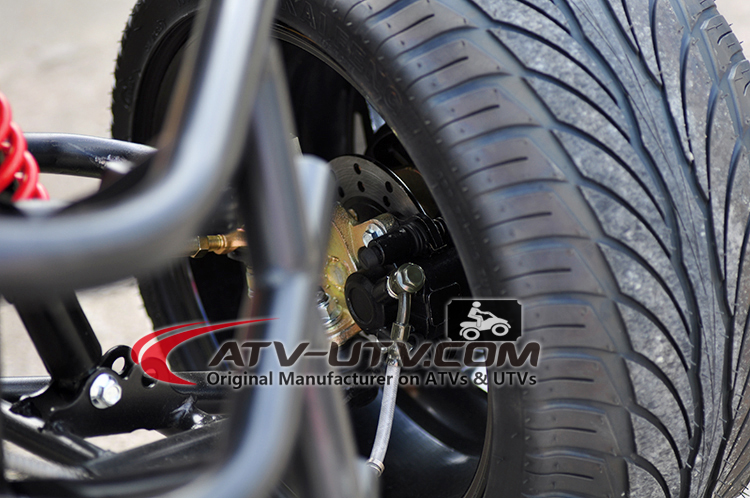

More Pictures:

Product Discription:

ATV
Gas-Powered 4-Stroke 150CC ATV Mono Shock Swing Arm Quad Bike
AT1507-A
Key Specifications:

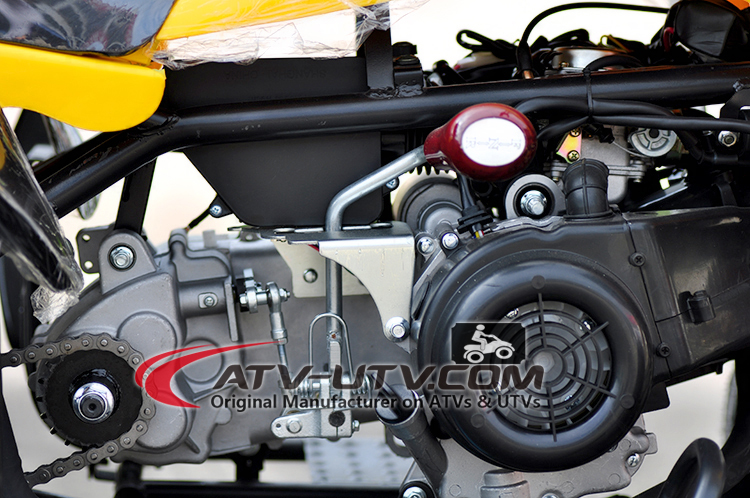

1. engine type :150cc,4 storke
2. max torque :10Nm/5500rpm
3. max power :9.3kw/7500rpm
4. ignition type :CDI
5. transmission :automatic

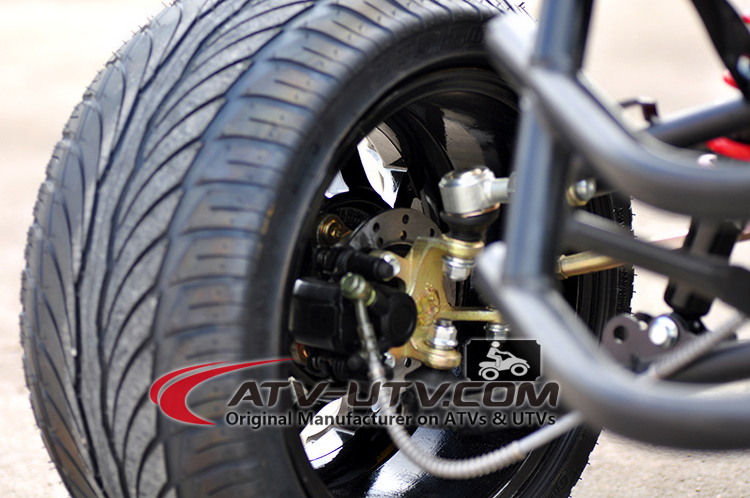

6. Brake (Front/Rear):Drum/Disc
7. starting system :Electric start
8. battery spec :12V,9AH

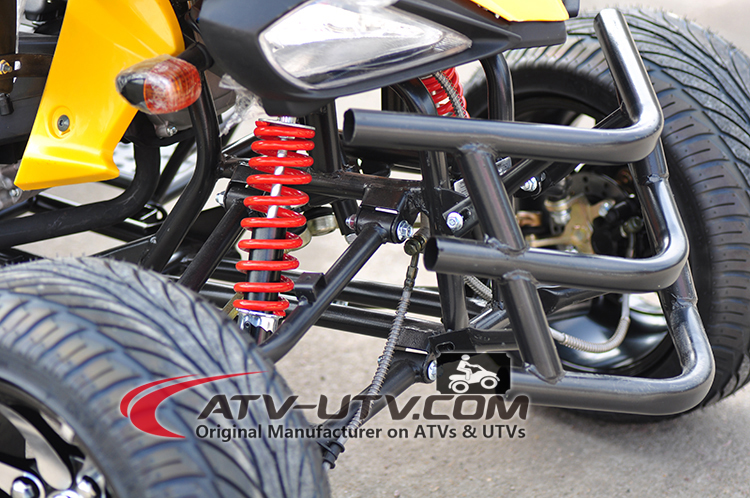

9. front suspension details :double A x swing arm
10. rear suspension details :mono shock swing arm

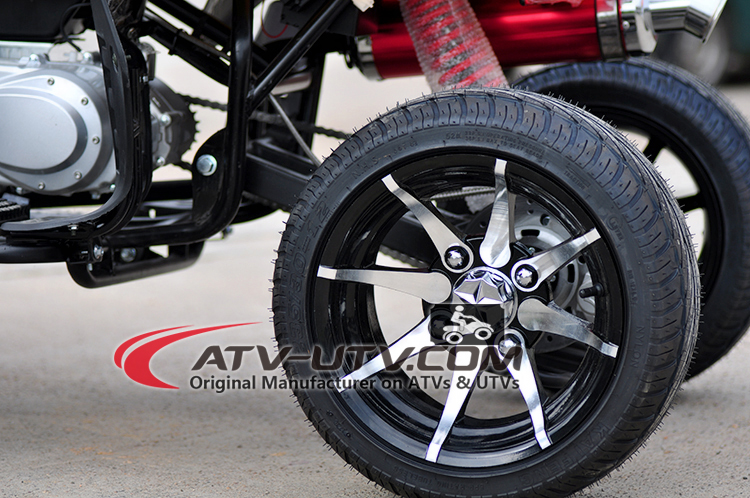

11. front tire spec : 19X7-8 rear tires spec : 18X9.5-8
12. vehicle dimensions :158x120x110cm
13. wheel base :1150mm
14. seat height from ground :84cm
15. ground clearance :130mm
16. load capacity :150kg
17. fuel tank capacity :4.5L
Package:
18. net weight :178kg
19. gross weight in carton :193kg
20. Carton size:149X84X75CM
21. Container: 20pcs/20ft,30pcs/40ft,36pcs/40HQ

ATV
Gas-Powered 4-Stroke 200CC ATV
AT1507-B
Key Specifications:
22. engine type :200cc,4 storke
23. max torque :10Nm/5500rpm
24. max power :9.3kw/7500rpm
25. ignition type :CDI
26. transmission :automatic
27. Brake (Front/Rear):Drum/Disc
28. starting system :Electric start
29. battery spec :12V,9AH
30. front suspension details :double A x swing arm
31. rear suspension details :mono shock swing arm
32. front tire spec : 19X7-8 rear tires spec : 18X9.5-8
33. vehicle dimensions :158x120x110cm
34. wheel base :1150mm
35. seat height from ground :84cm
36. ground clearance :130mm
37. load capacity :150kg
38. fuel tank capacity :4.5L
Package:
39. net weight :178kg
40. gross weight in carton :193kg
41. Carton size:149X84X75CM
42. Container: 20pcs/20ft,30pcs/40ft,36pcs/40HQ
